LT-18

STOP LAMP

STOP LAMP

PFP:26550

Wiring Diagram — STOP/L —

EKS006VK

WKWA0832E

BACK-UP LAMP

LT-19

C

D

E

F

G

H

I

J

L

M

A

B

LT

BACK-UP LAMP

PFP:26550

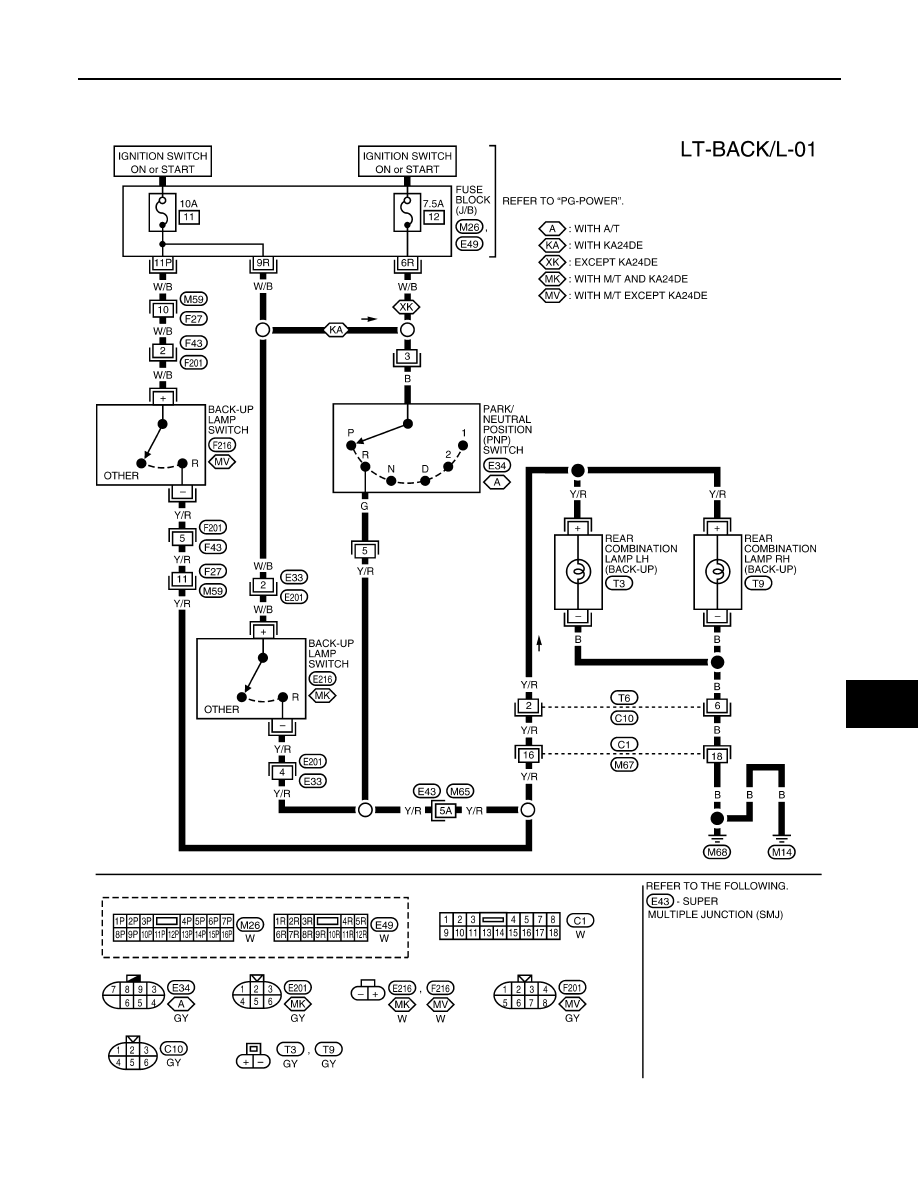

Wiring Diagram — BACK/L —

EKS006VL

WKWA0833E

LT-20

FRONT FOG LAMP

FRONT FOG LAMP

PFP:26150

System Description

EKS006VM

Power is supplied at all times

through 15A fuse (No. 40, located in the fuse and fusible link box)

to front fog lamp relay terminal 5 and

through 15A fuse (No. 37, located in the fuse and fusible link box)

to lighting switch terminal 5.

With the lighting switch in the headlamp ON (2ND) position and low beam (B) position, power is supplied

through lighting switch terminal 7

to front fog lamp switch terminal 31.

FRONT FOG LAMP OPERATION

The front fog lamp switch is built into the combination switch. The lighting switch must be in the headlamp ON
(2ND) position and low beam (B) position for front fog lamp operation.
With the front fog lamp switch in the ON position:

power is supplied to front fog lamp relay terminal 2

through front fog lamp switch terminal 32

through front fog lamp switch terminal 31.

The front fog lamp relay is energized and power is supplied

through front fog lamp relay terminal 3

to front fog lamp LH/RH terminal 1.

Ground is supplied to front fog lamp LH/RH terminal 2 and front fog lamp relay terminal 1 through body
grounds E12 and E54.
With power and ground supplied, the front fog lamps illuminate.

FRONT FOG LAMP

LT-21

C

D

E

F

G

H

I

J

L

M

A

B

LT

Wiring Diagram — F/FOG —

EKS006VN

WKWA0834E
