PRECAUTIONS

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EKS006V3

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system may include seat belt switch inputs and dual stage front air bag modules. If
equipped with dual stage front air bag modules, the SRS system uses the seat belt switches to determine the
front air bag deployment, and may only deploy one front air bag, depending on the severity of a collision and
whether the front occupants are belted or unbelted. Information necessary to service the system safely is
included in the SRS and SB section of this Service Manual.

The vehicle may be equipped with a passenger air bag deactivation switch. Because no rear seat exists where
a rear-facing child restraint can be placed, the switch is designed to turn off the passenger air bag so that a
rear-facing child restraint can be used in the front passenger seat. The switch is located in the center of the
instrument panel, near the ashtray. When the switch is turned to the ON position, the passenger air bag is
enabled and could inflate for certain types of collision. When the switch is turned to the OFF position, the pas-
senger air bag is disabled and will not inflate. A passenger air bag OFF indicator on the instrument panel lights
up when the passenger air bag is switched OFF. The driver air bag always remains enabled and is not affected
by the passenger air bag deactivation switch.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

The vehicle may be equipped with a passenger air bag deactivation switch which can be operated
by the customer. When the passenger air bag is switched OFF, the passenger air bag is disabled
and will not inflate. When the passenger air bag is switched ON, the passenger air bag is enabled
and could inflate for certain types of collision. After SRS maintenance or repair, make sure the
passenger air bag deactivation switch is in the same position (ON or OFF) as when the vehicle
arrived for service.

Wiring Diagrams and Trouble Diagnosis

EKS006V4

When you read wiring diagrams, refer to the following:

GI-13, "How to Read Wiring Diagrams"

PG-9, "POWER SUPPLY ROUTING"

When you perform trouble diagnosis, refer to the following:

GI-9, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES"



GI-25, "How to Perform Efficient Diagnosis for an Electrical Incident"

Check for any Service bulletins before servicing the vehicle.

COMBINATION SWITCH

LT-3

C

D

E

F

G

H

I

J

L

M

A

B

LT

COMBINATION SWITCH

PFP:25567

Check

EKS006V6

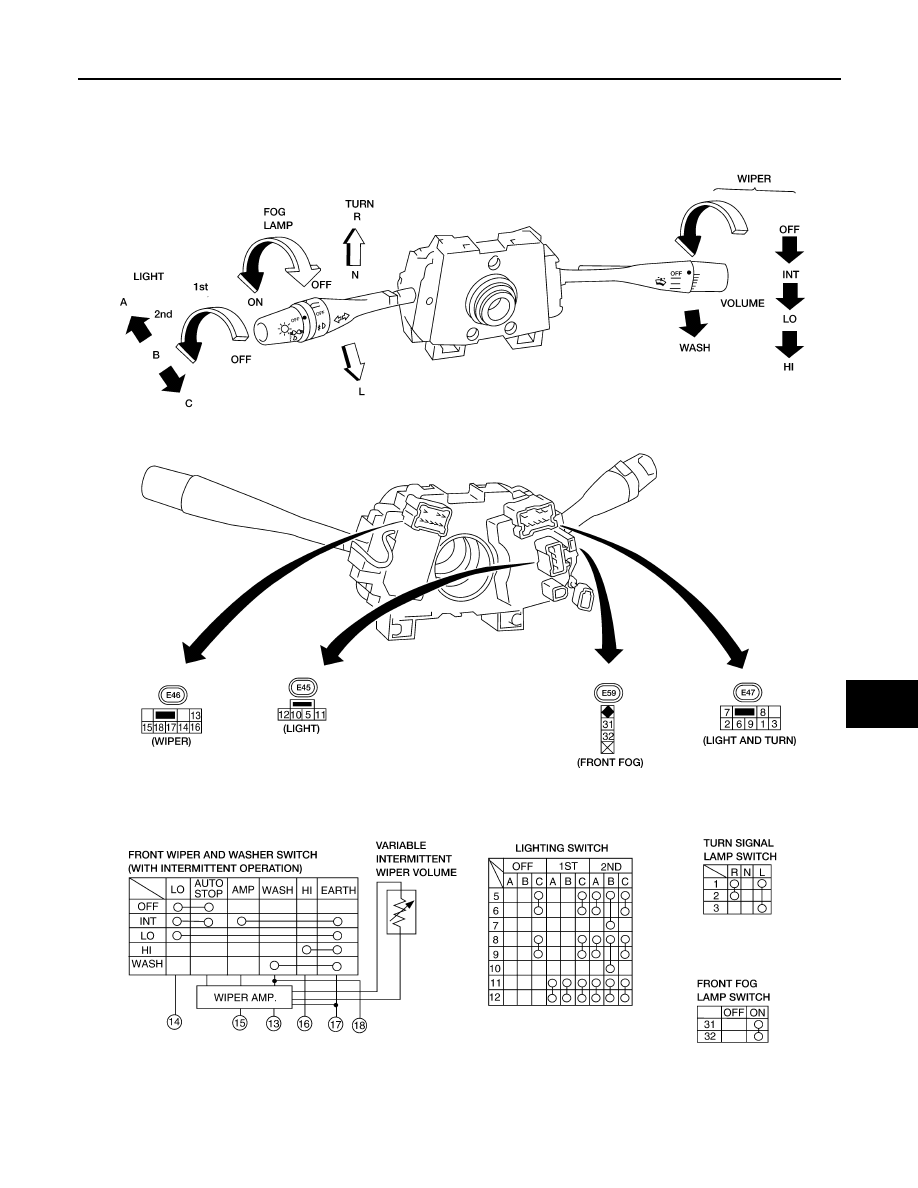

WKIA0296E

LT-4

COMBINATION SWITCH

Replacement

EKS006V7

For removal and installation of spiral cable, refer to

SRS-42,

"DRIVER AIR BAG MODULE AND SPIRAL CABLE"

 .

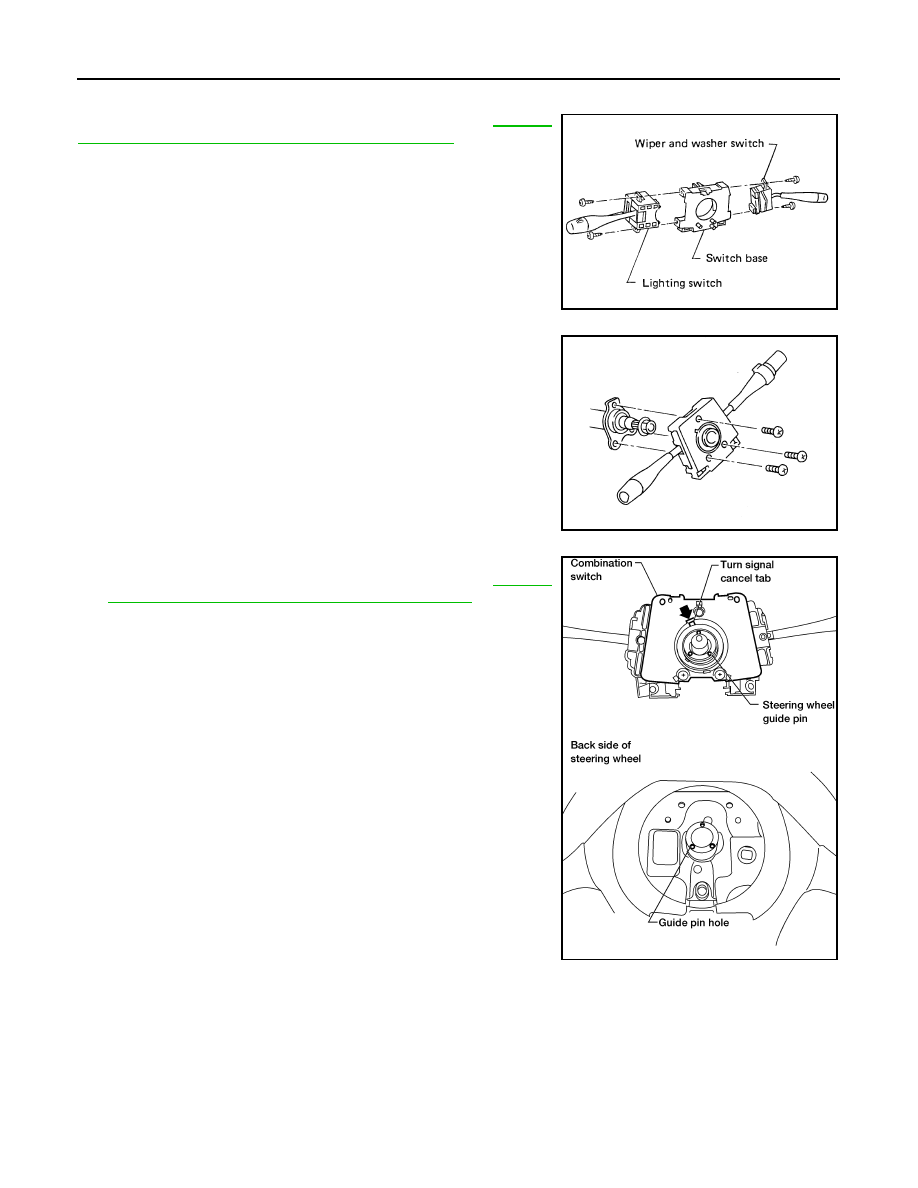

Each switch can be replaced without removing combination
switch base.

To remove combination switch base, remove base attaching
screws.

Before installing the steering wheel, align the turn signal cancel
tab with the notch of the combination switch. Refer to

SRS-42,

"DRIVER AIR BAG MODULE AND SPIRAL CABLE"

 .

SEL865L

MEL205B

ARS152

HEADLAMP (FOR USA)

LT-5

C

D

E

F

G

H

I

J

L

M

A

B

LT

HEADLAMP (FOR USA)

PFP:26010

System Description

EKS006V8

The headlamps are controlled by the lighting switch which is built into the combination switch.
Power is supplied at all times

through 15A fuse (No. 37, located in the fuse and fusible link box)

to lighting switch terminal 8 and

through 15A fuse (No. 38, located in the fuse and fusible link box)

to lighting switch terminal 5.

LOW BEAM OPERATION

With the lighting switch in the headlamp ON (2ND) position and low beam (B) position, power is supplied

from lighting switch terminal 7

to headlamp LH terminal D and

from lighting switch terminal 10

to headlamp RH terminal D.

Ground is supplied to headlamp LH/RH terminal E through body grounds E12 and E54.
With power and ground supplied, the low beams illuminate.

HIGH BEAM OPERATION/FLASH-TO-PASS OPERATION

With the lighting switch in the flash-to-pass (C) position or the headlamp ON (2ND) position and high beam (A)
position, power is supplied

from lighting switch terminal 6

to headlamp LH terminal M and

from lighting switch terminal 9

to headlamp RH terminal M and

to combination meter terminal 11 for the high beam indicator.

Ground is supplied to terminal 10 of the combination meter through body grounds M14 and M68.
Ground is supplied to headlamp LH/RH terminal E through body grounds E12 and E54.
With power and ground supplied, the high beams and the high beam indicator illuminate.

VEHICLE SECURITY SYSTEM

The vehicle security system will flash the high beams if the system is triggered. Refer to

BL-45, "System

Description"

 .
