GW-8

SQUEAK AND RATTLE TROUBLE DIAGNOSIS

DIAGNOSTIC WORKSHEET

LIWA0276E

SQUEAK AND RATTLE TROUBLE DIAGNOSIS

GW-9

C

D

E

F

G

H

J

K

L

M

A

B

GW

ABT469

GW-10

WINDSHIELD AND WINDOWS

WINDSHIELD AND WINDOWS

PFP:72700

Removal and Installation

EIS002CS

REMOVAL

After removing moldings, remove glass using piano wire or power
cutting tool and an inflatable pump bag.

WARNING:

When cutting the glass from the vehicle, always wear safety
glasses and heavy gloves to help prevent glass splinters from
entering your eyes or cutting your hands.

CAUTION:

●

Be careful not to scratch the glass when removing.

●

Do not set or stand the glass on its edge. Small chips may
develop into cracks.

INSTALLATION

●

Use genuine NISSAN Urethane Adhesive Kit or equivalent and follow the instructions furnished
with it.

●

While the urethane adhesive is curing, open a door window. This will prevent the glass from being
forced out by passenger compartment air pressure when a door is closed.

●

The molding must be installed securely so that it is in position and leaves no gap.

●

Inform the customer that the vehicle should remain stationary until the urethane adhesive has
completely cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

●

Keep heat and open flames away as primers and adhesive are flammable.

●

The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid
contact with the skin and eyes.

●

Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if
inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.

●

Driving the vehicle before the urethane adhesive has completely cured may affect the perfor-
mance of the windshield in case of an accident.

SBF034B

SBT472

SBT473

WINDSHIELD AND WINDOWS

GW-11

C

D

E

F

G

H

J

K

L

M

A

B

GW

CAUTION:

●

Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six
months after the date of manufacture. Carefully adhere to the expiration or manufacture date
printed on the box.

●

Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

●

Do not leave primers or adhesive cartridge unattended with their caps open or off.

●

The vehicle should not be driven for at least 24 hours or until the urethane adhesive has com-
pletely cured. Curing time varies depending on temperature and humidities. The curing time will
increase under higher temperatures and lower humidities.

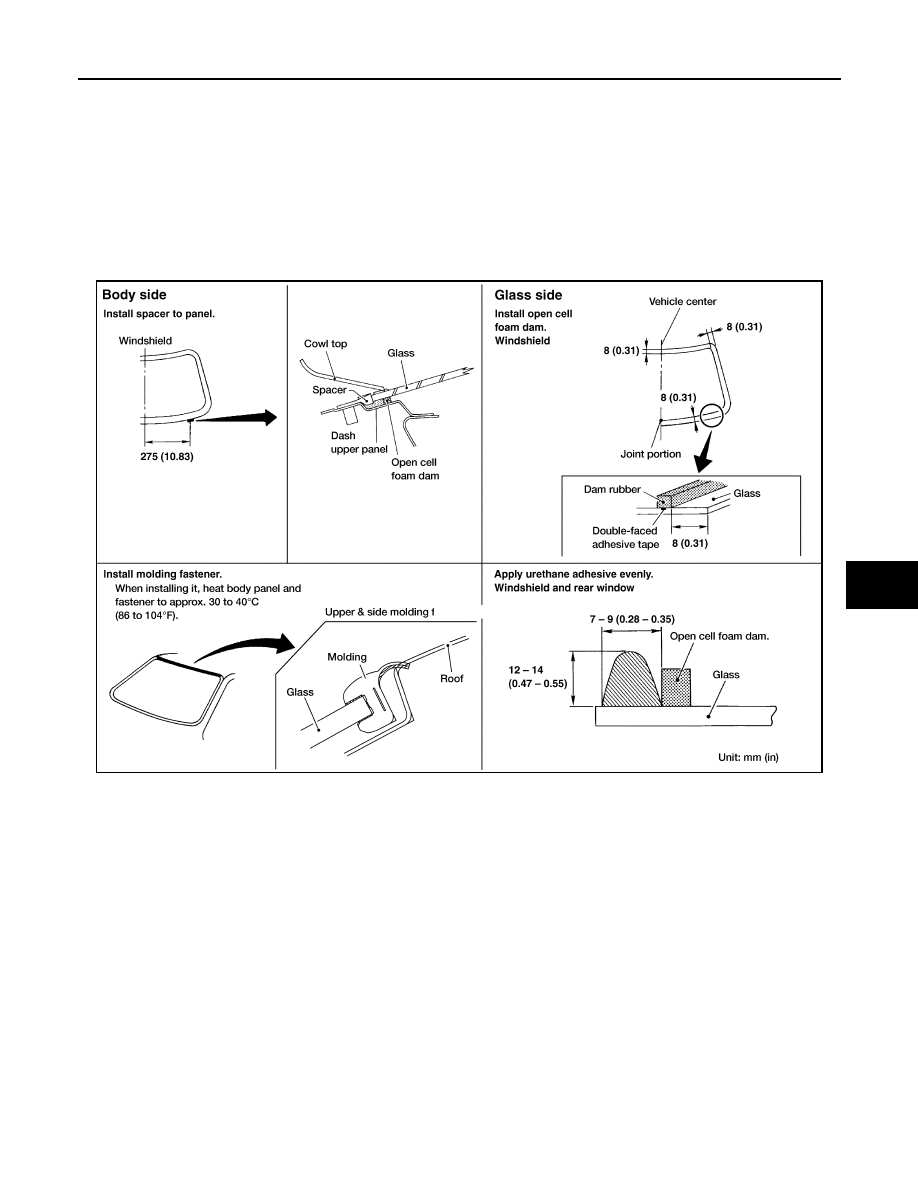

WINDSHIELD

WBT095
