GI-36

CONSULT-II CHECKING SYSTEM

CONSULT-II Data Link Connector (DLC) Circuit

EAS0012R

INSPECTION PROCEDURE

If the CONSULT-II cannot diagnose the system properly, check the following items.

NOTE:
The DDL1 and DDL2 circuits from DLC pins 12, 13, 14 and 15 may be connected to more than one system. A
short in a DDL circuit connected to a control unit in one system may affect CONSULT-II access to other sys-
tems.

Tool name

Description

NISSAN CONSULT-II
1 CONSULT-II unit (Tester internal
soft: Resident Version 3.3.0) and ac-
cessories
2 Program card AED03B
3 CAN converter

For details, refer to Consult-II Opera-
tion Manual.

LAIA0038E

LAIA0028E

Symptom

Check item

CONSULT-II cannot access
any system.

CONSULT-II DLC power supply circuit (Terminal 8) and ground circuit (Terminal 4)

CONSULT-II DLC cable

CONSULT-II cannot access
individual system. (Other sys-
tems can be accessed.)

CONSULT-II program card (Check the appropriate CONSULT-II program card for the system.
Refer to "Checking Equipment".)

Power supply and ground circuit for the control unit of the system (For detailed circuit, refer to wir-
ing diagram for each system.)

Open or short circuit between the system and CONSULT-II DLC (For detailed circuit, refer to wiring
diagram for each system.)

LIFTING POINT

GI-37

C

D

E

F

G

H

I

J

K

L

M

B

GI

LIFTING POINT

PFP:00000

Lifting Points

EAS0012S

WARNING:

Never get under the vehicle while it is supported only by the jack. Always use safety stands to
support the frame when you have to get under the vehicle.

Place wheel chocks at both front and back of the wheels on the ground.

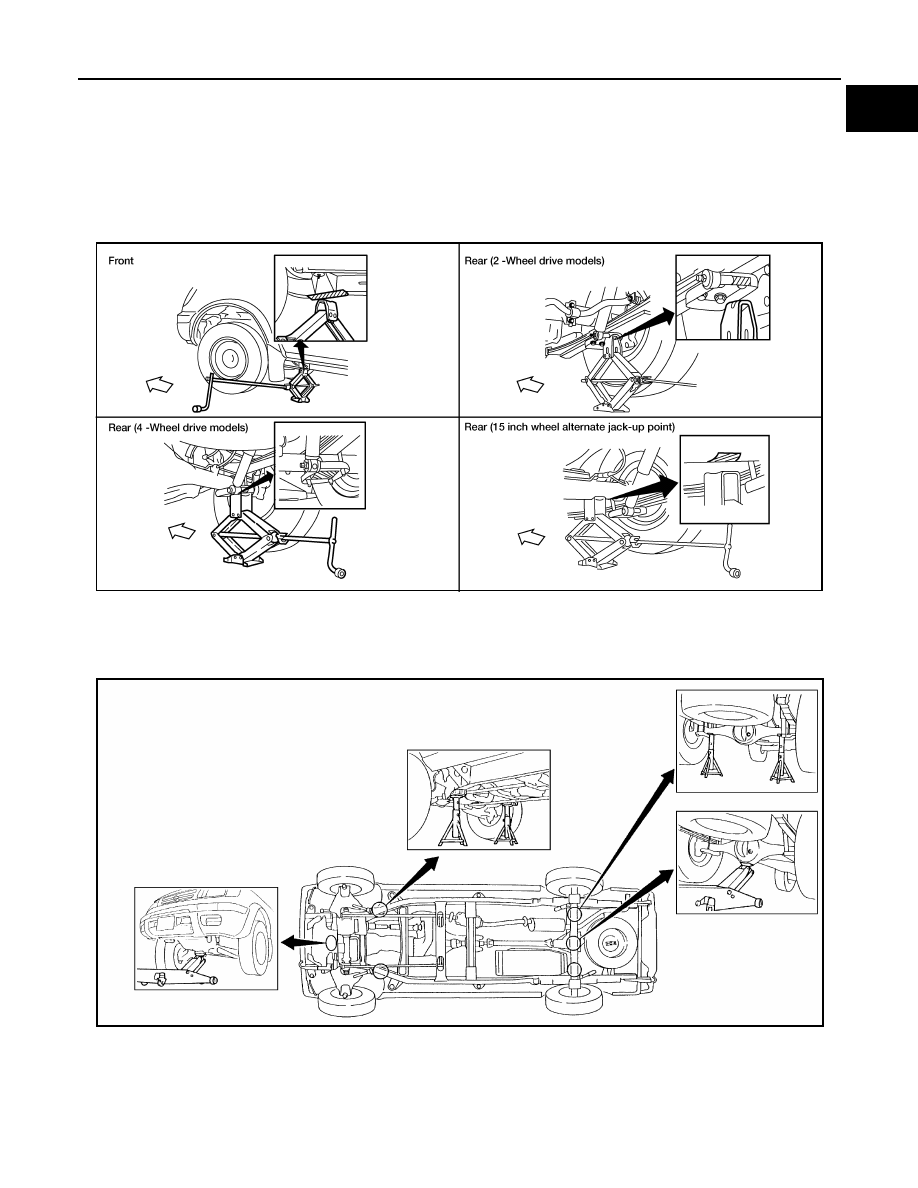

PANTOGRAPH JACK

GARAGE JACK AND SAFETY STAND

CAUTION:

Place a wooden or rubber block between safety stand and vehicle body when the supporting body is
flat.

LAIA0040E

AGI113

GI-38

LIFTING POINT

2-POLE LIFT

WARNING:

When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of
the vehicle are well balanced.
When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, or fuel lines.

WGI025

TOW TRUCK TOWING

GI-39

C

D

E

F

G

H

I

J

K

L

M

B

GI

TOW TRUCK TOWING

PFP:00000

Tow Truck Towing

EAS0012T

WARNING:

Never get under the vehicle while it is supported only by the jack. Always use safety stands to
support the frame when you have to get under the vehicle.

Place wheel chocks at both front and back of the wheels on the ground.

CAUTION:

All applicable State or Provincial (in Canada) laws and local laws regarding the towing operation
must be obeyed.

It is necessary to use proper towing equipment to avoid possible damage during towing opera-
tion. Towing is in accordance with Towing Procedure Manual at dealer.

Always attach safety chains before towing.

When towing, make sure that the transmission, steering system and power train are in good order.
If any unit is damaged, dollies must be used.

Never tow an automatic transmission model from the rear
(i.e., backward) with four wheels on the ground as this may
cause serious and expensive damage to the transmission.

2WD MODELS

NISSAN does not recommend towing automatic transmission
equipped vehicles with the drive wheels on the ground.

CAUTION:

When towing with the front wheels on the ground: Turn the
ignition key to the OFF position and move the transmission
shift lever to the neutral position. On automatic transmis-
sion models, to move the selector lever to N (neutral) posi-
tion, turn the ignition key to OFF position and secure the
steering wheel in a straight ahead position with a rope or
similar device. Never place the ignition key in the LOCK
position. This will result in damage to the steering lock
mechanism.

When towing manual transmission models with the rear
wheels on the ground (if you do not use a towing dollies):
Always release the parking brake and move the transmis-
sion shift lever to the neutral position.

Observe the following restricted towing speeds and distances.

AGI077

Speed

: Below 95 km/h (60 MPH)

Distance

: Less than 800 km (500 miles)

SGI976
