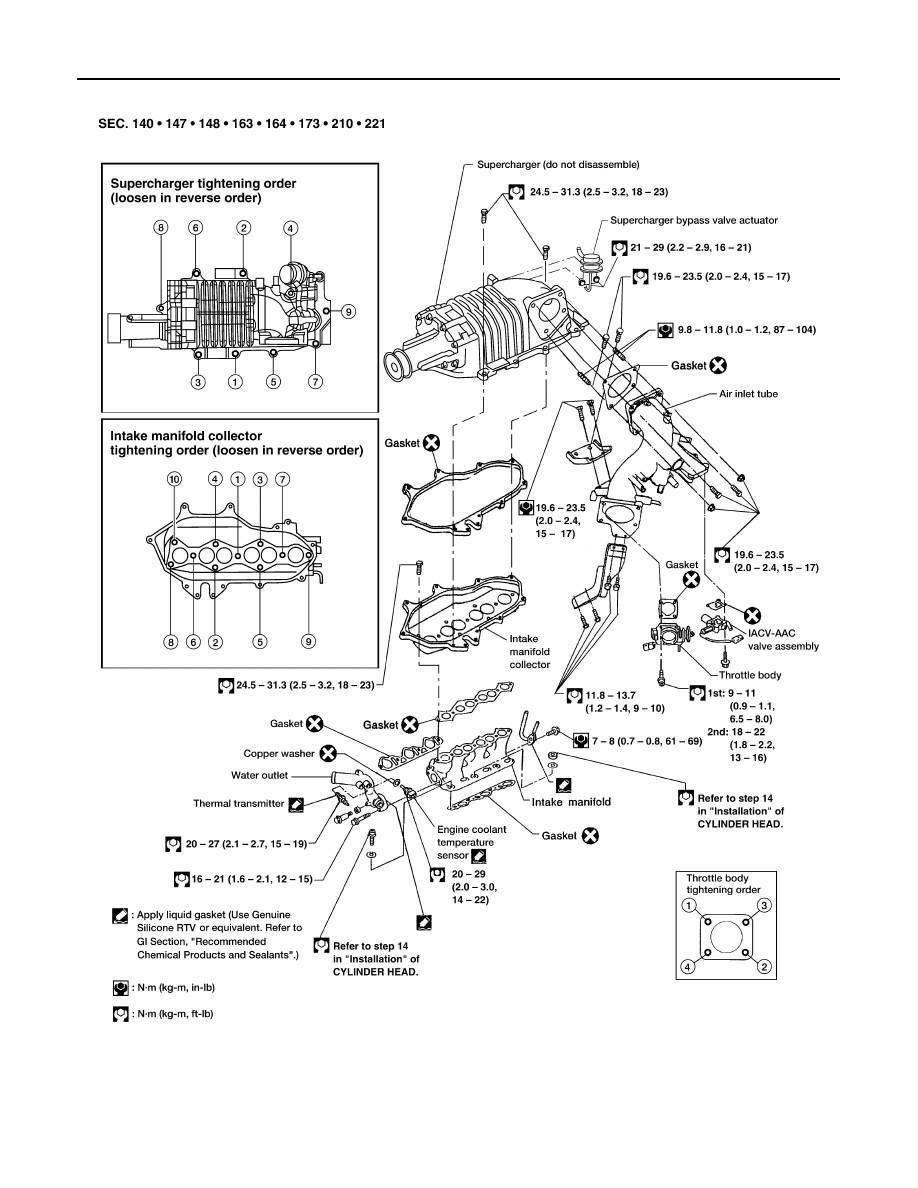

OUTER COMPONENT PARTS

EM-83

[VG33E and VG33ER]

C

D

E

F

G

H

I

J

K

L

M

A

EM

7.

Fresh air inlet

8.

Engine coolant temperature sensor

9.

Intake manifold

10. Distributor

11.

O-ring

12. Water pump

13. Fuel injector cap

14. Insulator

15. Fuel injector

16. Engine cooling fan

17. Fuel tube

18. Fuel pressure regulator

19. Fuel feed hose

20. Fuel return hose

21. Throttle body

22. Air relief plug

23. Ground

24. IACV-AAC valve assembly

EM-84

[VG33E and VG33ER]

OUTER COMPONENT PARTS

VG33ER

WEM139

OUTER COMPONENT PARTS

EM-85

[VG33E and VG33ER]

C

D

E

F

G

H

I

J

K

L

M

A

EM

VG33E

WBIA0374E

1.

Thermostat housing

2.

Oil pressure switch

3.

LH exhaust manifold cover

4.

LH exhaust manifold and catalyst

5.

RH exhaust manifold and catalyst

6.

RH exhaust manifold cover

EM-86

[VG33E and VG33ER]

OUTER COMPONENT PARTS

VG33ER

7.

Heated oxygen sensor 1 (bank 1)

8.

Heated oxygen sensor 1 (bank 2)

9.

Exhaust manifold stud bolt

10. Oil filter bracket

WBIA0378E
