Nissan Frontier D22. Manual - part 667

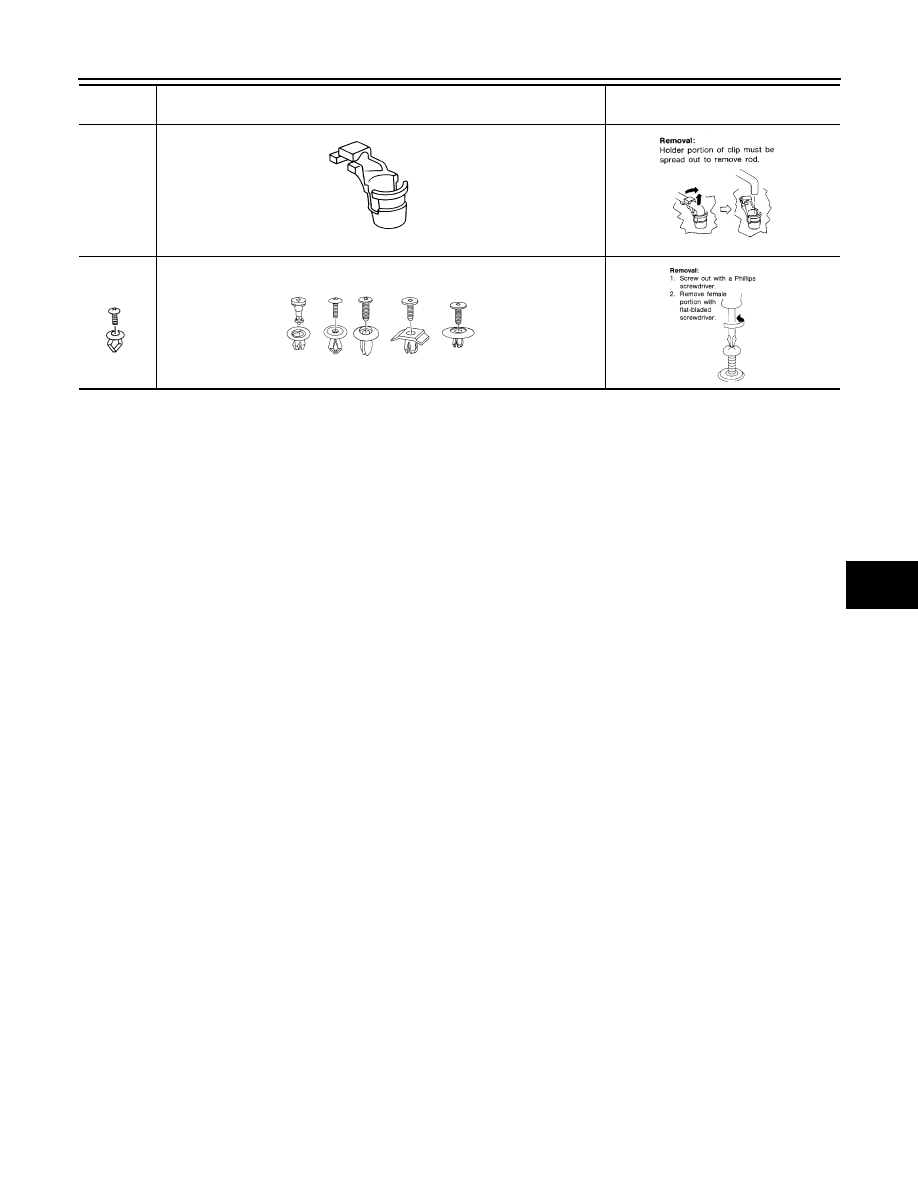

CLIP AND FASTENER

EI-11

C

D

E

F

G

H

J

K

L

M

A

B

EI

CR103

CS101

Symbol

No.

Shapes

Removal & Installation

SBF768B

SBF770B

SBF078B

SBF992G

EI-12

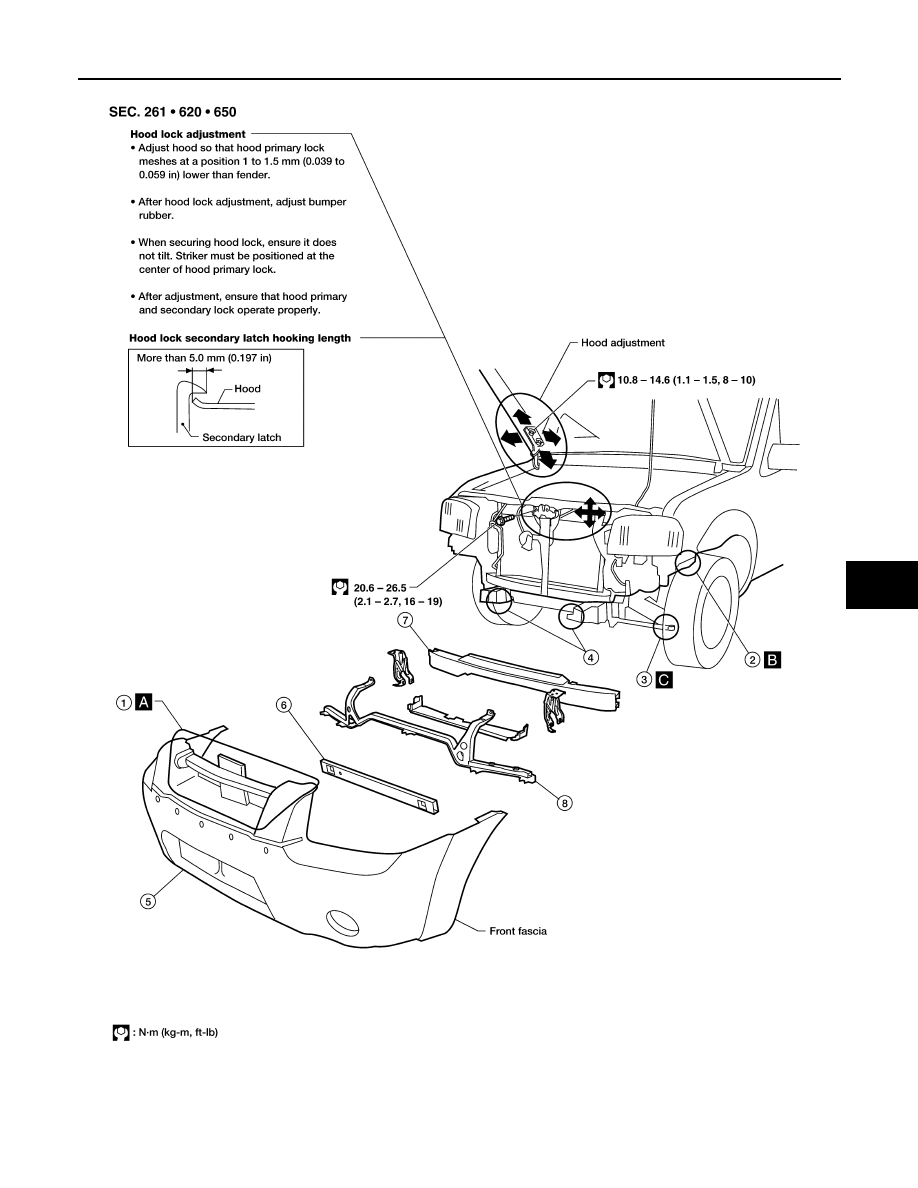

BODY FRONT END

BODY FRONT END

PFP:H5022

Removal and Installation

EIS002DL

●

When removing or installing hood, place a cloth or other padding on hood. This prevents vehicle body
from being scratched.

●

Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil away from it.

●

Hood adjustment: Adjust at hinge portion.

●

Hood lock adjustment: After adjusting, check hood lock control operation. Apply a coat of grease to hood
lock engaging mechanism.

●

Hood opener: Do not attempt to bend cable forcibly. Doing so increases effort required to unlock hood.

FRONT BUMPER ASSEMBLY

1.

Remove push pins securing the fascia to the reinforcement.

2.

Remove screws securing the fascia to the fender.

3.

Remove bolts securing left and right bumper stays.

4.

Remove the push pins securing the fascia to the frame.

5.

Remove the fascia.

6.

Remove the frame crossbar.

7.

Remove the front bumper assembly.

8.

Remove the fascia reinforcement.
