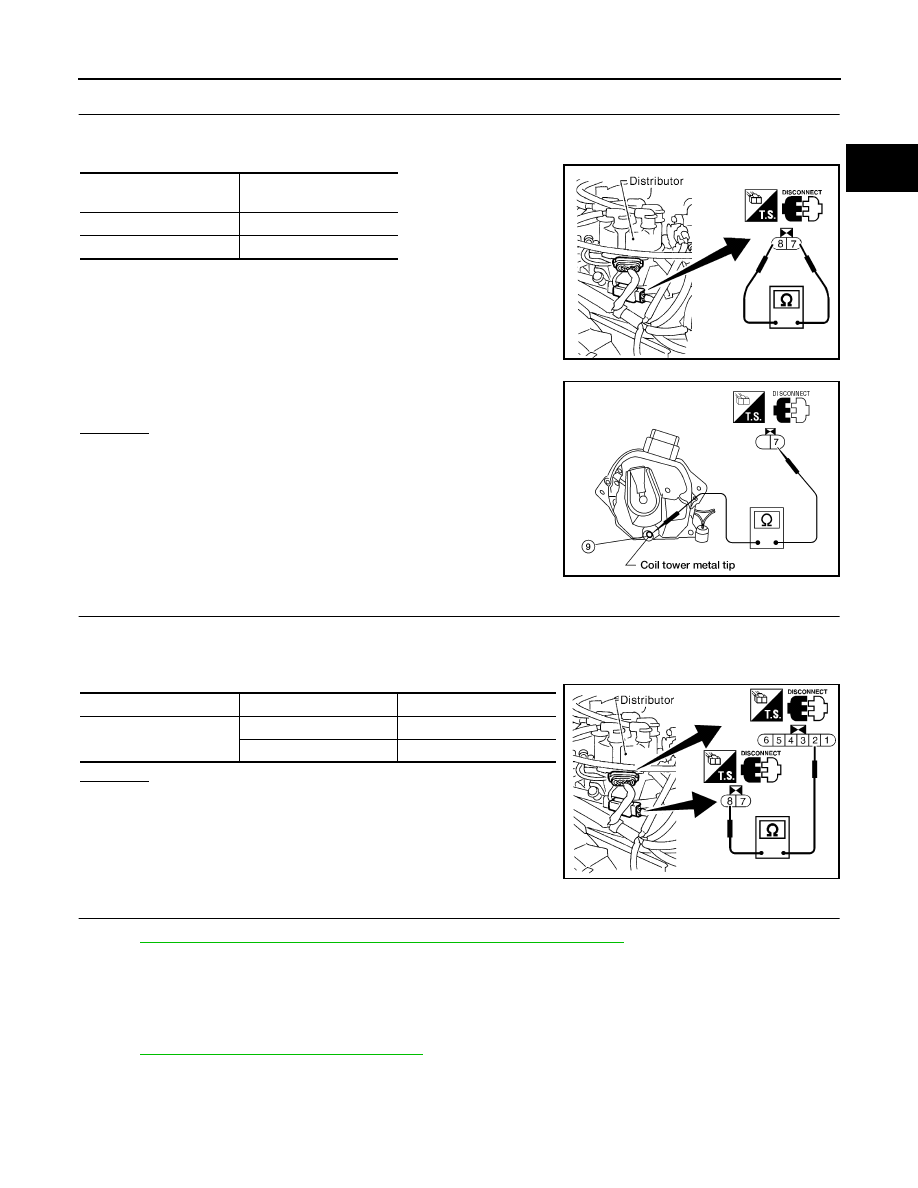

IGNITION SIGNAL EC-1715 [VG33ER] C D E F G H I J K L M A EC 10. CHECK IGNITION COIL 1. Disconnect ignition coil harness connector. 2. Check resistance as shown in the figure. For checking secondary coil, remove distributor cap and mea- OK or NG OK >> GO TO 11. NG >> Replace distributor assembly. 11. CHECK POWER TRANSISTOR 1. Disconnect camshaft position sensor & power transistor harness connector and ignition coil harness con- 2. Check power transistor resistance between terminals 2 and 8. OK or NG OK >> GO TO 12. NG >> Replace distributor assembly. 12. CHECK INTERMITTENT INCIDENT Refer to EC-1297, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" >> INSPECTION END. Removal and Installation UBS00E2L DISTRIBUTOR Refer to EM-80, "OUTER COMPONENT PARTS" . Terminal Resistance [at 20 °C (68 °F)] 7 - 8 (Primary coil) Approx. 1.0 Ω 7 - 9 (secondary coil) Approx. 10 k Ω SEF013S AEC657A Terminals Resistance Result 2 and 8 Except 0 Ω OK 0 Ω NG SEF015S |
