DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID

VALVE

EC-923

[VG33E]

C

D

E

F

G

H

I

J

K

L

M

A

EC

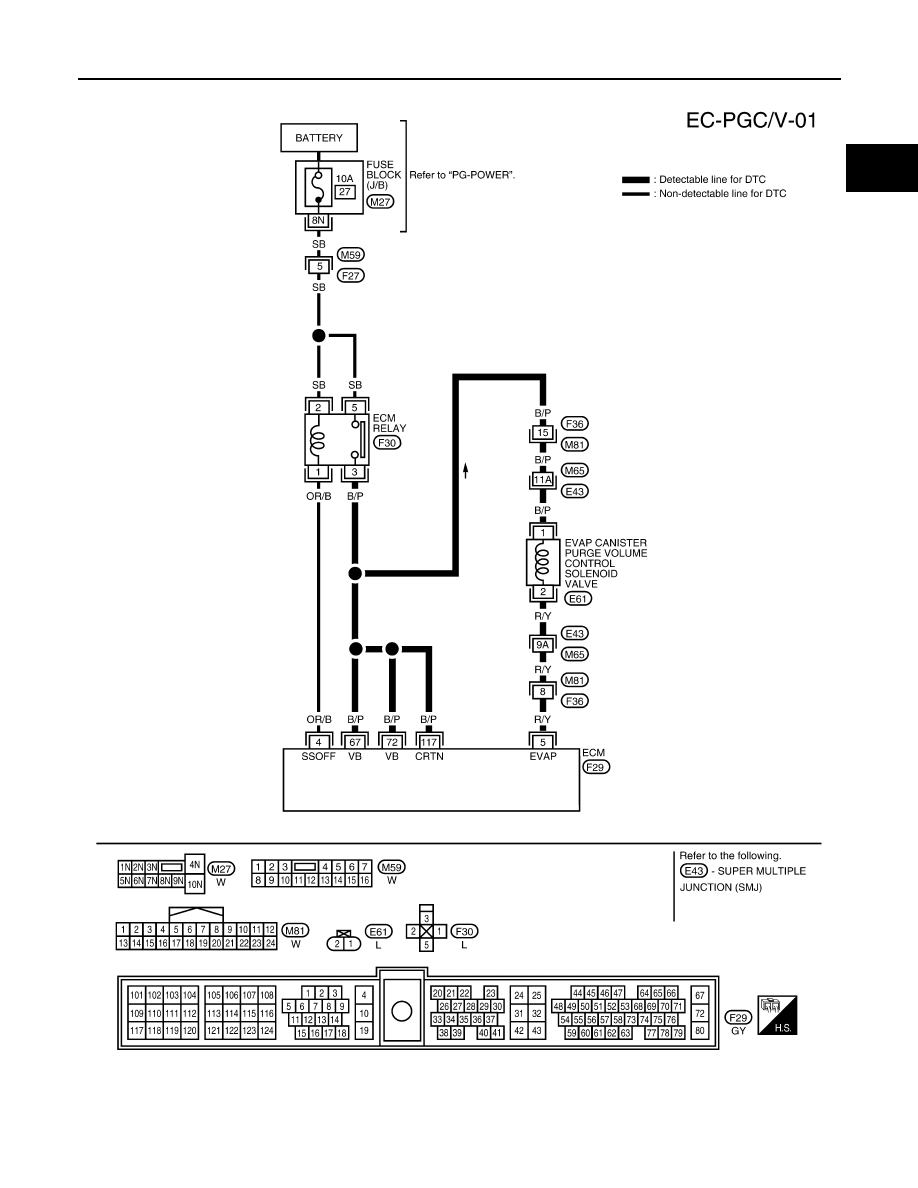

Wiring Diagram

UBS00DL0

BBWA1085E

EC-924

[VG33E]

DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID

VALVE

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than the ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

4

OR/B

ECM relay
(Self shutoff)

[Engine is running]
[Ignition switch: OFF]

●

For a few seconds after turning ignition switch
OFF

0 - 1.5V

[Ignition switch: OFF]

●

A few seconds passed after turning ignition
switch OFF

BATTERY VOLTAGE
(11 - 14V)

5

R/Y

EVAP canister purge
volume control sole-
noid valve

[Engine is running]

●

Idle speed

BATTERY VOLTAGE

(11 - 14V)

[Engine is running]

●

 Engine speed is 2,000 rpm (More than 100
seconds after starting engine)

BATTERY VOLTAGE

(11 - 14V)

67

B/P

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

72

B/P

Power supply for ECM

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14V)

117

B/P

Current return

[Engine is running]

●

Idle speed

BATTERY VOLTAGE
(11 - 14V)

SEF994U

SEF995U

DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID

VALVE

EC-925

[VG33E]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Diagnostic Procedure

UBS00DL1

1.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE POWER SUPPLY CIR-

CUIT

1.

Turn ignition switch OFF.

2.

Disconnect EVAP canister purge volume control solenoid valve
harness connector.

3.

Turn ignition switch ON.

4.

Check voltage between EVAP canister purge volume control
solenoid valve terminal 1 and ground with CONSULT-II or tester.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors F36, M81

●

Harness connectors M65, E43

●

Harness for open or short between EVAP canister purge volume control solenoid valve and ECM relay

>> Repair harness or connectors.

3.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIR-

CUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check harness continuity between ECM terminal 5 and solenoid terminal 2.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK (With CONSULT-II)>>GO TO 5.
OK (Without CONSULT-II)>>GO TO 6.
NG

>> GO TO 4.

AEC652A

Voltage: Battery voltage

SEF646W

Continuity should exist.

EC-926

[VG33E]

DTC P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID

VALVE

4.

DETECT MALFUNCTIONING PART

Check the following.

●

Harness connectors E43, M65

●

Harness connectors M81, F36

●

Harness for open or short between EVAP canister purge volume control solenoid valve and ECM

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION

 With CONSULT-II

1.

Start engine.

2.

 Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode with
CONSULT-II. Check that engine speed varies according to the
valve opening.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

 With CONSULT-II

1.

Check air passage continuity under the following conditions.

 Without CONSULT-II

1.

Check air passage continuity under the following conditions.

OK or NG

OK

>> GO TO 7.

NG

>> Replace EVAP canister purge volume control solenoid

valve.

SEF985Y

Condition

PURG VOL CONT/V value

Air passage continuity

between A and B

100%

Yes

0%

No

SEF660U

Condition

Air passage continuity

between A and B

12V direct current supply between
terminals 1 and 2

Yes

No supply

No

SEF661U
