DTC P0133, P0153 HO2S1

EC-779

[VG33E]

C

D

E

F

G

H

I

J

K

L

M

A

EC

7.

Make sure that “OK” is displayed after touching “SELF-DIAG
RESULTS”. If “NG” is displayed, refer to

EC-783, "Diagnostic

Procedure"

 .

Overall Function Check

UBS00DHZ

Use this procedure to check the overall function of the heated oxygen sensor 1 circuit. During this check, a
DTC might not be confirmed.

 WITH GST

1.

Start engine and warm it up to normal operating temperature.

2.

Set voltmeter probes between ECM terminal 50 [HOS1 (B1) sig-
nal] or 51 [HOS1 (B2) signal] and engine ground.

3.

Check the following with engine speed held at 2,000 rpm con-
stant under no load.

The voltage fluctuates between 0 to 0.3V and 0.6 to 1.0V more
than 5 times within 10 seconds.

4.

If NG, go to

EC-783, "Diagnostic Procedure"

 .

SEF658Y

1 time: 0 - 0.3V

 0.6 - 1.0V  0 - 0.3V

2 times: 0 - 0.3V

 0.6 - 1.0V  0 - 0.3V  0.6 - 1.0V

0 - 0.3V

SEF919UA

EC-780

[VG33E]

DTC P0133, P0153 HO2S1

Wiring Diagram

UBS00DI0

BANK 1

BBWA1075E

DTC P0133, P0153 HO2S1

EC-781

[VG33E]

C

D

E

F

G

H

I

J

K

L

M

A

EC

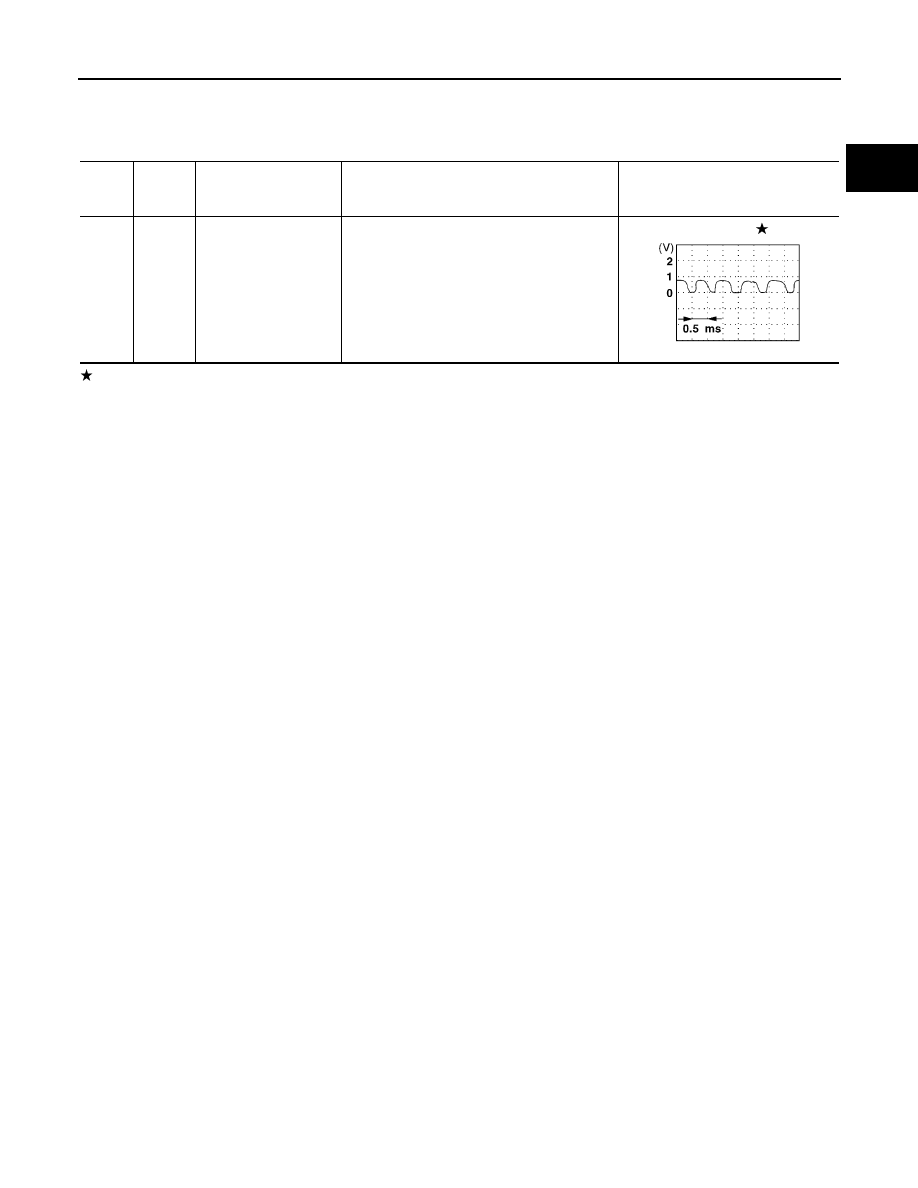

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than the ECM terminals, such as the ground.

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.

TER-

MINAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA (DC Voltage)

50

B

Heated oxygen sensor
1 (bank 1)

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm

0 - Approximately 1.0V

SEF002V

EC-782

[VG33E]

DTC P0133, P0153 HO2S1

BANK 2

BBWA1076E
