Nissan Frontier D22. Manual - part 396





TROUBLE DIAGNOSIS

EC-687

[VG33E]

C

D

E

F

G

H

I

J

K

L

M

A

EC

3.

Turn ignition switch ON.

4.

Enter the program according to instruction on the screen or in
the operation manual.

(*: Regarding GST screens in this section, sample screens are
shown.)

5.

Perform each diagnostic mode according to each service proce-
dure.

For further information, see the GST Operation Manual of the
tool maker.

CONSULT-II Reference Value in Data Monitor Mode

UBS00DFC

Remarks:

● Specification data are reference values.

● Specification data are output/input values which are detected or supplied by the ECM at the connector.

* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in

spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.

AEC059B

AEC060B

MONITOR ITEM

CONDITION

SPECIFICATION

ENG SPEED

Run engine and CONSULT-II value with the tachometer indication.

Almost the same speed as the
tachometer indication.

MAS A/F SE-B1

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N (A/T), Neutral (M/T)

No load

Idle

1.0 - 1.7V

2,500 rpm

1.7 - 2.3V

COOLAN TEMP/S

Engine: After warming up

More than 70

°C (158°F)

HO2S1 (B1)
HO2S1 (B2)

Engine: After warming up

Maintaining engine speed at 2,000
rpm.

0 - 0.3V

←→ Approx. 0.6 -

1.0V

HO2S1 MNTR (B1)
HO2S1 MNTR (B2)

LEAN

←→ RICH

Changes more than 5 times
during 10 seconds.

HO2S2 (B1)
HO2S2 (B2)

Warm-up condition

After keeping engine speed
between 3,500 and 4,000 rpm for
1 minute and at idle for 1 minute
under no load.

Revving engine from idle up to 3,000
rpm quickly

0 - 0.3V

←→ Approx. 0.6 -

1.0V

HO2S2 MNTR (B1)
HO2S2 MNTR (B2)

LEAN

←→ RICH

VHCL SPEED SE

Turn drive wheels and compare CONSULT-II value with the speedometer
indication

Almost the same speed as the
speed meter indication

BATTERY VOLT

Ignition switch: ON (Engine stopped)

11 - 14V

THRTL POS SEN

Engine: After warming up, idle
the engine

Throttle valve: fully closed (a)

0.15 - 0.85V

Engine: After warming up

 Ignition switch: ON
(Engine stopped)

Throttle valve: Partially open

Between (a) and (b)

Throttle valve: fully opened (b)

3.5 - 4.7V

EC-688

[VG33E]

TROUBLE DIAGNOSIS

EGR TEMP SEN

Engine: After warming up

Less than 4.5V

START SIGNAL

Ignition switch: ON

→ START → ON

OFF

→ ON → OFF

CLSD THL POS
CLSD THL/P SW

Engine: After warming up, idle
the engine

Throttle valve: Idle position

ON

Throttle valve: Slightly open

OFF

AIR COND SIG

Engine: After warming up, idle
the engine

Air conditioner switch: OFF

OFF

Air conditioner switch: ON
(Compressor operates.)

ON

P/N POSI SW

Ignition switch: ON

Shift lever: P or N (A/T), Neutral (M/T)

ON

Except above

OFF

PW/ST SIGNAL

Engine: After warming up, idle
the engine

Steering wheel in neutral position
(forward direction)

OFF

The steering wheel is turned

ON

AMB TEMP SW

Ignition switch: ON

Compare ambient air tempera-
ture with the following:

Below 19

°C (66°F)

OFF

Above 25

°C (77°F)

ON

IGNITION SW

Ignition switch: ON

→ OFF → ON

ON

→ OFF → ON

INJ PULSE-B1
INJ PULSE-B2

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N (A/T), Neutral (M/T)

No load

Idle

2.4 - 3.7 msec

2,000 rpm

1.9 - 3.3 msec

B/FUEL SCHDL

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N (A/T), Neutral (M/T)

No load

Idle

1.0 - 1.6 msec

2,000 rpm

0.7 - 1.4 msec

IGN TIMING

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N (A/T), Neutral (M/T)

No load

Idle

10

°±2° BTDC

2,000 rpm

More than 25

° BTDC

IACV-AAC/V

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N (A/T), Neutral (M/T)

No load

Idle

10 - 20%

2,000 rpm

PURG VOL C/V

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N (A/T), Neutral (M/T)

No load

Idle

0%

2,000 rpm

A/F ALPHA-B1
A/F ALPHA-B2

Engine: After warming up

Maintaining engine speed at 2,000
rpm

54 - 155%

EVAP SYS PRES

Ignition switch: ON

1.8 – 4.8V

AIR COND RLY

Air conditioner switch: OFF

→ ON

OFF

→ ON

FUEL PUMP RLY

Ignition switch is turned to ON (Operates for 5 seconds)

Engine running or cranking

ON

Except as shown above

OFF

EGRC SOL/V

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N (A/T), Neutral (M/T)

No load

Idle

OFF

Engine speed: Revving engine from
idle to 3,000 rpm quickly.

ON

VENT CONT/V

Ignition switch: ON

OFF

MONITOR ITEM

CONDITION

SPECIFICATION

TROUBLE DIAGNOSIS

EC-689

[VG33E]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Major Sensor Reference Graph in Data Monitor Mode

UBS00DFD

The following are the major sensor reference graphs in “DATA MONITOR” mode.

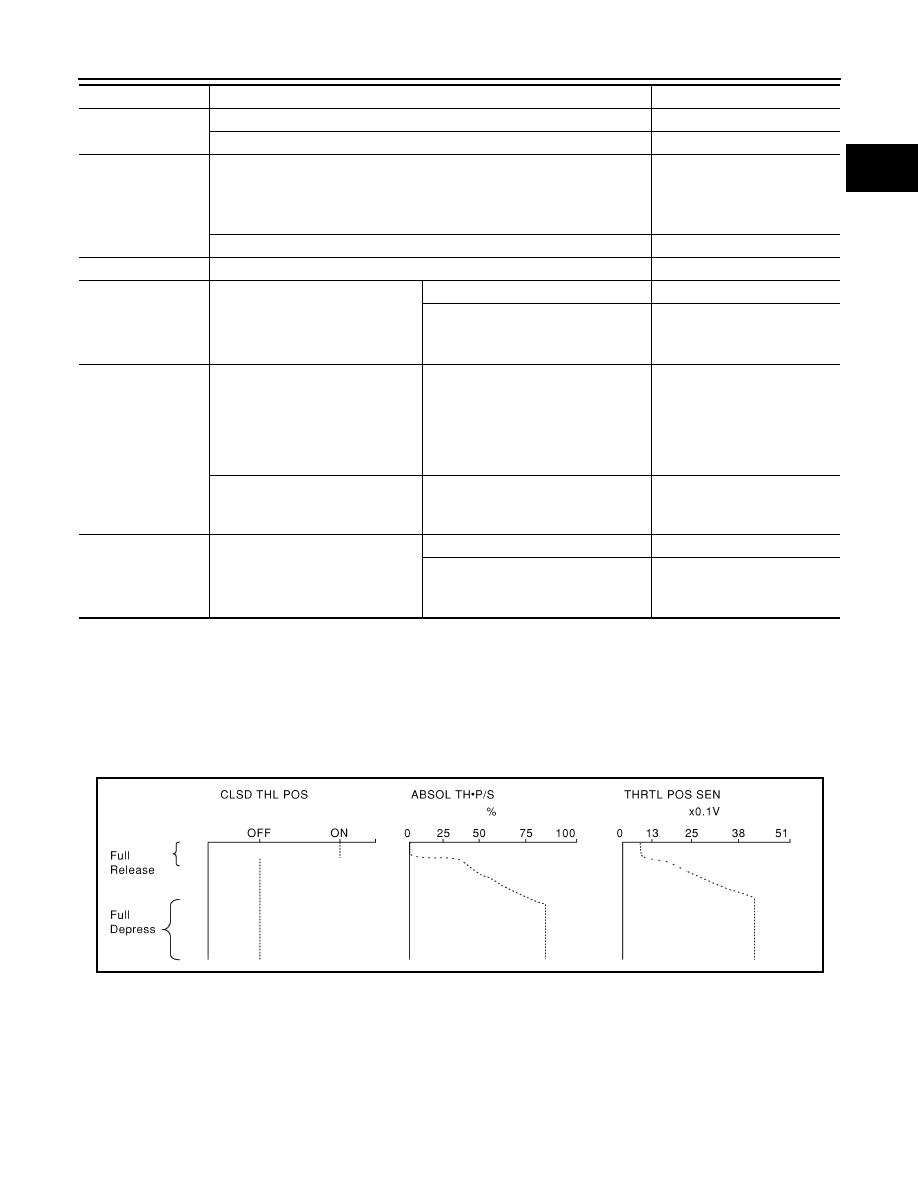

THRTL POS SEN, ABSOL TH·P/S, CLSD THL POS

Below is the data for “THRTL POS SEN”, “ABSOL TH·P/S” and “CLSD THL POS” when depressing the accel-
erator pedal with the ignition switch ON.
The signal of “THRTL POS SEN” and “ABSOL TH·P/S” should rise gradually without any intermittent drop or
rise after “CLSD THL POS” is changed from “ON” to “OFF”.

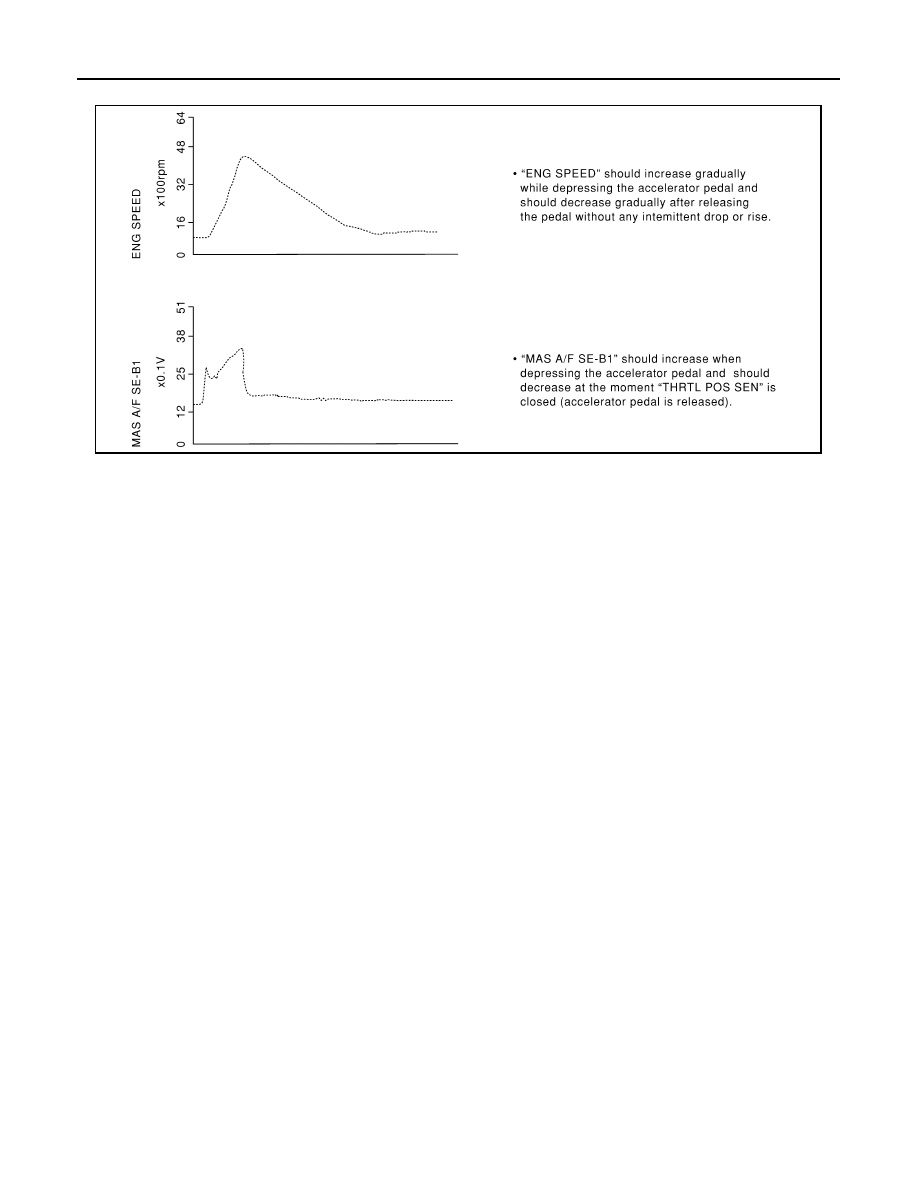

ENG SPEED, MAS A/F SE-B1, THRTL POS SEN, HO2S2 (B1), HO2S1 (B1), INJ PULSE-B1

Below is the data for “ENG SPEED”, “MAS A/F SE-B1”, “THRTL POS SEN”, “HO2S2 (B1)”, “HO2S1 (B1)” and
“INJ PULSE-B1” when revving engine quickly up to 4,800 rpm under no load after warming up engine suffi-
ciently.

HO2S1 HTR (B1)
HO2S1 HTR (B2)

Engine speed: Below 2,800 rpm

ON

Engine speed: Above 2,800 rpm

OFF

HO2S2 HTR (B1)
HO2S2 HTR (B2)

Engine speed: Below 3,600 rpm after the following conditions are met

Engine: After warning up

Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load

ON

Engine speed: Above 3,600 rpm

OFF

VC/V BYPASS/V

Ignition switch: ON

OFF

CAL/LD VALUE

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N (A/T), Neutral (M/T)

No load

Idle

18.5 - 26.0%

2,500 rpm

18.0 - 21.0%

ABSOL TH·P/S

Engine: After warming up

Ignition switch: ON

More than -40.0 kpa (-300
mmHg, -11.81 inHg) of vacuum is
applied to the throttle opener with
a hand vacuum pump.

Throttle valve: fully closed

0.0%

Engine: After warming up

Ignition switch: ON
(Engine stopped)

Throttle valve: fully opened

Approx. 80%

MASS AIRFLOW

Engine: After warming up

Air conditioner switch: OFF

Shift lever: N (A/T), Neutral (M/T)

No load

Idle

3.3 - 4.8 g·m/s

2,500 rpm

12.0 - 14.9 g·m/s

MONITOR ITEM

CONDITION

SPECIFICATION

SEF306Y

EC-690

[VG33E]

TROUBLE DIAGNOSIS

Each value is for reference, the exact value may vary.

SEF241Y
