PREPARATION

EC-595

[VG33E]

C

D

E

F

G

H

I

J

K

L

M

A

EC

PREPARATION

PFP:00002

Special Service Tools

UBS00DEJ

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

EG17650301
(J-33984-A)
Radiator cap tester adapter

Adapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

KV10117100
(J36471-A)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 1 with 22 mm (0.87 in) hexagon nut

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 2
a: 22 mm (0.87 in)

(J-44321)
Fuel pressure gauge kit

Checking fuel pressure

(J-45178)
TPS test connector

Used to test the throttle position sensor

S-NT564

NT379

NT636

LEC642

LEC120A

EC-596

[VG33E]

PREPARATION

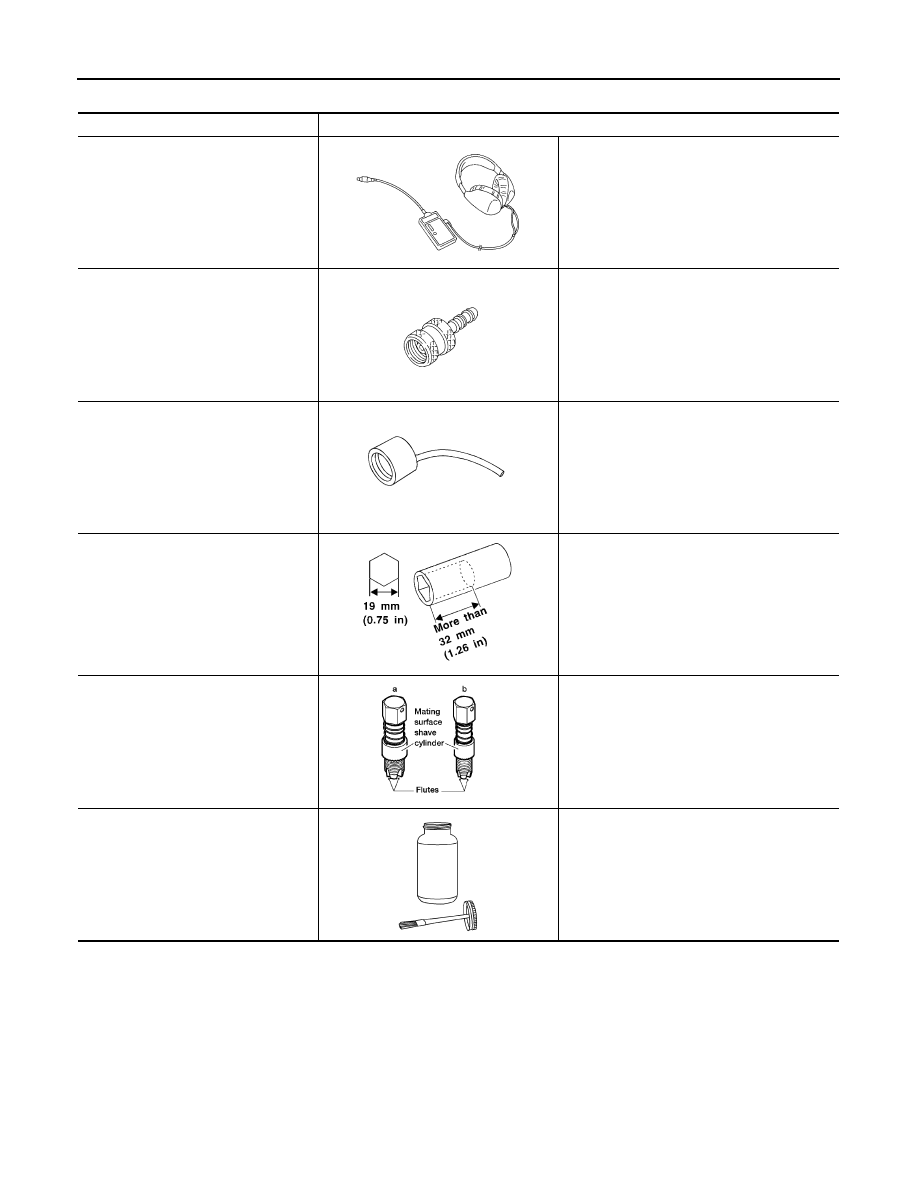

Commercial Service Tools

UBS00DEK

Tool name (Kent-Moore No.)

Description

Leak detector
i.e.: (J-41416)

Locating the EVAP leak

EVAP service port adapter
i.e.: (J-41413-OBD)

Applying positive pressure through EVAP ser-
vice port

Fuel filler cap adapter

Checking fuel tank vacuum relief valve open-
ing pressure

Socket wrench

Removing and installing engine coolant tem-
perature sensor

Oxygen sensor thread cleaner
i.e.: (J-43897-18)
(J-43897-12)

Reconditioning the exhaust system threads
before installing a new oxygen sensor. Use
with anti-seize lubricant shown in “Commer-
cial Service Tools”.
a: J-43897-18 (18 mm diameter with pitch 1.5
mm) for Zirconia Oxygen Sensor
b: J-43897-12 (12 mm diameter with pitch
1.25 mm) for Titania Oxygen Sensor

Anti-seize lubricant
i.e.: (Permatex™ 133AR or equivalent
meeting MIL specification MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads.

NT703

NT704

NT653

NT705

AEM488

AEM489

ENGINE CONTROL SYSTEM

EC-597

[VG33E]

C

D

E

F

G

H

I

J

K

L

M

A

EC

ENGINE CONTROL SYSTEM

PFP:23710

System Diagram

UBS00DEL

PBIB1464E

EC-598

[VG33E]

ENGINE CONTROL SYSTEM

Vacuum Hose Drawing

UBS00DEM

Refer to

EC-597, "System Diagram"

  for Vacuum Control System.

BBIA0183E
