Nissan Frontier D22. Manual - part 365





DATA LINK CONNECTOR

EC-563

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

DATA LINK CONNECTOR

PFP:24814

Wiring Diagram

UBS00DDO

WBWA0025E

EC-564

[KA24DE]

EVAPORATIVE EMISSION SYSTEM

EVAPORATIVE EMISSION SYSTEM

PFP:14950

Description

UBS00DDP

SYSTEM DESCRIPTION

The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating.
EVAP canister purge volume control solenoid valve is controlled by ECM. When the engine operates, the flow
rate of vapor controlled by EVAP canister purge volume control solenoid valve is proportionally regulated as
the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.

SEF569XA

EVAPORATIVE EMISSION SYSTEM

EC-565

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

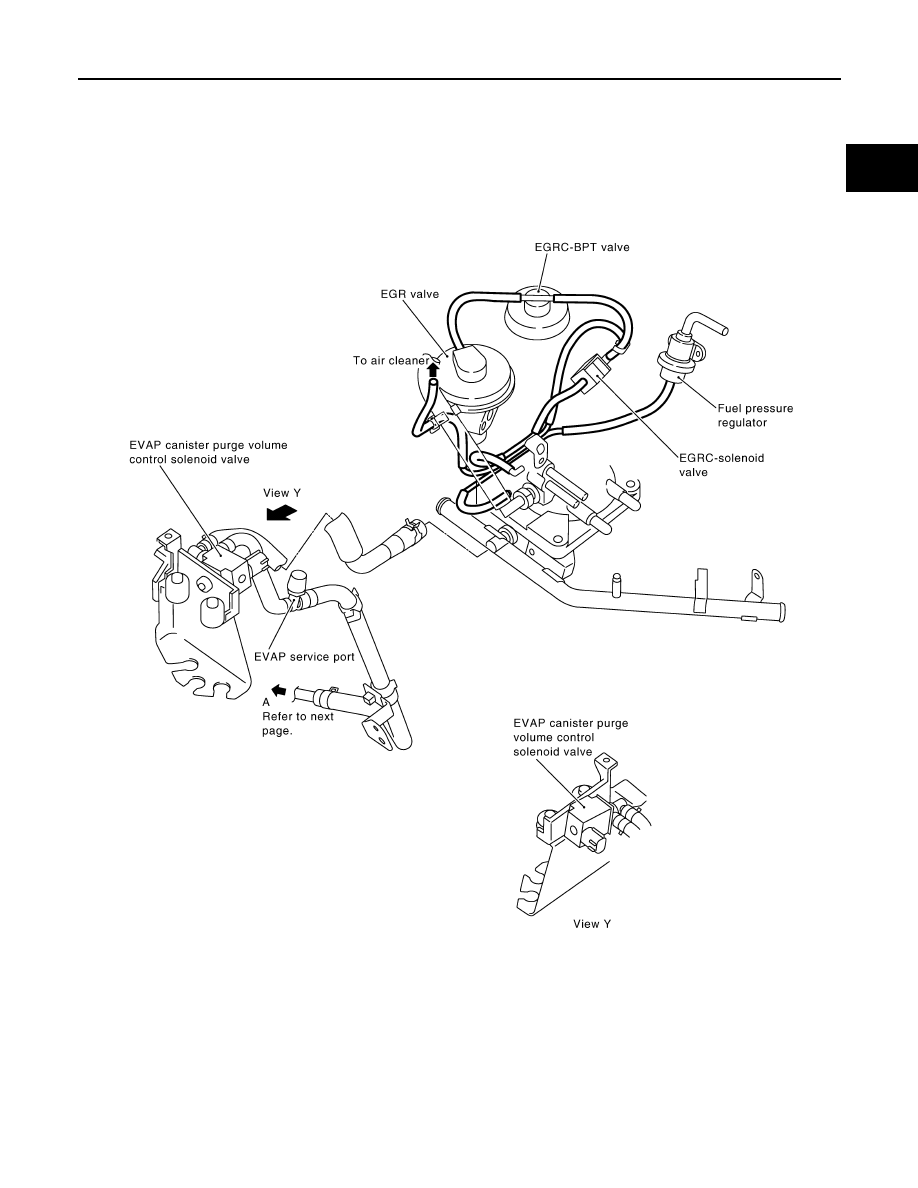

EVAPORATIVE EMISSION LINE DRAWING

NOTE:
 Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.

SEF712Z

EC-566

[KA24DE]

EVAPORATIVE EMISSION SYSTEM

WEC555
