DTC P0455 EVAP CONTROL SYSTEM

EC-363

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

15.

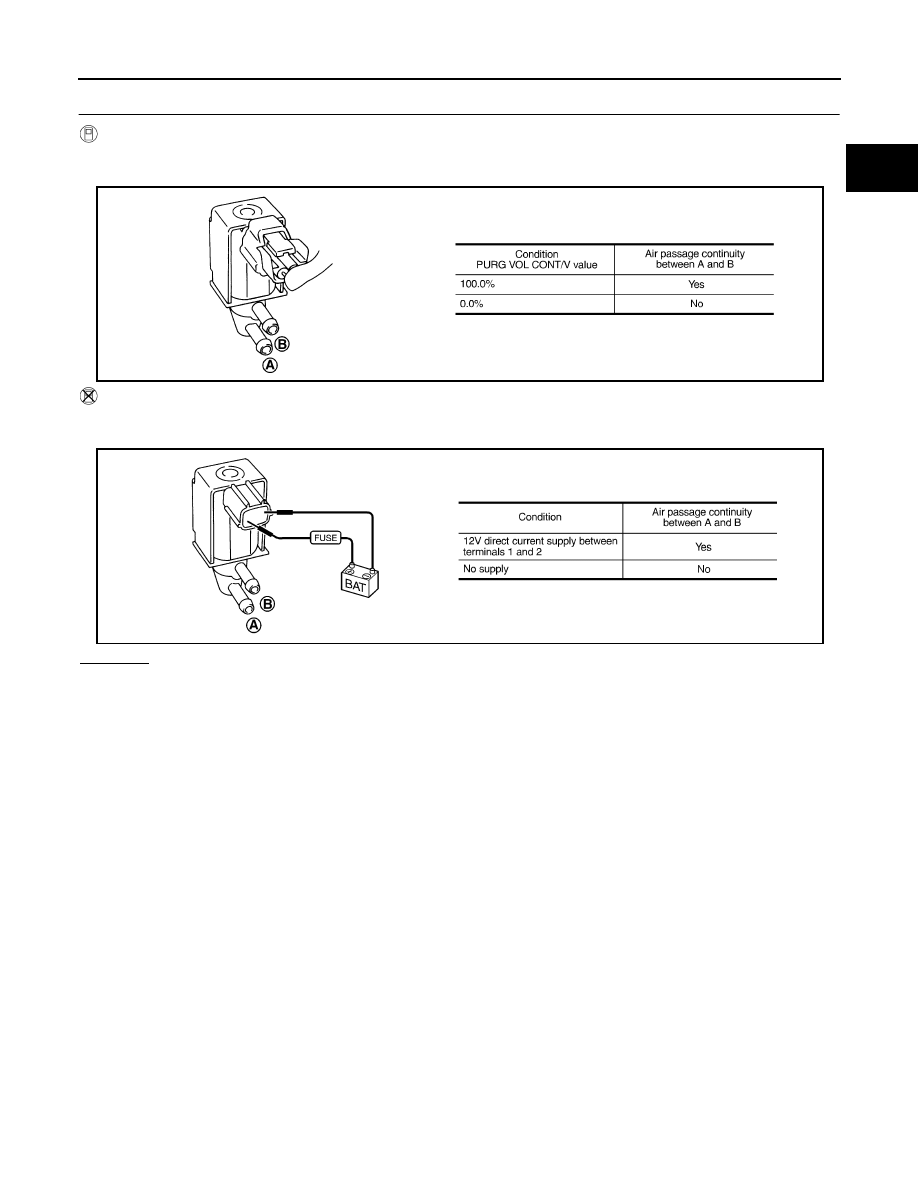

CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

 With CONSULT-II

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following condi-
tions.

 Without CONSULT-II

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following condi-
tions.

OK or NG

OK

>> GO TO 16.

NG

>> Replace EVAP canister purge volume control solenoid valve.

SEF334X

SEF335X

EC-364

[KA24DE]

DTC P0455 EVAP CONTROL SYSTEM

16.

CHECK FUEL TANK TEMPERATURE SENSOR

Check resistance by heating with hot water or heat gun as shown in
the figure.

OK or NG

OK

>> GO TO 17.

NG

>> Replace fuel tank temperature sensor, refer to

FL-6,

"FUEL LEVEL SENSOR UNIT AND FUEL PUMP
ASSEMBLY"

 .

SEF852Z

Temperature

°C (°F)

Resistance k

Ω

20 (68)

2.3 - 2.7

50 (122)

0.79 - 0.90

SEF334VA

DTC P0455 EVAP CONTROL SYSTEM

EC-365

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

17.

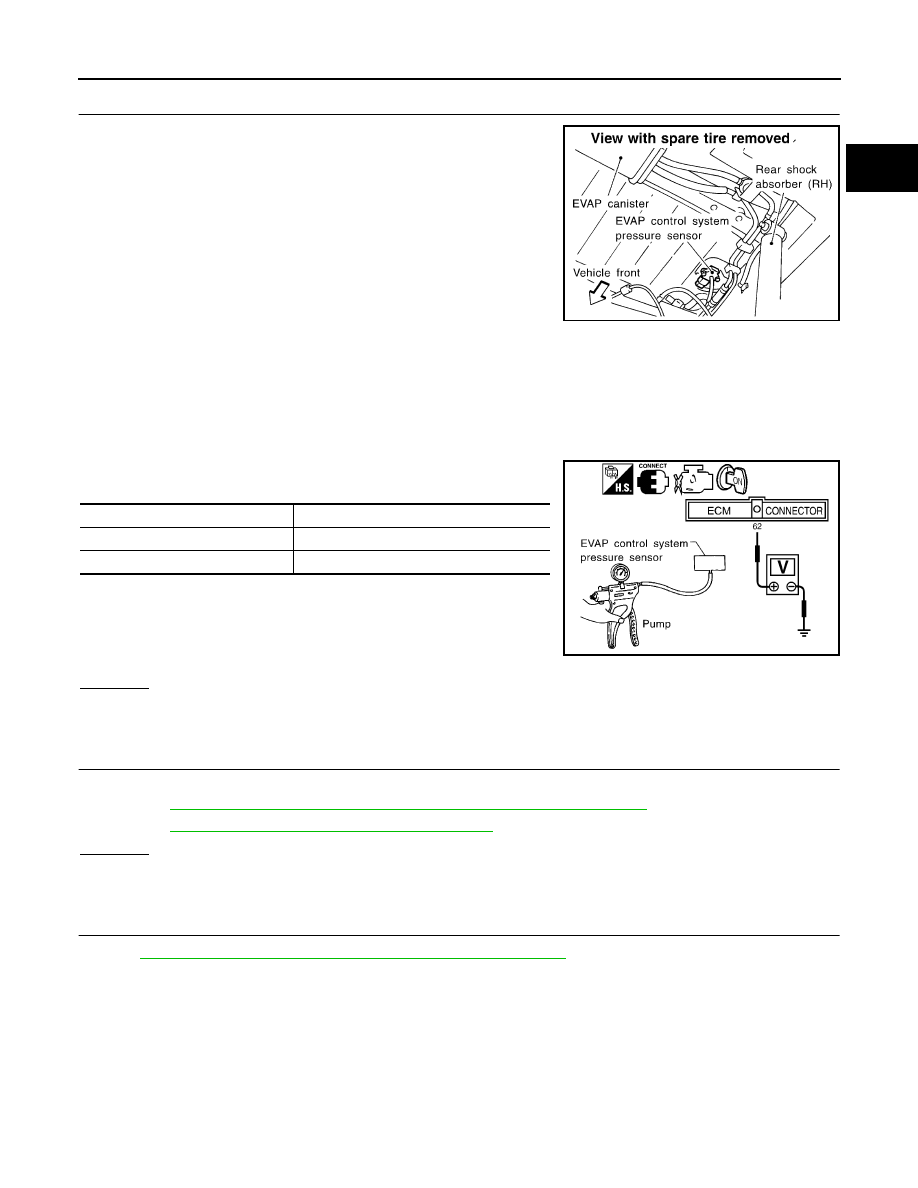

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

1.

Remove EVAP control system pressure sensor with its harness
connector connected.

2.

Remove hose from EVAP control system pressure sensor.

3.

Use pump to apply vacuum and pressure to EVAP control system pressure sensor as shown in figure.

CAUTION:

●

Always calibrate the vacuum pump gauge when using it.

●

Do not apply below

−93.3 kPa (−700 mmHg, −27.56 inHg) or over 101.3 kPa (760 mmHg, 29.56

inHg) of pressure.

4.

Check output voltage between ECM terminal 62 and engine
ground.

CAUTION:

Discard any EVAP control system pressure sensor which
has been dropped from a height of more than 0.5 m (19.7 in)
onto a hard surface such as a concrete floor; use a new
one.

OK or NG

OK

>> GO TO 18.

NG

>> Replace EVAP control system pressure sensor.

18.

CHECK FUEL LEVEL SENSOR

1.

Remove fuel level sensor assembly.
Refer to

FL-6, "FUEL LEVEL SENSOR UNIT AND FUEL PUMP ASSEMBLY"

 .

2.

Refer to

DI-18, "FUEL LEVEL SENSOR UNIT CHECK"

 .

OK or NG

OK

>> GO TO 19.

NG

>> Replace fuel level sensor.

19.

CHECK INTERMITTENT INCIDENT

Refer to

EC-116, "TROUBLE DIAGNOSIS - SPECIFICATION VALUE"

 .

>> INSPECTION END.

SEF341V

Applied vacuum kPa (mmHg, inHg)

Voltage [V]

Not applied

1.8 - 4.8

-26.7 (-200, -7.87)

 2.1 to 2.5V lower than above value

SEF198V

EC-366

[KA24DE]

DTC P0456 EVAP CONTROL SYSTEM

DTC P0456 EVAP CONTROL SYSTEM

PFP:14950

On Board Diagnosis Logic

UBS00D87

This diagnosis detects very small leaks in the EVAP line between the fuel tank and the EVAP canister purge
volume control solenoid valve using intake manifold vacuum in the same way as conventional EVAP small
leak diagnosis.
If the ECM judges a leak equivalent to a very small leak, the very small leak DTC P0456 or P1456 will be
detected. If the ECM judges a leak equivalent to a small leak, the EVAP small leak DTC P0442 will be
detected. Correspondingly, if the ECM judges there is no leak, the diagnosis result is OK.

PBIB1402E
