PREPARATION

EC-27

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

PREPARATION

PFP:00002

Special Service Tools

UBS00D0U

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

UBS00D0V

Tool number
(Kent-Moore No.)
Tool name

Description

KV10117100
(J-36471-A)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 1 with 22 mm (0.87 in) hexagon nut

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 2
a: 22 mm (0.87 in)

(J-45178)
TPS test connector

Used to test the throttle position sensor

EG17650301
(J-33984-A)
Radiator cap tester adapter

Adapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

NT379

NT636

LEC120A

S-NT564

Tool name

Description

Fuel filler cap adapter

Checking fuel tank vacuum relief valve open-
ing pressure

Leak detector
i.e.: (J-41416)

Locating the EVAP leak

NT653

NT703

EC-28

[KA24DE]

PREPARATION

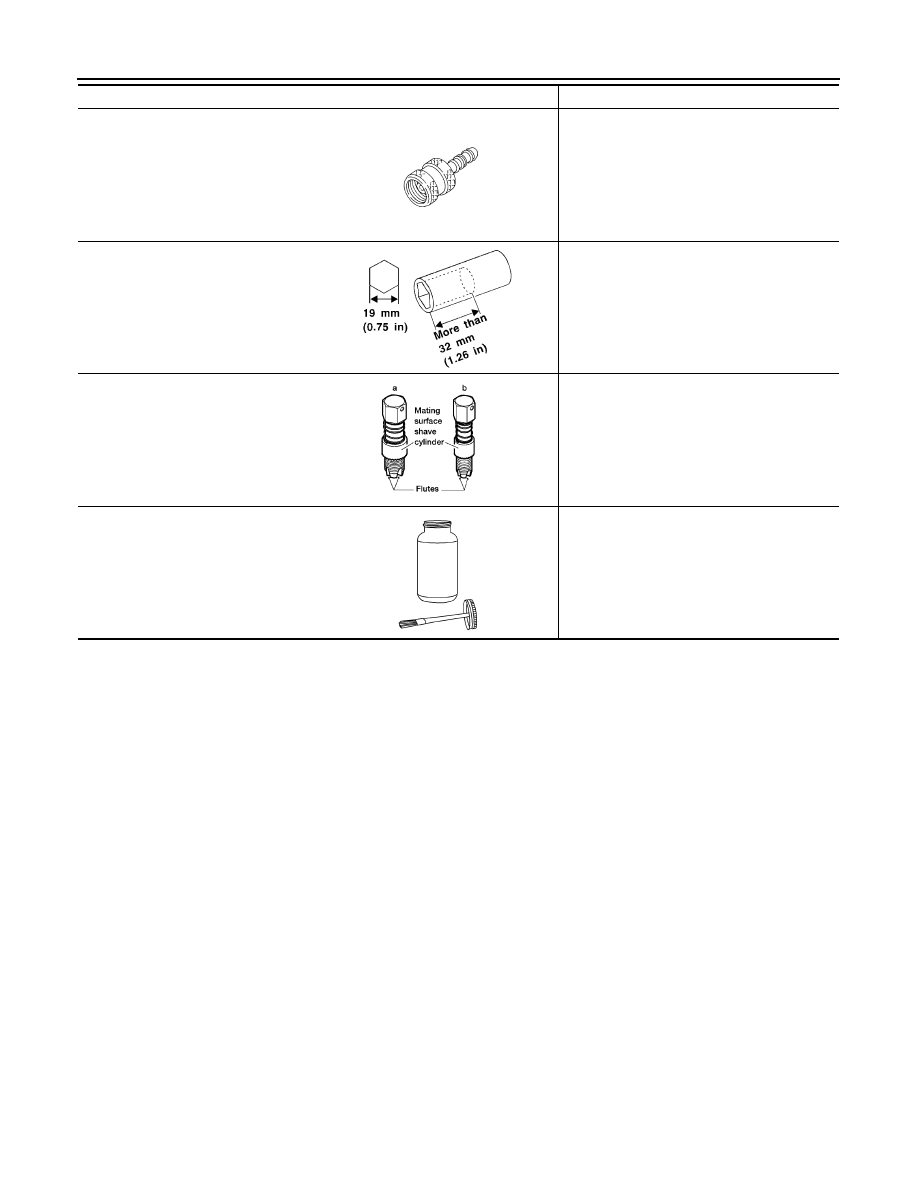

EVAP service port adapter
i.e.: (J-41413-OBD)

Applying positive pressure through EVAP ser-
vice port

Socket wrench

Removing and installing engine coolant tem-
perature sensor

Oxygen sensor thread cleaner
i.e.: (J-43897-18)
i.e.: (J-43897-12)

Reconditioning the exhaust system threads
before installing a new oxygen sensor. Use
with anti-seize lubricant shown in “Commer-
cial Service tools”.
a: J-43897-18 18 mm diameter, for Zirconia
Oxygen Sensor
b: J-43897-12 12 mm diameter, for Titania Ox-
ygen Sensor

 Anti-seize lubricant
i.e.: (Permatex™ 133AR or equivalent
meeting MIL specification MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads.

Tool name

Description

NT704

NT705

AEM488

AEM489

ENGINE CONTROL SYSTEM

EC-29

[KA24DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

ENGINE CONTROL SYSTEM

PFP:23710

System Diagram

UBS00D0W

PBIB1401E

EC-30

[KA24DE]

ENGINE CONTROL SYSTEM

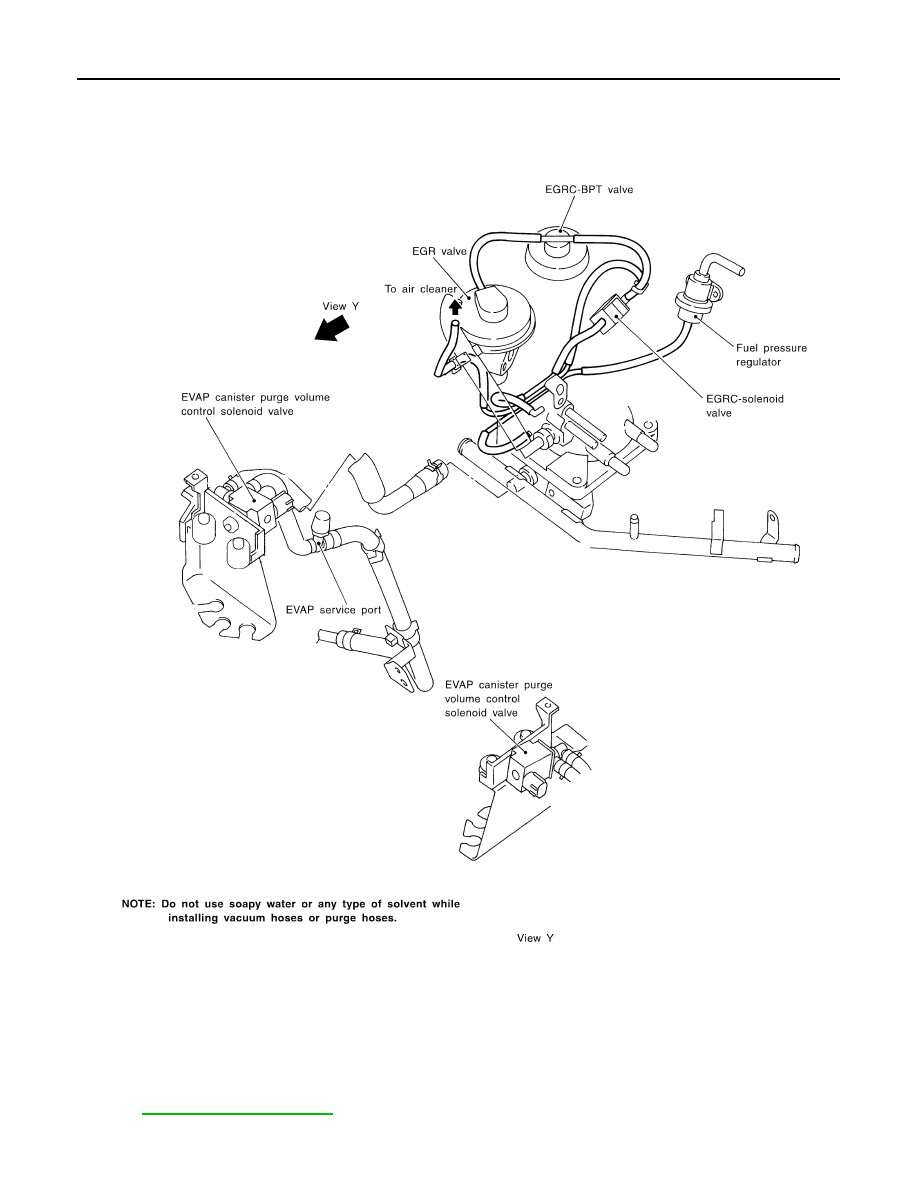

Vacuum Hose Drawing

UBS00D0X

Refer to

EC-29, "System Diagram"

  for vacuum control system.

WEC551
