Nissan Frontier D22. Manual - part 222





WARNING CHIME

DI-37

C

D

E

F

G

H

I

J

L

M

A

B

DI

With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No. 5, located in the fuse block (J/B)]

to smart entrance control unit terminal 27.

Ground is supplied to smart entrance control unit terminals 43 and 64 through body grounds M14 and M68.
When a signal, or combination of signals, is received by the smart entrance control unit, the warning chime will
sound.

Ignition Key Warning Chime

With the key switch in the INSERTED (key is in the ignition key cylinder) position, the ignition switch in the
OFF or ACC position and the front door LH open, the warning chime will sound. Power is supplied

from key switch terminal 2

to smart entrance control unit terminal 25.

Ground is supplied

to smart entrance control unit terminal 1

through front door switch LH terminal 2.

Front door switch LH terminal 3 is grounded through body grounds M14 and M68.

Light Warning Chime

With the front door LH open and lighting switch in parking and tail lamps ON (1ST) or headlamps ON (2ND)
position, the warning chime will sound. Power is supplied

from lighting switch terminal 12

to smart entrance control unit terminal 58.

Ground is supplied

to smart entrance control unit terminal 1

through front door switch LH terminal 2.

Front door switch LH terminal 3 is grounded through body grounds M14 and M68.

Seat Belt Warning Chime

The warning chime will sound for approximately 6 seconds when the ignition switch is turned from OFF to ON
with the driver seat belt unfastened (seat belt buckle switch ON).
Ground is supplied

to smart entrance control unit terminal 28

through seat belt buckle switch LH terminal 1.

Seat belt buckle switch LH terminal 2 is grounded through body grounds M14 and M68.

DI-38

WARNING CHIME

Wiring Diagram — CHIME —

EKS006WK

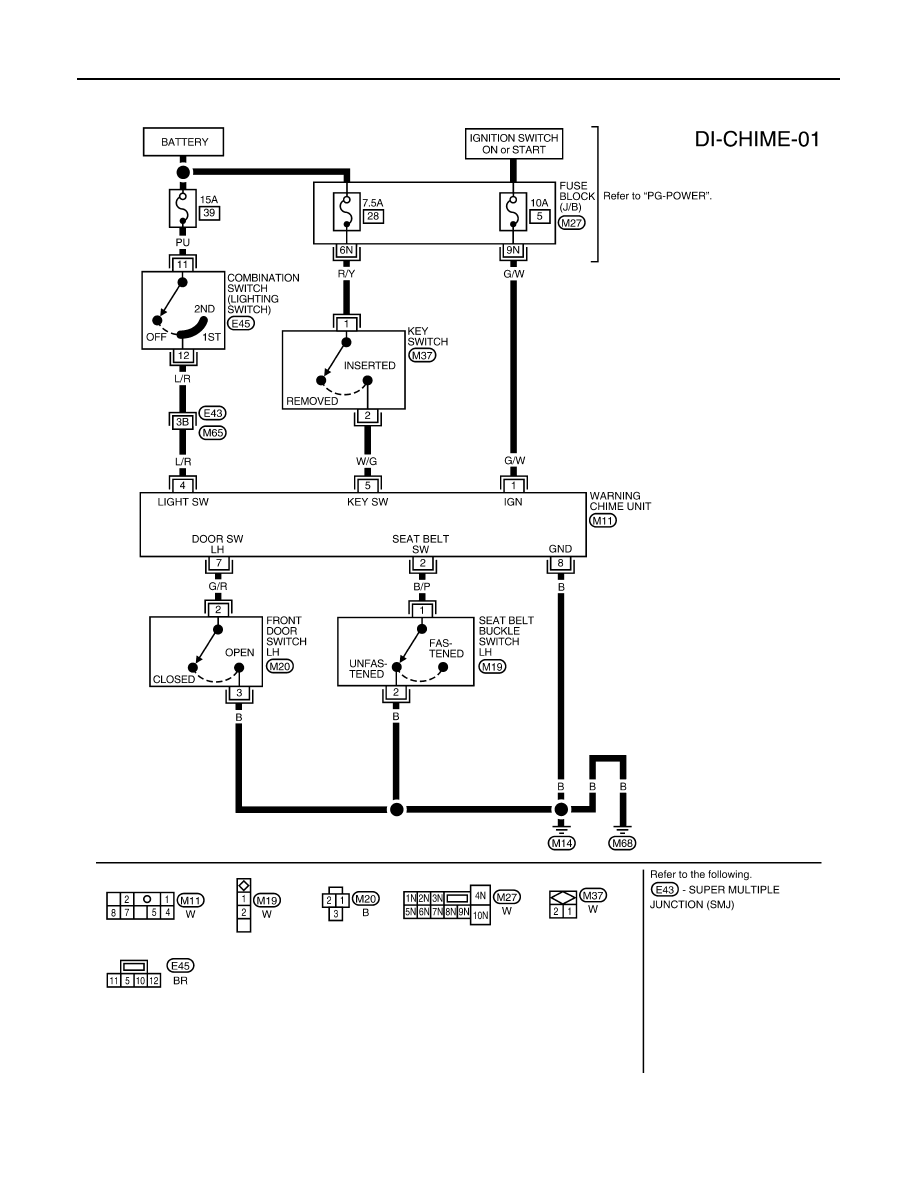

MODELS WITHOUT POWER DOOR LOCKS

LKWA0114E

WARNING CHIME

DI-39

C

D

E

F

G

H

I

J

L

M

A

B

DI

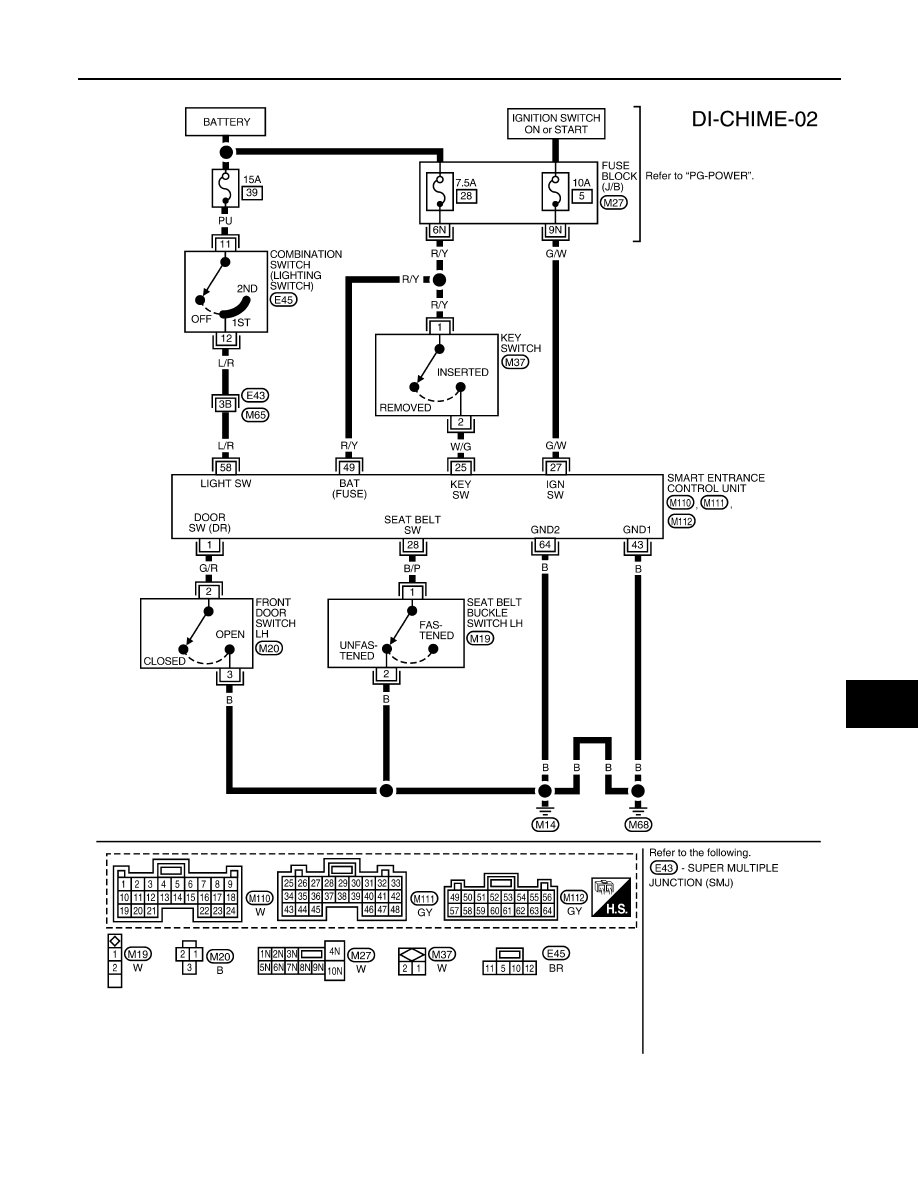

MODELS WITH POWER DOOR LOCKS

LKWA0115E

DI-40

WARNING CHIME

Trouble Diagnoses

EKS006WL

SYMPTOM CHART

X: Applicable

REFERENCE PAGE (DI-

)

Without

power door

locks

DI-41

DI-42

DI-42

DI-44

DI-45

With power

door locks

DI-41

DI-42

DI-43

DI-44

DI-46

SYMPTOM

POW

E

SUPPL

Y AND GRO

UND CIR

CUIT CHECK

L

IGHTI

NG SW

IT

CH I

N

PUT

 SIGNAL

 CHECK

KEY SW

ITCH (

INSER

TED)

 CHECK

SEA

T BEL

T BUCKL

E

 SW

ITCH L

H

 CHECK

FRONT DO

OR SW

IT

CH L

H

 CHECK

Light warning chime does not activate.

X

X

X

Ignition key warning chime does not activate.

X

X

X

Seat belt warning chime does not activate.

X

X

All warning chimes do not activate.

X
