TROUBLE DIAGNOSES FOR SYMPTOMS

AT-385

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

17. A/T Does Not Shift: D

4



→ D

3

 , When Overdrive Control Switch ON

→ OFF

ECS007ON

SYMPTOM:

●

A/T does not shift from D

4

  to D

3

  when changing overdrive control switch to OFF position.

1.

CHECK OVERDRIVE CONTROL SWITCH CIRCUIT

 With CONSULT

Does “TCM INPUT SIGNALS” in Data Monitor show damage to overdrive control switch circuit?

 Without CONSULT

Does self-diagnosis show damage to overdrive control switch cir-
cuit?

Yes or No

Yes

>> Check overdrive control switch circuit. Refer to

AT-389,

"DIAGNOSTIC PROCEDURE"

 .

No

>> Go to

AT-374, "10. A/T Does Not Shift: D

2



→ D

3

"

 .

SAT344H

AT-386

[RE4R01A]

TROUBLE DIAGNOSES FOR SYMPTOMS

18. A/T Does Not Shift: D

3



→ 2

2

 , When Selector Lever D

→ 2 Position

ECS007OO

SYMPTOM:

●

A/T does not shift from D

3

  to 2

2

  when changing selector lever from D to 2 position.

1.

CHECK PNP SWITCH CIRCUIT

 With CONSULT

Does “TCM INPUT SIGNALS” in Data Monitor show damage to PNP switch circuit?

 Without CONSULT

Does self-diagnosis show damage to PNP switch circuit?

Yes or No

Yes

>> Check PNP switch circuit. Refer to

AT-249, "DTC P0705

PARK/NEUTRAL POSITION (PNP) SWITCH"

 .

No

>> Go to

AT-372, "9. A/T Does Not Shift: D

1



→ D

2

 Or Does

Not Kickdown: D

4



→ D

2

"

 .

SAT367J

TROUBLE DIAGNOSES FOR SYMPTOMS

AT-387

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

19. A/T Does Not Shift: 2

2



→ 1

1

 , When Selector Lever 2

→ 1 Position

ECS007OP

SYMPTOM:

●

A/T does not shift from 2

2

  to 1

1

  when changing selector lever from 2 to 1 position.

1.

CHECK PNP SWITCH CIRCUIT

 With CONSULT

Does “TCM INPUT SIGNALS” in Data Monitor show damage to PNP switch circuit?

 Without CONSULT

Does self-diagnosis show damage to PNP switch circuit?

Yes or No

Yes

>> Check PNP switch circuit. Refer to

AT-249, "DTC P0705

PARK/NEUTRAL POSITION (PNP) SWITCH"

 .

No

>> GO TO 2.

2.

CHECK SYMPTOM

Check again.

OK or NG

OK

>> INSPECTION END.

NG

>> 1. Perform TCM input/output signal inspection.

2. If NG, recheck TCM pin terminals for damage or loose

connection with harness connector.

20. Vehicle Does Not Decelerate By Engine Brake

ECS007OQ

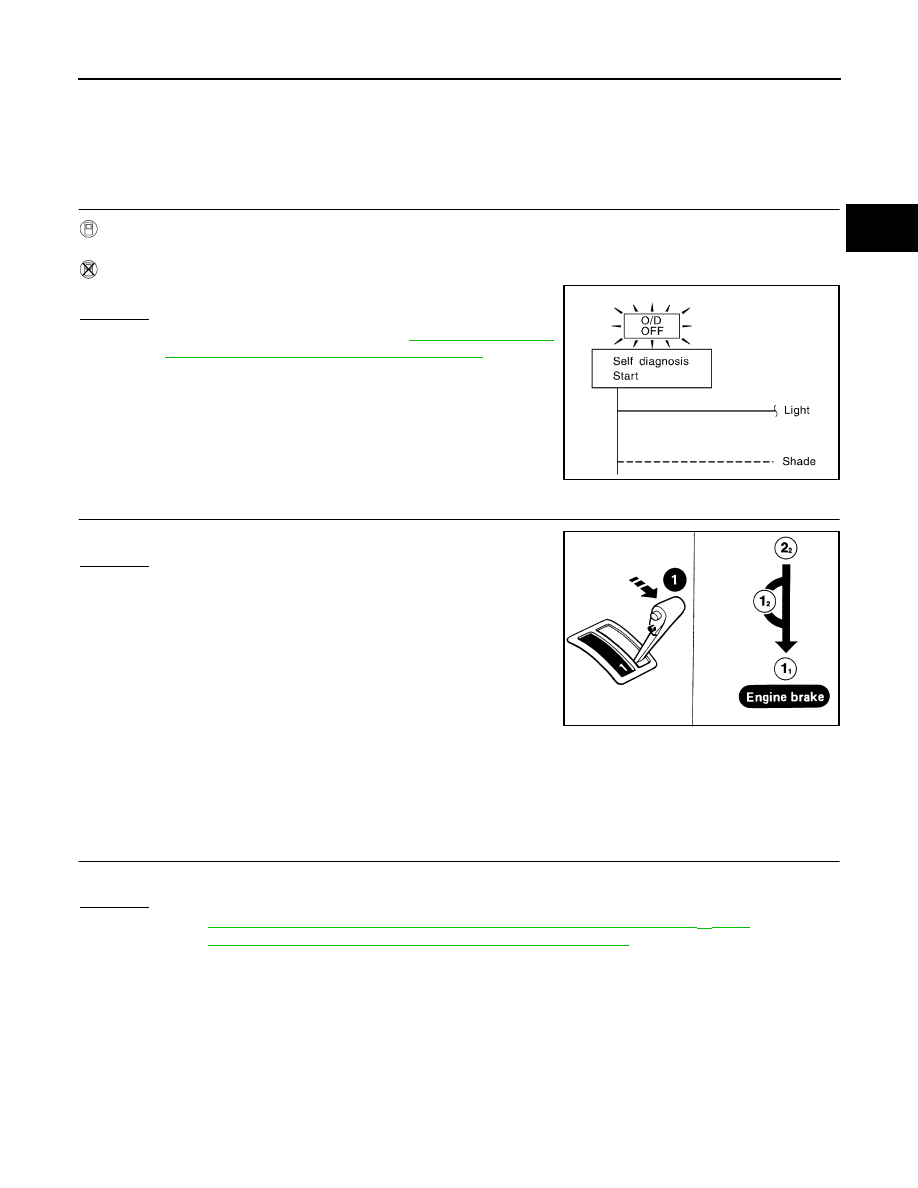

SYMPTOM:

●

Vehicle does not decelerate by engine brake when shifting from 2

2

  (1

2

 ) to 1

1

 .

1.

CHECK SYMPTOM

Is “6. Vehicle Does Not Creep Backward In R Position” OK?

Yes or No

Yes

>> Go to

AT-382, "15. Engine Speed Does Not Return To Idle (Light Braking D

4



→ D

3

 )"

 .

No

>> Go to

AT-364, "6. Vehicle Does Not Creep Backward In R Position"

 .

21. TCM Self-diagnosis Does Not Activate (PNP, Overdrive Control and Throttle
Position Switches Circuit Checks)

ECS007OR

SYMPTOM:

●

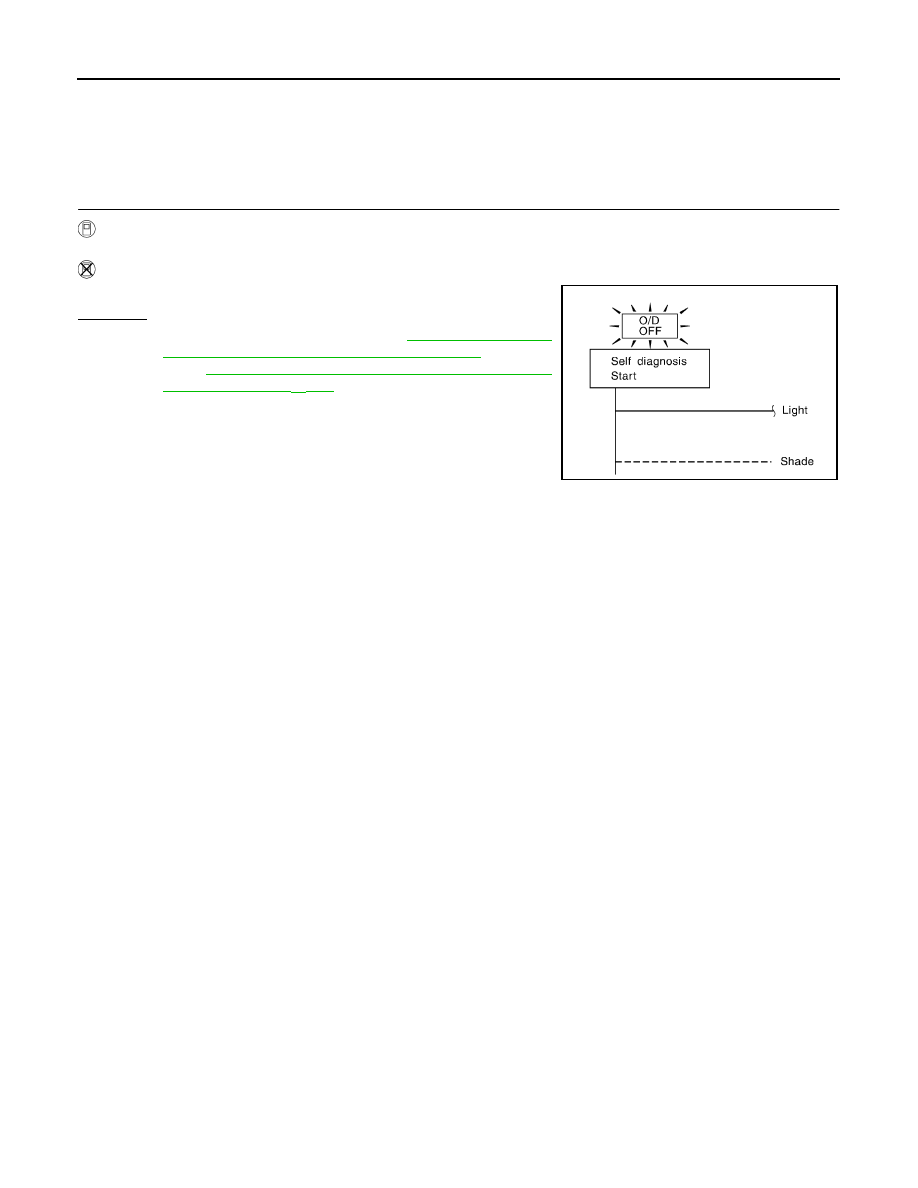

O/D OFF indicator lamp does not come on in TCM self-diagnostic procedure even the lamp circuit
is good.

SAT367J

SAT778B

AT-388

[RE4R01A]

TROUBLE DIAGNOSES FOR SYMPTOMS

DESCRIPTION

●

PNP switch
The PNP switch assembly includes a transmission range switch.
The transmission range switch detects the selector position and
sends a signal to the TCM.

●

Overdrive control switch
Detects the overdrive control switch position (ON or OFF) and
sends a signal to the TCM.

●

Throttle position switch
Consists of a wide open throttle position switch and a closed
throttle position switch.
The wide open position switch sends a signal to the TCM when
the throttle valve is open at least 1/2 of the full throttle position.
The closed throttle position switch sends a signal to the TCM
when the throttle valve is fully closed.

AAT478A

SAT341I

AAT495A
