DTC P0750 SHIFT SOLENOID VALVE A

AT-313

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

Wiring Diagram — AT — SSV/A

ECS007NC

WCWA0153E

AT-314

[RE4R01A]

DTC P0750 SHIFT SOLENOID VALVE A

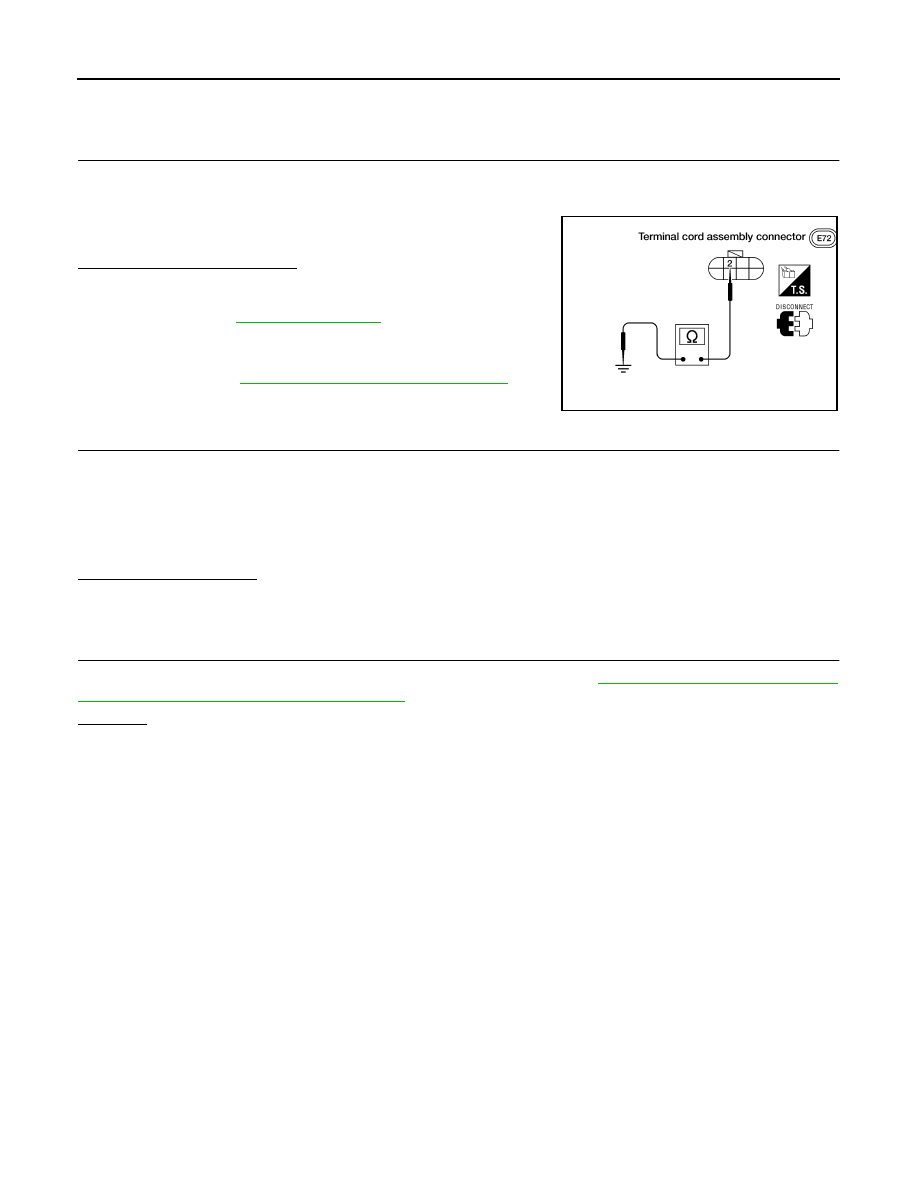

Diagnostic Procedure

ECS007ND

1.

CHECK GROUND CIRCUIT

1.

Turn ignition switch to OFF position.

2.

Disconnect terminal cord assembly connector in engine compartment.

3.

Check resistance between terminal cord assembly connector
E72 terminal 2 and ground.

Is resistance approx. 20 - 40

Ω?

Yes

>> GO TO 2.

No

>> 1. Remove control valve assembly.

Refer to

AT-402, "REMOVAL"

 .

2. Check the following items:

–

Shift solenoid valve A
Refer to

AT-315, "SHIFT SOLENOID VALVE A"

 .

–

Harness of terminal cord assembly for short or open

2.

CHECK POWER SOURCE CIRCUIT

1.

Turn ignition switch to OFF position.

2.

Disconnect TCM harness connector.

3.

Check resistance between terminal cord assembly connector E72 terminal 2 and TCM harness connector
M77 terminal 11. Refer to wiring diagram.

If OK, check harness for short to ground and short to power.

Is resistance approx. 0

Ω?

Yes

>> GO TO 3.

No

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK DTC

Perform Diagnostic Trouble Code (DTC) confirmation procedure. Refer to

AT-311, "DIAGNOSTIC TROUBLE

CODE (DTC) CONFIRMATION PROCEDURE"

 .

OK or NG

OK

>> INSPECTION END.

NG

>> 1. Perform TCM input/output signal inspection.

2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

AAT506A

DTC P0750 SHIFT SOLENOID VALVE A

AT-315

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

Component Inspection

ECS007NE

SHIFT SOLENOID VALVE A

●

For removal, refer to

AT-402, "REMOVAL"

 .

Resistance Check

●

Check resistance between terminal 3 and ground.

Operation Check

●

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal 3 and ground.

SAT654I

Solenoid valve

Terminal No.

Resistance (Approx.)

Shift solenoid valve A

3

Ground

20 - 40

Ω

SAT653I

AT-316

[RE4R01A]

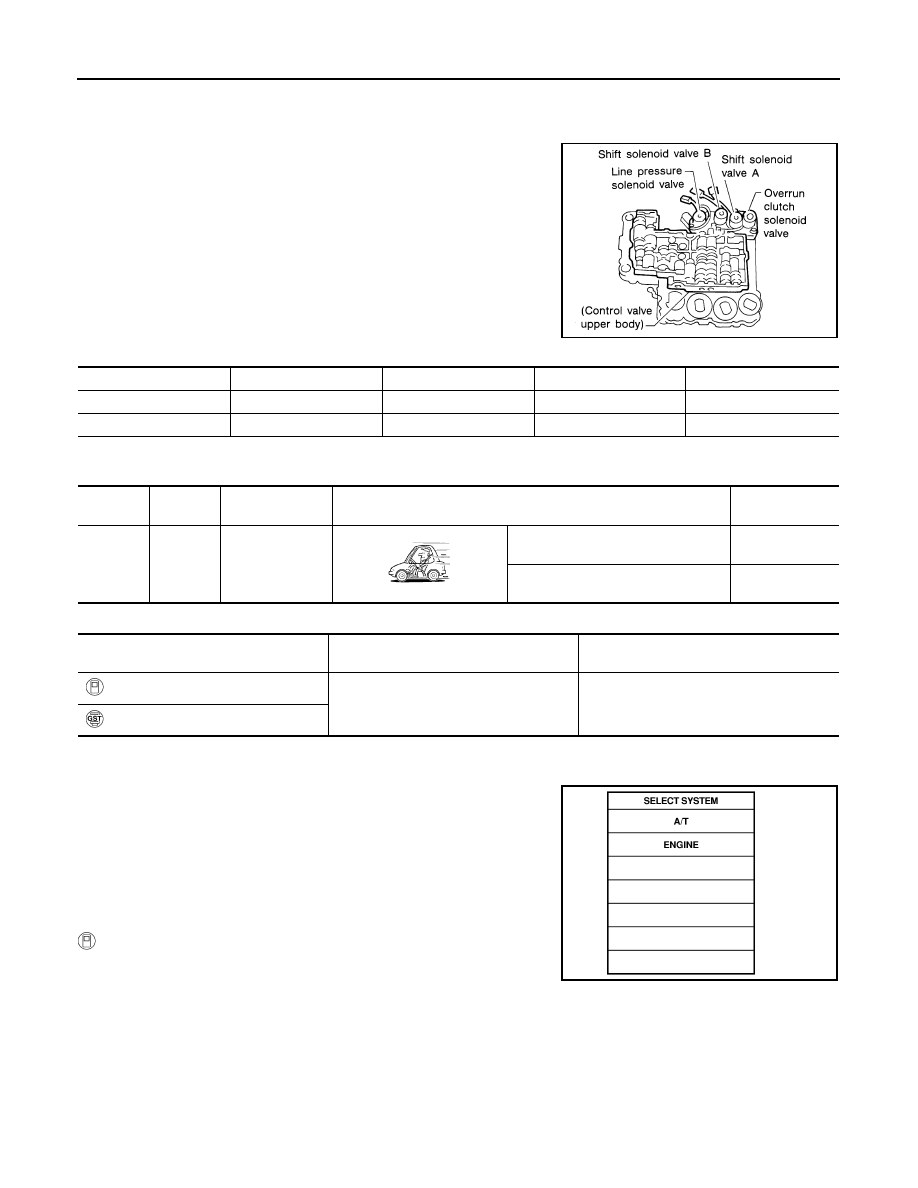

DTC P0755 SHIFT SOLENOID VALVE B

DTC P0755 SHIFT SOLENOID VALVE B

PFP:31940

Description

ECS007NF

Shift solenoid valves A and B are turned ON or OFF by the TCM in
response to signals sent from the PNP switch, vehicle speed and
throttle position sensors. Gears will then be shifted to the optimum
position.

TCM TERMINALS AND REFERENCE VALUE

Remarks: Specification data are reference values.

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch OFF and wait at least 5 seconds before conducting the
next test.
After the repair, perform the following procedure to confirm the mal-
function is eliminated.

With CONSULT-II

1.

Turn ignition switch ON and select “DATA MONITOR” mode for
“ENGINE” with CONSULT-II.

SAT341H

Gear position

1

2

3

4

Shift solenoid valve A

ON (Closed)

OFF (Open)

OFF (Open)

ON (Closed)

Shift solenoid valve B

ON (Closed)

ON (Closed)

OFF (Open)

OFF (Open)

Terminal

No.

Wire color

Item

Condition

Judgement stan-

dard (Approx.)

12

L/Y

Shift solenoid
valve B

When shift solenoid valve B oper-
ates. (When driving in D

1

  or D

2

 )

Battery voltage

When shift solenoid valve B does not
operate. (When driving in D

3

  or D

4

 )

0V

Diagnostic trouble code

Malfunction is detected when ...

Check item

(Possible cause)

: SFT SOL B/CIRC

TCM detects an improper voltage drop
when it tires to operate the solenoid valve.

●

Harness or connectors
(The solenoid circuit is open or shorted)

●

Shift solenoid valve B

: P0755

SAT014K
