Nissan Frontier D22. Manual - part 77





DTC P0732 IMPROPER SHIFTING TO 2ND GEAR POSITION

AT-277

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION:

Always drive vehicle at a safe speed.

Be careful not to rev engine into the red zone on the
tachometer.

NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch OFF and wait at least 5 seconds before conducting the
next test.
TESTING CONDITIONS:
Always drive vehicle on a level road to improve the accuracy of
test.
After the repair, perform the following procedure to confirm the mal-
function is eliminated.

With CONSULT-II

1.

Start engine and select “DATA MONITOR” mode for “A/T” with
CONSULT-II.

2.

Make sure that output voltage of A/T fluid temperature sensor is
within the range below.
FLUID TEMP SEN: 0.4 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm
up the fluid) or stop engine to increase the voltage (cool down
the fluid).

3.

Select  “2ND GR FNCTN P0732” of “DTC WORK SUPPORT”
mode for “A/T” with CONSULT-II and touch “START”.

4.

Accelerate vehicle to 50 to 55 km/h (31 to 34 MPH) under the
following condition and release the accelerator pedal com-
pletely.
THROTTLE POSI: Less than 1/8 (at all times during step 4)
Selector lever: D position (O/D ON)

Check that “GEAR” shows 3 or 4 after releasing pedal.

5.

Depress accelerator pedal to WOT (more than 7/8 of “THROT-
TLE POSI”) quickly from a speed of 50 to 55 km/h (31 to 34
MPH) until “TESTING” changes to “STOP VEHICLE” or “COM-
PLETED”. (It will take approximately 3 seconds.)
If the check result NG appears on CONSULT-II screen, go to

AT-279, "Diagnostic Procedure"

 .

If “STOP VEHICLE” appears on CONSULT-II screen, go to following step.

Check that “GEAR” shows 2 when depressing accelerator pedal to WOT.

If “TESTING” does not appear on CONSULT-II for a long time, select “SELF-DIAG RESULTS” for
“ENGINE”. In case a 1st trip DTC other than P0732 is shown, refer to applicable “TROUBLE DIAG-
NOSIS FOR DTC”.

6.

Stop vehicle.

7.

Follow the instruction displayed. (Check for normal shifting referring to the table below.)

8.

Make sure that “OK” is displayed. (If “NG” is displayed, refer to “DIAGNOSTIC PROCEDURE”.) Refer to

AT-279, "Diagnostic Procedure"

 . Refer to

AT-496, "Shift Schedule"

 .

 With GST

Follow the procedure “With CONSULT-II”.

Vehicle condition

Gear on actual transmission shift pattern when

screen is changed to 1

→ 2 → 3 → 4

No malfunction exists

→ 2 → 3 → 4

Malfunction for P0732 exists.

→ 3 → 3 → 4

SAT014K

SAT971J

SAT021J

AT-278

[RE4R01A]

DTC P0732 IMPROPER SHIFTING TO 2ND GEAR POSITION

Wiring Diagram — AT — 2ND

ECS007MO

WCWA0096E

DTC P0732 IMPROPER SHIFTING TO 2ND GEAR POSITION

AT-279

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

Diagnostic Procedure

ECS007MP

1.

CHECK SHIFT SOLENOID VALVE

1.

Remove control valve assembly. Refer to

AT-402, "REMOVAL"

 .

2.

Check shift solenoid valve operation.

Shift solenoid valve B

Refer to

AT-320, "SHIFT SOLENOID VALVE B"

 .

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace shift solenoid valve assembly.

2.

CHECK CONTROL VALVE

1.

Disassemble control valve assembly.
Refer to

AT-431, "CONTROL VALVE ASSEMBLY"

 .

2.

Check to ensure that:

Valve, sleeve and plug slide along valve bore under their own weight.

Valve, sleeve and plug are free from burrs, dents and scratches.

Control valve springs are free from damage, deformation and fatigue.

Hydraulic line is free from obstacles.

OK or NG

OK

>> GO TO 3.

NG

>> Repair control valve assembly.

3.

CHECK DTC

Perform Diagnostic Trouble Code (DTC) confirmation procedure. Refer to

AT-277, "DIAGNOSTIC TROUBLE

CODE (DTC) CONFIRMATION PROCEDURE"

 .

OK or NG

OK

>> INSPECTION END.

NG

>> Check control valve again. Repair or replace control valve assembly.

Component Inspection

ECS007MQ

SHIFT SOLENOID VALVE B

For removal, refer to

AT-402, "REMOVAL"AT-402, "REMOVAL"

 .

Resistance Check

Check resistance between terminal 2 and ground.

SAT367H

SAT651I

AT-280

[RE4R01A]

DTC P0732 IMPROPER SHIFTING TO 2ND GEAR POSITION

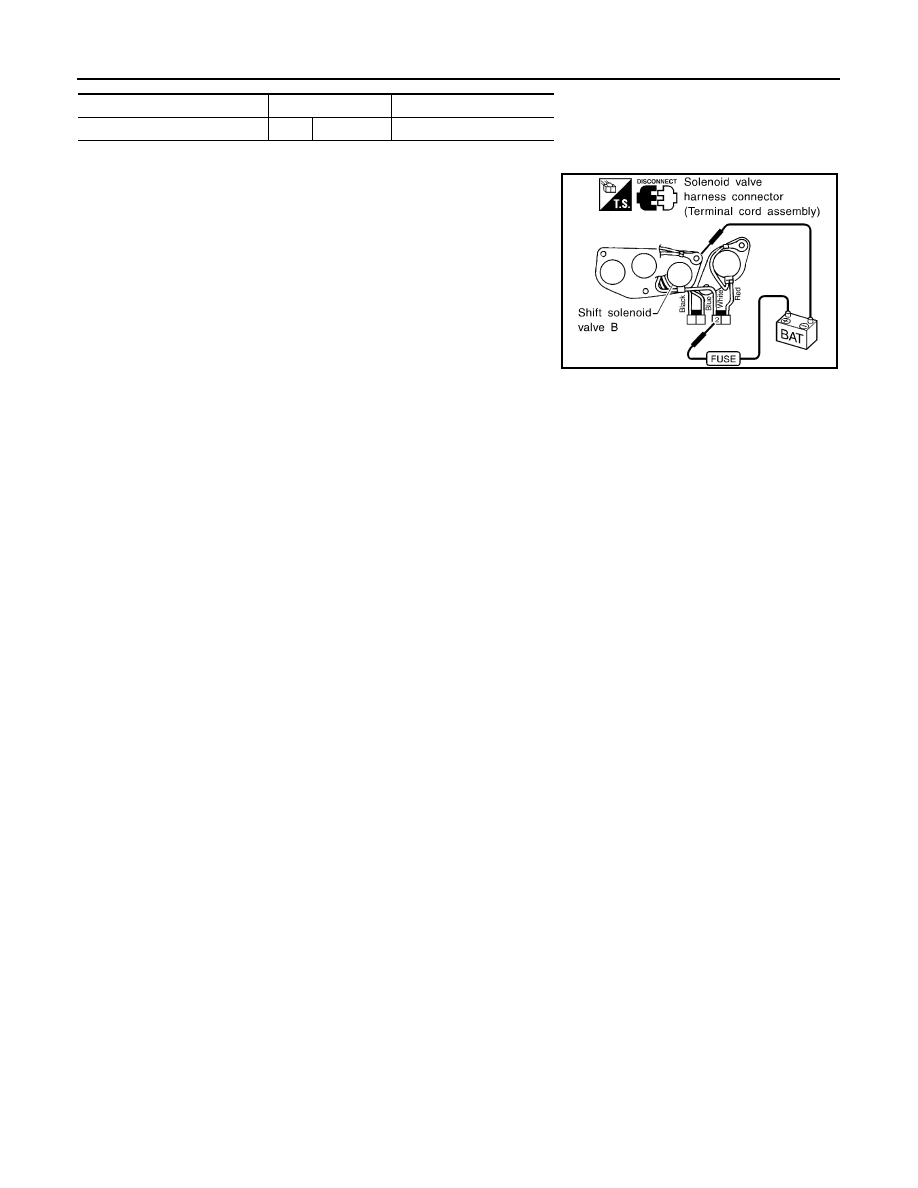

Operation Check

Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal 2 and ground.

Solenoid valve

Terminal No.

Resistance (Approx.)

Shift solenoid valve B

2

Ground

20 - 40

SAT650I
