DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH

AT-253

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

2.

CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)

 Without CONSULT-II

1.

Turn ignition switch to ON position
(Do not start engine).

2.

Check voltage between TCM harness connector M78 terminals (26, 27, 34, 35, 36) and ground while
moving selector lever through each position.

Does battery voltage exist (B) or non-existent (0)?

Yes

>> GO TO 3.

No

>> Check the following items:

PNP switch
Refer to

AT-254, "PNP SWITCH"

 .

Harness for short or open between ignition switch and PNP switch

Harness for short or open between PNP switch connector E34 and TCM connector M78

Diode (P position)

3.

CHECK DTC

Perform Diagnostic Trouble Code (DTC) confirmation procedure. Refer to

AT-249, "DIAGNOSTIC TROUBLE

CODE (DTC) CONFIRMATION PROCEDURE"

 .

OK or NG

OK

>> INSPECTION END.

NG

>> 1. Perform TCM input/output signal inspection.

2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

AAT480A

AAT479A

AT-254

[RE4R01A]

DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH

Component Inspection

ECS007M7

PNP SWITCH

1.

Check continuity between terminals 1 and 2 and between termi-
nals 3 and (4, 5, 6, 7, 8, 9) while moving manual shaft through
each position.

2.

If NG, check again with manual control linkage disconnected
from manual shaft of A/T assembly. Refer to step 1.

3.

If OK on step 2, adjust manual control linkage. Refer to

AT-406,

"Manual Control Linkage Adjustment"

 .

4.

If NG on step 2, remove PNP switch from A/T and check conti-
nuity of PNP switch terminals. Refer to step 1.

5.

If OK on step 4, adjust PNP switch. Refer to

AT-405, "Park/Neu-

tral Position (PNP) Switch Adjustment"

 .

6.

If NG on step 4, replace PNP switch.

Lever position

P

R

N

D

2

1

Terminal No.

1 - 2

3 - 5

1 - 2

3 - 7

3 - 8

3 - 9

3 - 4

3 - 6

SAT517GB

AAT482A

AAT551A

AAT481A

DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

AT-255

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

PFP:31940

Description

ECS007M8

The A/T fluid temperature sensor detects the A/T fluid temperature
and sends a signal to the TCM.

CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE

Remarks: Specification data are reference values.

TCM TERMINALS AND REFERENCE VALUE

Remarks: Specification data are reference values.

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE” has been previously conducted,
always turn ignition switch OFF and wait at least 5 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

SAT342HA

SAT021J

Monitor item

Condition

Specification (Approx.)

A/T fluid temperature
sensor

Cold [20

°C (68°F)]

Hot [80

°C (176°F)]

1.5V

0.5V

2.5k

0.3k

Terminal

No.

Wire color

Item

Condition

Judgement stan-

dard (Approx.)

42

BR

Throttle position
sensor
(Ground)

47

R/B

A/T fluid temper-
ature sensor

When ATF temperature is 20

°C

(68

°F).

1.5V

When ATF temperature is 80

°C

(176

°F).

0.5V

Diagnostic trouble code

Malfunction is detected when....

Check item (Possible cause)

: ATF TEMP SEN/CIRC

TCM receives an excessively low or high
voltage from the sensor.

Harness or connectors
(The sensor circuit is open or shorted)

A/T fluid temperature sensor

: P0710

AT-256

[RE4R01A]

DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT

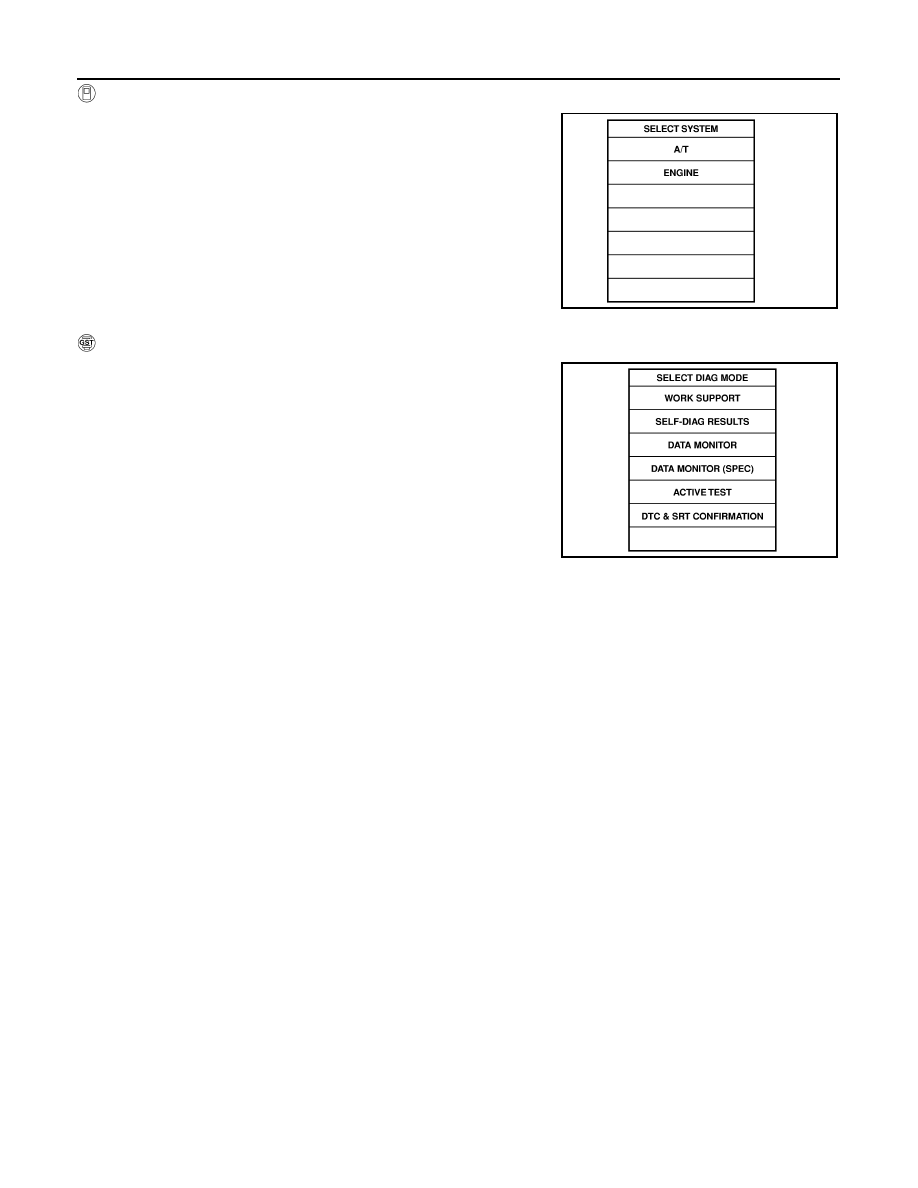

 With CONSULT-II

1.

Turn ignition switch ON and select “DATA MONITOR” mode for
“ENGINE” with CONSULT-II.

2.

Start engine and maintain the following conditions for at least 10
minutes (Total: It is not necessary to maintain continuously).
CMPS·RPM (REF): 450 rpm or more
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.2V
Selector lever: D position (O/D ON)

 With GST

Follow the procedure “With CONSULT-II”.

SAT014K

SEF949Y
