TROUBLE DIAGNOSIS — BASIC INSPECTION

AT-217

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

1. CHECK BEFORE ENGINE IS STARTED

1.

CHECK O/D OFF INDICATOR LAMP

1.

Park vehicle on flat surface.

2.

Move selector lever to P position.

3.

Turn ignition switch to OFF position.
Wait at least 5 seconds.

4.

Turn ignition switch to ON position. (Do not start engine.)

5.

Does O/D OFF indicator lamp come on for about 2 seconds?

Yes or No

Yes

>> GO TO 2.

No

>> Go to

AT-356, "1. O/D OFF Indicator Lamp Does Not Come On"

 .

2.

CHECK O/D OFF INDICATOR LAMP

Does O/D OFF indicator lamp flicker for about 8 seconds?

Yes or No

Yes

>> Perform self-diagnosis. Refer to

AT-198, "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)"

.

No

>> GO TO 3.

SAT967I

WAT496

WAT496

AT-218

[RE4R01A]

TROUBLE DIAGNOSIS — BASIC INSPECTION

3.

CHECK NG ITEM

1.

Turn ignition switch to OFF position.

2.

Perform self-diagnosis and note NG items.
Refer to

AT-198, "TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)"

 .

>> Go to

AT-358, "2. Engine Cannot Be Started In P and N Position"

 .

2. CHECK AT IDLE

1.

CHECK ENGINE START

1.

Park vehicle on flat surface.

2.

Turn ignition switch to OFF position.

3.

Move selector lever to P or N position.

4.

Turn ignition switch to start position.

5.

Is engine started?

Yes or No

Yes

>> GO TO 2.

No

>> Go to

AT-358, "2. Engine Cannot Be Started In P and N Position"

 .

2.

CHECK ENGINE START

1.

Turn ignition switch to OFF position.

2.

Move selector lever to D, 1, 2 or R position.

3.

Turn ignition switch to start position.

4.

Is engine started?

Yes or No

Yes

>> Go to

AT-358, "2. Engine Cannot Be Started In P and N Position"

 .

No

>> GO TO 3.

3.

CHECK VEHICLE MOVE

1.

Turn ignition switch to OFF position.

2.

Move selector lever to P position.

3.

Release parking brake.

4.

Push vehicle forward or backward.

5.

Does vehicle move when it is pushed forward or backward?

Yes or No

Yes

>> Go to

AT-359, "3. In “P” Position, Vehicle Moves For-

ward Or Backward When Pushed"

 .

No

>> GO TO 4.

SAT796A

TROUBLE DIAGNOSIS — BASIC INSPECTION

AT-219

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

4.

CHECK VEHICLE MOVE

1.

Apply parking brake.

2.

Move selector lever to N position.

3.

Turn ignition switch to START position and start engine.

4.

Release parking brake.

5.

Does vehicle move forward or backward?

Yes or No

Yes

>> Go to

AT-360, "4. In N Position, Vehicle Moves"

 .

No

>> GO TO 5.

5.

CHECK SHIFT SHOCK

1.

Apply foot brake.

2.

Move selector lever to R position.

3.

Is there large shock when changing from N to R position?

Yes or No

Yes

>> Go to

AT-362, "5. Large Shock. N

→ R Position"

 .

No

>> GO TO 6.

6.

CHECK VEHICLE REVERSE MOVEMENT

1.

Release foot brake for several seconds.

2.

Does vehicle creep backward when foot brake is released?

Yes or No

Yes

>> GO TO 7.

No

>> Go to

AT-364, "6. Vehicle Does Not Creep Backward In R Position"

 .

7.

CHECK VEHICLE FORWARD MOVEMENT

1.

Move selector lever to D, 2 and 1 position and check if vehicle creeps forward.

2.

Does vehicle creep forward in all three positions?

Yes or No

Yes

>> Go to

AT-219, "3. CRUISE TEST"

 .

No

>> Go to

AT-367, "7. Vehicle Does Not Creep Forward In D, 2 Or 1 Position"

 .

3. CRUISE TEST

Check all items listed in Parts 1 through 3.

SAT082J

SAT601J

AT-220

[RE4R01A]

TROUBLE DIAGNOSIS — BASIC INSPECTION

 With CONSULT-II

Using CONSULT-II, conduct a cruise test and record the result.

Print the result and ensure that shifts and lock-ups take place as per “Shift Schedule”.

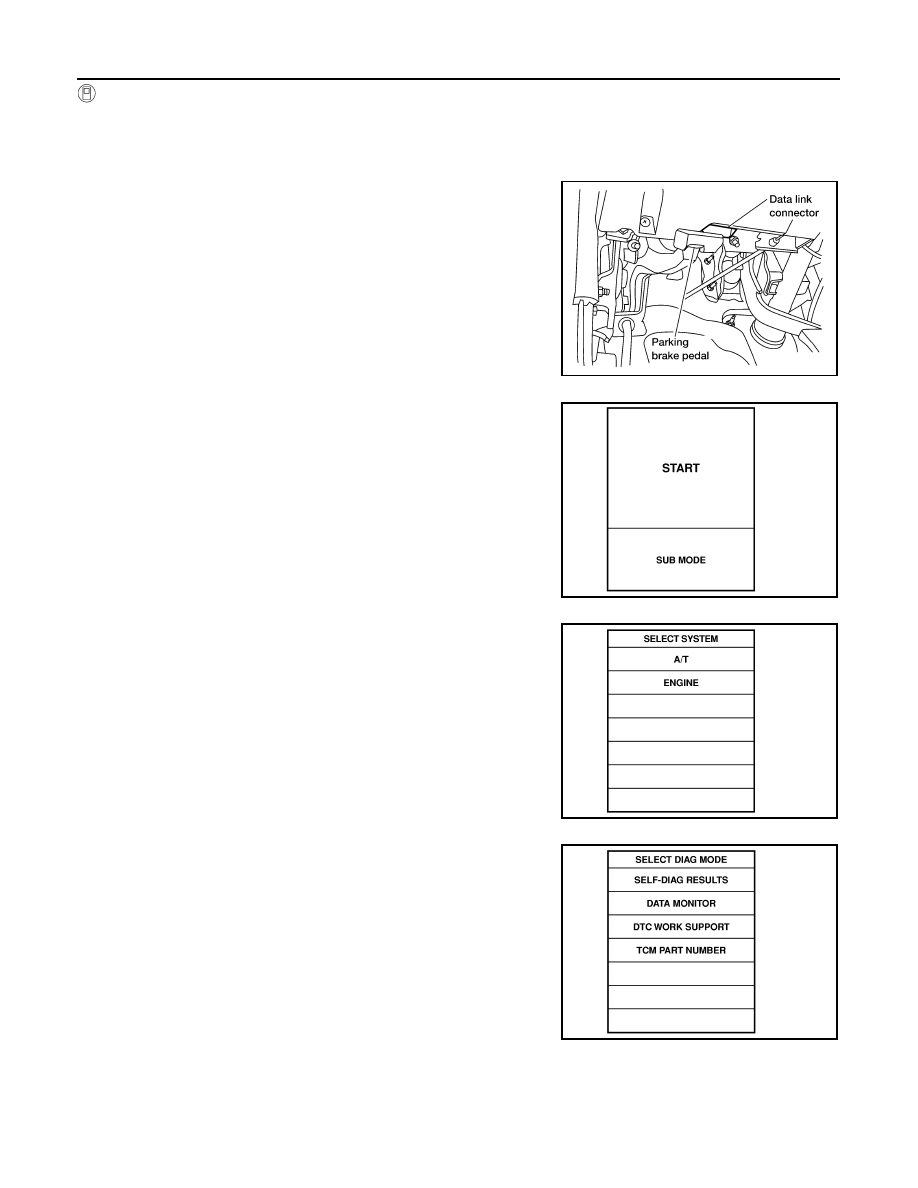

CONSULT-II Setting Procedure

1.

Turn  ignition switch OFF.

2.

Connect “CONSULT-II” to data link connector.
The data link connector is located in instrument lower panel on
driver side.

3.

Turn ignition switch ON.

4.

Touch “START”.

5.

Touch “A/T”.

6.

Touch “DATA MONITOR”.

LEC104A

SAT586J

SAT014K

SAT971J
