PRECAUTIONS

AT-161

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

ing solvent and compressed air after repair. Check Service Bulletins for latest A/T oil cooler cleaning proce-
dure. For radiator replacement refer to

CO-30, "RADIATOR"

 .

OBD-II SELF-DIAGNOSIS

A/T self-diagnosis is performed by the TCM in combination with the ECM. The results can be read through
the blinking pattern of the O/D OFF indicator or the malfunction indicator lamp (MIL). Refer to the table on

AT-189

  for the indicator used to display each self-diagnostic result.

The self-diagnostic results indicated by the MIL are automatically stored in both the ECM and TCM mem-
ories.
Always perform the procedure “HOW TO ERASE DTC”. Refer to

AT-187, "HOW TO ERASE DTC"

  to

complete the repair and avoid unnecessary blinking of the MIL.

The following self-diagnostic items can be detected using ECM self-diagnostic results mode* only when
the O/D OFF indicator lamp does not indicate any malfunctions.

Park/neutral position (PNP) switch

A/T 1st, 2nd, 3rd, or 4th gear function

A/T TCC S/V function (lock-up)

*: For details of OBD-II, refer to

EC-619, "ON BOARD DIAGNOSTIC (OBD) SYSTEM"

  (VG33E only) or

EC-

1220, "ON BOARD DIAGNOSTIC (OBD) SYSTEM"

  (VG33ER only).

Certain systems and components, especially those related to OBD, may use a new style slide-
locking type harness connector. For description and how to disconnect, refer to

PG-4, "HARNESS

CONNECTOR"

 .

Wiring Diagrams and Trouble Diagnosis

ECS007LD

When you read wiring diagrams, refer to the following:

Refer to

GI-13, "How to Read Wiring Diagrams"

 .

Refer to

PG-9, "POWER SUPPLY ROUTING"

  for power distribution circuit.

When you perform trouble diagnosis, refer to the following:

Refer to

GI-9, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES"

 .

Refer to

GI-25, "How to Perform Efficient Diagnosis for an Electrical Incident"

 .

AT-162

[RE4R01A]

PREPARATION

PREPARATION

PFP:00002

Special Service Tools

ECS007LE

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
 Tool name

Description

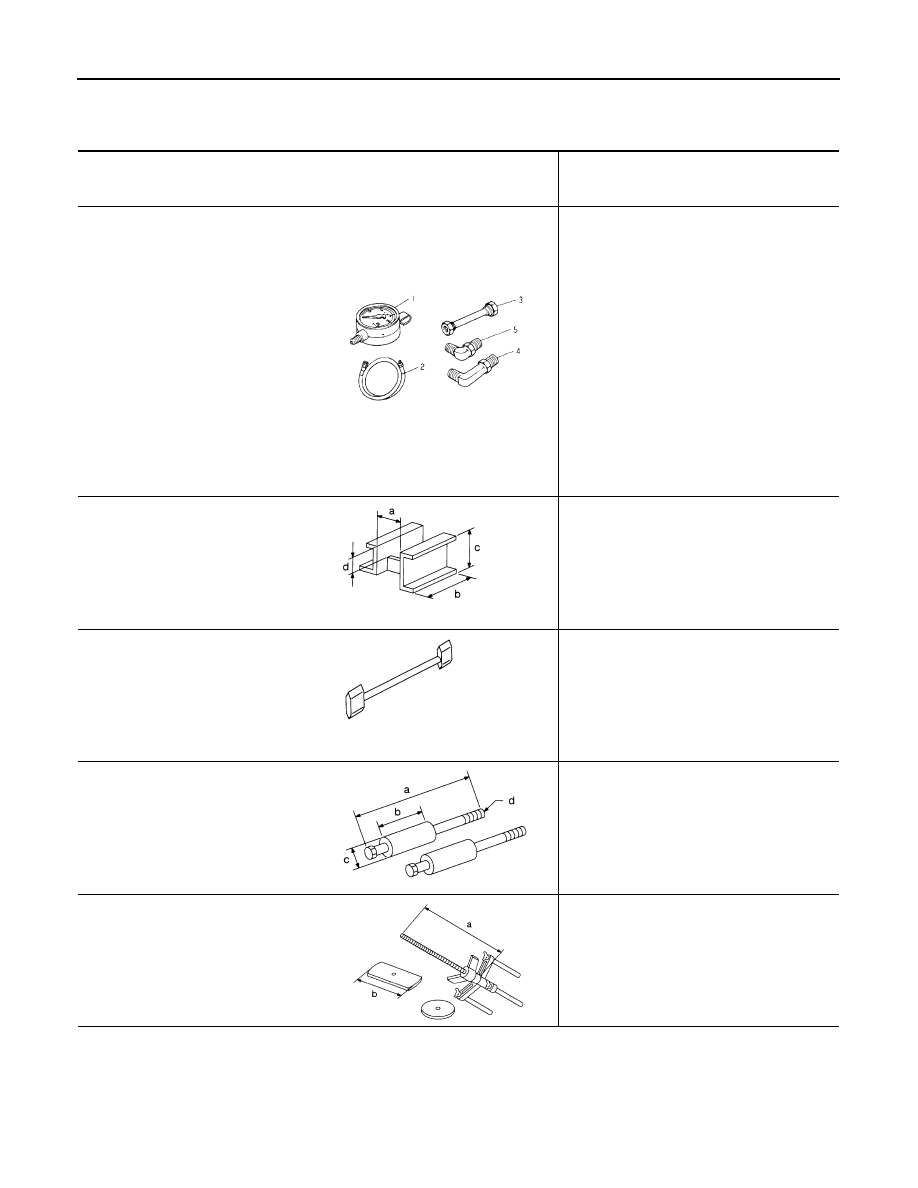

ST2505S001
(J34301-C)
Oil pressure gauge set
  1 ST25051001
(

)

Oil pressure gauge
2 ST25052000
(

)

Hose
3 ST25053000
(

)

Joint pipe
4 ST25054000
(

)

Adapter
5 ST25055000
(

)

Adapter

Measuring line pressure

ST07870000
(J37068)
Transmission case stand

Disassembling and assembling A/T
a: 182 mm (7.17 in)
b: 282 mm (11.10 in)
c: 230 mm (9.06 in)
d: 100 mm (3.94 in)

KV31102100
(J37065)
Torque converter one-way clutch
check tool

Checking one-way clutch in torque converter

ST25850000
(J25721-A)
Sliding hammer

Removing oil pump assembly
a: 179 mm (7.05 in)
b: 70 mm (2.76 in)
c: 40 mm (1.57 in) dia.
d: M12 x 1.75P

KV31102400
(J34285 and J34285-87)
Clutch spring compressor

Removing and installing clutch return springs
a: 320 mm (12.60 in)
b: 174 mm (6.85 in)

ZZA0600D

NT421

NT098

NT422

NT423

PREPARATION

AT-163

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

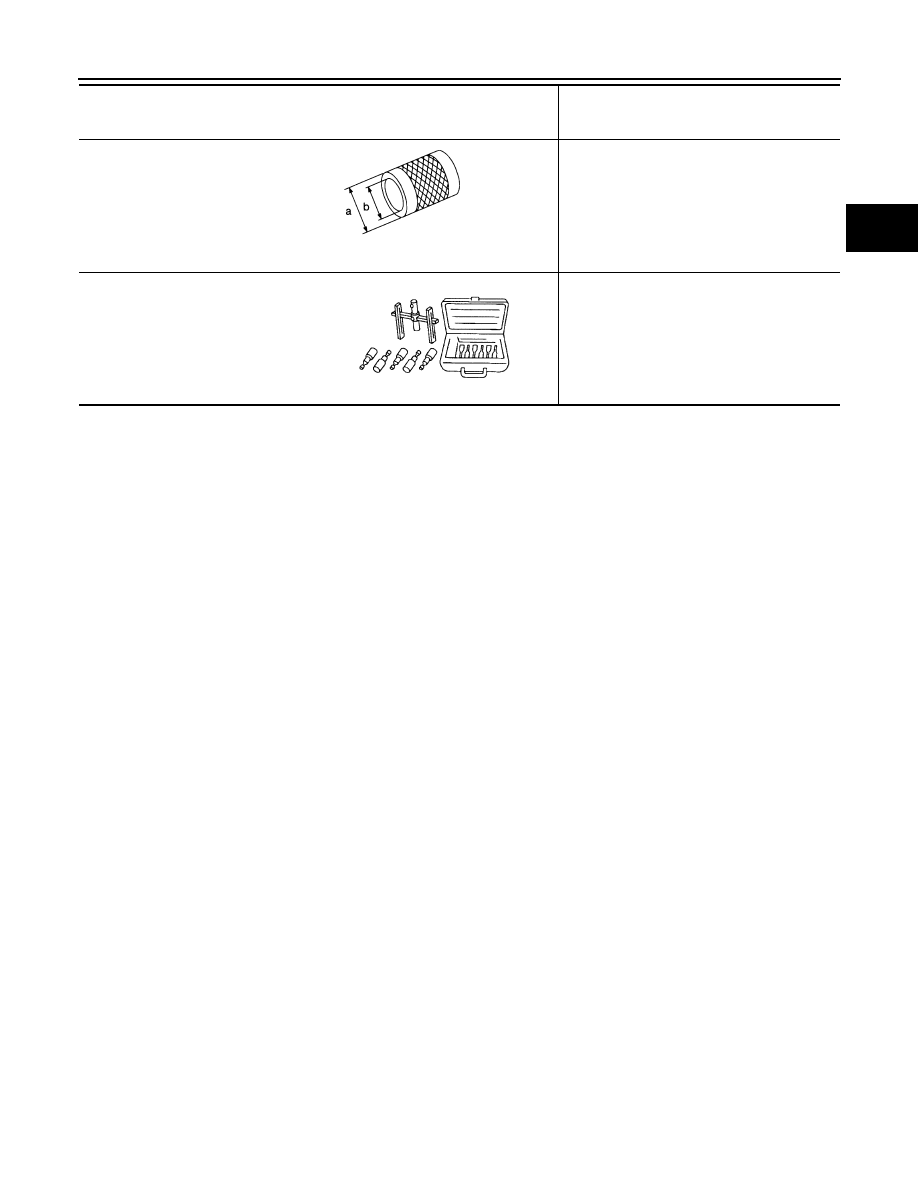

ST33200000
(J26082)
Drift

Installing oil pump housing oil seal Installing
rear oil seal
a: 60 mm (2.36 in) dia.
b: 44.5 mm (1.752 in) dia.

(J34291)
Shim setting gauge set

Selecting oil pump cover bearing race and oil
pump thrust washer

Tool number
(Kent-Moore No.)
 Tool name

Description

NT091

NT101

AT-164

[RE4R01A]

OVERALL SYSTEM

OVERALL SYSTEM

PFP:00000

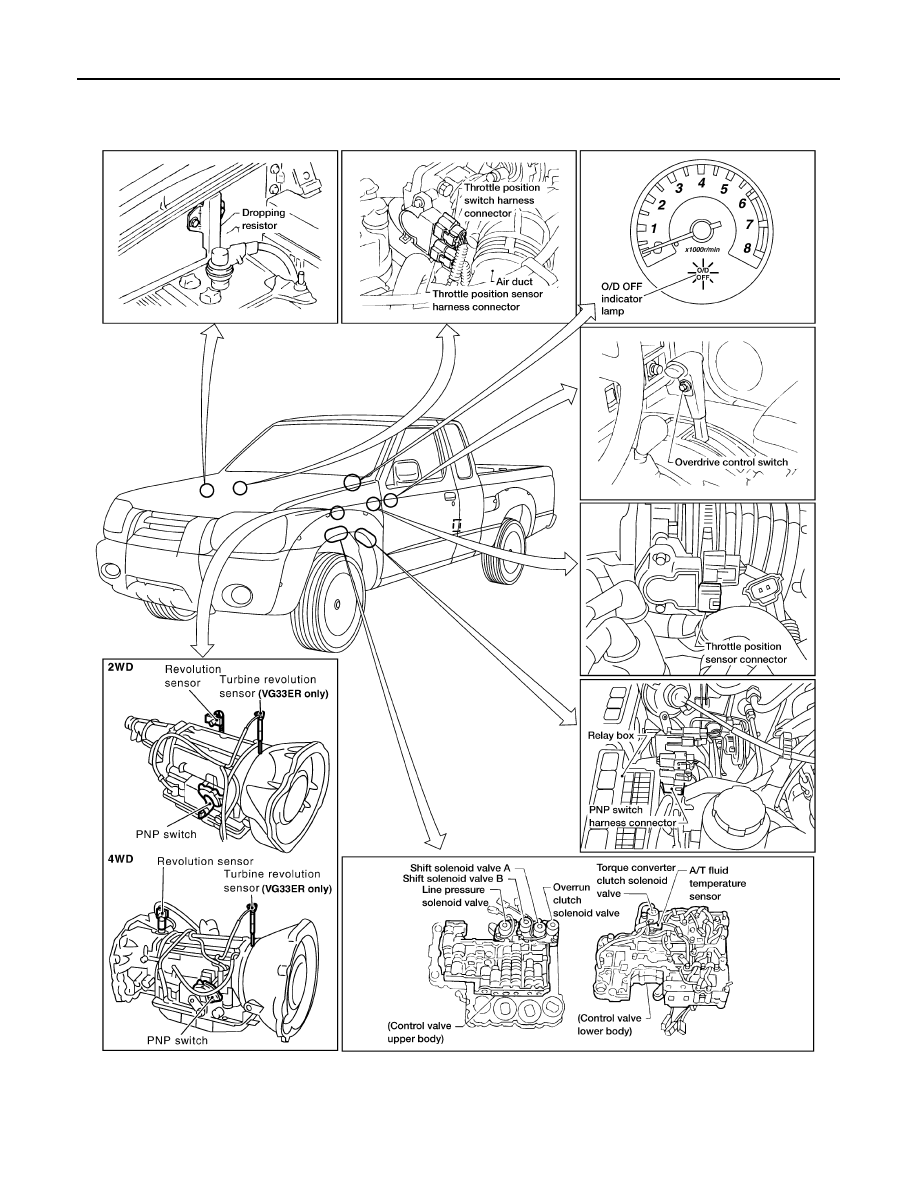

A/T Electrical Parts Location

ECS007LF

WAT494
