REAR INTERNAL GEAR AND FORWARD CLUTCH HUB

AT-121

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

REAR INTERNAL GEAR AND FORWARD CLUTCH HUB

PFP:31450

Components

ECS007KG

Disassembly

ECS007KH

1.

Remove rear internal gear by pushing forward clutch hub for-
ward.

2.

Remove thrust washer from rear internal gear.

3.

Remove snap ring from forward clutch hub.

4.

Remove end bearing.

5.

Remove forward one-way clutch and end bearing as a unit from
forward clutch hub.

6.

Remove snap ring from forward clutch hub.

LCIA0286E

SAT897A

SAT287G

AT-122

[RL4R01A]

REAR INTERNAL GEAR AND FORWARD CLUTCH HUB

Inspection

ECS007KI

REAR INTERNAL GEAR AND FORWARD CLUTCH HUB

Check gear for excessive wear, chips or cracks.

Check frictional surfaces of forward one-way clutch and thrust
washer for wear or damage.

Check spline for wear or damage.

SNAP RING AND END BEARING

Check for deformation or damage.

Assembly

ECS007KJ

1.

Install snap ring onto forward clutch hub.

2.

Install end bearing.

3.

Install forward one-way clutch onto clutch hub.

Install forward one-way clutch with flange facing rear-
ward.

4.

Install end bearing.

5.

Install snap ring onto forward clutch hub.

SAT902A

SAT903A

SAT901A

SAT904A

REAR INTERNAL GEAR AND FORWARD CLUTCH HUB

AT-123

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

6.

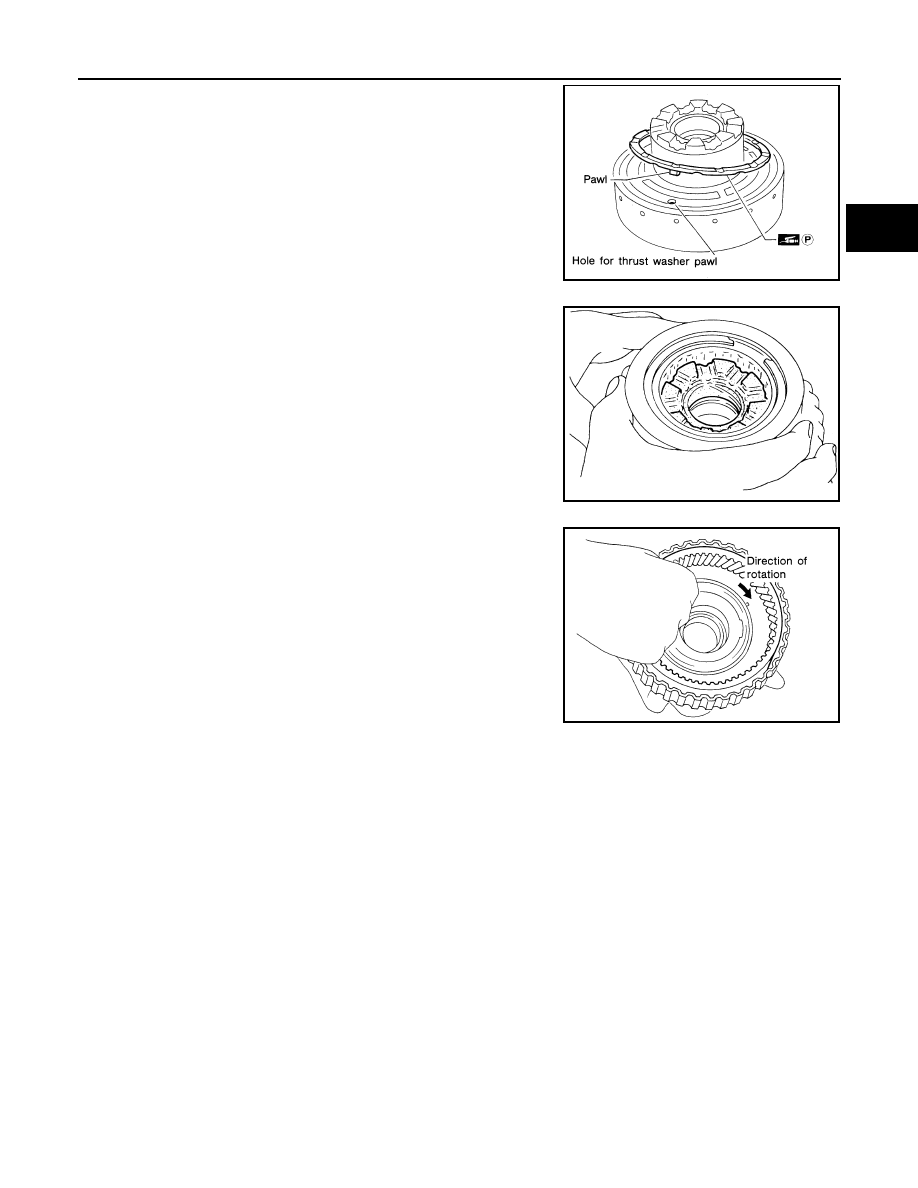

Install thrust washer onto rear internal gear.

Apply petroleum jelly to thrust washer.

Securely insert pawls of thrust washer into holes in rear
internal gear.

7.

Position forward clutch hub in rear internal gear.

8.

After installing, check to assure that forward clutch hub rotates
clockwise.

SAT906A

SAT907A

SAT905A

AT-124

[RL4R01A]

BAND SERVO PISTON ASSEMBLY

BAND SERVO PISTON ASSEMBLY

PFP:31615

Components

ECS007KK

Disassembly

ECS007KL

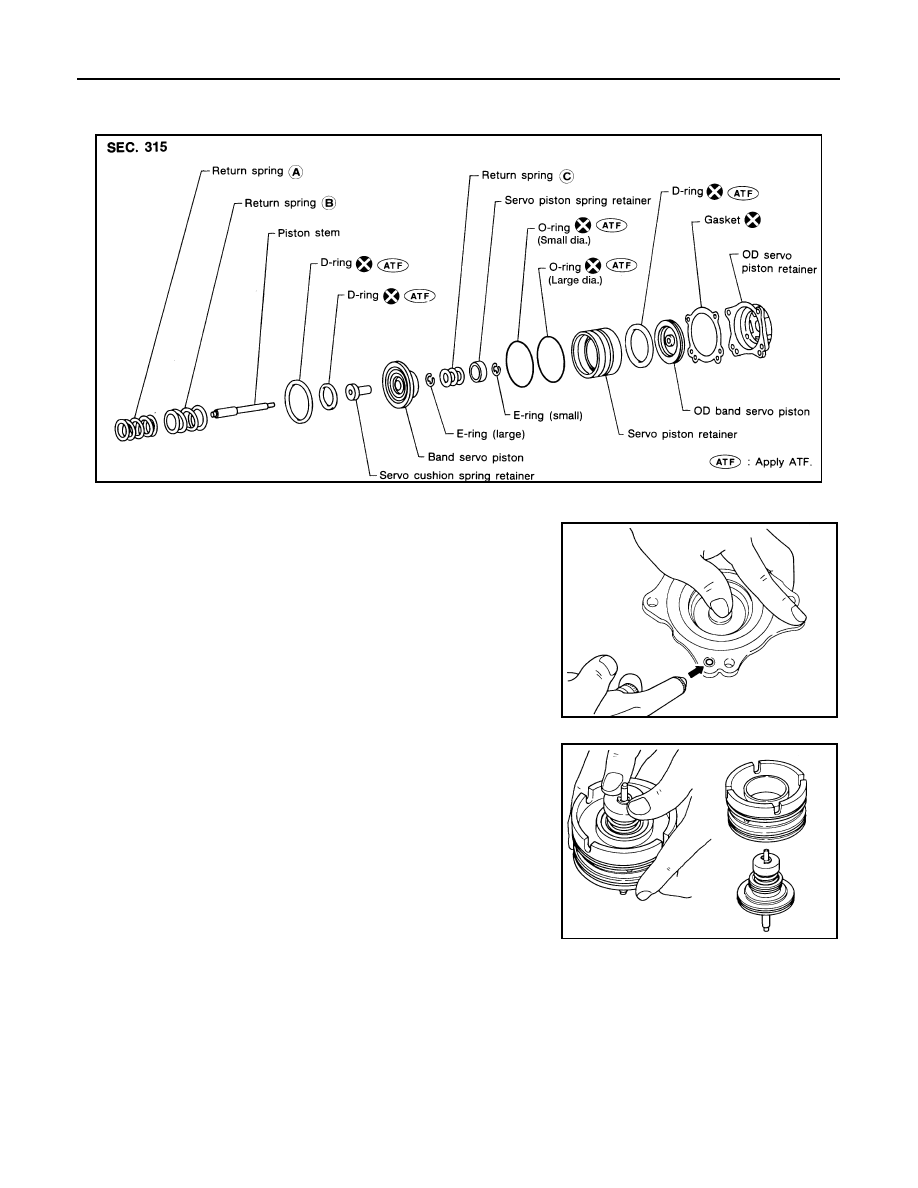

1.

Block one oil hole in O/D servo piston retainer and the center
hole in O/D band servo piston.

2.

Apply compressed air to the other oil hole in piston retainer to
remove O/D band servo piston from retainer.

3.

Remove D-ring from O/D band servo piston.

4.

Remove band servo piston assembly from servo piston retainer
by pushing it forward.

AAT112A

SAT909A

SAT910A
