Nissan Frontier D22. Manual - part 35

HIGH CLUTCH

AT-109

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

●

Inspection of high clutch return springs

●

Inspection of high clutch drive plate

●

Measurement of clearance between retaining plate and snap
ring

Inspection standard

: Refer to

AT-151, "Return

Springs"

 .

SAT829A

Thickness of drive plate

Standard

: 1.52 - 1.67 mm (0.0598 - 0.0657 in)

Wear limit

: 1.40 mm (0.0551 in)

SAT845A

Specified clearance

Standard

: 1.8 - 2.2 mm (0.071 - 0.087 in)

Allowable limit

: 2.8 mm (0.110 in)

Retaining plate

: Refer to

AT-152, "Clutch and

Brakes"

 .

SAT858A

AT-110

[RL4R01A]

FORWARD AND OVERRUN CLUTCHES

FORWARD AND OVERRUN CLUTCHES

PFP:31570

Components

ECS007K6

LCIA0285E

FORWARD AND OVERRUN CLUTCHES

AT-111

[RL4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

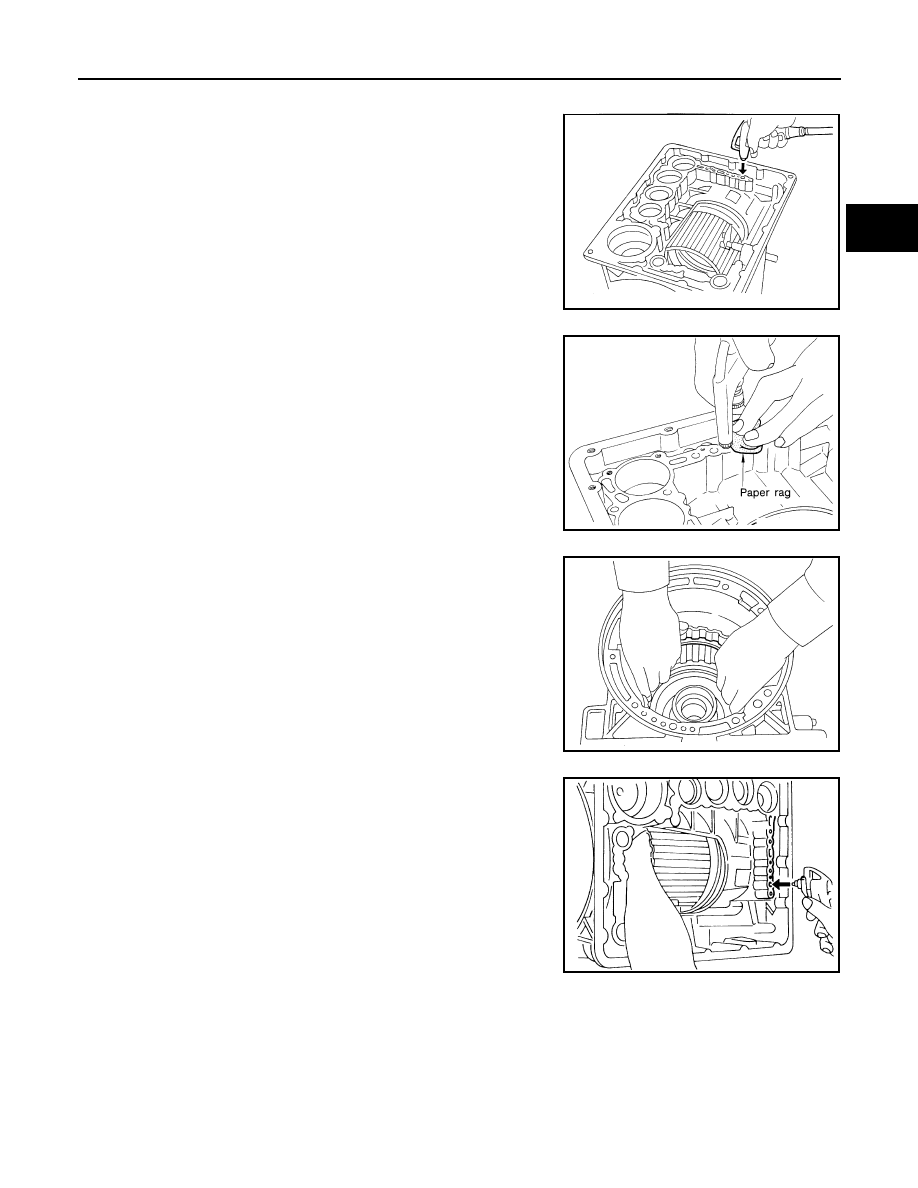

Disassembly and Assembly

ECS007K7

Service procedures for forward and overrun clutches are essentially
the same as those for reverse clutch, with the following exceptions:

●

Check of forward clutch operation

●

Check of overrun clutch operation

●

Removal of forward clutch drum
Remove forward clutch drum from transmission case by holding
snap ring.

●

Removal of forward clutch and overrun clutch pistons

–

While holding overrun clutch piston, gradually apply com-
pressed air to oil hole.

SAT860A

SAT861A

SAT865A

SAT862A

AT-112

[RL4R01A]

FORWARD AND OVERRUN CLUTCHES

–

Remove overrun clutch from forward clutch.

●

Removal and installation of return springs

●

Inspection of forward clutch and overrun clutch return springs

●

Inspection of forward clutch drive plates

SAT863A

SAT148H

Inspection standard

: Refer to

AT-151, "Return

Springs"

 .

SAT829A

Thickness of drive plate

Standard

: 1.52 - 1.67 mm (0.0598 - 0.0657 in)

Wear limit

: 1.40 mm (0.0551 in)

SAT845A
