WT-10

< SYSTEM DESCRIPTION >

TPMS

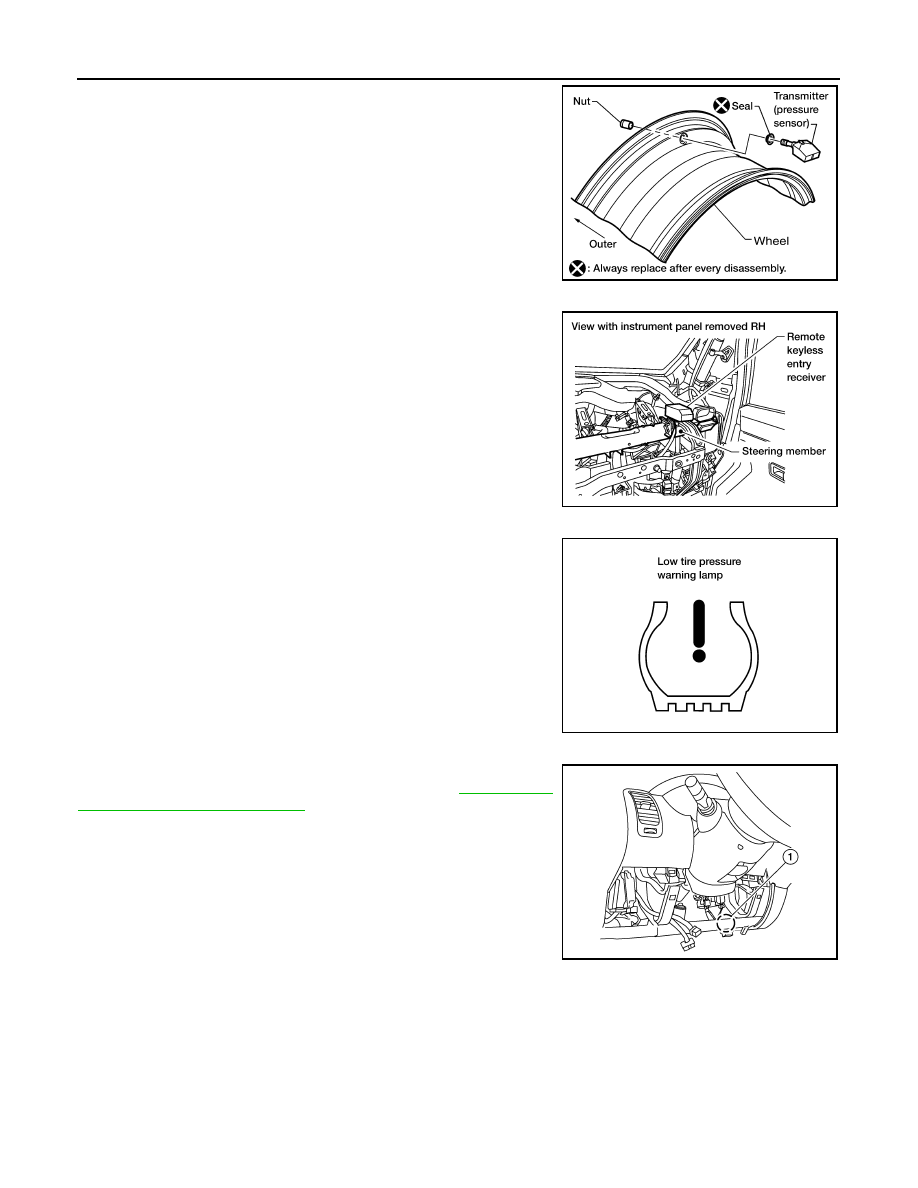

A sensor-transmitter integrated with a valve is installed in each

wheel, and transmits a detected air pressure signal in the form of a

radio wave. The radio signal is received by the remote keyless entry

receiver.

REMOTE KEYLESS ENTRY RECEIVER

The remote keyless entry receiver is shown with the instrument

panel RH removed. The remote keyless entry receiver receives the

air pressure signal transmitted by the transmitter in each wheel.

COMBINATION METER

The combination meter receives tire pressure status from the BCM

using CAN communication. When a low tire pressure condition is

sensed by the BCM, the combination meter low tire pressure warn-

ing lamp is activated. A CHECK TIRE PRES warning message will

also be displayed in the vehicle information display. Refer to the

Owner’s Manual for additional information.

TIRE PRESSURE WARNING CHECK CONNECTOR

The tire pressure warning check connector can be grounded in order

to initiate self-diagnosis without a CONSULT. Refer to

WT-33, "Self-

Diagnosis (Without CONSULT)"

. The tire pressure warning check

connector (1) is located behind the lower portion of the instrument

panel LH.

WEIA0137E

LEIA0069E

LEIA0055E

AWEIA0120ZZ

TPMS

WT-11

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

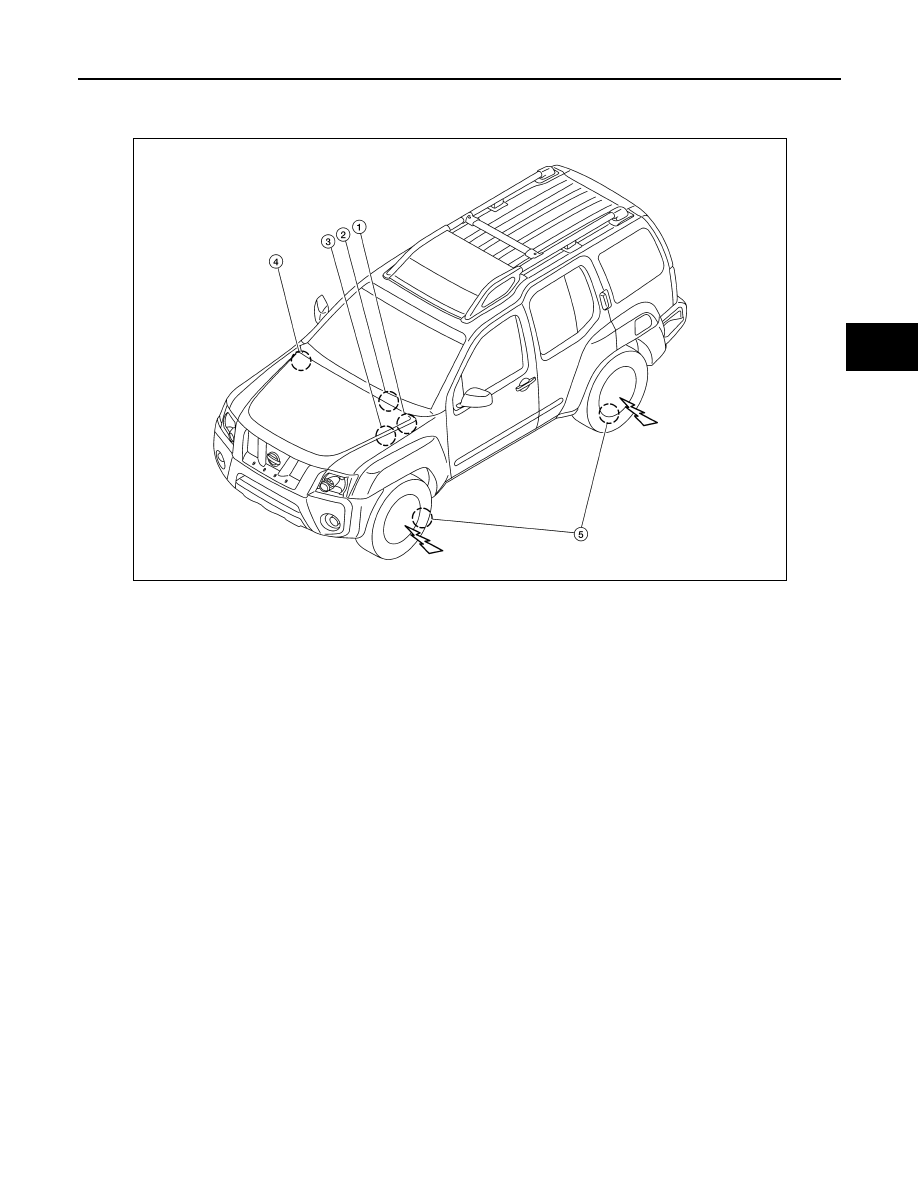

System Component

INFOID:0000000009483064

WEIA0135E

1.

BCM M18, M20

2.

Combination meter M24

3.

Tire pressure warning check connector
M123

4.

Remote keyless entry receiver M120 5.

Transmitters

WT-12

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010244958

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

Direct Diagnostic Mode

Description

ECU Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

ECU Id

en

tif

ica

tio

n

Sel

f Di

agn

os

tic Re

su

lt

Dat

a

 M

on

ito

r

Acti

ve

 T

est

W

ork

 su

pp

ort

Co

nf

ig

ur

at

io

n

CAN Diag S

upport Mntr

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

Panic alarm system

PANIC ALARM

×

DIAGNOSIS SYSTEM (BCM)

WT-13

< SYSTEM DESCRIPTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

CONSULT Function (BCM - AIR PRESSURE MONITOR)

INFOID:0000000010244960

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

SELF DIAGNOSTIC RESULT

NOTE:

Before performing Self Diagnostic Result, be sure to register the ID, or else the actual malfunction may be dif-

ferent from that displayed on CONSULT.

Refer to

BCS-42, "DTC Index"

.

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

Self-Diagnosis (Without CONSULT)

INFOID:0000000009483067

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

Monitor Item

Condition

Specification

VEHICLE SPEED

Drive vehicle

Vehicle speed (km/h or mph)

AIR PRESS FL

• Drive vehicle for a few minutes.

                           or

• Ignition switch ON and activation tool is trans-

mitting activation signals.

Tire pressure (kPa, kg/cm

2

 or psi).

AIR PRESS FR

AIR PRESS RR

AIR PRESS RL

ID REGST FL1

Ignition switch ON.

Registration ID: Green
No registration: Red

ID REGST FR1

ID REGST RR1

ID REGST RL1

WARNING LAMP

Ignition switch ON.

Low tire pressure warning lamp on: ON.
Low tire pressure warning lamp off: OFF.

BUZZER

Ignition switch ON.

Buzzer in combination meter on: ON.
Buzzer in combination meter off: OFF.

Test Item

Description

WARNING LAMP

This test is able to check tire pressure warning lamp operation [Off/On].

ID REGIST WARNING

This test is able to check ID regist warning chime operation [Off/On].

FLAT TIRE WARNING

This test is able to check flat tire warning chime operation [Off/On].

HORN

This test is able to check horn operation [On].

FLASHER

This test is able to check turn signal lamp operation [Off/LH/RH].

Support Item

Description

ID REGIST

Refer to

WT-6, "Work Procedure"

.

ID READ

The registered ID number is displayed.
