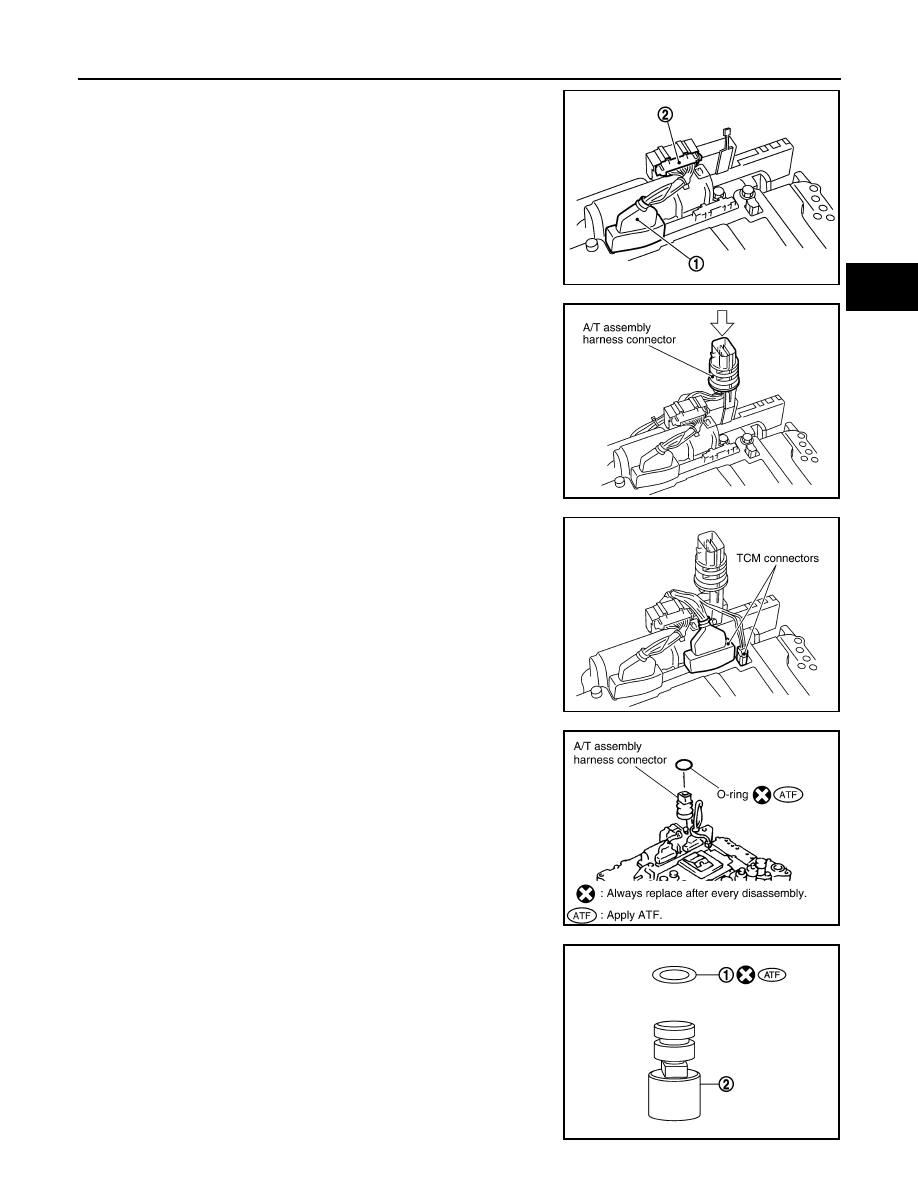

9. Connect TCM connector (1) and transmission range switch con-

nector (2).

10. Install A/T assembly harness connector to control valve with

TCM.

11. Connect TCM connectors.

12. Install O-ring to A/T assembly harness connector.

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

13. Install new O-ring (1) in plug (2).

CAUTION:

• Do not reuse O-ring.

• Apply ATF to O-ring.

• O-ring should be free of contamination.

JSDIA1317ZZ

SCIA5450E

SCIA5447E

SCIA5155E

JSDIA1313ZZ

TM-322

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

ASSEMBLY

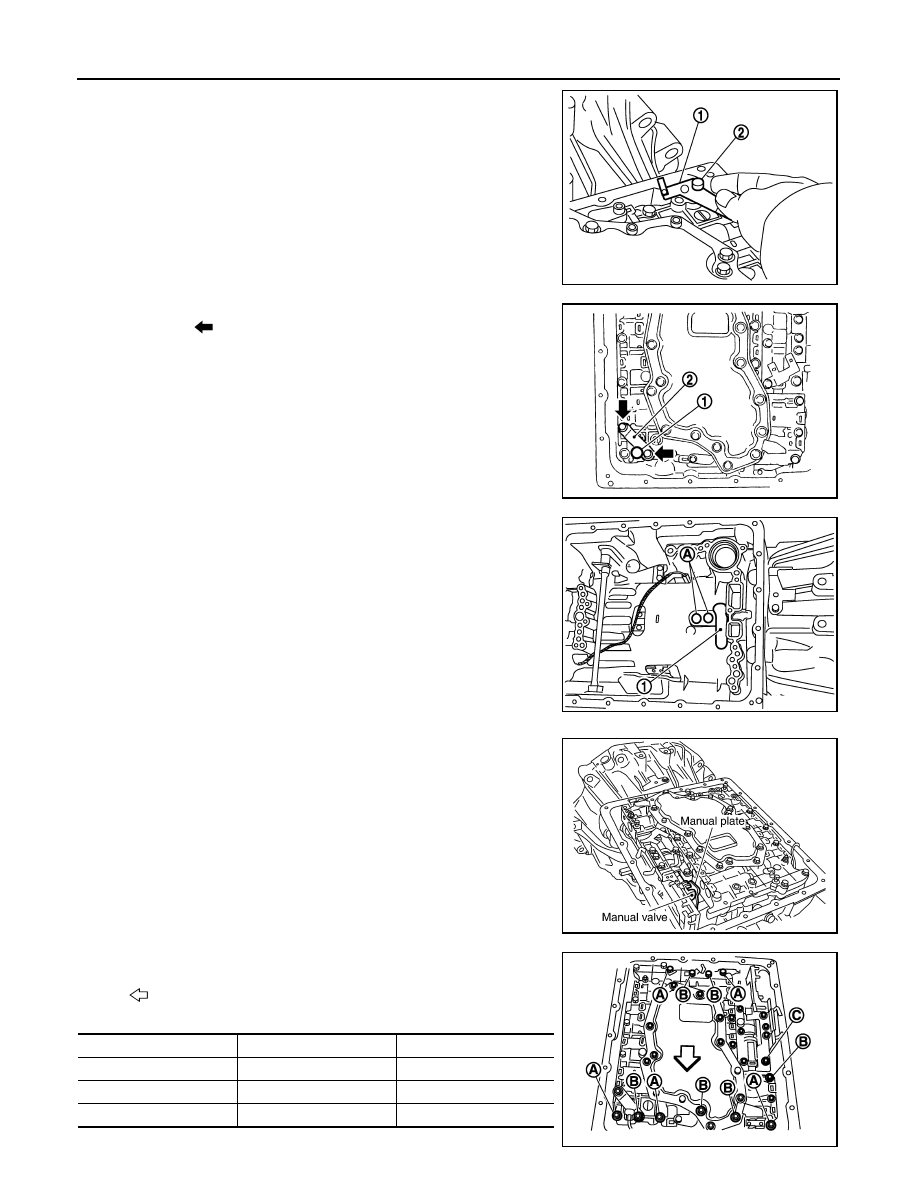

14. Install plug (2) to bracket (1).

15. Install plug (1) [with bracket (2)] to control valve with TCM and

tighten bolt (

) to specified torque.

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve.

16. Install control valve with TCM in transmission case.

CAUTION:

• Make sure that input speed sensor is securely installed

into input speed sensor hole (A).

• Hang down output speed sensor harness toward outside

so as not to disturb installation of control valve with TCM.

• Adjust A/T assembly harness connector of control valve

with TCM to terminal hole of transmission case.

• Assemble it so that manual valve cutout is engaged with

manual plate projection.

17. Install bolts (A), (B) and (C) to control valve with TCM.

JSDIA1312ZZ

Bracket bolt

: 7.9 N·m (0.81 kg-m, 70 in-lb)

JSDIA1311ZZ

1

: Brake band

JSDIA1318ZZ

SCIA5035E

: Front

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA8077E

ASSEMBLY

TM-323

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

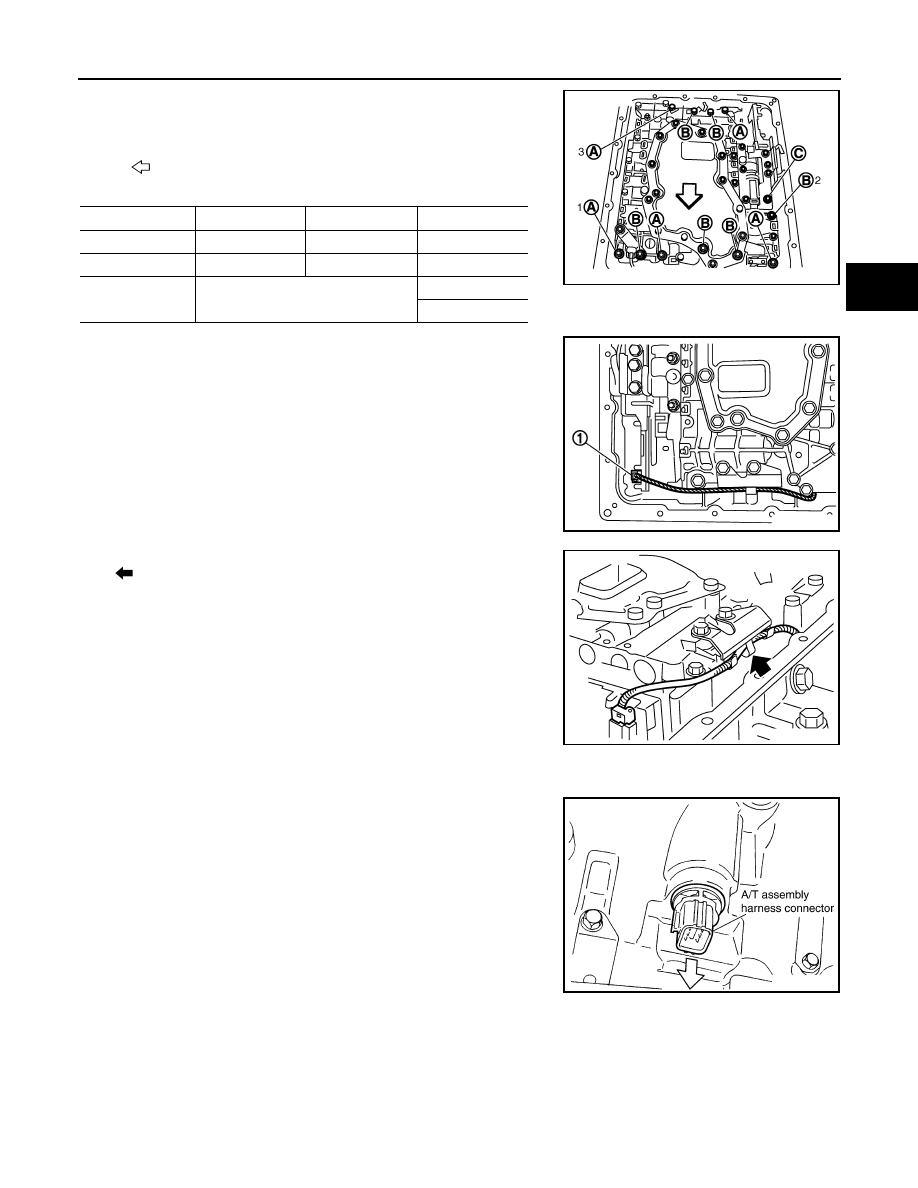

18. Tighten bolt (1A), (2B) and (3A) temporarily to prevent disloca-

tion. After that tighten them in order (A

→ B → C), and then

tighten other bolts.

19. Connect output speed sensor connector (1).

20. Securely fasten output speed sensor harness with terminal clip

(

).

21. Securely fasten output speed sensor harness with terminal clip.

22. Pull down A/T assembly harness connector.

CAUTION:

Do not damage connector.

: Front

Bolt symbol

A

B

C

Number of bolts

5

6

1

Length mm (in)

42 (1.65)

55 (2.17)

40 (1.57)

Tightening torque
N·m (km-g, in-lb)

7.9 (0.81, 70)

With ATF applied

7.9 (0.81, 70)

SCIA8078E

JSDIA1319ZZ

JSDIA1320ZZ

SCIA5299E

TM-324

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

ASSEMBLY

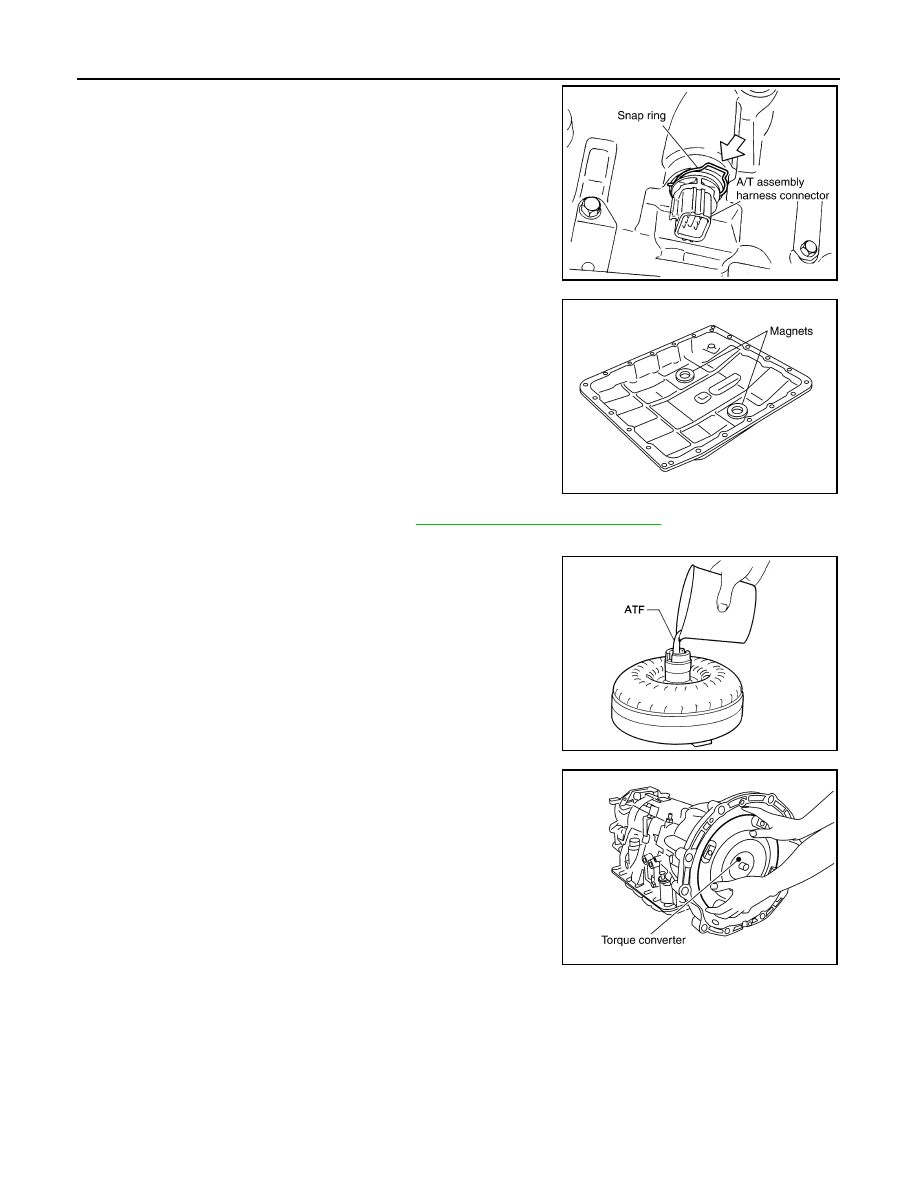

23. Install snap ring to A/T assembly harness connector.

24. Install magnets in oil pan.

25. Install oil pan to transmission case. Refer to

TM-232, "Removal and Installation"

.

26. Install torque converter.
a. Pour ATF into torque converter.

NOTE:

• Approximately 2 liters (2-1/8 US qt. 1-3/4 Imp qt) of fluid is

required for a new torque converter.

• When reusing old torque converter, add the same amount of

fluid as was drained.

b. Install torque converter while aligning notches of torque con-

verter with notches of oil pump.

CAUTION:

Install torque converter while rotating it.

SCIA5300E

SCIA5200E

SAT428DA

SCIA5010E
