HIGH AND LOW REVERSE CLUTCH

TM-301

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• Check facing for burns, cracks or damage.

High and Low Reverse Clutch Retaining Plate and Driven Plates

• Check facing for burns, cracks or damage.

ASSEMBLY

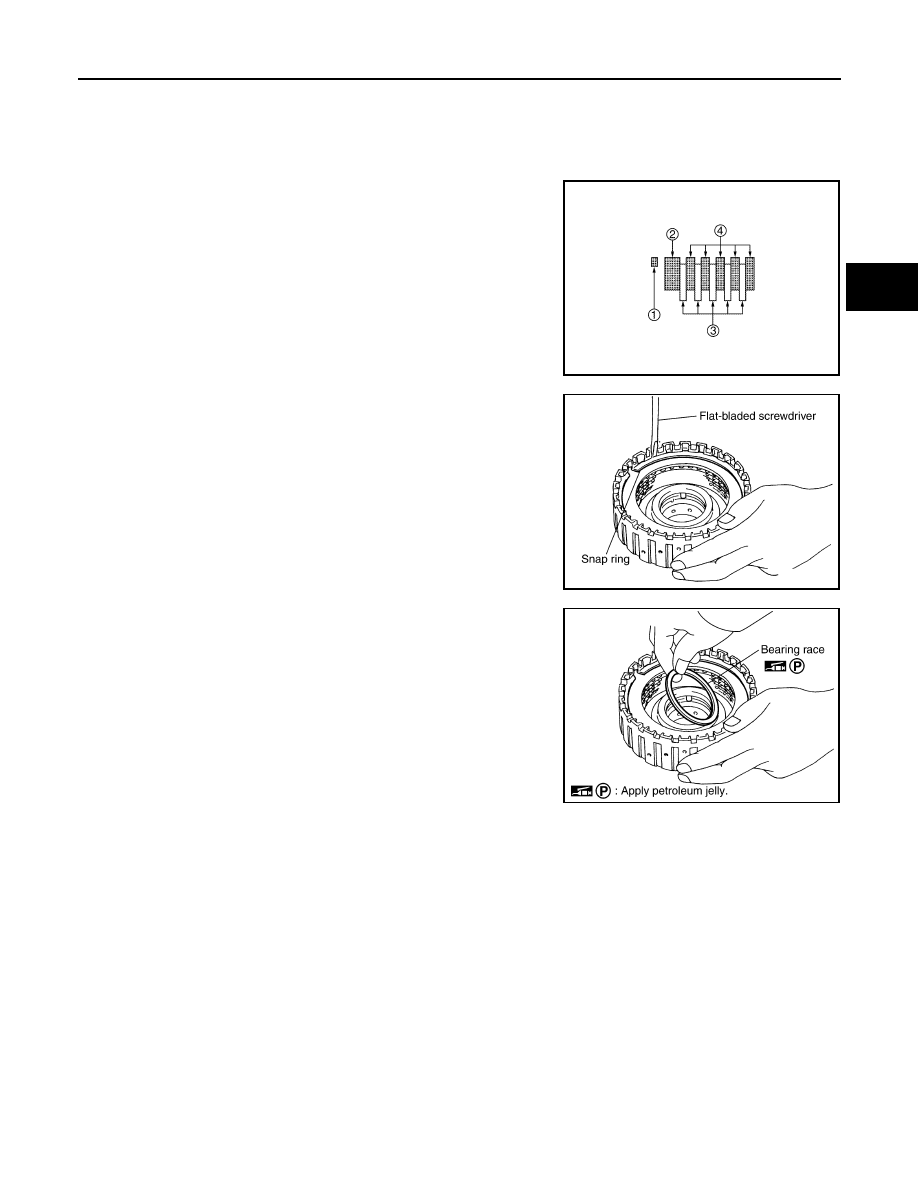

1. Install drive plates, driven plates and retaining plate in high and

low reverse clutch drum.

CAUTION:

Take care with the order of plates.

• Snap ring (1)

• Retaining plate (2)

• Drive plate (3)

• Driven plate (4)

• Drive plate/Driven plate: 5/5

2. Install snap ring in high and low reverse clutch drum using suit-

able tool.

3. Install bearing race to high and low reverse clutch drum.

CAUTION:

Apply petroleum jelly to bearing race.

SCIA7134E

SCIA2868E

SCIA5215E

TM-302

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

DIRECT CLUTCH

DIRECT CLUTCH

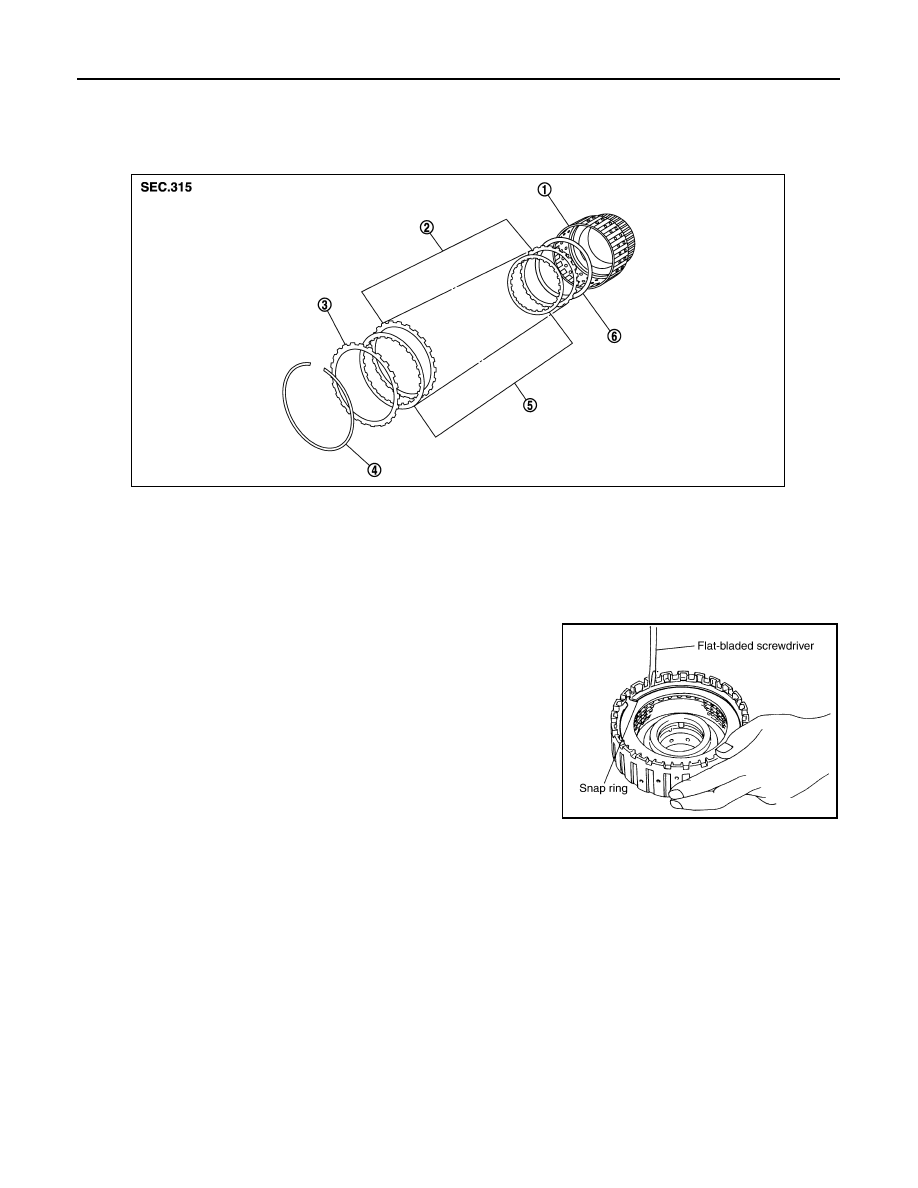

Exploded View

INFOID:0000000009485628

Disassembly and Assembly

INFOID:0000000009485629

DISASSEMBLY

1. Remove snap ring from direct clutch drum using suitable tool.
2. Remove retaining plates, drive plates, driven plates and dish

plate from direct clutch drum.

INSPECTION

• Check the following, and replace direct clutch assembly if necessary.

Direct Clutch Snap Ring

• Check for deformation, fatigue or damage.

Direct Clutch Drive Plates

• Check facing for burns, cracks or damage.

Direct Clutch Retaining Plate and Driven Plates

• Check facing for burns, cracks or damage.

Direct Clutch Dish Plate

• Check facing for burns, cracks or damage.

ASSEMBLY

1.

Direct clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

6.

Dish plate

JSDIA1949ZZ

SCIA2868E

DIRECT CLUTCH

TM-303

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

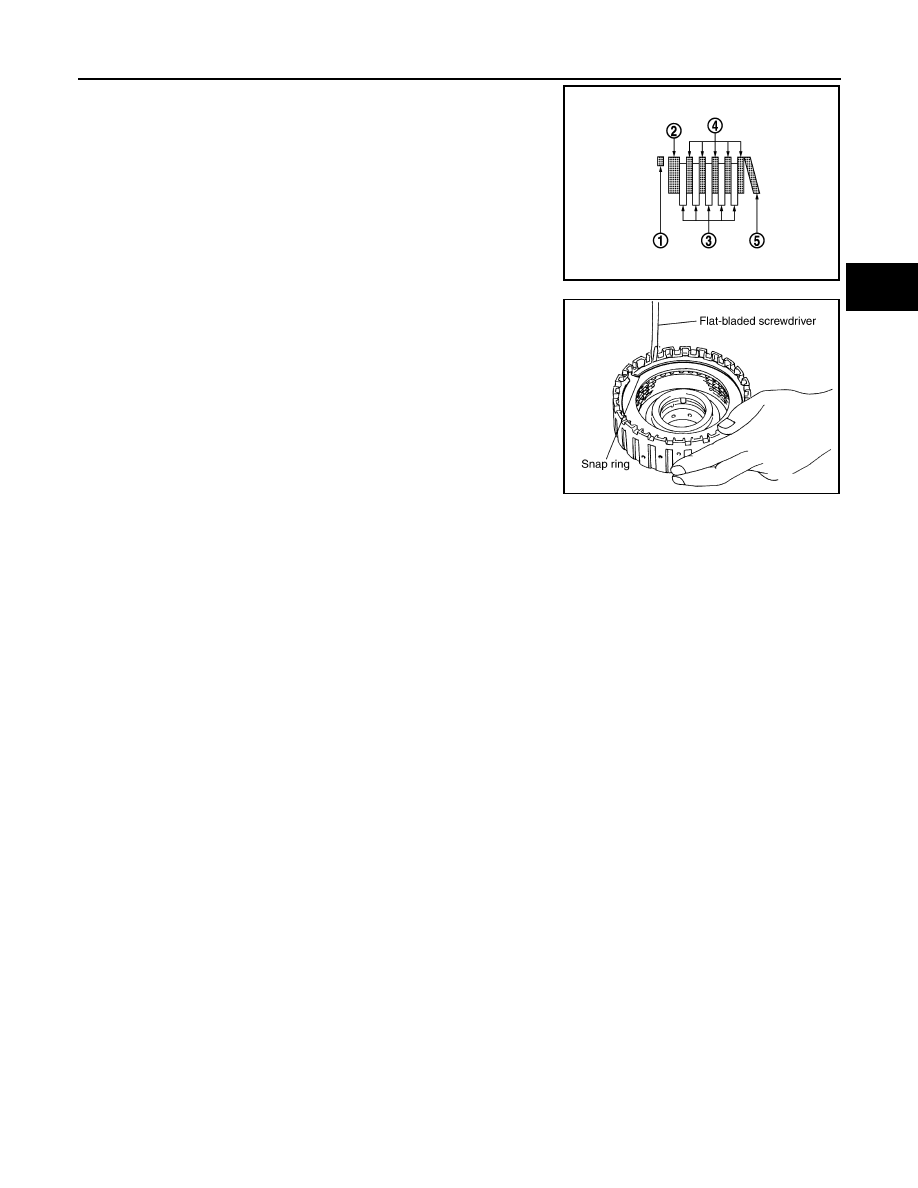

1. Install dish plate, retaining plate, drive plates and driven plates

in direct clutch drum.

CAUTION:

Take care with order of plates.

• Snap ring (1)

• Retaining plate (2)

• Drive plate (3)

• Driven plate (4)

• Dish plate (5)

• Drive plate/Driven plate: 5/5

2. Install snap ring in direct clutch drum using suitable tool.

JSDIA1919ZZ

SCIA2868E

TM-304

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

ASSEMBLY

ASSEMBLY

Assembly (1)

INFOID:0000000009485630

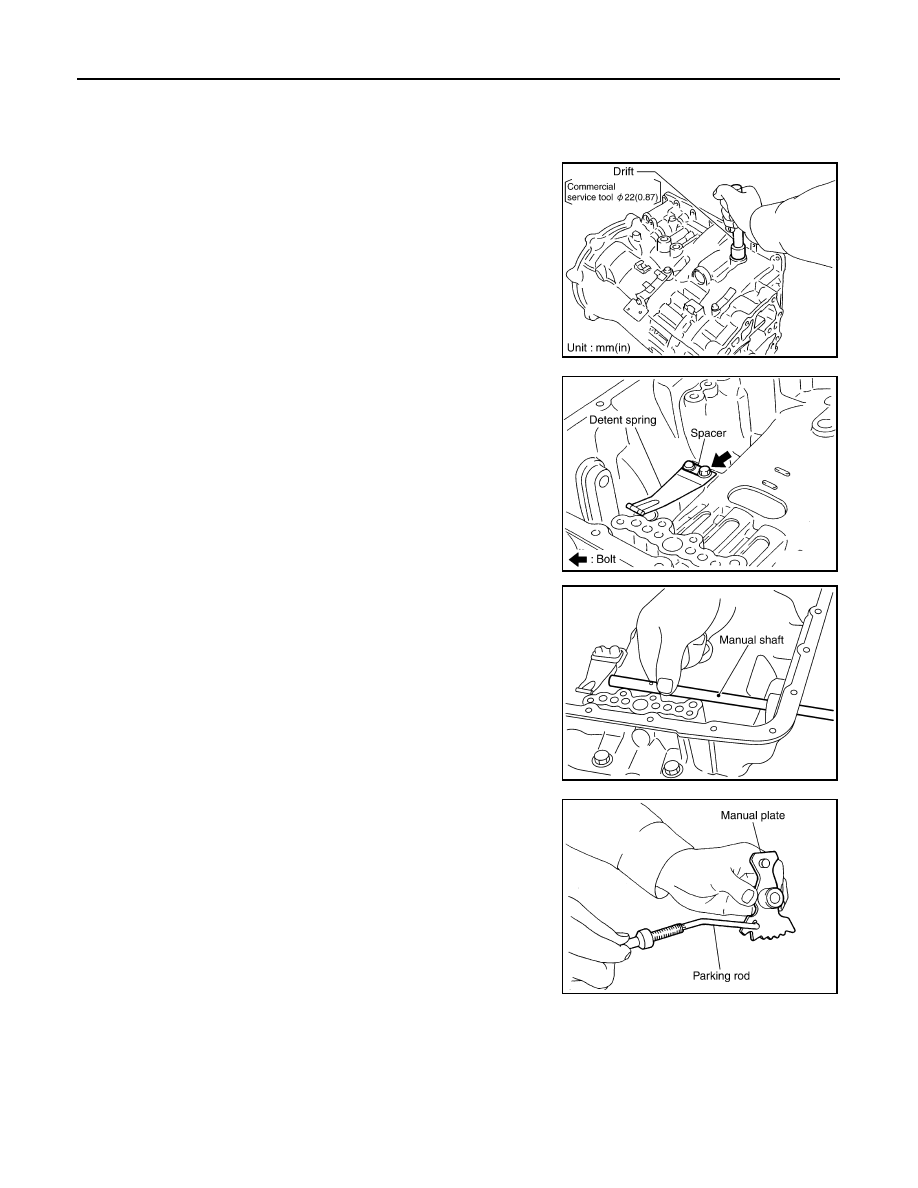

1. Drive manual shaft oil seals into the transmission case until they

are flush using suitable tool.

CAUTION:

• Apply ATF to manual shaft oil seals.

• Do not reuse manual shaft oil seals.

2. Install detent spring and spacer in transmission case and secure

with the bolt.

3. Install manual shaft to transmission case.

4. Install parking rod to manual plate.

SCIA5259E

Bolt

: 7.9 N·m (0.81 kg-m, 70 in-lb)

SCIA5248E

SCIA5716E

SCIA5220E
