PREPARATION

TM-213

< PREPARATION >

[5AT: RE5R05A]

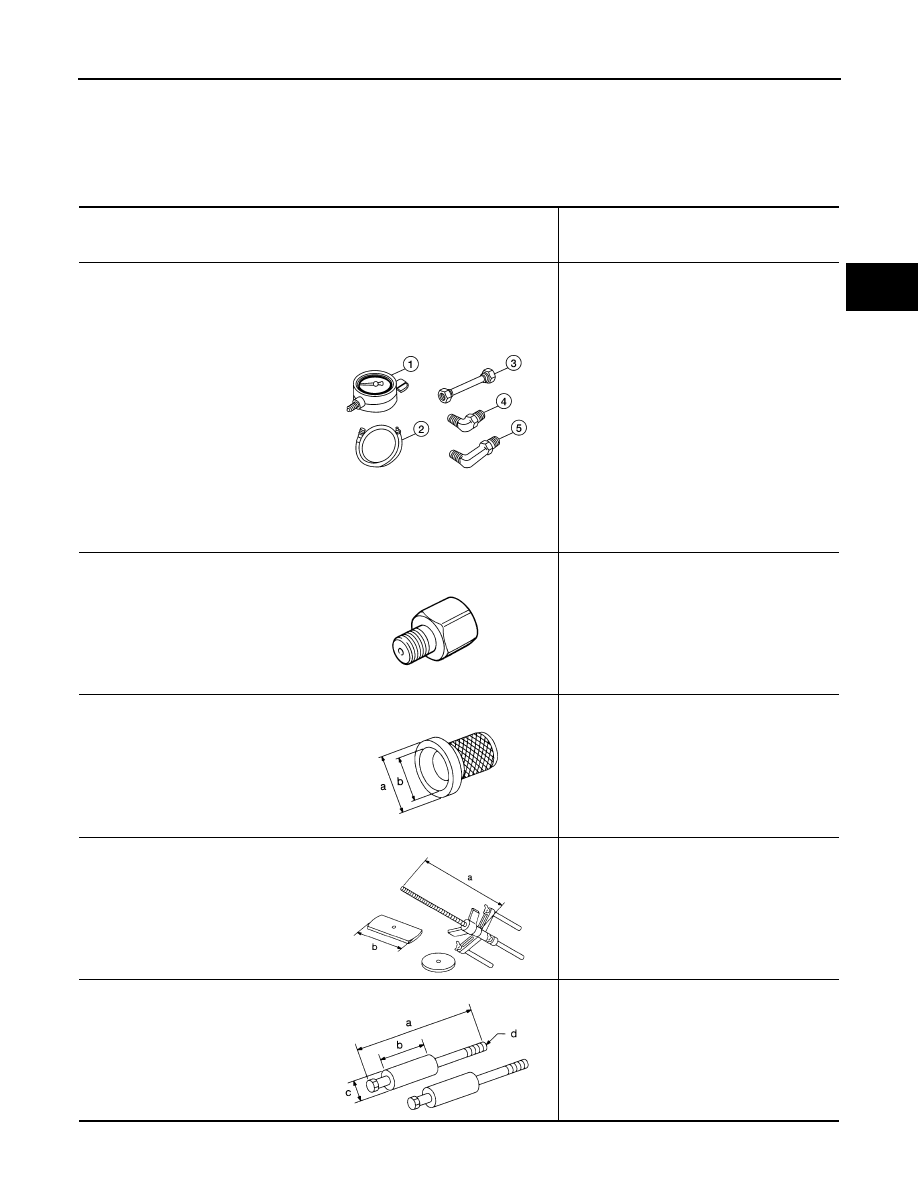

PREPARATION

Special Service Tool

INFOID:0000000009485588

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST2505S001
(J-34301-C)
Oil pressure gauge set
1 ST25051001
( — )
Oil pressure gauge
2 ST25052000
( — )
Hose
3 ST25053000
( — )
Joint pipe
4 ST25054000
( — )
Adapter
5 ST25055000
( — )
Adapter

Measuring line pressure

KV31103600
(J-45674)
Joint pipe adapter
(With ST25054000)

Measuring line pressure

ST33400001
(J-26082)
Drift

• Installing rear oil seal (2WD models)
• Installing oil pump housing oil seal
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.

KV31102400
(J-34285 and J-34285-87)
Clutch spring compressor

Installing reverse brake return spring retainer
a: 320 mm (12.60 in)
b: 174 mm (6.85 in)

ST25850000
(J-25721-A)
Sliding hammer

Remove oil pump assembly
a: 179 mm (7.05 in)
b: 70 mm (2.76 in)
c: 40 mm (1.57 in)
d: M12X1.75P

LCIA0399E

ZZA1227D

NT086

NT423

NT422

TM-214

< PREPARATION >

[5AT: RE5R05A]

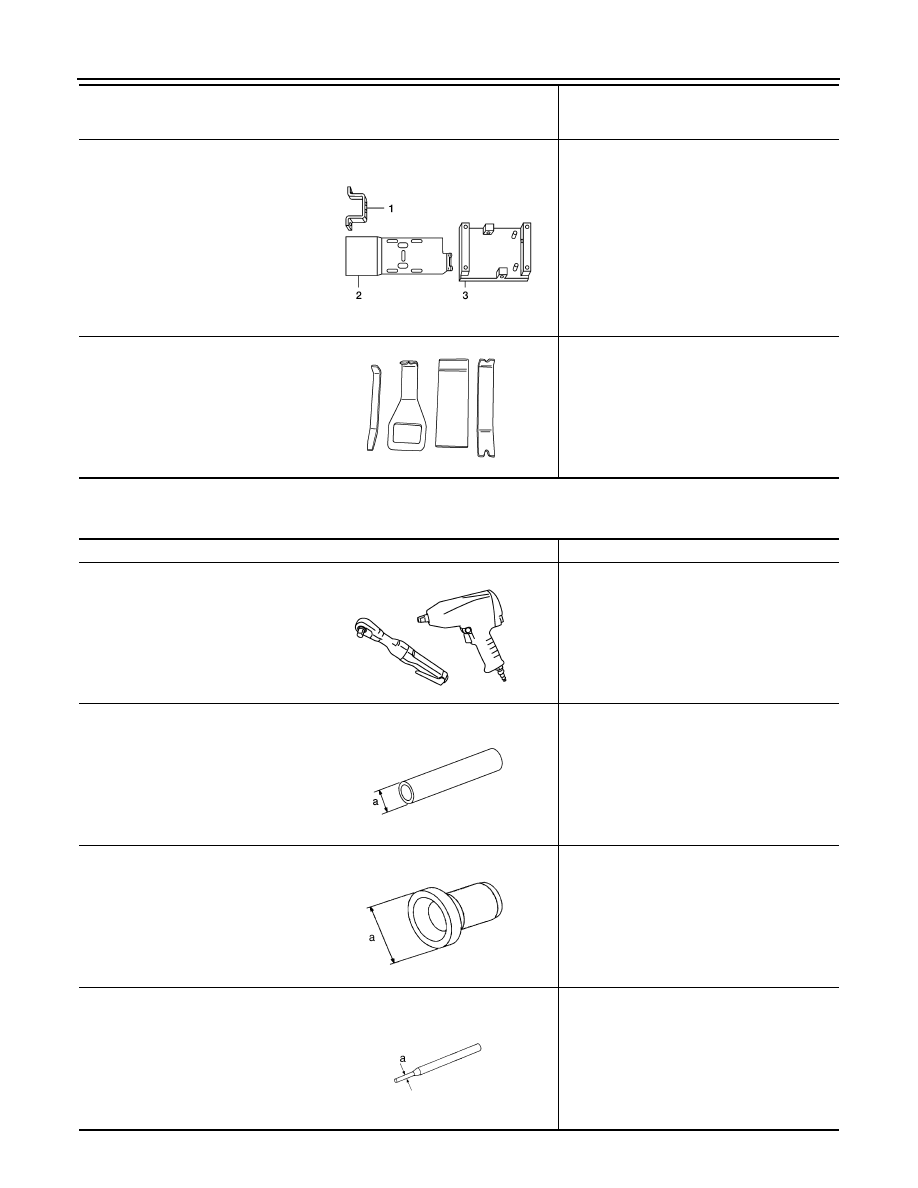

PREPARATION

Commercial Service Tool

INFOID:0000000009485589

—

(J-47002)
Transmission jack adapter kit
1.

—

(J-47002-1)
Center bracket
2.

—

(J-47002-3)
Adapter plate
3.

—

(J-47002-4)
Adapter block

Assist in removal of transmission and transfer
case as one assembly using only one trans-
mission jack.

—

( J-46534 )
Trim tool set

Removing trim components

Tool number
(Kent-Moore No.)
Tool name

Description

WCIA0499E

AWJIA0483ZZ

Tool name

Description

Power tool

Loosening bolts and nuts

Drift

Installing manual shaft seals
a: 22 mm (0.87 in) dia.

Drift

Installing rear oil seal (4WD models)
a: 64 mm (2.52 in) dia.

Pin punch

• Removing retaining pin
• Installing retaining pin
a: 4 mm (0.16 in) dia.

PBIC0190E

NT083

SCIA5338E

NT410

A/T FLUID

TM-215

< PERIODIC MAINTENANCE >

[5AT: RE5R05A]

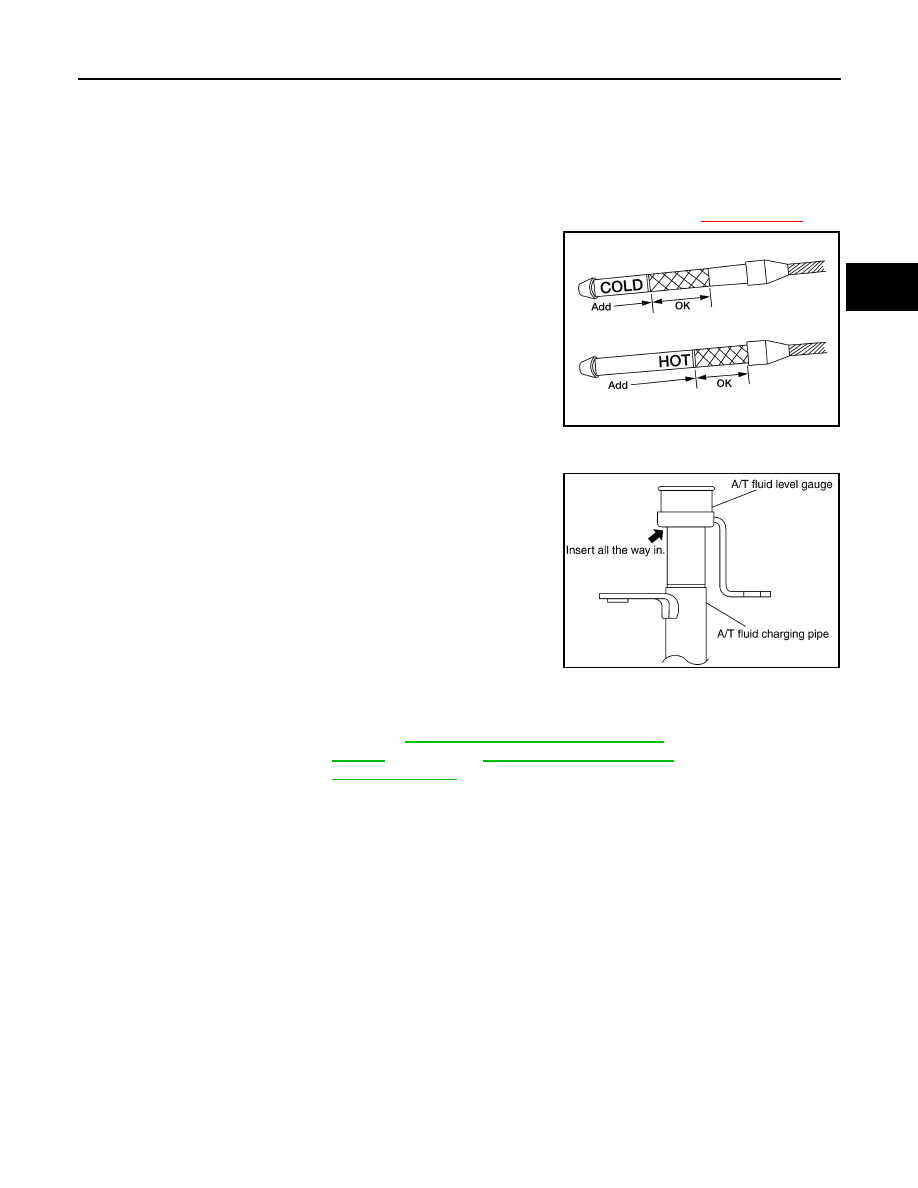

PERIODIC MAINTENANCE

A/T FLUID

Checking the A/T Fluid (ATF)

INFOID:0000000009485590

CAUTION:

If using the vehicle for towing, the A/T fluid must be replaced as specified. Refer to

XX-XX, "*****"

1. Before driving, the A/T fluid level can be checked at A/T fluid

temperatures of 30

° to 50° C (86° to 122° F) using the “COLD”

range on the A/T fluid level gauge as follows:

a. Park the vehicle on a level surface and set the parking brake.
b. Start the engine and move the shift selector through each gear

position. Shift the shift selector into the “P” position.

c. Check the A/T fluid level with the engine idling.
d. Remove the A/T fluid level gauge and wipe it clean with a lint-

free paper.

CAUTION:

When wiping the A/T fluid from the A/T fluid level gauge,

always use a lint-free paper, not a cloth.

e. Re-insert the A/T fluid level gauge into the A/T fluid charging

pipe until the cap contacts the top of the A/T fluid charging pipe

as shown.

CAUTION:

To check A/T fluid level, insert the A/T fluid level gauge until

the cap contacts the top of the A/T fluid charging pipe, with

the gauge reversed from the normal inserted position.

Remove the A/T fluid level gauge and note the A/T fluid level. If

the A/T fluid level is at low side of range, add A/T fluid to the

transmission through the A/T fluid charging pipe.

CAUTION:

Do not overfill the transmission with A/T fluid.

g. Install the A/T fluid level gauge and the A/T fluid level gauge bolt.

2. Warm up the engine and transmission.
3. Check for any A/T fluid leaks.
4. Drive the vehicle to increase the A/T fluid temperature to 80

° C (176° F).

LLIA0071E

A/T fluid level gauge bolt : Refer to

TM-250, "Removal and Installation

(2WD)"

for (2WD) or

TM-252, "Removal and In-

stallation (4WD)"

for (4WD).

SCIA2899E

TM-216

< PERIODIC MAINTENANCE >

[5AT: RE5R05A]

A/T FLUID

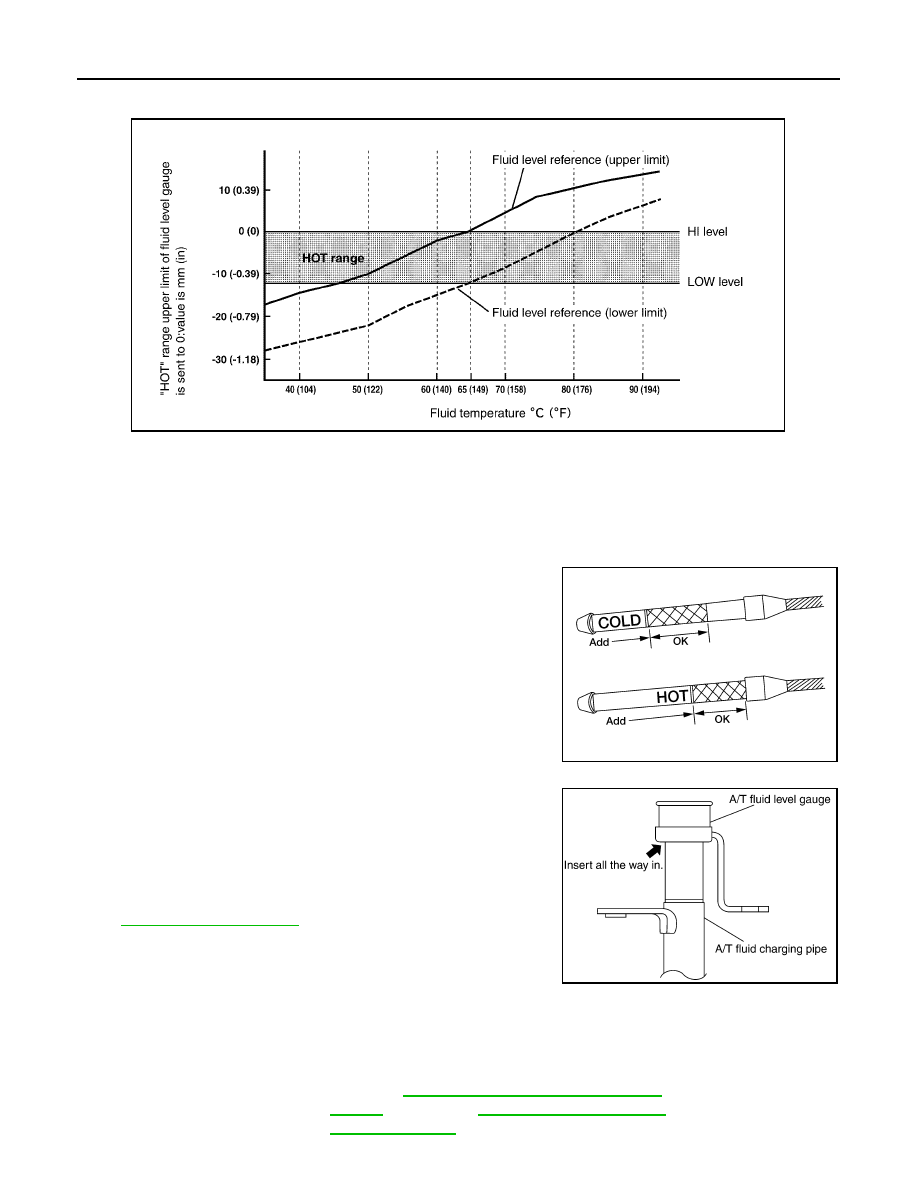

5. Allow the transmission fluid temperature to fall to approximately 65

°C (149°F). Use the CONSULT to mon-

itor the transmission fluid temperature as follows:

NOTE:

The transmission fluid level will be significantly affected by the transmission fluid temperature as shown.

Therefore monitor the transmission fluid temperature data using the CONSULT.

a. Connect CONSULT to data link connector.
b. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT.
c.

Read out the value of “ATF TEMP 1”.

6. Re-check the A/T fluid level at A/T fluid temperatures of approxi-

mately 65

°C (149°F) using the “HOT” range on the A/T fluid

level gauge as shown. The HOT range is between 50

° - 80° C

(122

° - 176° F).

CAUTION:

• When wiping the A/T fluid from the A/T fluid level gauge,

always use lint-free paper, not a cloth.

• To check the A/T fluid level, insert the A/T fluid level

gauge until the cap contacts the top of the A/T fluid charg-

ing pipe, with the gauge reversed from the normal

inserted position as shown.

7. Check the A/T fluid condition.

• If the A/T fluid is very dark or has some burned smell, there

may be an internal problem with the transmission. Refer to

TM-256, "Exploded View"

. Flush the transmission cooling sys-

tem after repairing the transmission.

• If the A/T fluid contains frictional material (clutches, bands,

etc.), replace the radiator and flush the transmission cooler

lines using cleaning solvent and compressed air after repairing

the transmission.

8. Install the A/T fluid level gauge in the A/T fluid charging pipe.
9. Tighten the A/T fluid level gauge bolt to specification.

SLIA0016E

LLIA0071E

A/T fluid level gauge bolt : Refer to

TM-250, "Removal and Installation

(2WD)"

for (2WD) or

TM-252, "Removal and In-

stallation (4WD)"

for (4WD).

SCIA2899E
