P0615 STARTER RELAY

Description

INFOID:0000000009485420

TCM prohibits cranking other than at “P” or “N” position.

CONSULT Reference Value in Data Monitor Mode

INFOID:0000000009485421

On Board Diagnosis Logic

INFOID:0000000009485422

• This is not an OBD-II self-diagnostic item.

• Diagnostic trouble code “P0615” with CONSULT or 14th judgment flicker without CONSULT is detected

when starter relay is switched “ON” other than at “P” or “N” position. (Or when switched “OFF” at “P” or “N”

position).

Possible Cause

INFOID:0000000009485423

• Harness or connectors

(The starter relay and TCM circuit is open or shorted.)

• Starter  relay

DTC Confirmation Procedure

INFOID:0000000009485424

NOTE:

If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”

and wait at least 10 seconds before performing the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT

1. Shift selector lever to “P” or “N” position.

2. Turn ignition switch ON and wait for at least 2 seconds.

3. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION” with CONSULT.

4. If DTC is detected, go to

TM-113, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009485425

1.

CHECK STARTER RELAY

With CONSULT

1. Turn ignition switch ON. (Do not start engine.)

2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for "TRANSMISSION" with CONSULT

and check monitor “STARTER RELAY” ON/OFF.

Without CONSULT

1. Turn ignition switch ON. (Do not start engine.)

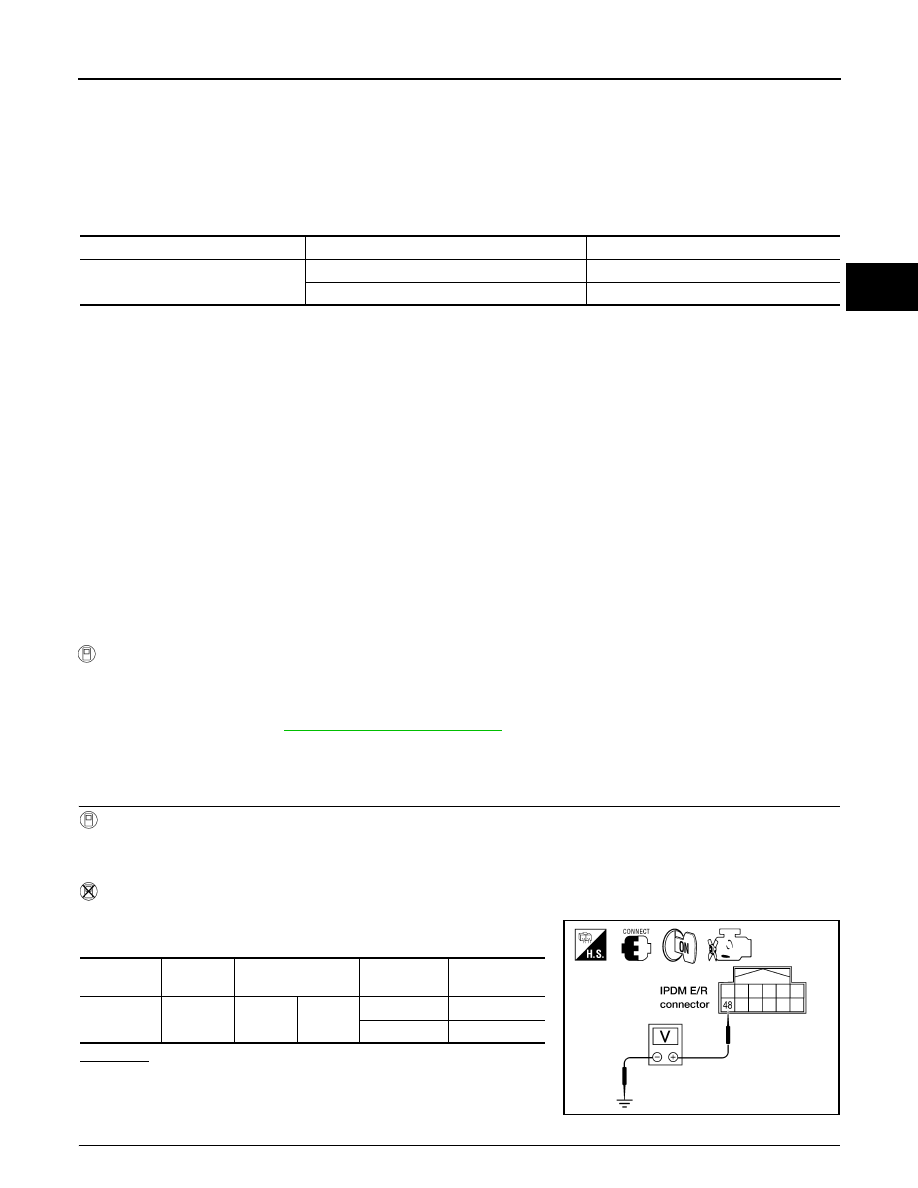

2. Check voltage between the IPDM E/R connector and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 2.

2.

 CHECK HARNESS BETWEEN A/T ASSEMBLY HARNESS CONNECTOR AND IPDM E/R CONNECTOR

Item name

Condition

Display value

STARTER RELAY

Selector lever in “N”, “P” positions.

ON

Selector lever in other position.

OFF

Item

Connector

Terminal

Shift position

Voltage (Ap-

prox.)

Starter relay

E122

48

Ground

“N” and “P”

Battery voltage

“R” and “D”

0V

LCIA0320E

TM-114

< DTC/CIRCUIT DIAGNOSIS >

[5AT: RE5R05A]

P0615 STARTER RELAY

1. Turn ignition switch OFF.

2. Disconnect A/T assembly harness connector and IPDM E/R connector.

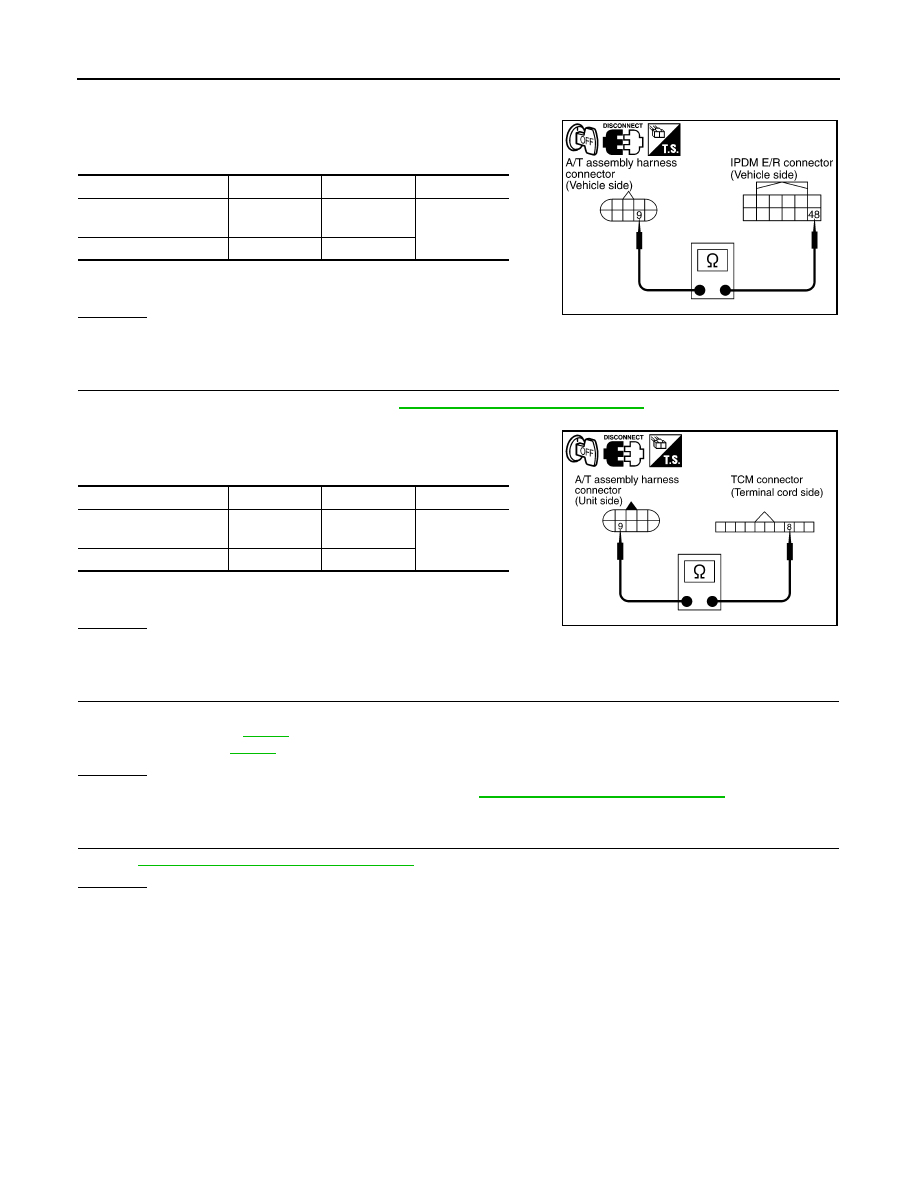

3. Check continuity between A/T assembly harness connector and

IPDM E/R connector.

4. If OK, check harness for short to ground and short to power.

5. Reinstall any part removed.
OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK TERMINAL CORD ASSEMBLY

1. Remove control valve with TCM. Refer to

TM-234, "Removal and Installation"

.

2. Disconnect A/T assembly harness connector and TCM connector.

3. Check continuity between A/T assembly harness connector ter-

minal and TCM connector terminal.

4. If OK, check harness for short to ground and short to power.

5. Reinstall any part removed.
OK or NG

OK

>> GO TO 4.

NG

>> Replace open circuit or short to ground and short to power in harness or connectors.

4.

DETECT MALFUNCTIONING ITEM

Check the following.

• Starter relay, Refer to

STR-3

.

• IPDM E/R, Refer to

PCS-3

.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

TM-234, "Removal and Installation"

.

NG

>> Repair or replace damaged parts.

5.

CHECK DTC

Perform

TM-113, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

Item

 Connector

Terminal

Continuity

A/T assembly harness
connector

F9

9

Yes

IPDM E/R connector

E122

48

SCIA6254E

Item

 Connector

Terminal

Continuity

A/T assembly harness
connector

F9

9

Yes

TCM connector

F502

8

SCIA5440E

P0700 TRANSMISSION CONTROL

TM-115

< DTC/CIRCUIT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

P0700 TRANSMISSION CONTROL

Description

INFOID:0000000009485426

The TCM consists of a microcomputer and connectors for signal input and output and for power supply. The

TCM controls the A/T.

On Board Diagnosis Logic

INFOID:0000000009485427

• This is an OBD-II self-diagnostic item.

• Diagnostic trouble code “P0700” with CONSULT is detected when the TCM is malfunctioning.

Possible Cause

INFOID:0000000009485428

TCM.

DTC Confirmation Procedure

INFOID:0000000009485429

NOTE:

If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”

and wait at least 10 seconds before performing the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT

1. Turn ignition switch “ON”. (Do not start engine.)

2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT.

3. Start engine.

4. Run engine for at least 2 consecutive seconds at idle speed.

5. If DTC is detected, go to

TM-115, "Diagnosis Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT”.

Diagnosis Procedure

INFOID:0000000009485430

1.

CHECK DTC

With CONSULT

1. Turn ignition switch “ON”. (Do not start engine.)

2. Select “SELF DIAG RESULTS” mode for “TRANSMISSION” with CONSULT.

3. Touch “ERASE”.

4. Turn ignition switch “OFF” and wait at least 10 seconds.

5. Perform

TM-115, "DTC Confirmation Procedure"

.

Is the “P0700” displayed again?

YES

>> Replace the control valve with TCM. Refer to

TM-234, "Removal and Installation"

.

NO

>> INSPECTION END

TM-116

< DTC/CIRCUIT DIAGNOSIS >

[5AT: RE5R05A]

P0705 TRANSMISSION RANGE SENSOR A

P0705 TRANSMISSION RANGE SENSOR A

Description

INFOID:0000000009485431

The transmission range switch detects the selector lever position and sends a signal to the TCM.

CONSULT Reference Value in Data Monitor Mode

INFOID:0000000009485432

On Board Diagnosis Logic

INFOID:0000000009485433

• This is an OBD-II self-diagnostic item.

• Diagnostic trouble code “P0705” with CONSULT or 9th judgment flicker without CONSULT is detected under

the following conditions.

- When TCM does not receive the correct voltage signal from the transmission range switch 1, 2, 3, 4 based

on the gear position.

- When no other position but “P” position is detected from “N” positions.

Possible Cause

INFOID:0000000009485434

• Harness or connectors

(The transmission range switch 1, 2, 3, 4 and TCM circuit is open or shorted.)

• Transmission range switch 1, 2, 3, 4

DTC Confirmation Procedure

INFOID:0000000009485435

CAUTION:

Always drive vehicle at a safe speed.

NOTE:

If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”

and wait at least 10 seconds before performing the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT

1. Turn ignition switch “ON”. (Do not start engine.)

2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT.

3. Start engine.

4. Drive vehicle and maintain the following conditions for at least 2 consecutive seconds.

ACCELE POSI: More than 1.0/8

5. If DTC is detected, go to

TM-116, "Diagnosis Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT”.

Diagnosis Procedure

INFOID:0000000009485436

1.

CHECK TRANSMISSION RANGE AWITCH CIRCUIT

With CONSULT

1. Turn ignition switch ON. (Do not start engine.)

2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT.

3. Check if correct selector lever position (N/P, R, D, 3, 2 or 1) is displayed as selector lever is moved into

each position.

Item name

Condition

Display value

SLCTLVR POSI

Selector lever in “N”,“P” positions.

N/P

Selector lever in “R” position.

R

Selector lever in “D” position.

D

Selector lever in “3” position.

3

Selector lever in “2” position.

2

Selector lever in “1” position.

1
