Nissan Xterra. Manual - part 616





STR-10

< SYSTEM DESCRIPTION >

STARTING SYSTEM

A/T : Component Description

INFOID:0000000009485107

M/T WITH CLUTCH INTERLOCK CANCEL SYSTEM

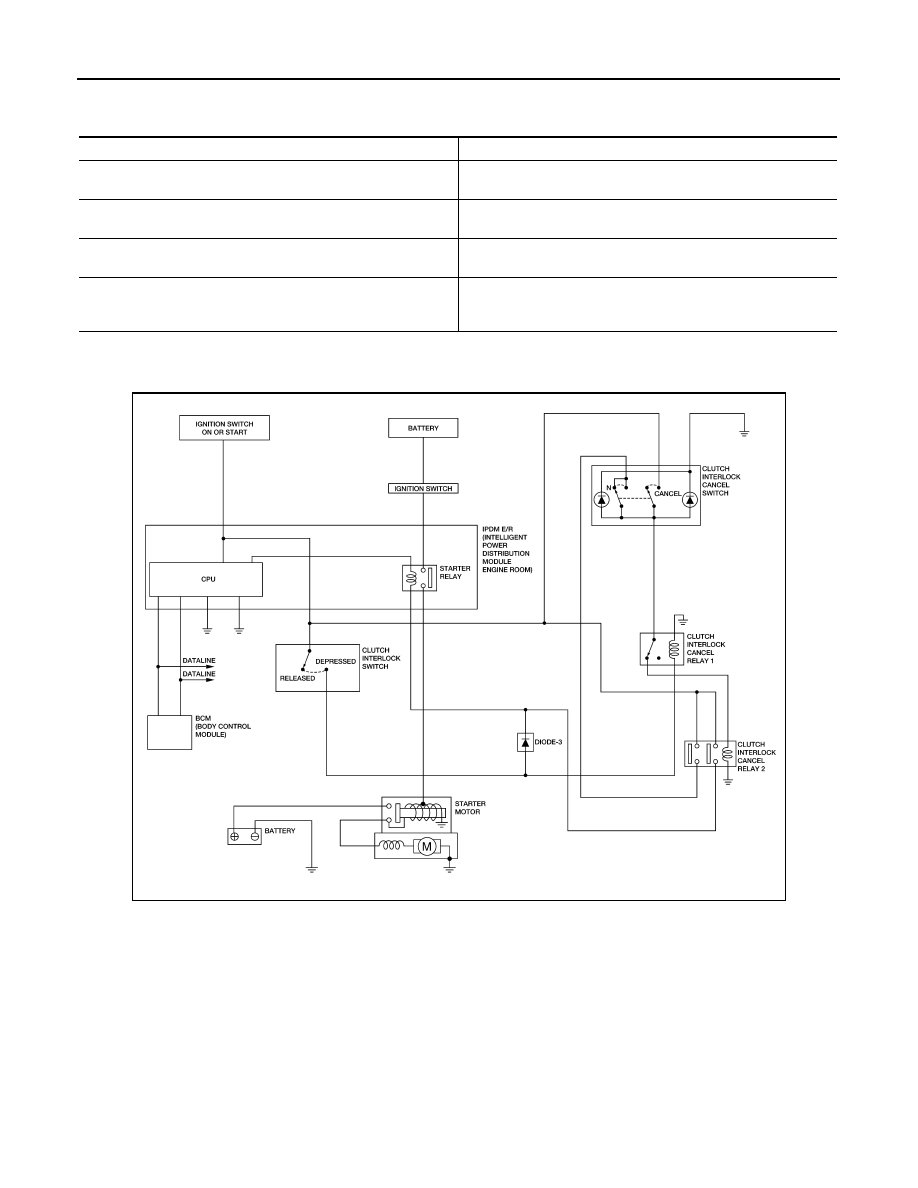

M/T WITH CLUTCH INTERLOCK CANCEL SYSTEM : System Diagram

INFOID:0000000009485108

M/T WITH CLUTCH INTERLOCK CANCEL SYSTEM : System Description

INFOID:0000000009485109

The clutch interlock cancel (clutch start) switch allows for starting the engine without depressing the clutch

pedal by bypassing the clutch interlock switch. The clutch interlock cancel system is canceled once the ignition

switch is turned OFF. Once the clutch interlock cancel system is activated, the starter motor plunger closes

and provides a closed circuit between the battery and the starter motor. The starter motor is grounded to the

cylinder block. With power and ground supplied, the starter motor operates.

Component part

Description

TCM

TCM supplies power to the starter relay inside the IPDM E/R when
the selector lever is shifted to the P or N position.

BCM

BCM sends a starter request signal to the CPU of the IPDM E/R
over the CAN communication lines.

IPDM E/R

CPU inside IPDM E/R operates the starter relay at the request of
the BCM over the CAN communication lines.

Starter motor

The starter motor plunger closes and the motor is supplied with
battery power, which in turn cranks the engine, when the “S” ter-
minal is supplied with electric power.

AWBIA0432GB

STARTING SYSTEM

STR-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

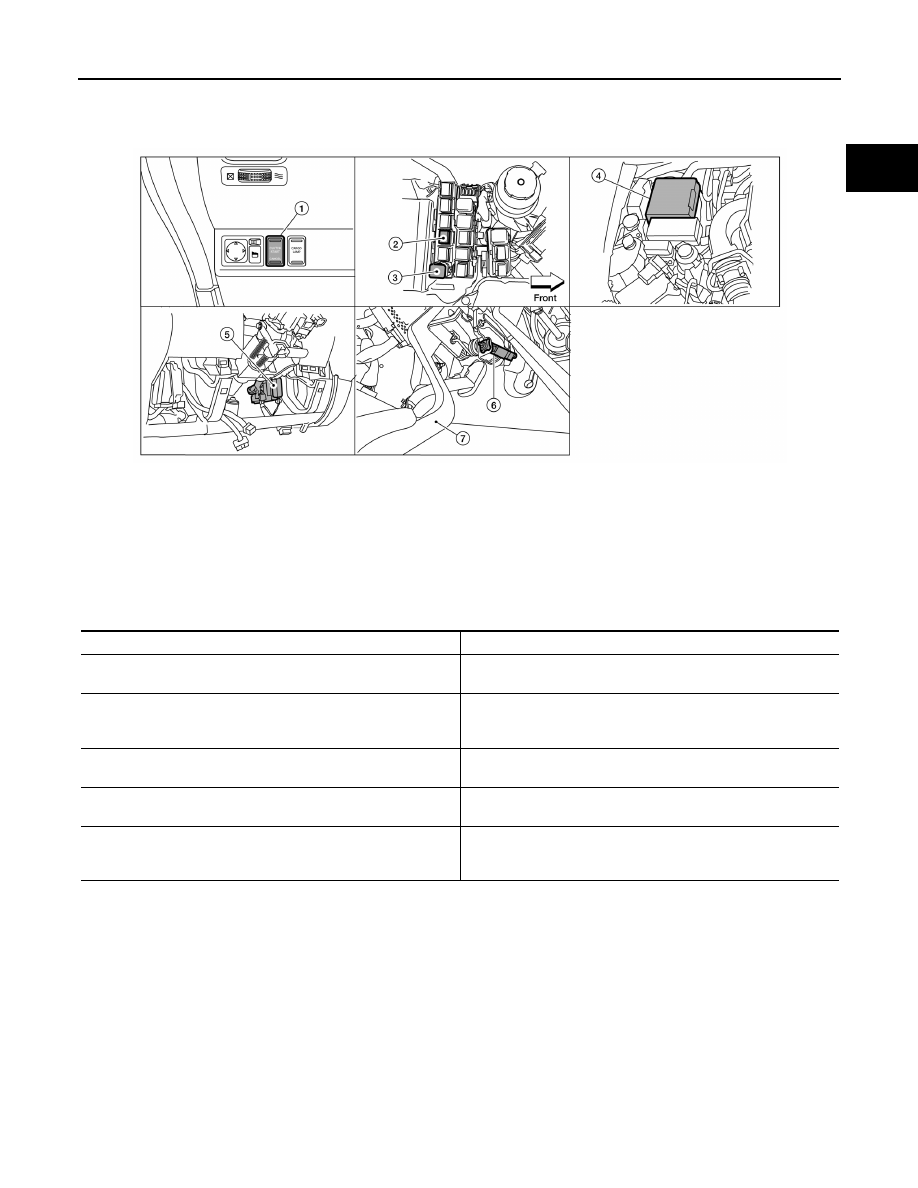

M/T WITH CLUTCH INTERLOCK CANCEL SYSTEM : Component Parts Location

INFOID:0000000009485110

M/T WITH CLUTCH INTERLOCK CANCEL SYSTEM : Component Description

INFOID:0000000009485111

M/T WITHOUT CLUTCH INTERLOCK CANCEL SYSTEM

1.

Clutch interlock cancel switch M163

2.

Clutch interlock cancel relay 1 E171

3.

Clutch interlock cancel relay 2 E166

4.

IPDM E/R E119, E120, E122, E124

5.

BCM M18 (view with lower instrument
panel LH removed)

6.

Clutch interlock switch E163

7.

Clutch pedal



AWBIA1154ZZ

Component part

Description

Clutch interlock switch

Clutch interlock switch supplies power to the coil side of the starter
relay when the clutch pedal is depressed to crank the engine.

Clutch interlock cancel switch

Clutch interlock cancel switch bypasses the clutch interlock switch
and supplies power to the coil side of the starter relay to crank the
engine without the clutch pedal being depressed.

BCM

BCM sends a starter request signal to the CPU of the IPDM E/R
over the CAN communication lines.

IPDM E/R

CPU inside IPDM E/R operates the starter relay at the request of
the BCM over the CAN communication lines.

Starter motor

The starter motor plunger closes and the motor is supplied with
battery power, which in turn cranks the engine, when the “S” ter-
minal is supplied with electric power.

STR-12

< SYSTEM DESCRIPTION >

STARTING SYSTEM

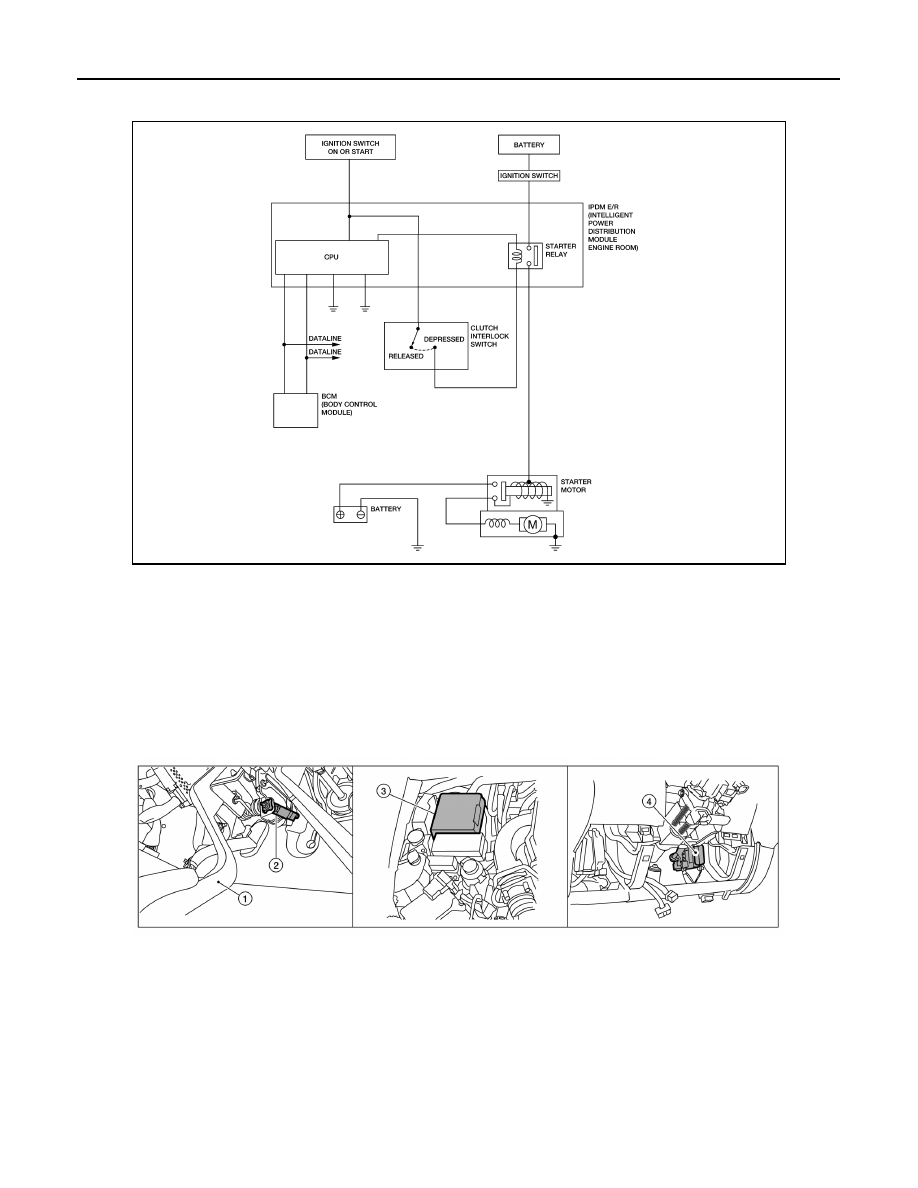

M/T WITHOUT CLUTCH INTERLOCK CANCEL SYSTEM : System Diagram

INFOID:0000000009485112

M/T WITHOUT CLUTCH INTERLOCK CANCEL SYSTEM : System Description

INFOID:0000000009485113

The starter motor plunger closes and provides a closed circuit between the battery and the starter motor. The

starter motor is grounded to the cylinder block. With power and ground supplied, the starter motor operates.

M/T WITHOUT CLUTCH INTERLOCK CANCEL SYSTEM : Component Parts Loca-
tion

INFOID:0000000009485114

AWBIA0434GB

1.

Clutch pedal

2.

Clutch interlock switch E164

3.

IPDM E/R E119, E120, E122, E124

4.

BCM M18 (view with lower instrument
panel LH removed)

AWBIA1155ZZ

STARTING SYSTEM

STR-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

M/T WITHOUT CLUTCH INTERLOCK CANCEL SYSTEM : Component Description

INFOID:0000000009485115

Component part

Description

Clutch interlock switch

Clutch interlock switch supplies power to the coil side of the starter
relay when the clutch pedal is depressed to crank the engine.

BCM

BCM sends a starter request signal to the CPU of the IPDM E/R
over the CAN communication lines.

IPDM E/R

CPU inside IPDM E/R operates the starter relay at the request of
the BCM over the CAN communication lines.

Starter motor

The starter motor plunger closes and the motor is supplied with
battery power, which in turn cranks the engine, when the “S” ter-
minal is supplied with electric power.
