REAR SUSPENSION ASSEMBLY

RSU-7

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

REMOVAL AND INSTALLATION

REAR SUSPENSION ASSEMBLY

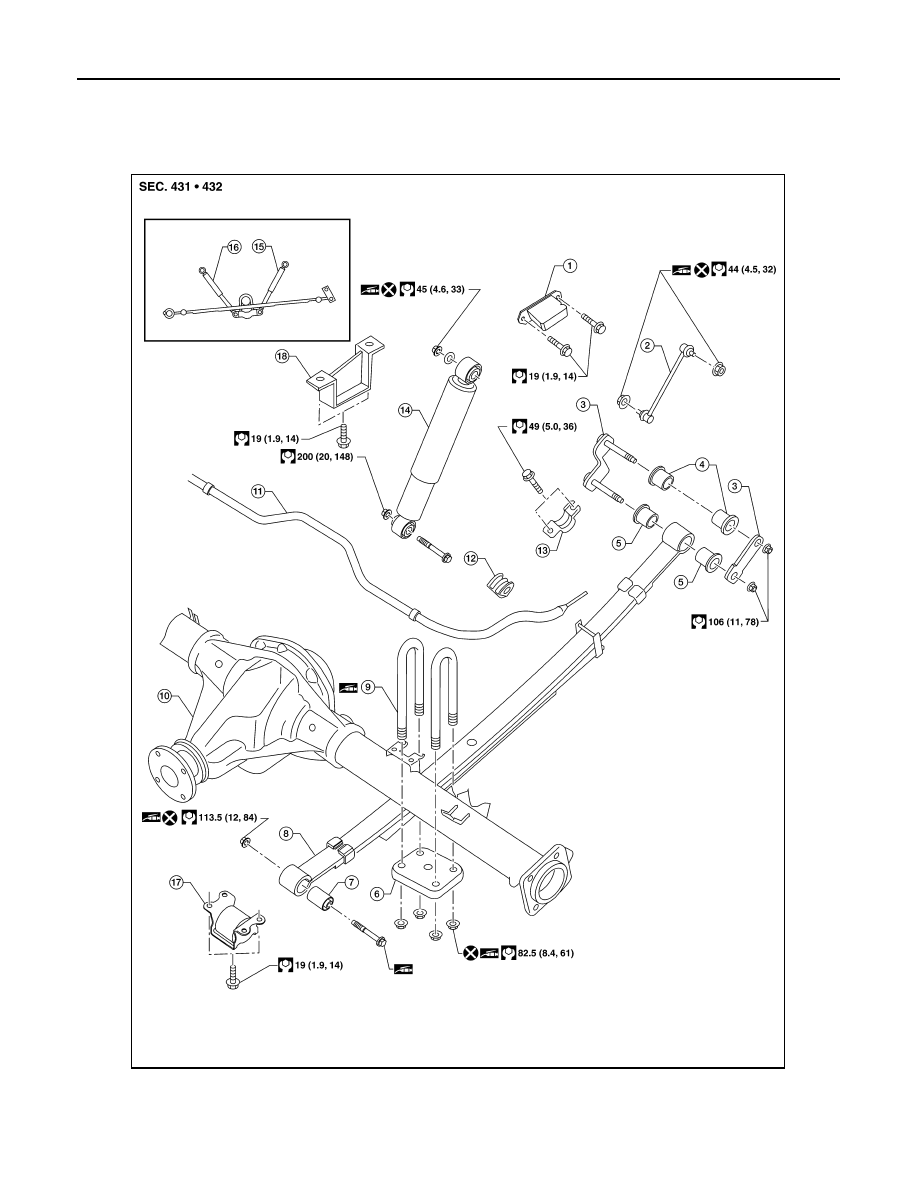

Component

INFOID:0000000009484405

AWEIA0345ZZ

RSU-8

< REMOVAL AND INSTALLATION >

REAR SUSPENSION ASSEMBLY

CAUTION:

When installing the components with rubber bushings, the final tightening of the nuts and bolts must

be done with the vehicle in an unladen condition (the fuel, engine coolant, and engine oil full; the

spare tire, jack, hand tools and mats in their designated positions) with the tires on the ground.

1.

Bumper

2.

Connecting rod

3.

Rear spring shackle

4.

Rear spring shackle bushing

5.

Rear spring bushing (rear)

6.

Rear spring pad

7.

Rear spring bushing (front)

8.

Rear leaf spring

9.

Rear spring clip U-bolts

10. Rear final drive

11. Stabilizer bar

12. Bushing

13. Stabilizer bar clamp

14. Shock absorber

15. Shock absorber (LH)

16. Shock absorber (RH)

17. Dynamic damper

18. Torque arrester (If equipped)

SHOCK ABSORBER

RSU-9

< UNIT REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

UNIT REMOVAL AND INSTALLATION

SHOCK ABSORBER

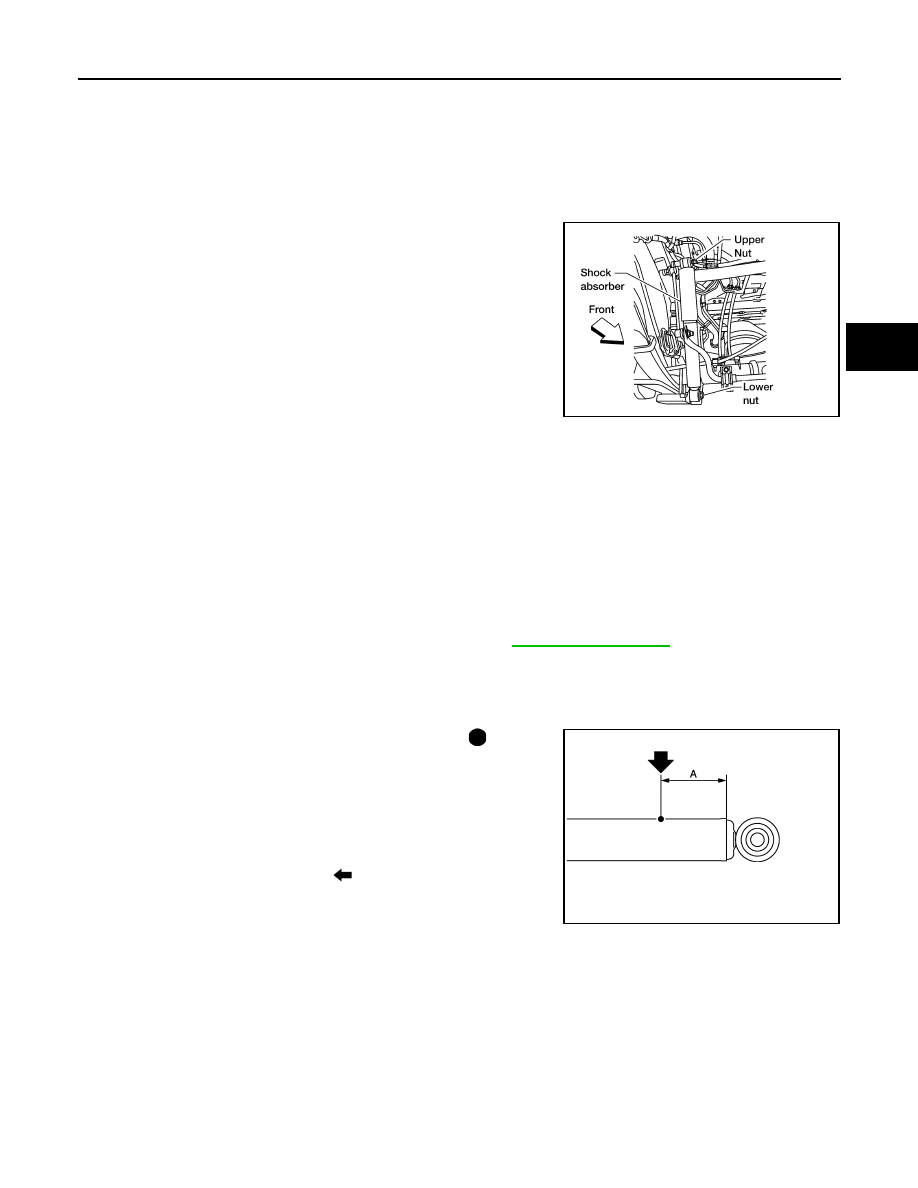

Removal and Installation

INFOID:0000000009484406

REMOVAL

1. Remove the shock absorber upper and lower nuts and bolts

using power tool.

2. Remove the shock absorber.

INSPECTION AFTER REMOVAL

Inspect the shock absorber for any oil leaks, cracks, or deformations. Replace the shock absorber as neces-

sary.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse shock absorber upper nut.

• Apply multi-purpose grease to the shock absorber upper nut and stud.

Disposal

INFOID:0000000009484407

1. Set shock absorber horizontally with the piston rod fully extended.
2. Drill 2 – 3 mm (0.08 – 0.12 in) hole at the position ( ) from top

as shown to release gas gradually.

CAUTION:

• Wear eye protection (safety glasses).

• Wear gloves.

• Be careful with metal chips or oil blown out by the com-

pressed gas.

NOTE:
• Drill vertically in this direction (

).

• Directly to the outer tube avoiding brackets.

• The gas is clear, colorless, odorless, and harmless.

3. Position the drilled hole downward and drain oil by moving the piston rod several times.

CAUTION:

Dispose of drained oil according to the law and local regulations.

LEIA0120E

Shock absorber upper and lower nuts

: Refer to

RSU-7, "Component"

.

(A)

: 20 – 30 mm (0.79 – 1.18 in)

JPEIA0161ZZ

RSU-10

< UNIT REMOVAL AND INSTALLATION >

LEAF SPRING

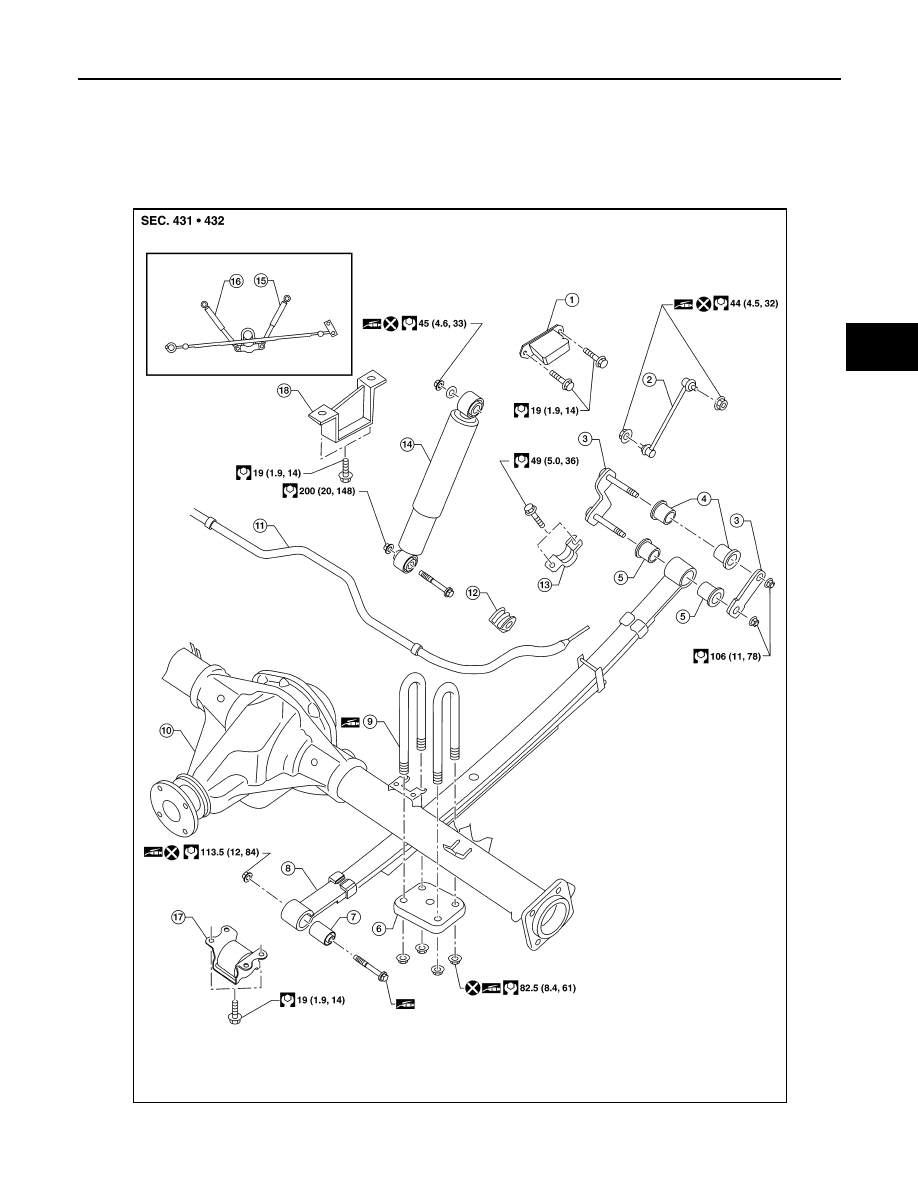

LEAF SPRING

Removal and Installation

INFOID:0000000009484408

1.

Bumper

2.

Connecting rod

3.

Rear spring shackle

4.

Rear spring shackle bushing

5.

Rear spring bushing (rear)

6.

Rear spring pad

7.

Rear spring bushing (front)

8.

Rear leaf spring

9.

Rear spring clip U-bolts

AWEIA0345ZZ
