POWER WINDOW MOTOR

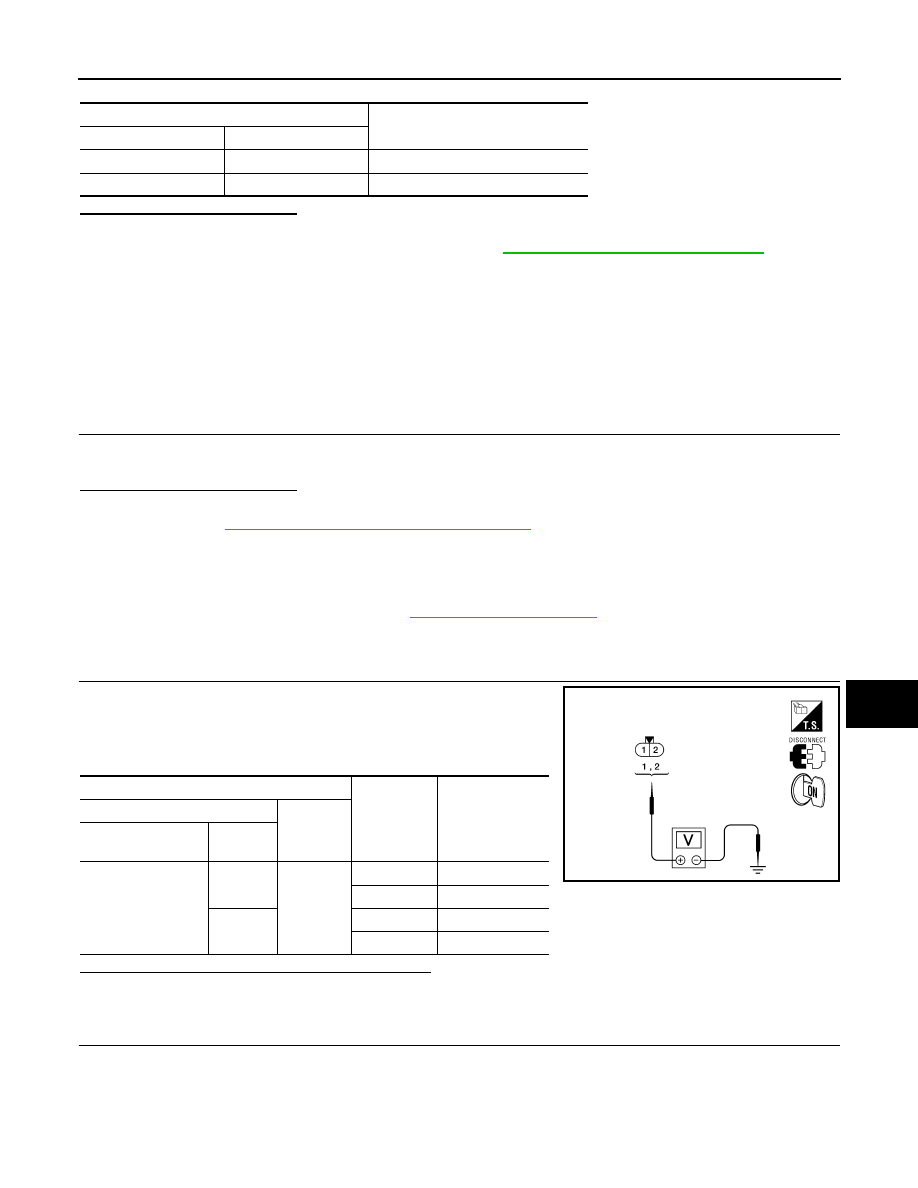

PWC-23

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Is the inspection result normal?

YES

>> Front power window motor RH is OK.

NO

>> Replace front power window motor RH. Refer to

GW-14, "Front Door Glass Regulator"

.

REAR LH
REAR LH : Description

INFOID:0000000009483652

Door glass moves UP/DOWN by receiving the signal from power window main switch or rear power window

switch LH.

REAR LH : Component Function Check

INFOID:0000000009483653

1.

 CHECK REAR POWER WINDOW MOTOR LH CIRCUIT

Check rear power window motor LH operation with main power window and door lock/unlock switch or rear

power window switch LH.
Is the inspection result normal?

YES

>> Rear power window motor LH is OK.

NO

>> Refer to

PWC-23, "REAR LH : Diagnosis Procedure"

REAR LH : Diagnosis Procedure

INFOID:0000000009483654

Regarding Wiring Diagram information, refer to

PWC-42, "Wiring Diagram"

.

1.

 CHECK REAR POWER WINDOW SWITCH OUTPUT SIGNAL

1. Disconnect rear power window motor LH.

2. Turn ignition switch ON.

3. Check voltage between rear power window motor LH connector

and ground.

Is the measurement value within the specification?

YES

>> GO TO 3

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

Terminal

Motor condition

(+)

(–)

1

2

DOWN

2

1

UP

Terminal

Window

condition

Voltage (V)

(Approx.)

(+)

(–)

Rear power window
motor LH connector

Terminal

D204

2

Ground

UP

Battery voltage

DOWN

0

1

UP

0

DOWN

Battery voltage

LIIA2228E

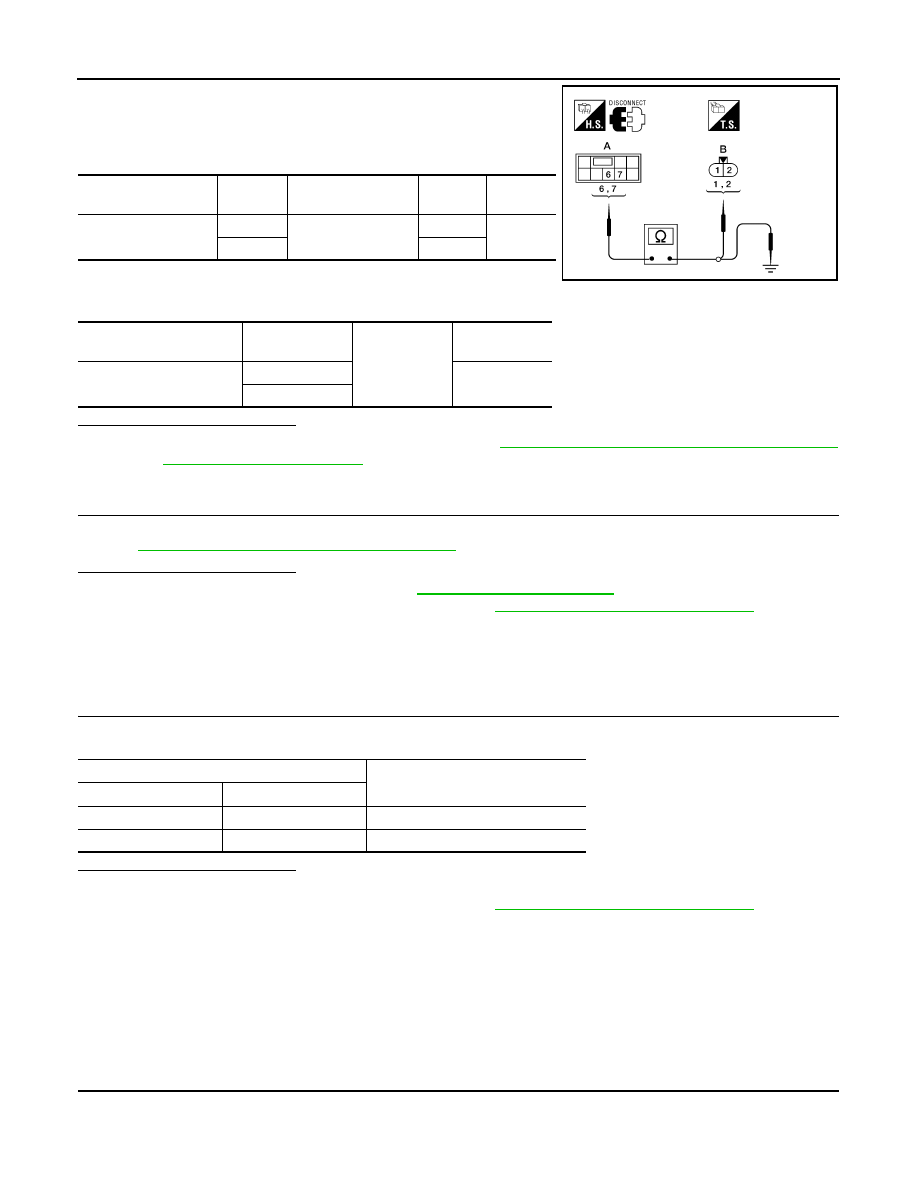

PWC-24

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW MOTOR

1. Turn ignition switch OFF.

2. Disconnect rear power window switch LH.

3. Check continuity between rear power window switch LH connec-

tor (A) and rear power window motor LH connector (B).

4. Check continuity between rear power window switch LH connec-

tor (A) and ground.

Is the inspection result normal?

YES

>> Check rear power window switch LH. Refer to

PWC-16, "REAR POWER WINDOW SWITCH :

Component Function Check"

.

NO

>> Repair or replace harness.

3.

 CHECK REAR POWER WINDOW MOTOR LH

Check rear power window motor LH.

Refer to

PWC-24, "REAR LH : Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-40, "Intermittent Incident"

.

NO

>> Replace rear power window motor LH. Refer to

GW-18, "Rear Door Glass Regulator"

.

REAR LH : Component Inspection

INFOID:0000000009483655

COMPONENT INSPECTION

1.

 CHECK REAR POWER WINDOW MOTOR LH

Check motor operation by connecting the battery voltage directly to rear power window motor LH.

Is the inspection result normal?

YES

>> Rear power window motor LH is OK.

NO

>> Replace rear power window motor LH. Refer to

GW-18, "Rear Door Glass Regulator"

.

REAR RH
REAR RH : Description

INFOID:0000000009483656

Door glass moves UP/DOWN by receiving the signal from main power window and door lock/unlock switch or

rear power window switch RH.

REAR RH : Component Function Check

INFOID:0000000009483657

1.

 CHECK REAR POWER WINDOW MOTOR RH CIRCUIT

Check rear power window motor RH operation with operating main power window and door lock/unlock switch

or rear power window switch RH.

Rear power window

switch LH connector

Terminal

Rear power window
motor LH connector

Terminal

Continuity

D203 (A)

6

D204 (B)

1

Yes

7

2

Rear power window switch

LH connector

Terminal

Ground

Continuity

D203 (A)

6

No

7

LIIA2229E

Terminal

Motor condition

(+)

(–)

2

1

UP

1

2

DOWN

POWER WINDOW MOTOR

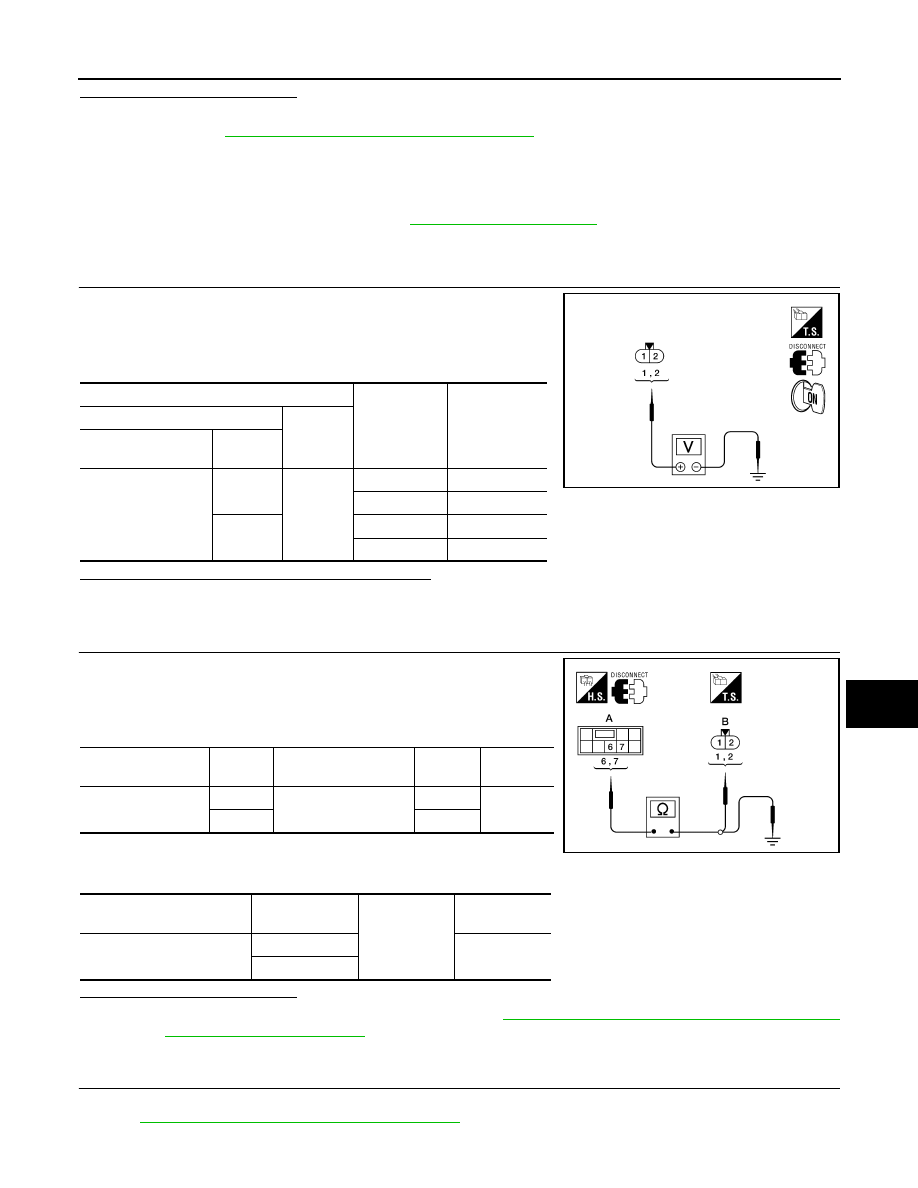

PWC-25

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Is the inspection result normal?

YES

>> Rear power window motor RH is OK.

NO

>> Refer to

PWC-25, "REAR RH : Diagnosis Procedure"

.

REAR RH : Diagnosis Procedure

INFOID:0000000009483658

Regarding Wiring Diagram information, refer to

PWC-42, "Wiring Diagram"

.

1.

 CHECK REAR POWER WINDOW SWITCH RH OUTPUT SIGNAL

1. Disconnect rear power window motor RH.

2. Turn ignition switch ON.

3. Check voltage between rear power window motor RH connector

and ground.

Is the measurement value within the specification?

YES

>> GO TO 3

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect rear power window switch RH.

3. Check continuity between rear power window switch RH con-

nector (A) and rear power window motor RH connector (B).

4. Check continuity between rear power window switch RH con-

nector (A) and ground.

Is the inspection result normal?

YES

>> Check rear power window switch RH. Refer to

PWC-16, "REAR POWER WINDOW SWITCH :

Component Function Check"

.

NO

>> Repair or replace harness.

3.

 CHECK REAR POWER WINDOW MOTOR RH

Check rear power window motor RH.

Refer to

PWC-26, "REAR RH : Component Inspection"

.

Terminal

Rear power

window switch

RH condition

Voltage (V)

(Approx.)

(+)

(–)

Rear power window

motor RH connector

Terminal

D304

2

Ground

UP

Battery voltage

DOWN

0

1

UP

0

DOWN

Battery voltage

LIIA2228E

Rear power window

switch RH connector

Terminal

Rear power window

motor RH connector

Terminal

Continuity

D303 (A)

6

D304 (B)

1

Yes

7

2

Rear power window switch

RH connector

Terminal

Ground

Continuity

D303 (A)

6

No

7

LIIA2229E

PWC-26

< DTC/CIRCUIT DIAGNOSIS >

POWER WINDOW MOTOR

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-40, "Intermittent Incident"

.

NO

>> Replace rear power window motor RH. Refer to

GW-18, "Rear Door Glass Regulator"

.

REAR RH : Component Inspection

INFOID:0000000009483659

COMPONENT INSPECTION

1.

 CHECK REAR POWER WINDOW MOTOR RH

Check motor operation by connecting the battery voltage directly to rear power window motor RH.

Is the inspection result normal?

YES

>> Rear power window motor RH is OK.

NO

>> Replace rear power window motor RH. Refer to

GW-18, "Rear Door Glass Regulator"

.

Terminal

Motor condition

(+)

(–)

2

1

UP

1

2

DOWN
