INL-60

< REMOVAL AND INSTALLATION >

INTERIOR ROOM LAMP

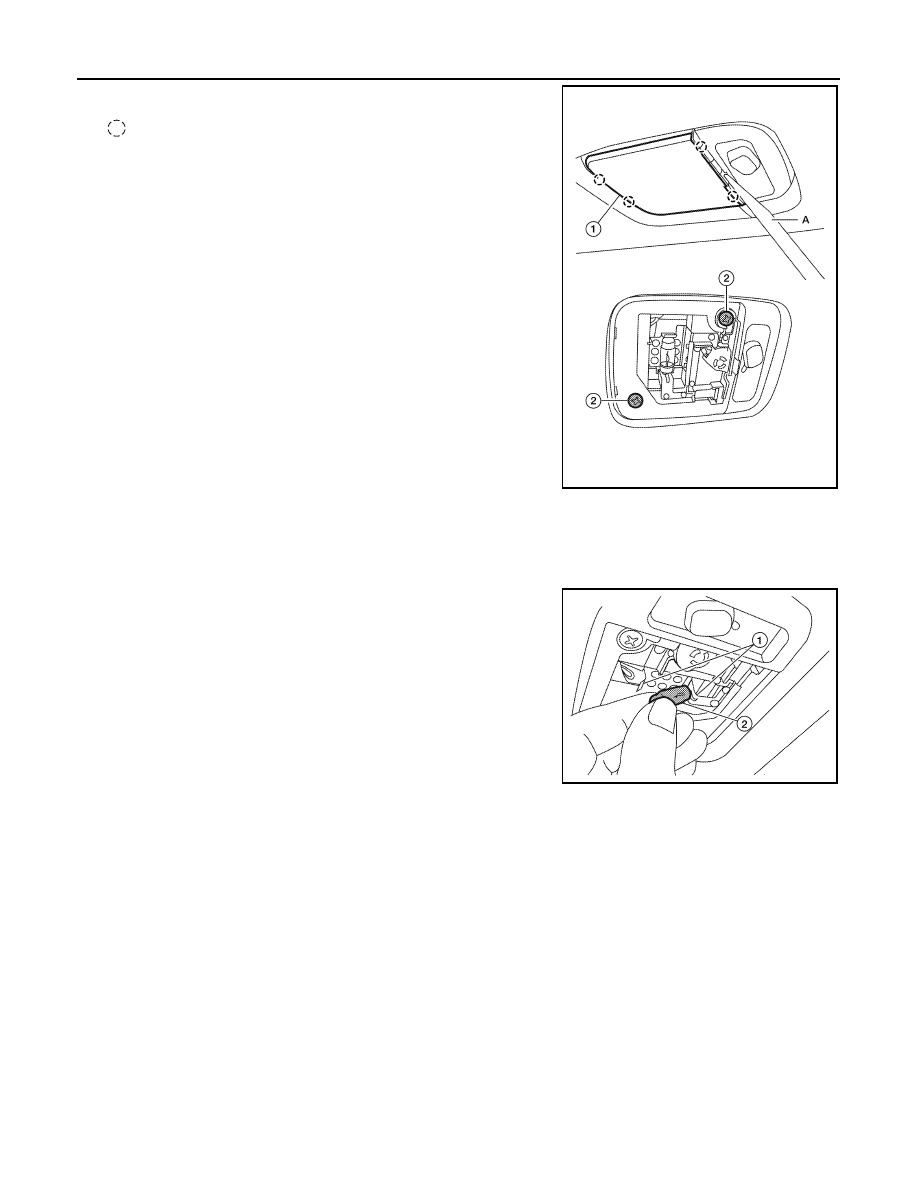

1. Using a suitable tool (A), release the pawls and remove the

room lamp 2nd row lens (1).

: Pawl

2. Remove room lamp 2nd row screws (2).
3. Disconnect the harness connector from the room lamp 2nd row

and remove.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Using a suitable tool, release the pawls and remove the room lamp 2nd row lens.
2. Release the room lamp 2nd row bulb retainers (1), then pull bulb

(2) straight out to remove.

3. Install the bulb (2).
4. Install the room lamp 2nd row lens.

CARGO LAMP

Removal

AWLIA1680ZZ

ALLIA0326ZZ

INTERIOR ROOM LAMP

INL-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

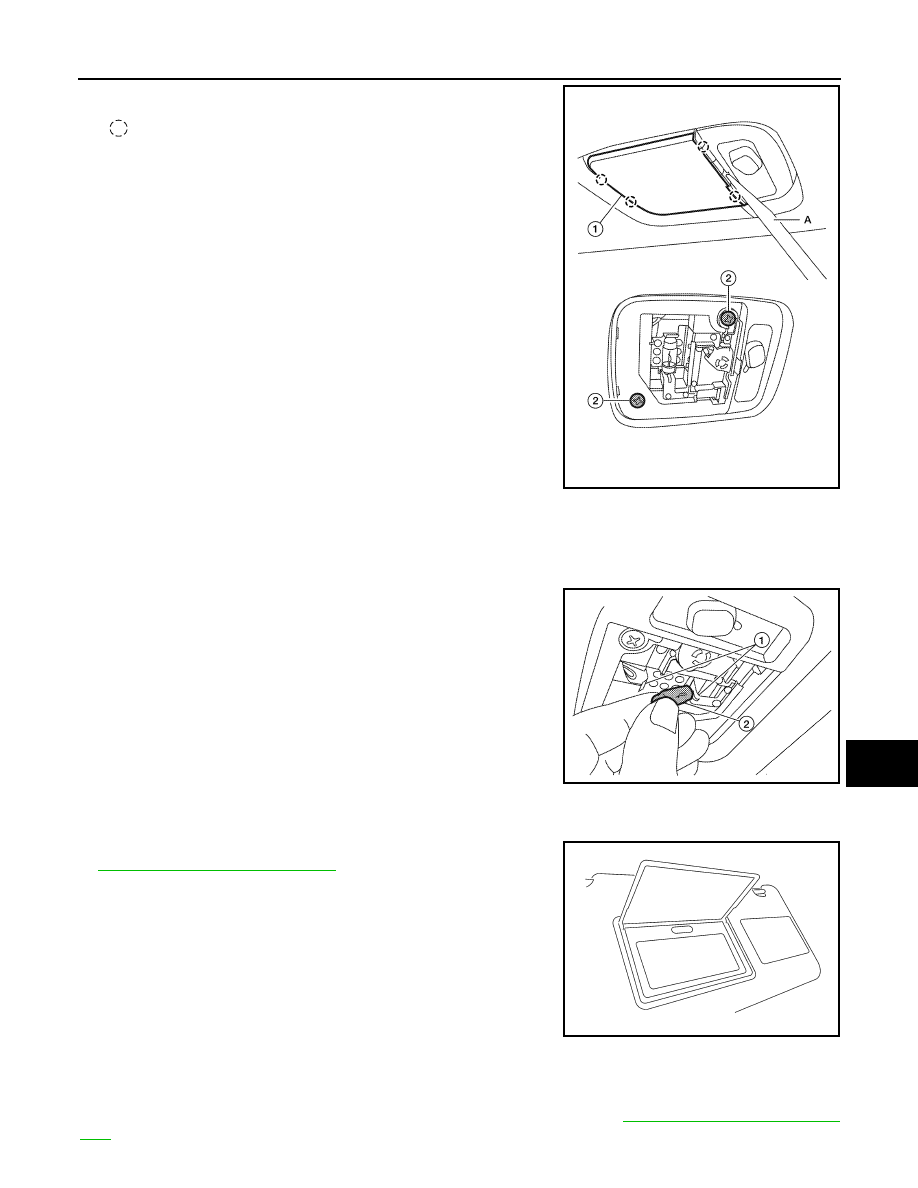

1. Using a suitable tool (A), release the pawls and remove the

cargo lamp lens (1).

: Pawl

2. Remove cargo lamp screws (2).
3. Disconnect the harness connector from the cargo lamp and

remove.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Using a suitable tool, release the pawls and remove the cargo lamp lens.
2. Release the cargo lamp bulb retainers (1), then pull bulb (2)

straight out to remove.

3. Install the bulb (2).
4. Install the cargo lamp lens.

VANITY LAMP

Removal

The vanity lamp is replaced as part of the sun visor assembly. Refer

to

INT-21, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

The vanity lamp bulb is replaced as part of the sun visor assembly. Refer to

INT-21, "Removal and Installa-

tion"

.

AWLIA1680ZZ

ALLIA0326ZZ

ALLIA0583ZZ

INL-62

< REMOVAL AND INSTALLATION >

ILLUMINATION

ILLUMINATION

Removal and Installation

INFOID:0000000009483149

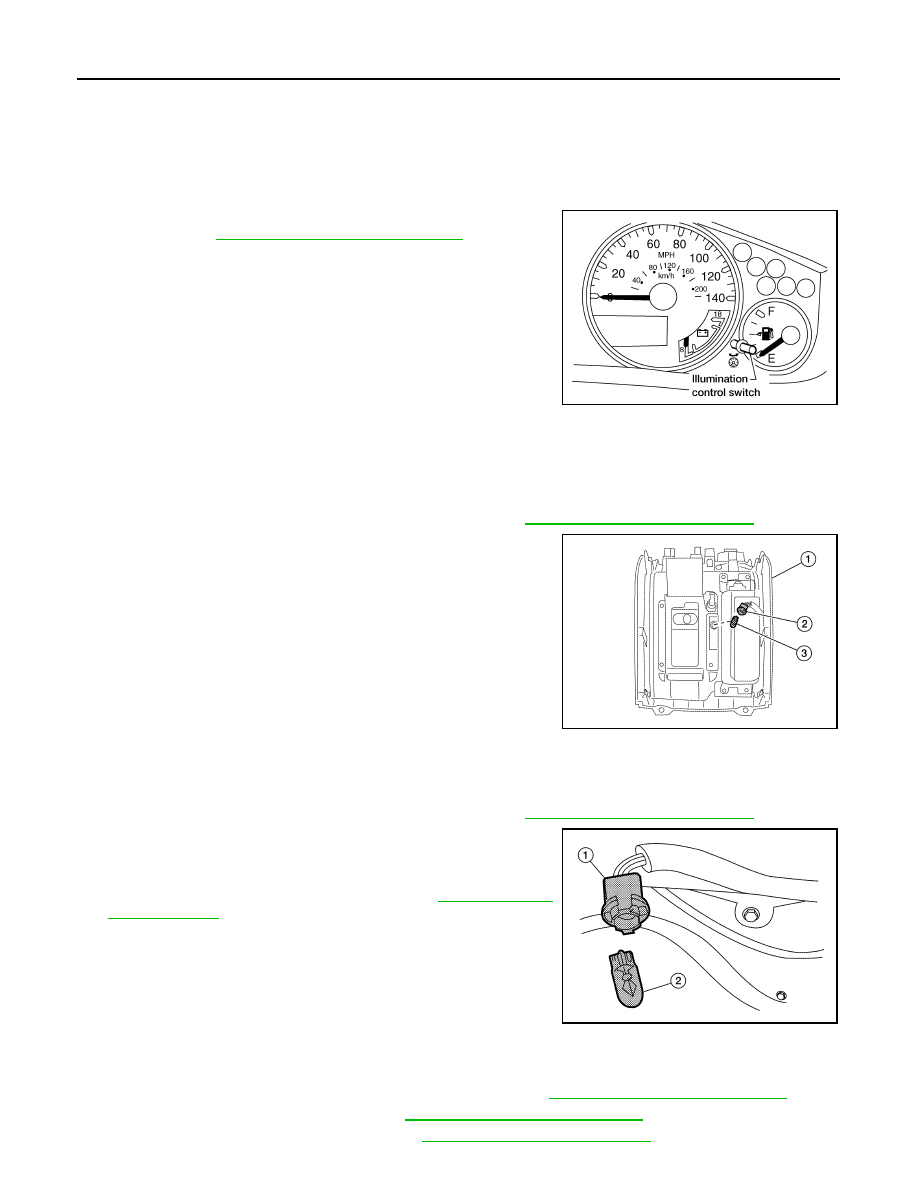

ILLUMINATION CONTROL SWITCH

Removal

The illumination control switch is replaced as a part of the combina-

tion meter. Refer to

MWI-84, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

SHIFT SELECTOR FINISHER LAMP

Removal

1. Remove shift selector finisher from center console. Refer to

IP-20, "Removal and Installation"

.

2. Rotate shift selector finisher lamp socket (2) with bulb (3) coun-

terclockwise, then pull away from shift selector (1).

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Remove shift selector finisher from center console. Refer to

IP-20, "Removal and Installation"

.

2. Remove shift selector finisher lamp socket (1), then pull bulb (2)

straight out away from socket.

3. Install the bulb (2) to the shift selector finisher lamp socket (1).
4. Install shift selector to center console. Refer to

IP-20, "Removal

and Installation"

.

IGNITION KEYHOLE ILLUMINATION LAMP

Removal

1. Partially remove LH front door welt and position aside. Refer to

INT-18, "Removal and Installation"

.

2. Remove front pillar lower finisher. Refer to

INT-18, "Removal and Installation"

.

3. Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

LKIA0579E

ALLIA0590ZZ

ALLIA0321ZZ

ILLUMINATION

INL-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

4. Partially remove the BCM and position aside.
5. Remove ignition keyhole illumination lamp.

Installation

Installation is in the reverse order of removal.

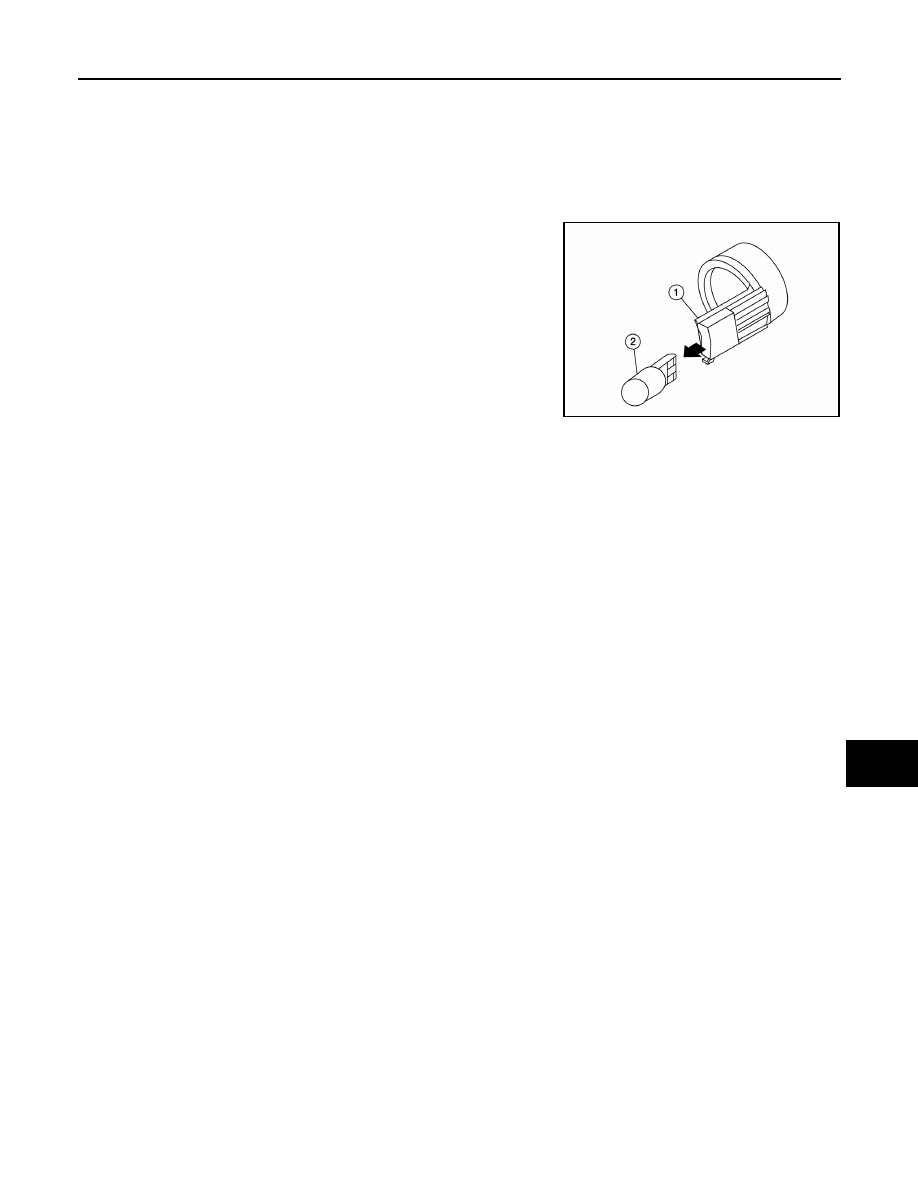

Bulb Replacement

1. Remove keyhole illumination lamp.
2. Pull bulb (2) straight out from keyhole illumination lamp socket

(1) to remove.

3. Install the bulb (2) to keyhole illumination lamp socket (1).
4. Install keyhole illumination lamp.
