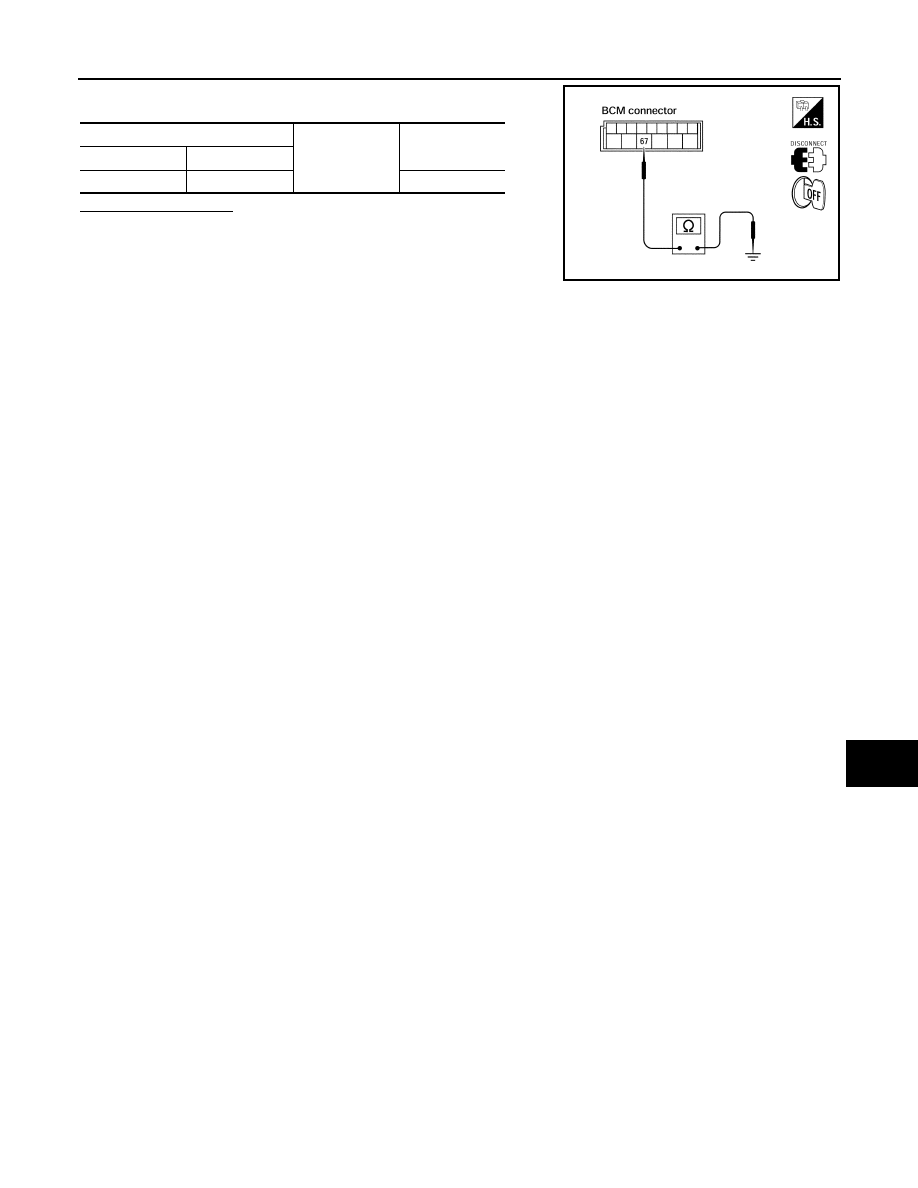

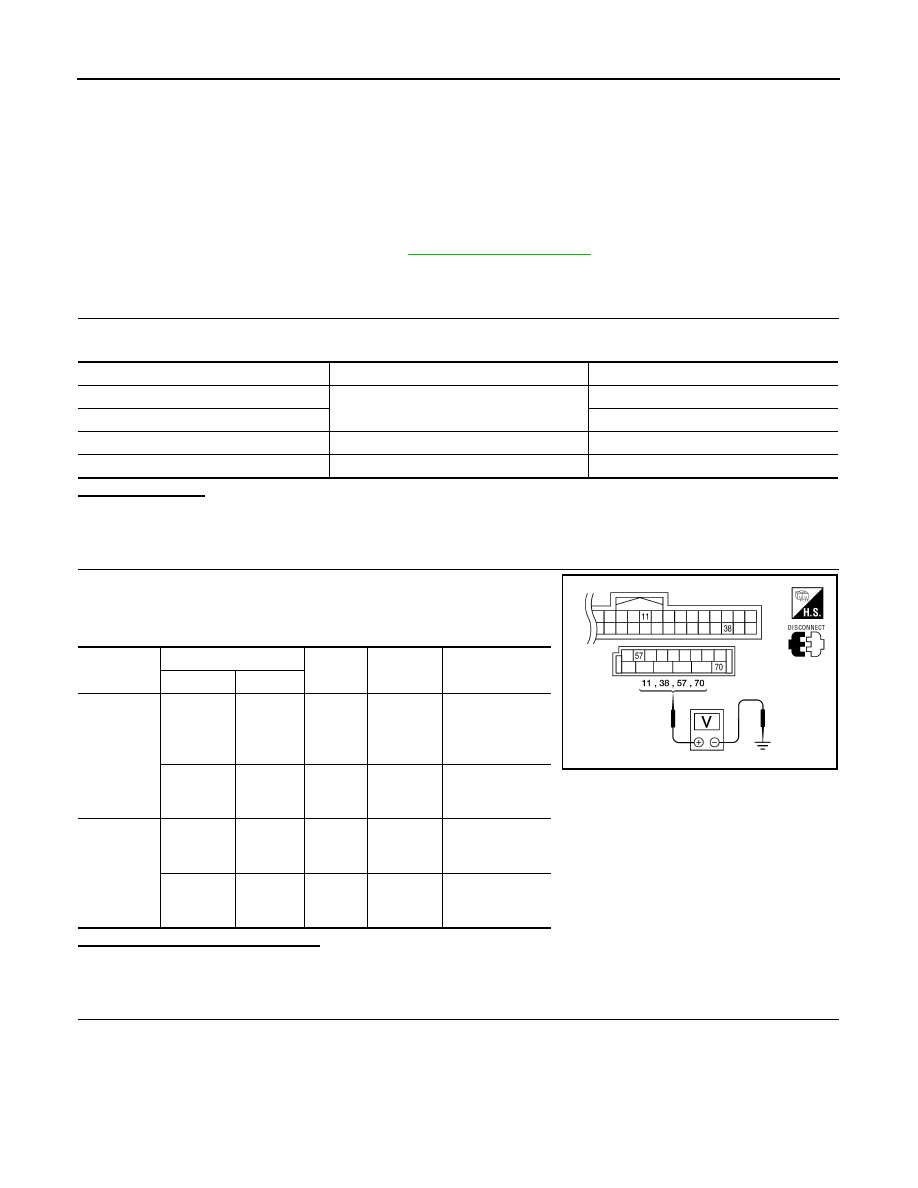

INL-12 < SYSTEM DESCRIPTION > DIAGNOSIS SYSTEM (BCM) INT LAMP : CONSULT Function (BCM - INT LAMP) INFOID:0000000010242997 DATA MONITOR ACTIVE TEST WORK SUPPORT * : Initial setting BATTERY SAVER Monitor Item [Unit] Description IGN ON SW [On/Off] Indicates condition of ignition switch ON position. KEY ON SW [On/Off] Indicates condition of key switch. DOOR SW-DR [On/Off] Indicates condition of front door switch LH. DOOR SW-AS [On/Off] Indicates condition of front door switch RH. DOOR SW-RR [On/Off] Indicates condition of rear door switch RH. DOOR SW-RL [On/Off] Indicates condition of rear door switch LH. BACK DOOR SW [On/Off] Indicates condition of back door switch. KEY CYL LK-SW [On/Off] Indicates condition of lock signal from door key cylinder switch. KEY CYL UN-SW [On/Off] Indicates condition of unlock signal from door key cylinder switch. CDL LOCK SW [On/Off] Indicates condition of lock signal from door lock and unlock switch. CDL UNLOCK SW [On/Off] Indicates condition of unlock signal from door lock and unlock switch. KEYLESS LOCK [On/Off] Indicates condition of lock signal from keyfob. KEYLESS UNLOCK [On/Off] Indicates condition of unlock signal from keyfob. Test Item Description IGN ILLUM This test is able to check ignition keyhole illumination operation [Off/On]. INT LAMP This test is able to check interior room lamp operation [Off/On]. LUGGAGE LAMP TEST This test is able to check cargo lamp operation [Off/On]. Support Item Setting Description SET I/L D-UNLCK INTCON Off Interior room lamp timer function OFF. On* Interior room lamp timer function ON. ROOM LAMP ON TIME SET MODE7 0 sec. Sets the interior room lamp gradual brightening time. MODE6 5 sec. MODE5 4 sec. MODE4 3 sec. MODE3 2 sec. MODE2* 1 sec. MODE1 0.5 sec. ROOM LAMP OFF TIME SET MODE7 0 sec. Sets the interior room lamp gradual dimming time. MODE6 5 sec. MODE5 4 sec. MODE4 3 sec. MODE3 2 sec. MODE2* 1 sec. MODE1 0.5 sec. |
