QUICK REFERENCE CHART: XTERRA

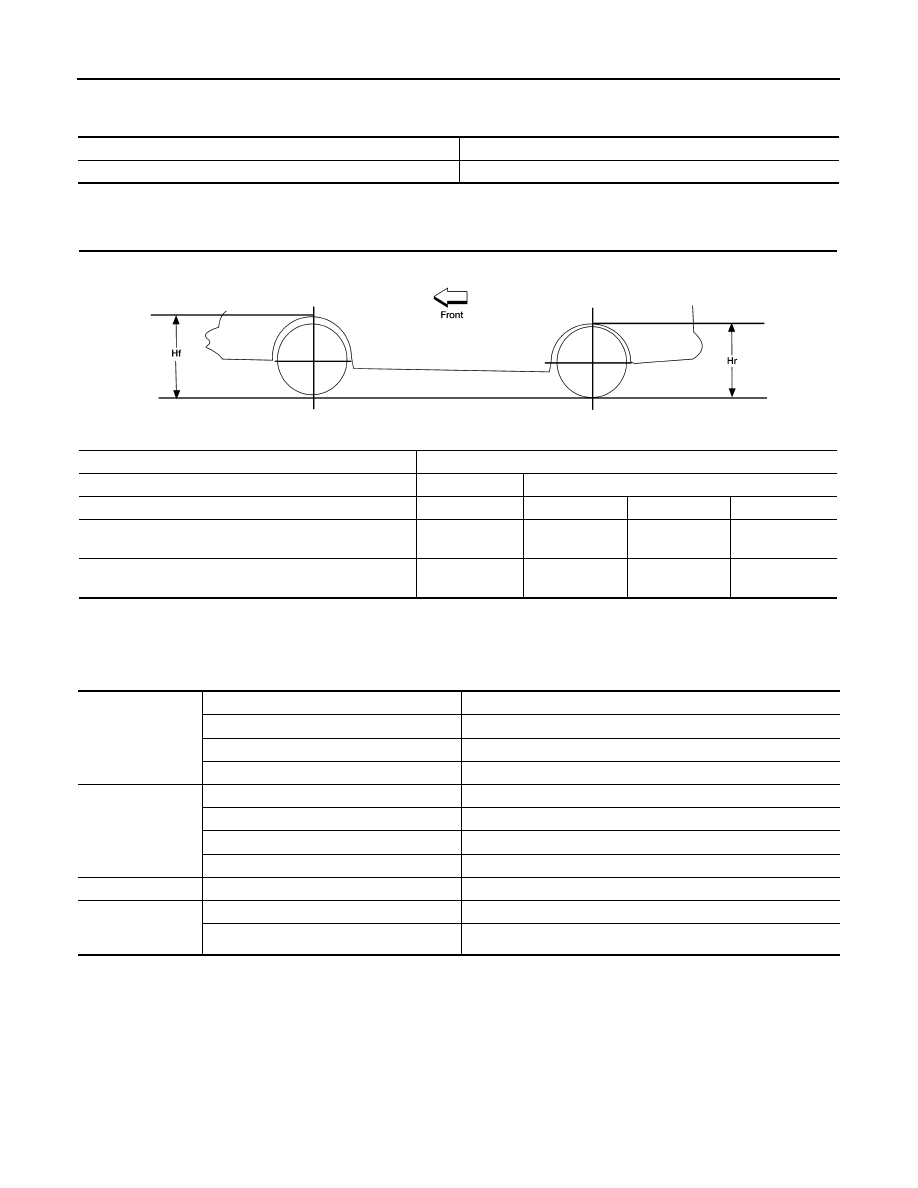

General Specification (Rear)

INFOID:0000000010310426

Wheelarch Height (Unladen*

1

)

INFOID:0000000010310425

Unit: mm (in)

*1: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

Brake Specification

INFOID:0000000010310424

Unit: mm (in)

Suspension type

Rigid axle with semi-elliptic leaf springs

Shock absorber type

Double-acting hydraulic

Engine type

VQ40DE

Drive type

2WD

4WD

Tire size

P265/70R16

P265/70R16

P265/75R16

P265/65R17

Front wheelarch height (Hf)

839

(33.03)

858

(33.78)

870

(34.25)

859

(33.82)

Rear wheelarch height (Hr)

872

(34.33)

892

(35.12)

904

(35.59)

892

(35.12)

LEIA0085E

Front brake

Brake model

CLZ33VB

Rotor outer diameter

× thickness

296

× 28 (11.654 × 1.102)

Pad length x width x thickness

140 x 50.5 x 10.0 (5.512 x 1.988 x 0.394)

Cylinder bore diameter (each)

46.4 (1.83)

Rear brake

Brake model

CLZ14VA

Rotor outer diameter

× thickness

286

× 18.0 (11.260 × 0.709)

Pad length

× width × thickness

87.6

× 34 × 11.0 (3.449 × 1.339 × 0.433)

Cylinder bore diameter

38.1 (1.50)

Control valve

Valve model

Electric brake force distribution

Brake booster

Booster model

C215T

Diaphragm diameter

215 (8.465)

QUICK REFERENCE CHART: XTERRA

2014

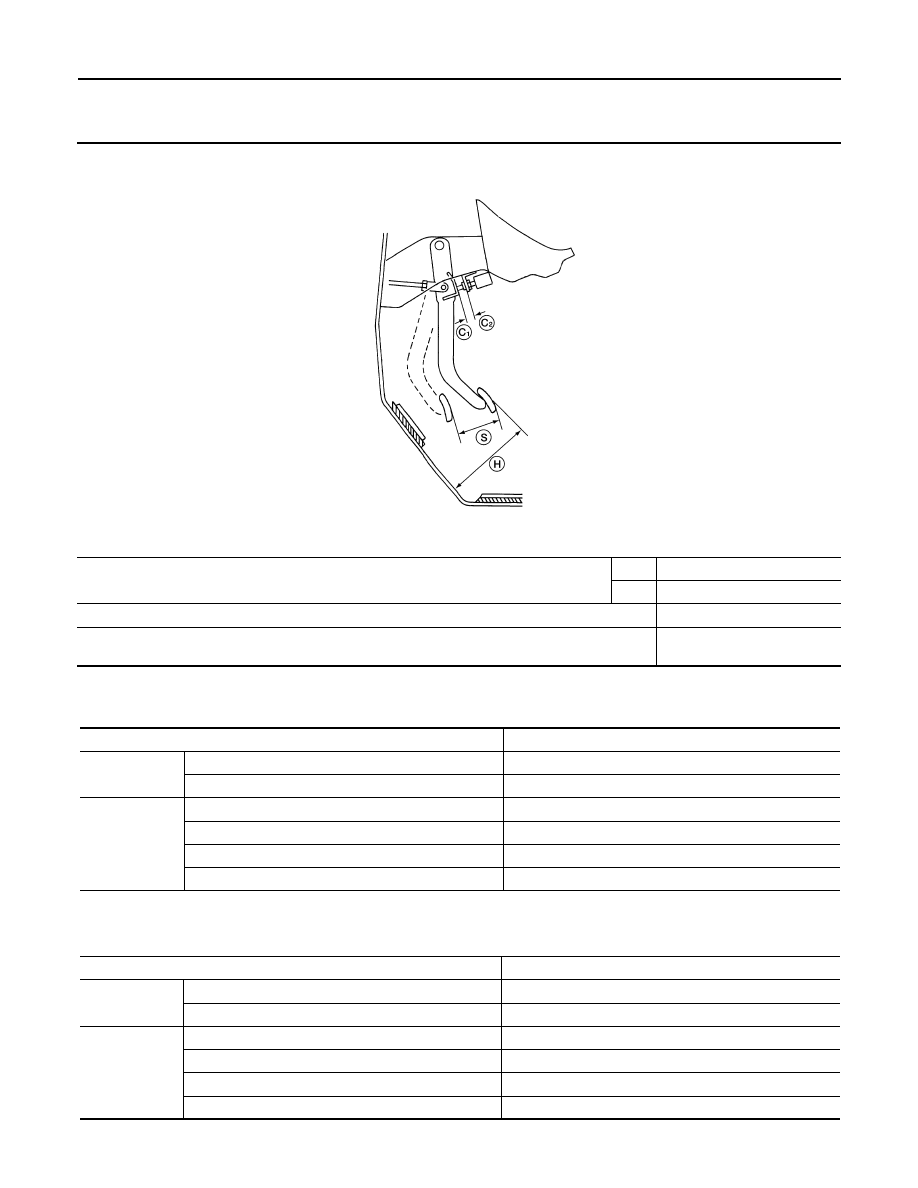

Brake Pedal

INFOID:0000000010310423

Unit: mm (in)

Front Disc Brake

INFOID:0000000010310422

Unit: mm (in)

Rear Disc Brake

INFOID:0000000010310421

Unit: mm (in)

Pedal free height (H)

M/T

174.7 (6.88)

A/T

182.1 (7.17)

Pedal full stroke (S)

153 (6.02)

Clearance between pedal bracket (C

1

) and threaded end of stop lamp switch and ASCD cancel switch

(C

2

)

0.74 - 1.96 (0.029 - 0.077)

AWFIA0557ZZ

Brake model

CLZ33VB

Brake pad

Standard thickness (new)

10.0 (0.394)

Minimum thickness

2.0 (0.079)

Disc rotor

Standard thickness (new)

28.0 (1.102)

Minimum thickness

26.0 (1.024)

Maximum uneven wear (measured at 8 positions)

0.015 (0.0006)

Runout limit (with it attached to the vehicle)

0.05 (0.0020)

Brake model

CLZ14VA

Brake pad

Standard thickness (new)

11.0 (0.433)

Minimum thickness

2.0 (0.079)

Disc rotor

Standard thickness (new)

18.0 (0.709)

Minimum thickness

16.0 (0.630)

Maximum uneven wear (measured at 8 positions)

0.015 (0.0006)

Runout limit (with it attached to the vehicle)

0.05 (0.0020)

2014

QUICK REFERENCE CHART: XTERRA

Fluids and Lubricants

INFOID:0000000010310420

Description

Capacity (Approximate)

Metric

US measure

Imp measure

Fuel

80

21-1/8 gal

17-5/8 gal

Engine oil
Drain and refill

With oil filter change

5.1

5-3/8 qt

4-1/2 qt

Without oil filter change

4.8

5-1/8 qt

4-1/4 qt

Dry engine (engine overhaul)

6.3

 6-5/8 qt

5-1/2 qt

Cooling system
(with reservoir at “MAX” level)

10.2

10-3/4 qt

9 qt

Automatic transmission fluid (ATF)

10.3

10-7/8 qt

9-1/8 qt

Manual transmission (MT)

4WD

4.18

8-7/8 pt

7-3/8 pt

Rear final drive oil

C200

1.6

3-3/8 pt

2-7/8 pt

M226

2.0

4-1/4 pt

3-1/2 pt

Transfer fluid

TX15B

2.0

2-1/8 qt

1-3/4 qt

Front final drive oil

R180A

0.85

1-3/4 pt

1-1/2 pt

Power steering fluid (PSF)

1.0

2-1/8 pt

1-3/4 pt

Brake and clutch fluid

—

—

—

Multi-purpose grease

—

—

—

Windshield washer fluid

4.5

1-1/4 gal

1 gal

A/C system refrigerant

0.70

± 0.05 kg

1.54

± 0.11 lb

1.54

± 0.11 lb

A/C system oil

180 m

6.1 fl oz

6.3 fl oz

GW-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

GW

A

B

GW

N

O

P

CONTENTS

GLASS & WINDOW SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Handling for Adhesive and Primer  ............................

2

Precaution for Procedure without Cowl Top Cover ......

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

SYMPTOM DIAGNOSIS  ...............................

4

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

4

Work Flow  .................................................................

4

Generic Squeak and Rattle Troubleshooting  ............

5

Diagnostic Worksheet ...............................................

8

UNIT REMOVAL AND INSTALLATION ......

10

WINDSHIELD GLASS .......................................

10

Removal and Installation  .........................................

10

FRONT DOOR GLASS AND REGULATOR .....

14

Front Door Glass  .....................................................

14

Front Door Glass Regulator .....................................

14

REAR DOOR GLASS AND REGULATOR .......

18

Rear Door Glass ......................................................

18

Rear Door Glass Regulator  .....................................

18

SIDE WINDOW GLASS  ....................................

21

Removal and Installation  .........................................

21

BACK DOOR WINDOW GLASS  ......................

23

Removal and Installation  .........................................

23
