Nissan Xterra. Manual - part 407

EXL-116

< WIRING DIAGRAM >

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

ABLIA5737GB

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

EXL-117

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

Wiring Diagram

INFOID:0000000009484936

ABLWA2409GB

EXL-118

< WIRING DIAGRAM >

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

ABLIA5747GB

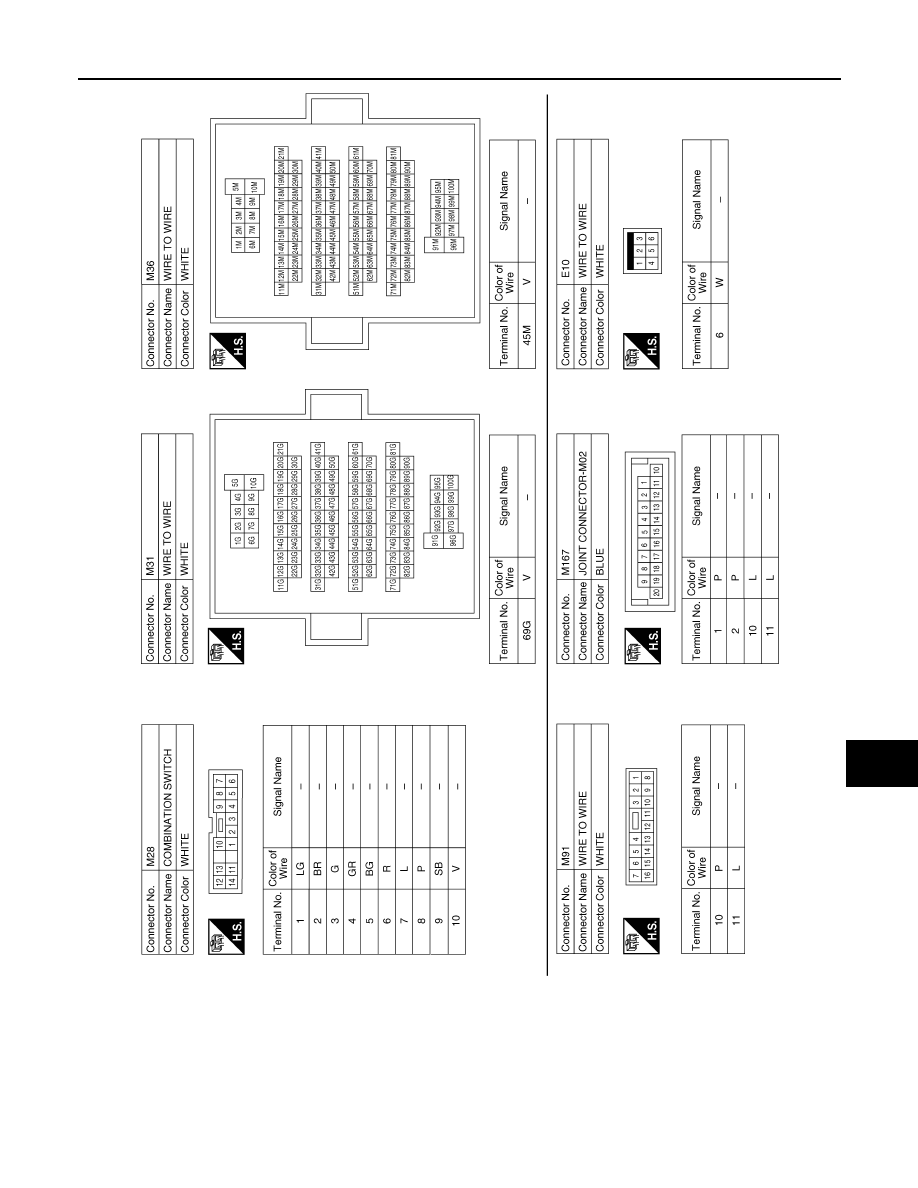

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

EXL-119

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ABLIA5748GB
