EXL-12
< SYSTEM DESCRIPTION >
AUTO LIGHT SYSTEM
AUTO LIGHT SYSTEM

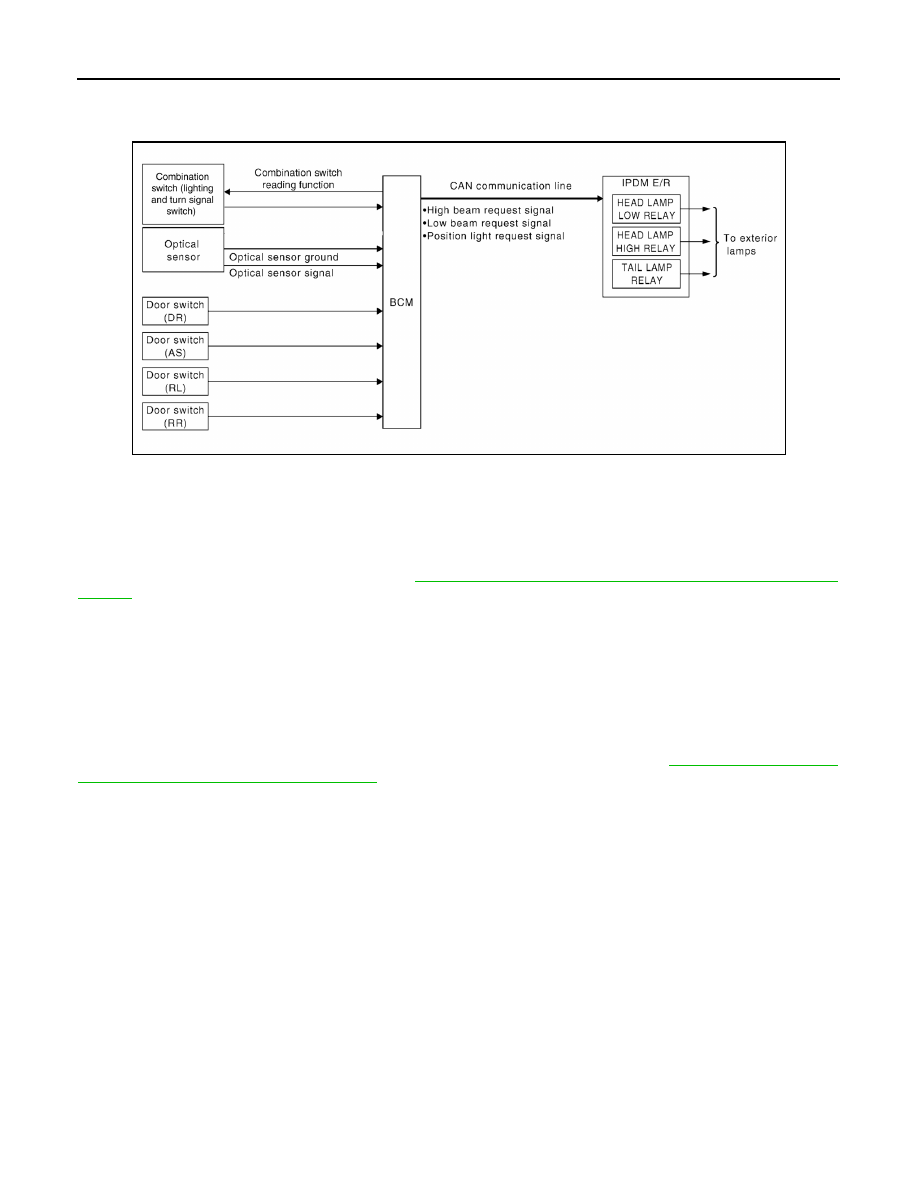

System Diagram
INFOID:0000000009484853
System Description
INFOID:0000000009484854
The auto light control system has an optical sensor that detects outside brightness.
When the combination switch (lighting and turn signal switch) is in AUTO position, it automatically turns ON/
OFF the parking, license plate, tail and headlamps in accordance with the ambient light. Sensitivity can be
adjusted in four steps. For the details, refer to
BCS-19, "HEADLAMP : CONSULT Function (BCM - HEAD
AUTO LIGHT OPERATION
The auto light system operates the low beam and high beam headlamps, parking lamps, tail lamps and license
plate lamps. The BCM monitors the combination switch (lighting and turn signal switch) position as a part of
the BCM combination switch reading function. When the combination switch (lighting and turn signal switch) is
in the AUTO position, the BCM automatically turns the lamps ON/OFF according to ambient light brightness.
When the key is turned OFF and all doors are closed, the auto light system keeps the headlamps ON for 45
seconds.
NOTE:
Timing for when lamps turn ON/OFF can be changed by the CONSULT. Refer to
CONSULT Function (BCM - HEAD LAMP)"
AWLIA1910GB
