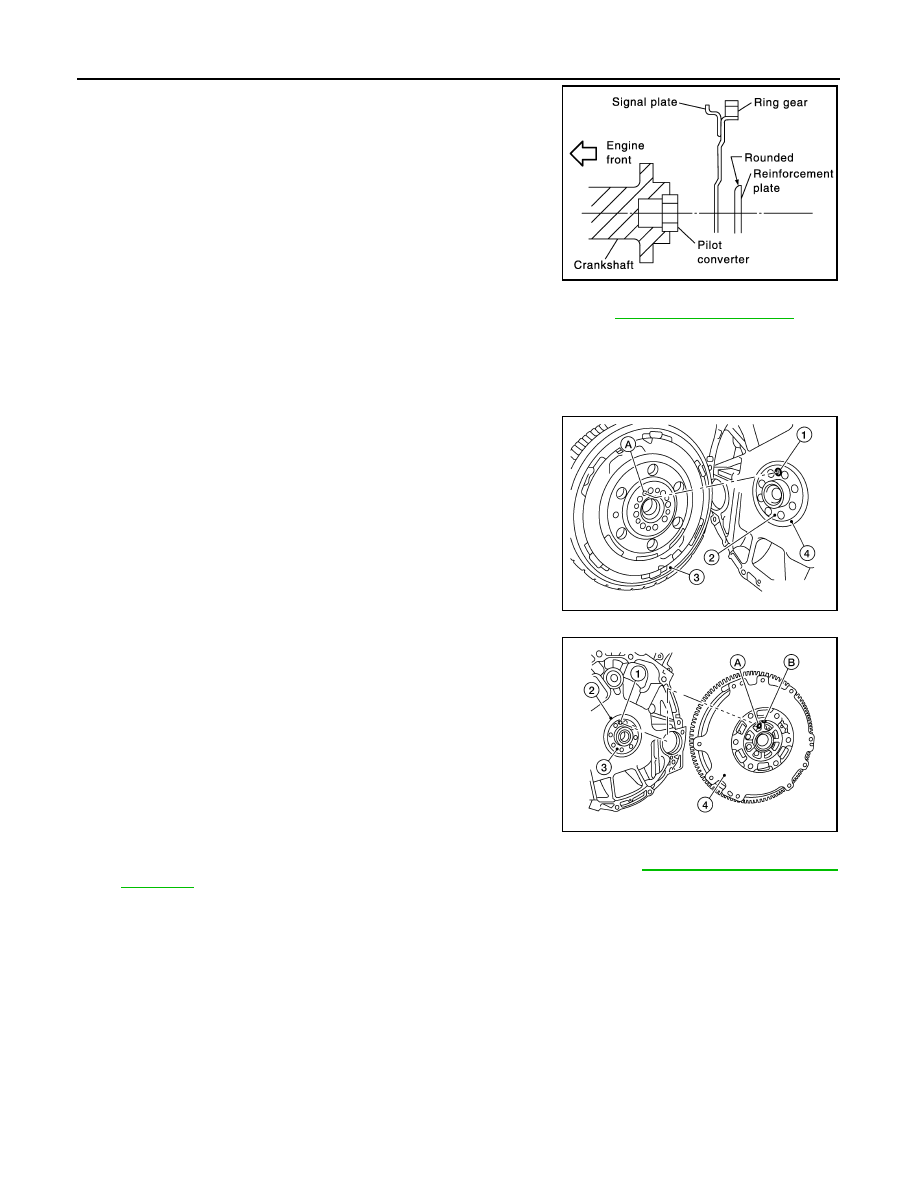

EM-124 < UNIT DISASSEMBLY AND ASSEMBLY > [VQ40DE] ENGINE UNIT • Install the drive plate and the reinforcement plate in the direc- tion as shown. • Tighten the drive plate bolts in a diagonal pattern in two steps. Refer to INSTALLATION (M/T MODELS) 1. Installation is in the reverse order of removal after the following. • Be sure the dowel pin is installed in the crankshaft. • When installing the flywheel (3) to the crankshaft (2), be sure to correctly align crankshaft side dowel pin (1) to the flywheel side dowel pin hole (A) as shown. - Oil seal (4) • There is a locator mark (B) on the clutch cover side of the fly- wheel (4). Refer to this for ease of installation. - Crankshaft dowel pin (1) - Oil seal (2) - Crankshaft (3) - Flywheel (4) - Dowel pin hole (A) - Dowel pin locator mark (B) • Tighten the flywheel bolts in a diagonal pattern in two steps. Refer to . PBIC0910E AWBIA0539ZZ AWBIA0540ZZ |
