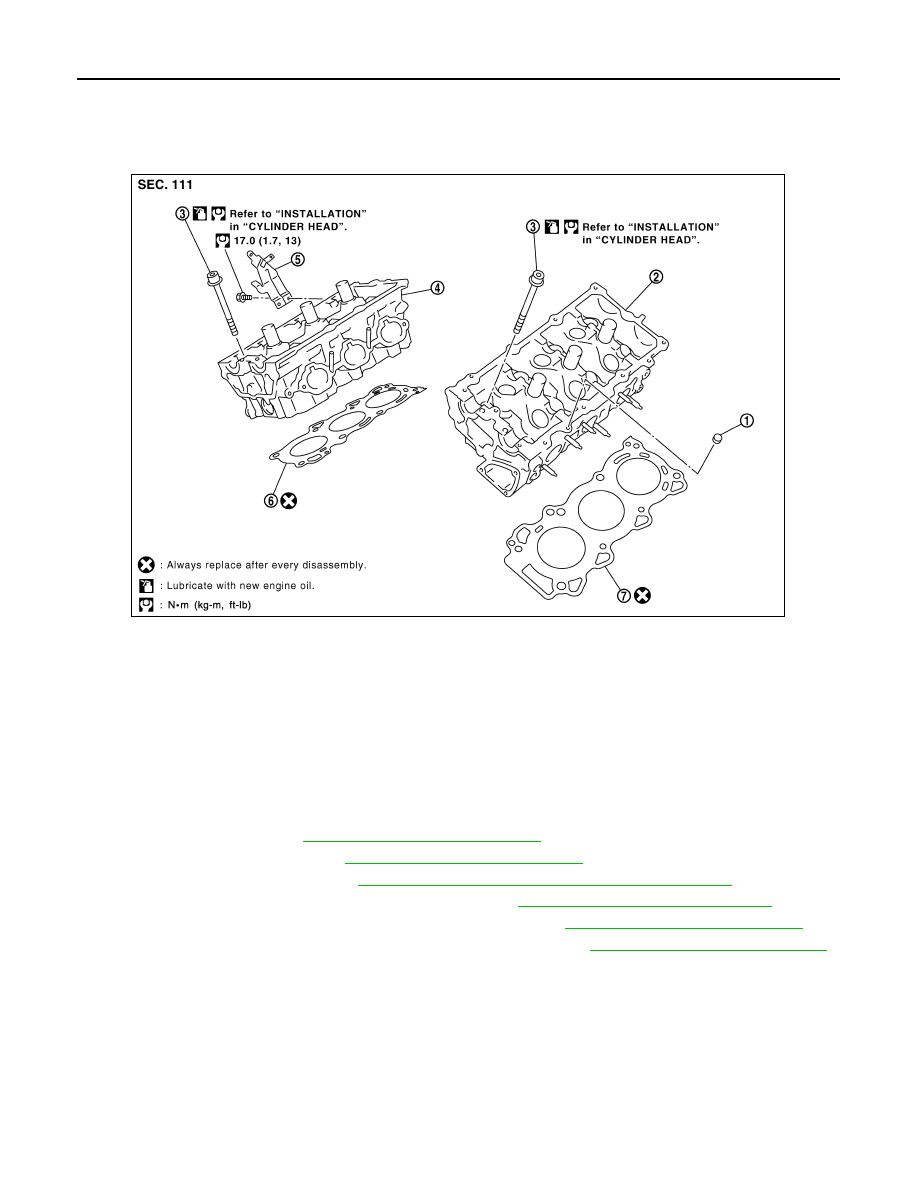

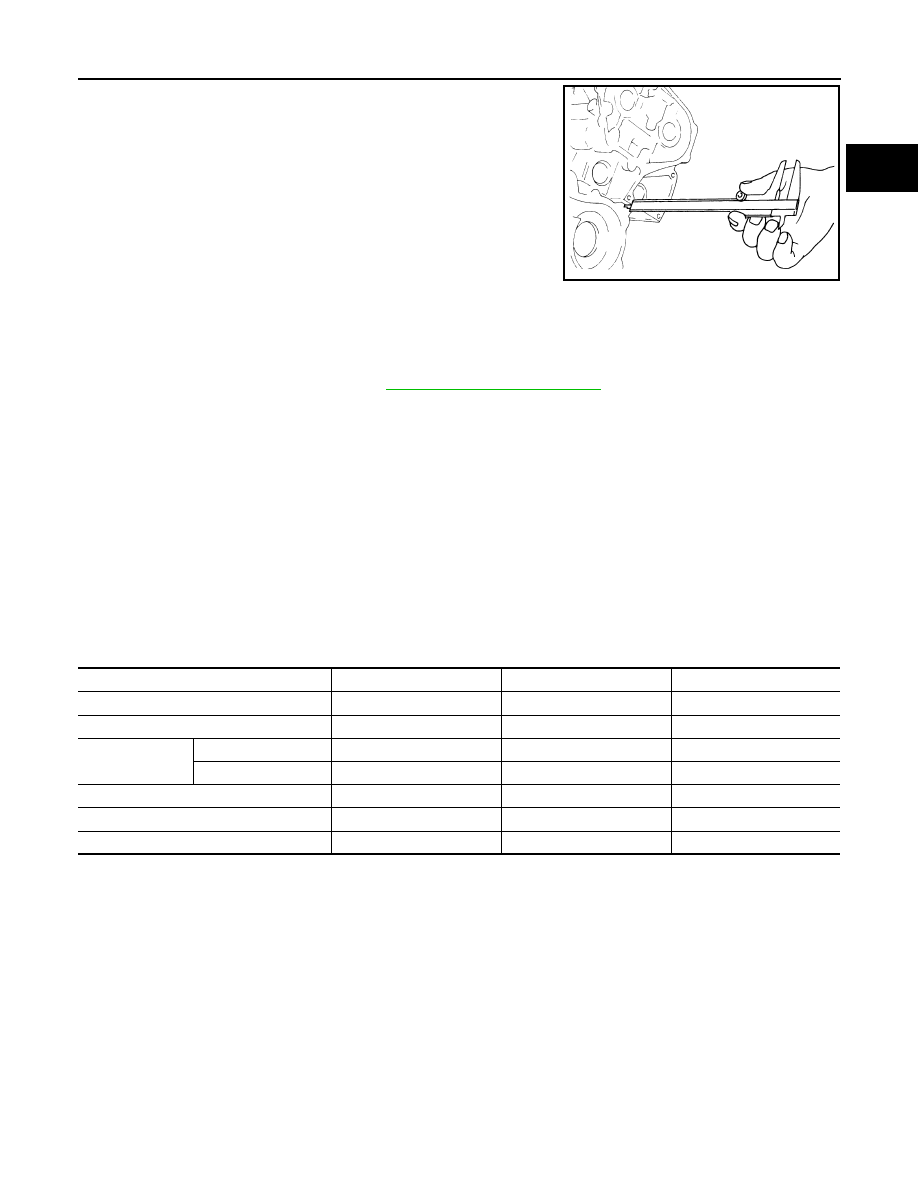

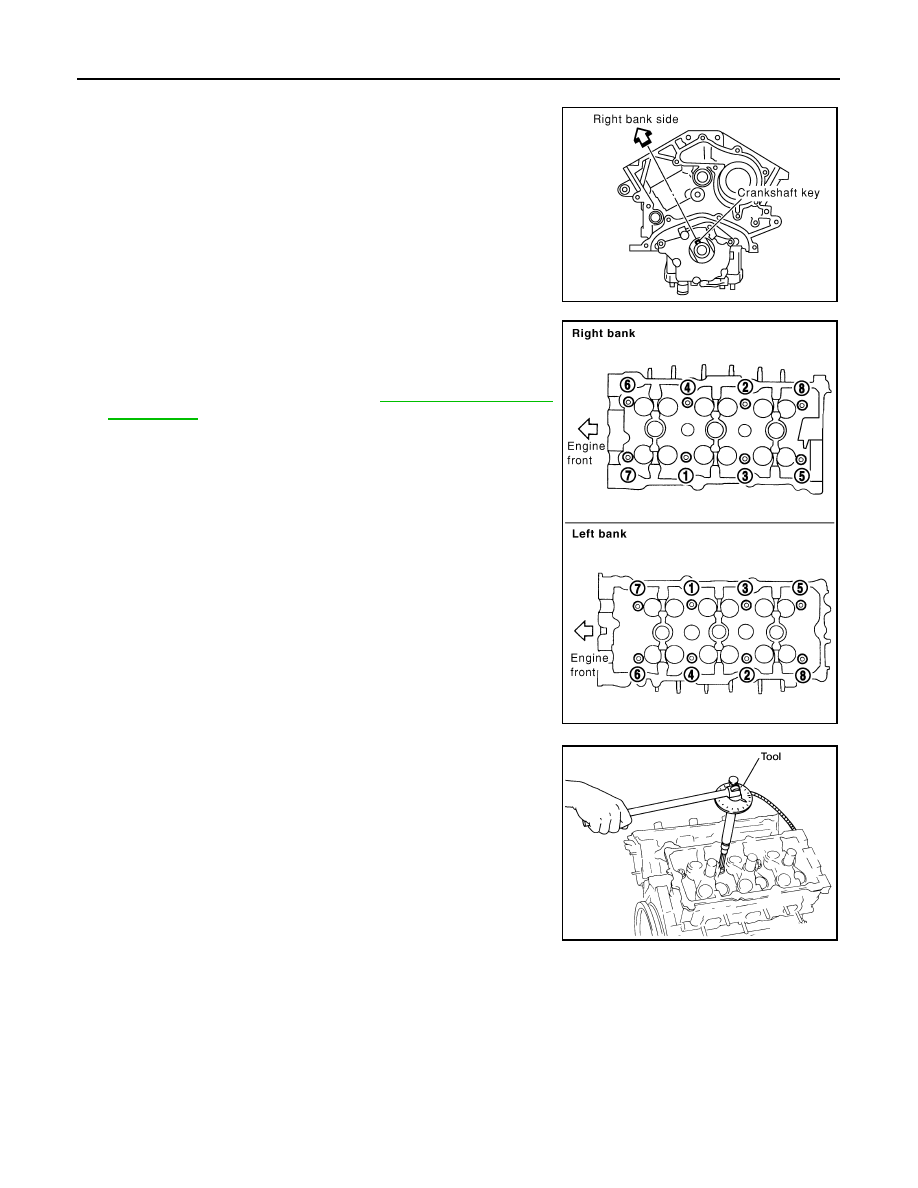

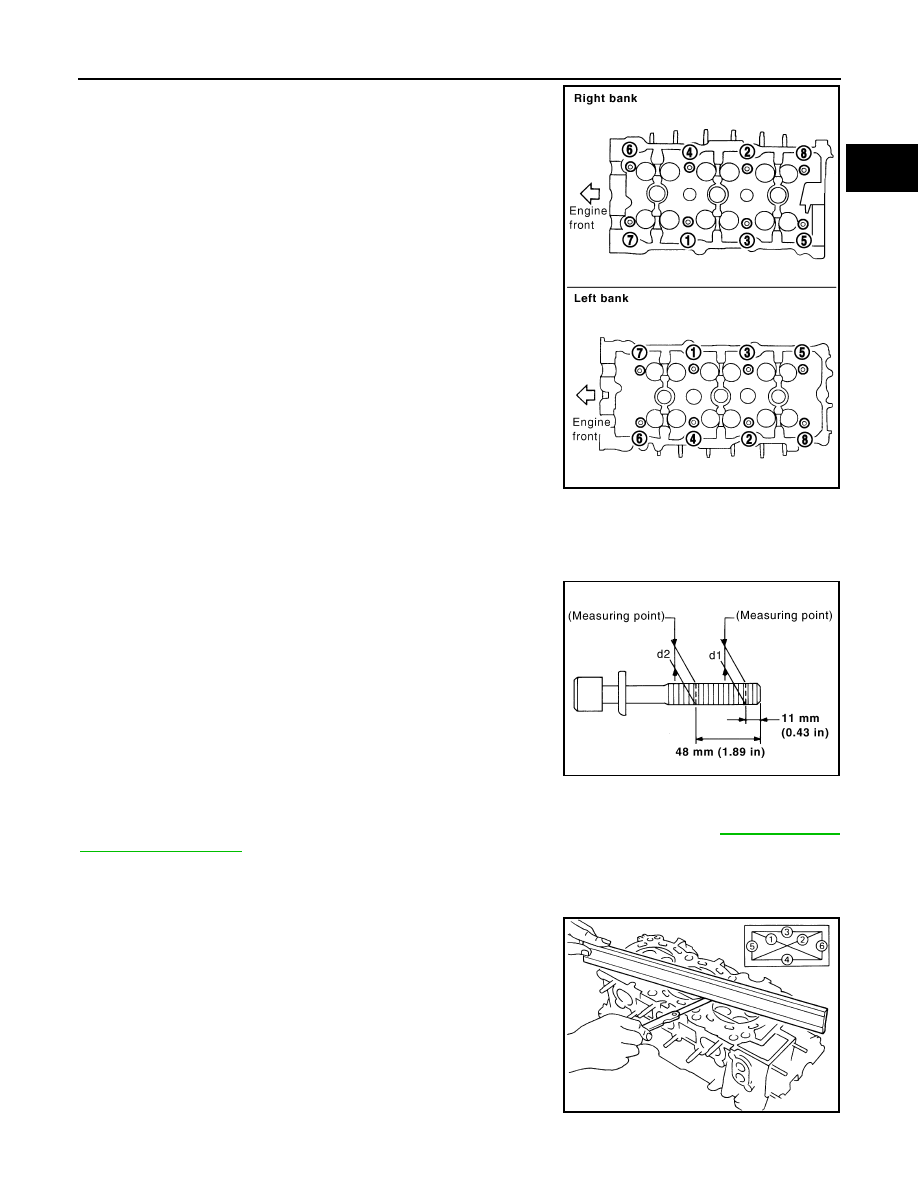

EM-88 < REMOVAL AND INSTALLATION > [VQ40DE] CYLINDER HEAD CYLINDER HEAD Exploded View INFOID:0000000009484484 Removal and Installation INFOID:0000000009484485 NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill- ing. REMOVAL 1. Remove camshaft. Refer to EM-76, "Removal and Installation" . 2. Remove intake manifold. Refer to EM-28, "Removal and Installation" 3. Remove exhaust manifold. Refer to EM-31, "Removal and Installation (Exhaust Manifold)" 4. Remove front final drive assembly (4WD models). Refer to DLN-165, "Removal and Installation" . 5. Remove water inlet and thermostat assembly (left bank). Refer to CO-26, "Removal and Installation" 6. Remove water outlet, water pipe and heater pipe (left bank). Refer to CO-28, "Removal and Installation" . 1. Rubber plug 2. Cylinder head (left bank) 3. Cylinder head bolt 4. Cylinder head (right bank) 5. Harness bracket 6. Cylinder head gasket (right bank) 7. Cylinder head gasket (left bank) PBIC2934E |
