P2135 TP SENSOR

2. Perform

EC-125, "Accelerator Pedal Released Position Learning"

.

3. Perform

EC-125, "Throttle Valve Closed Position Learning"

.

4. Perform

EC-125, "Idle Air Volume Learning"

.

>> INSPECTION END

7.

CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check harness continuity between electric throttle control actuator terminal 4 and ECM terminal 19.

Refer to Wiring Diagram.

4. Also check harness for short to ground and short to power.
OK or NG

OK

>> GO TO 8.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

8.

CHECK THROTTLE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Check harness continuity between ECM terminal 22 and electric throttle control actuator terminal 1, ECM

terminal 23 and electric throttle control actuator terminal 3.

Refer to Wiring Diagram.

2. Also check harness for short to ground and short to power.
OK or NG

OK

>> GO TO 9.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

9.

CHECK THROTTLE POSITION SENSOR

Refer to

EC-446, "Component Inspection"

.

OK or NG

OK

>> GO TO 11.

NG

>> GO TO 10.

10.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1. Replace the electric throttle control actuator. Refer to

EM-25, "Exploded View"

.

2. Perform

EC-125, "Throttle Valve Closed Position Learning"

.

3. Perform

EC-125, "Idle Air Volume Learning"

.

>> INSPECTION END

11.

CHECK INTERMITTENT INCIDENT

Refer to

GI-40, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000009484203

THROTTLE POSITION SENSOR

1. Reconnect all harness connectors disconnected.
2. Perform

EC-125, "Throttle Valve Closed Position Learning"

.

3. Turn ignition switch ON.
4. Set selector lever to D (A/T), 1st (M/T).

Continuity should exist.

Continuity should exist.

P2135 TP SENSOR

EC-447

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

5. Check voltage between ECM terminals 22 (TP sensor 1 signal), 23 (TP sensor 2 signal) and ground under

the following conditions.

6. If NG, replace electric throttle control actuator and go to the next step.
7. Perform

EC-125, "Throttle Valve Closed Position Learning"

.

8. Perform

EC-125, "Idle Air Volume Learning"

.

Terminal

Accelerator pedal

Voltage

22
(Throttle position sensor 1)

Fully released

More than 0.36V

Fully depressed

Less than 4.75V

23
 (Throttle position sensor 2)

Fully released

Less than 4.75V

Fully depressed

More than 0.36V

EC-448

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE]

P2138 APP SENSOR

P2138 APP SENSOR

Component Description

INFOID:0000000009484204

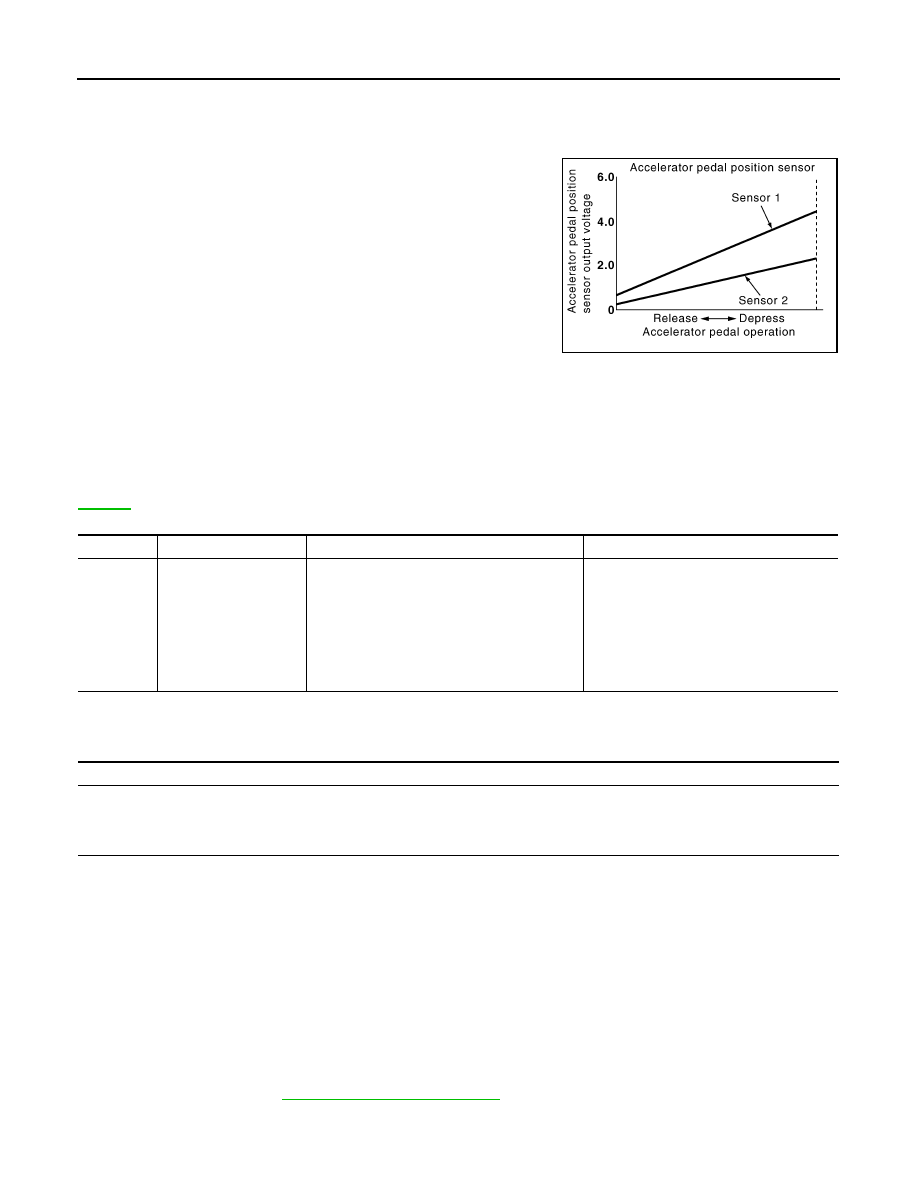

The accelerator pedal position sensor is installed on the upper end

of the accelerator pedal assembly. The sensor detects the accelera-

tor position and sends a signal to the ECM.

Accelerator pedal position sensor has two sensors. These sensors

are a kind of potentiometers which transform the accelerator pedal

position into output voltage, and emit the voltage signal to the ECM.

In addition, these sensors detect the opening and closing speed of

the accelerator pedal and feed the voltage signals to the ECM. The

ECM judges the current opening angle of the accelerator pedal from

these signals and controls the throttle control motor based on these

signals.

Idle position of the accelerator pedal is determined by the ECM

receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-

ation such as fuel cut.

On Board Diagnosis Logic

INFOID:0000000009484205

This self-diagnosis has the one trip detection logic.

NOTE:

If DTC P2138 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to

EC-366

.

FAIL-SAFE MODE

When the malfunction is detected, ECM enters fail-safe mode and the MIL illuminates.

DTC Confirmation Procedure

INFOID:0000000009484206

NOTE:

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next step.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to

EC-449, "Diagnosis Procedure"

.

PBIB1741E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2138
2138

Accelerator pedal posi-
tion sensor circuit range/
performance

Rationally incorrect voltage is sent to ECM
compared with the signals from APP sensor 1
and APP sensor 2.

• Harness or connector

(The APP sensor 1 and 2 circuit is open
or shorted.)
(The TP sensor circuit is shorted.)

• Accelerator pedal position sensor

(APP sensor 1 and 2)

• Electric throttle control actuator

(TP sensor 1 and 2)

Engine operating condition in fail-safe mode

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

P2138 APP SENSOR

EC-449

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Diagnosis Procedure

INFOID:0000000009484207

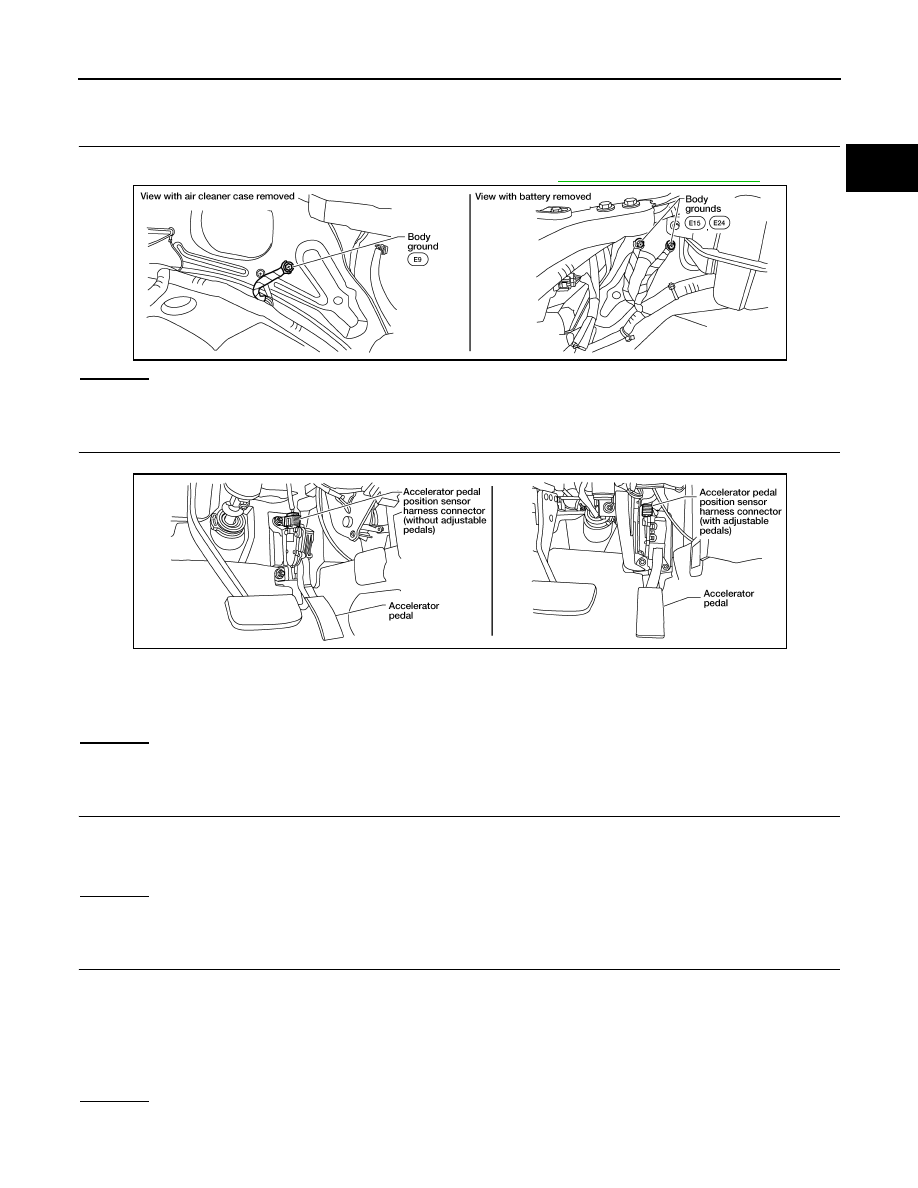

1.

CHECK GROUND CONNECTIONS

1. Turn ignition switch OFF.

2. Loosen and retighten three ground screws on the body. Refer to

EC-152, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT

1. Disconnect accelerator pedal position (APP) sensor harness connector.

2. Turn ignition switch ON.

3. Check voltage between APP sensor terminals 2 and ground with CONSULT or tester.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I

Check voltage between APP sensor terminal 1 and ground with CONSULT or tester.

1.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 4.

4.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check harness continuity between APP sensor terminal 1 and ECM terminal 103.

Refer to wiring diagram.

OK or NG

OK

>> GO TO 5.

NG

>> Repair open circuit.

BBIA0539E

Voltage: Approximately 5V

BBIA0556E

Voltage: Approximately 5V

Continuity should exist.
