ENGINE CONTROL SYSTEM

SYSTEM DESCRIPTION

ENGINE CONTROL SYSTEM

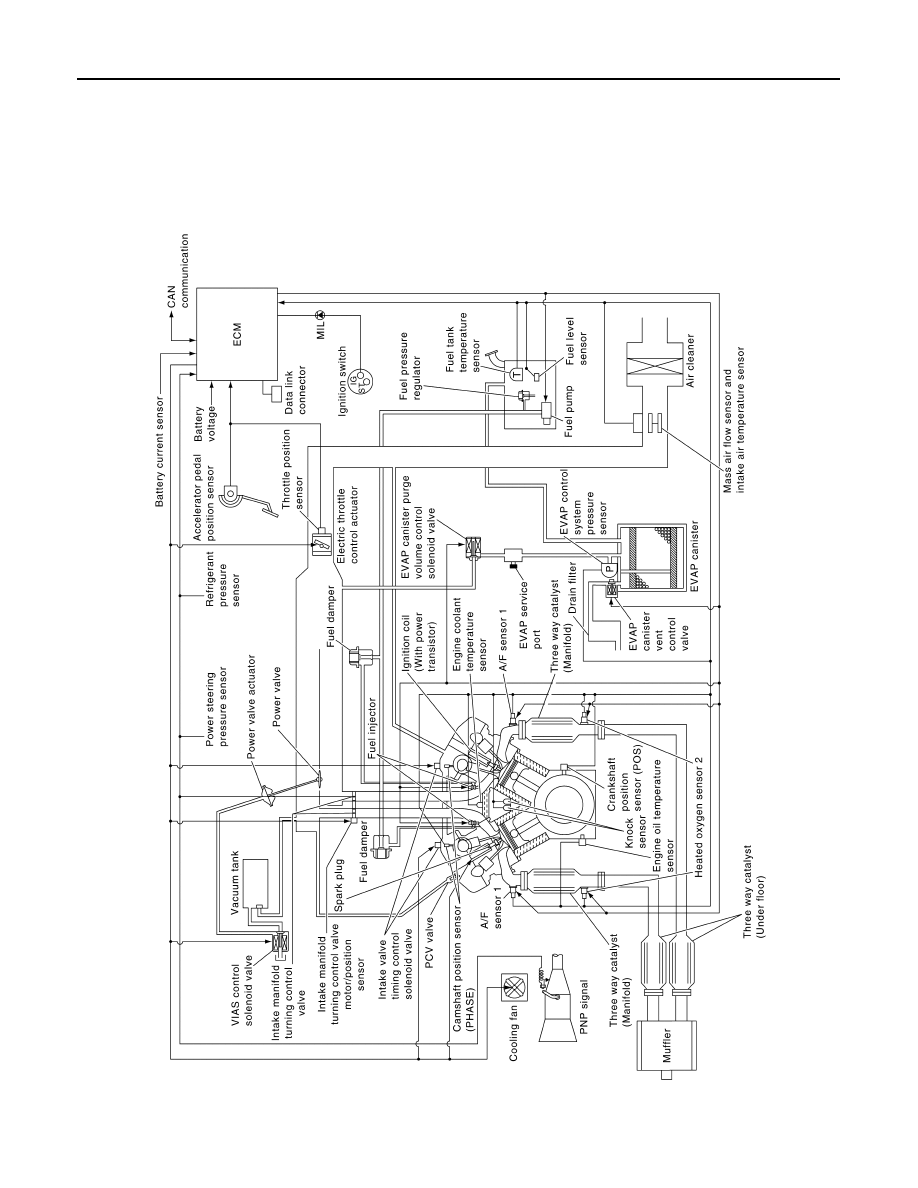

System Diagram

INFOID:0000000009483770

JSBIA3452GB

ENGINE CONTROL SYSTEM

EC-15

< SYSTEM DESCRIPTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

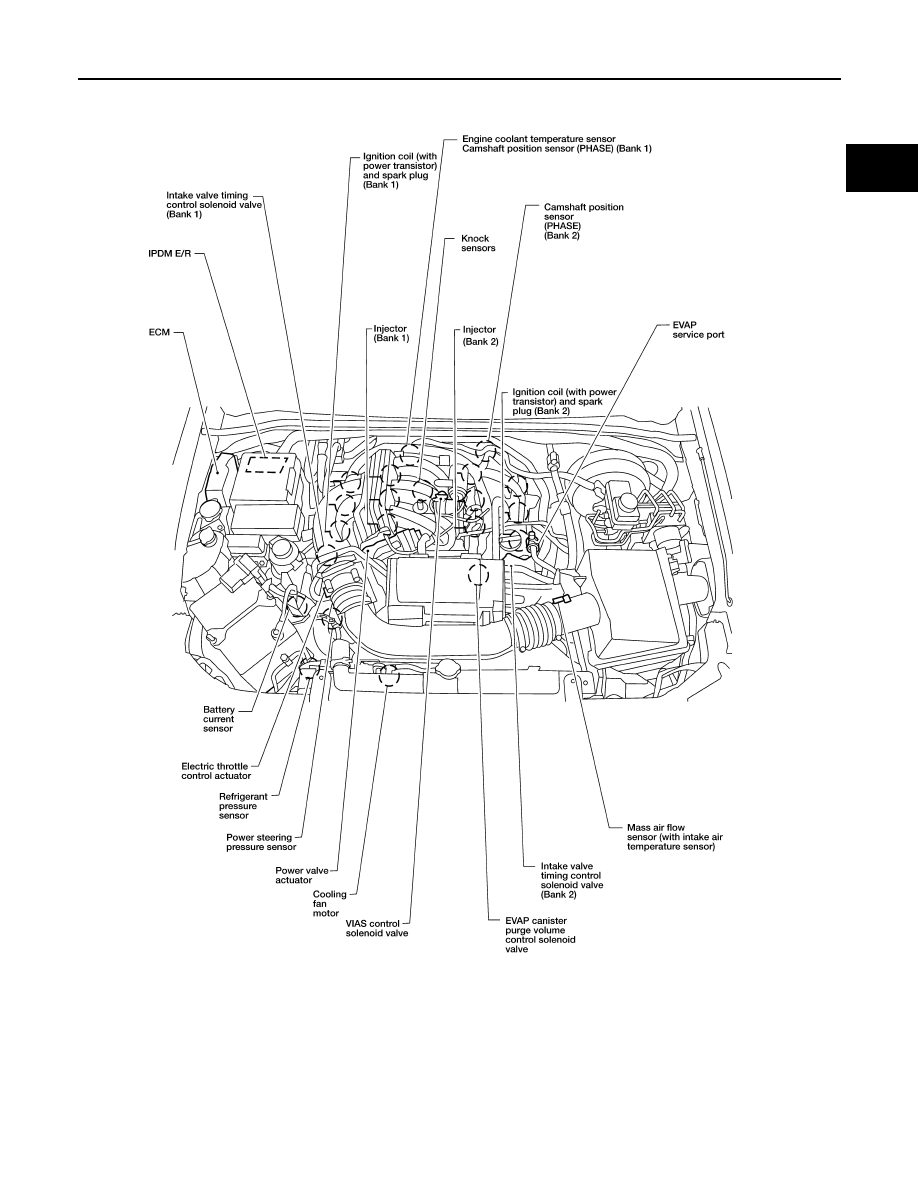

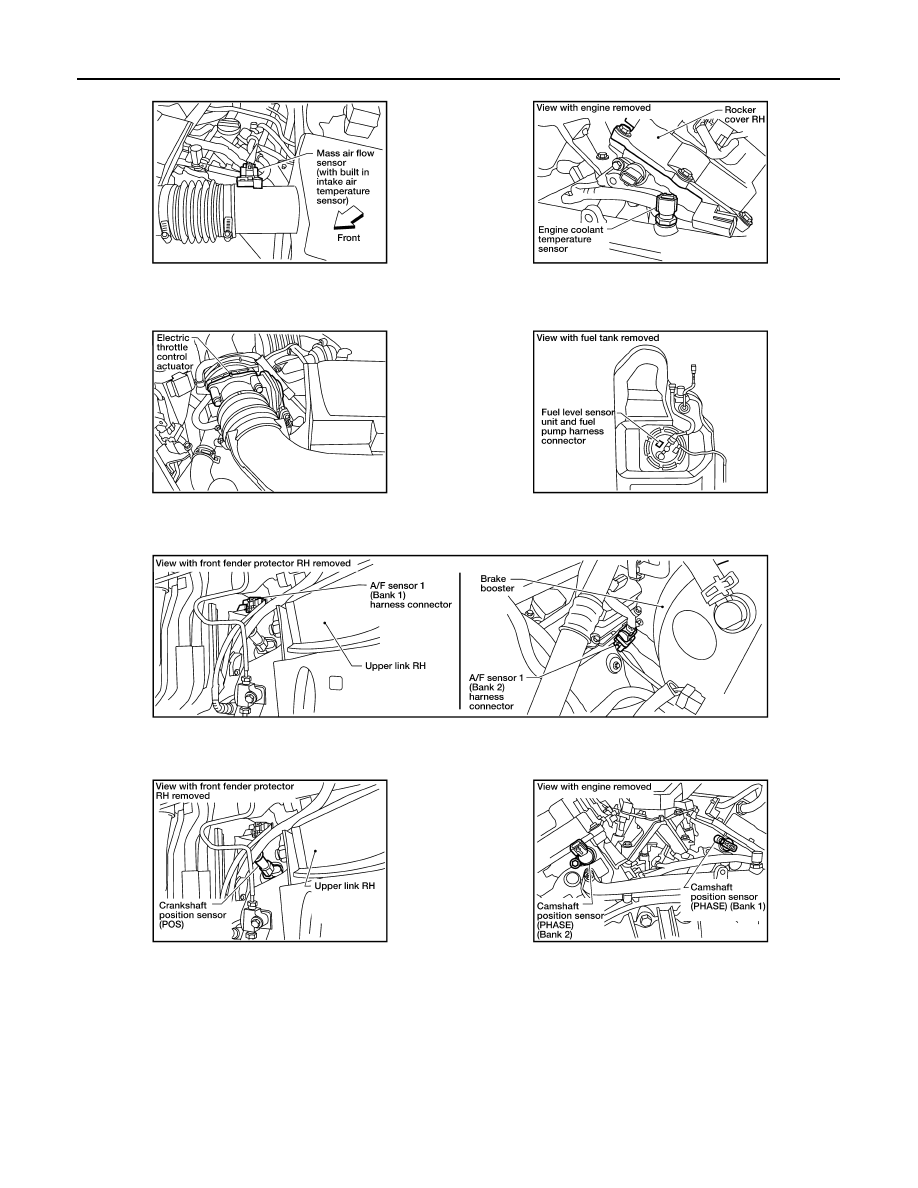

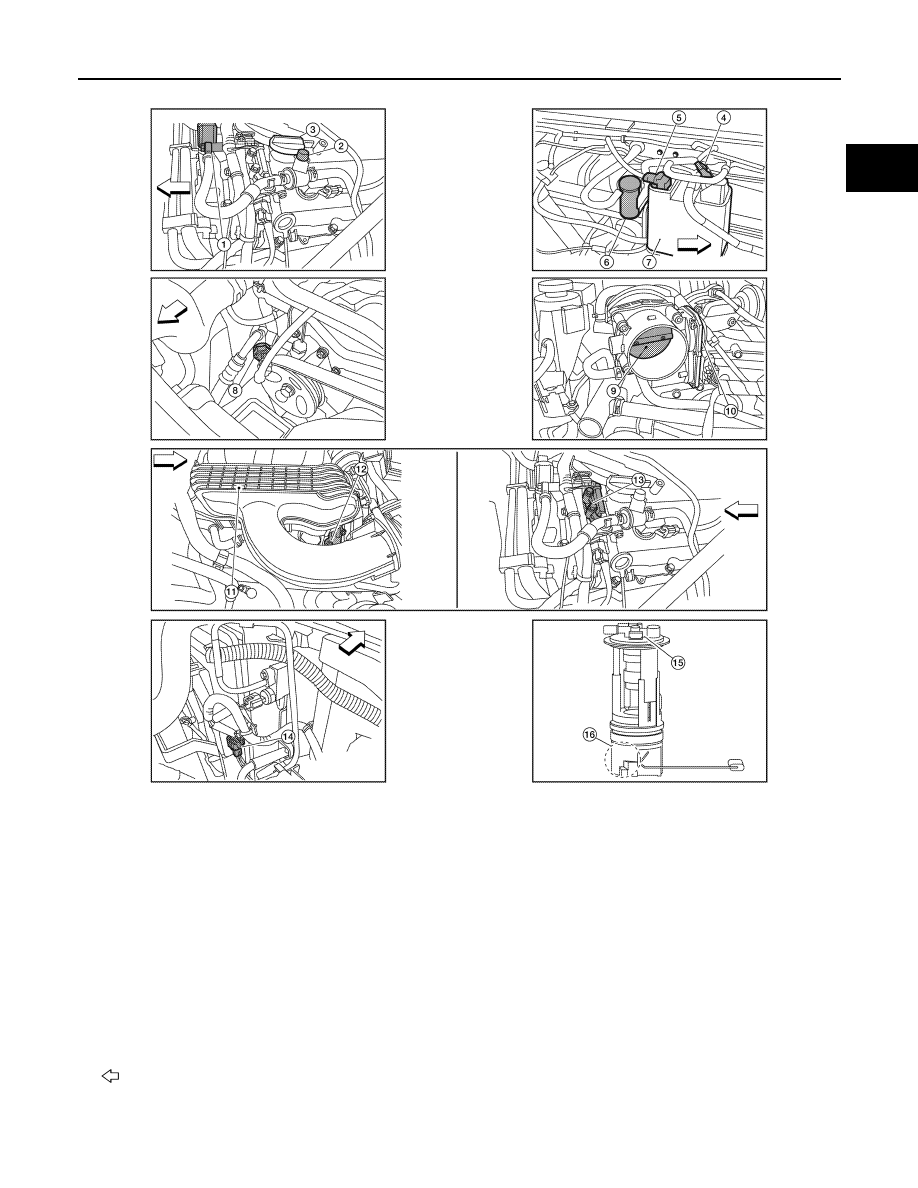

Engine Control Component Parts Location

INFOID:0000000009483771

BBIA0536E

EC-16

< SYSTEM DESCRIPTION >

[VQ40DE]

ENGINE CONTROL SYSTEM

BBIA0578E

ENGINE CONTROL SYSTEM

EC-17

< SYSTEM DESCRIPTION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

EVAP canister purge volume control
solenoid valve
(view with engine cover removed)

2.

EVAP service port
(view with engine cover removed)

3.

Oil filler cap
(view with engine cover removed)

4.

EVAP canister vent control valve
(view with body removed)

5.

EVAP control system pressure sen-
sor
(view with body removed)

6.

Drain filter
(view with body removed)

7.

EVAP canister
(view with body removed)

8.

Power steering pressure sensor

9.

Throttle valve
(view with intake air duct removed)

10. Electric throttle control actuator

(view with intake air duct removed)

11. Intake manifold collector

12. Intake valve timing control solenoid

valve (bank 1)

13. Intake valve timing control solenoid

valve (bank 2)
(view with intake air duct removed)

14. Cooling fan motor harness connec-

tor
(view with battery removed)

15. Fuel pump, fuel level sensor unit and

fuel filter

16. Fuel pressure regulator

: Front

ALBIA0516ZZ
