Nissan Xterra. Manual

DLK-2

DRIVER SIDE ............................................................

DRIVER SIDE : Description ....................................

DRIVER SIDE : Component Function Check .........

DRIVER SIDE : Diagnosis Procedure ....................

BACK DOOR .............................................................

BACK DOOR : Description .....................................

BACK DOOR : Component Function Check ..........

BACK DOOR : Diagnosis Procedure ......................

DOOR LOCK ACTUATOR ................................

DRIVER SIDE ............................................................

DRIVER SIDE : Description ....................................

DRIVER SIDE : Component Function Check ........

DRIVER SIDE : Diagnosis Procedure ....................

PASSENGER SIDE ...................................................

PASSENGER SIDE : Description ...........................

PASSENGER SIDE :
Component Function Check .................................

PASSENGER SIDE : Diagnosis Procedure ...........

REAR LH ...................................................................

REAR LH : Description ...........................................

REAR LH : Component Function Check ...............

REAR LH : Diagnosis Procedure ............................

REAR RH ..................................................................

REAR RH : Description ..........................................

REAR RH : Component Function Check ..............

REAR RH : Diagnosis Procedure ...........................

BACK DOOR .............................................................

BACK DOOR : Description .....................................

BACK DOOR : Component Function Check .........

BACK DOOR : Diagnosis Procedure ......................

REMOTE KEYLESS ENTRY RECEIVER ..........

Description ..............................................................

Component Function Check .................................

Diagnosis Procedure ..............................................

KEYFOB BATTERY AND FUNCTION ..............

Description ..............................................................

Component Function Check .................................

Diagnosis Procedure ..............................................

HORN FUNCTION .............................................

Description ..............................................................

Component Function Check .................................

Diagnosis Procedure .............................................

WARNING CHIME FUNCTION ..........................

Description ..............................................................

Component Function Check .................................

Diagnosis Procedure ..............................................

HAZARD FUNCTION .........................................

Description ..............................................................

Component Function Check .................................

Diagnosis Procedure ..............................................

KEY SWITCH (BCM INPUT) .............................

Diagnosis Procedure ...............................................

HEADLAMP FUNCTION ...................................

Diagnosis Procedure ...............................................

MAP LAMP AND IGNITION KEYHOLE ILLU-
MINATION FUNCTION ......................................

Diagnosis Procedure ...............................................

KEYFOB ID SET UP WITH CONSULT .............

ID Code Entry Procedure ........................................

KEYFOB ID SET UP WITHOUT CONSULT .....

ID Code Entry Procedure ........................................

ECU DIAGNOSIS INFORMATION .............

BCM (BODY CONTROL MODULE) ..................

Reference Value .....................................................

Terminal Layout ......................................................

Physical Values .......................................................

Fail Safe .................................................................

DTC Inspection Priority Chart ...............................

DTC Index ..............................................................

WIRING DIAGRAM ....................................

POWER DOOR LOCK SYSTEM .......................

Wiring Diagram .......................................................

REMOTE KEYLESS ENTRY SYSTEM .............

Wiring Diagram .......................................................

SYMPTOM DIAGNOSIS ............................

DOOR LOCK .....................................................

Symptom Table .......................................................

REMOTE KEYLESS ENTRY SYSTEM .............

Symptom Table .......................................................

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ...............................................................

Work Flow ...............................................................

Generic Squeak and Rattle Troubleshooting ..........

Diagnostic Worksheet .............................................

PRECAUTION ...........................................

100

PRECAUTIONS ................................................

100

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

100

Precaution for Servicing Doors and locks .............

100

PREPARATION .........................................

101

PREPARATION ................................................

101

Special Service Tool .............................................

101

Commercial Service Tool ......................................

101

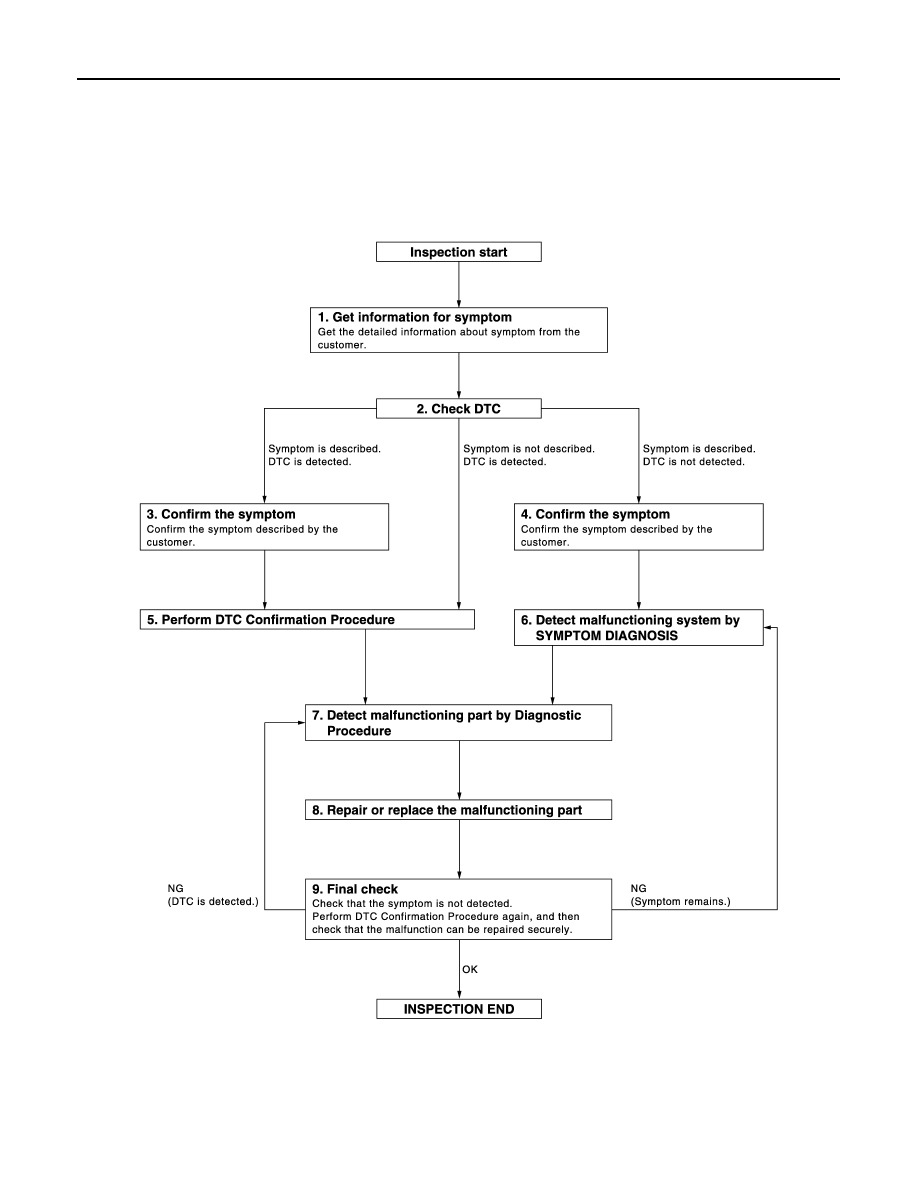

DIAGNOSIS AND REPAIR WORKFLOW

DLK-5

< BASIC INSPECTION >

DLK

GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurred).

>> GO TO 2

CHECK DTC

1. Check DTC.

2. Perform the following procedure if DTC is displayed.

Record DTC and freeze frame data (Print them out with CONSULT.)

Erase DTC.

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3. Check related service bulletins for information.
Is any symptom described and any DTC detected?

Symptom is described, DTC is displayed>>GO TO 3

Symptom is described, DTC is not displayed>>GO TO 4

Symptom is not described, DTC is displayed>>GO TO 5

CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.

Connect CONSULT to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5

CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.

Connect CONSULT to the vehicle in “DATA MONITOR ” mode and check real time diagnosis results.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC Confirmation Procedure for the displayed DTC, and then check that DTC is detected again.

At this time, always connect CONSULT to the vehicle, and check diagnostic results in real time.

If two or more DTCs are detected, refer to

DLK-66, "DTC Inspection Priority Chart"

and determine trouble

diagnosis order.

NOTE:

• Freeze frame data is useful if the DTC is not detected.

• Perform Component Function Check if DTC Confirmation Procedure is not included in Service Manual. This

simplified check procedure is an effective alternative though DTC cannot be detected during this check.

If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC Confirma-

tion Procedure.

Is DTC detected?

YES

>> GO TO 7

>> Refer to

GI-40, "Intermittent Incident"

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step

4, and determine the trouble diagnosis order based on possible causes and symptom.

>> GO TO 7

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

NOTE:
