DOOR MIRROR DEFOGGER LH

DEF-13

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

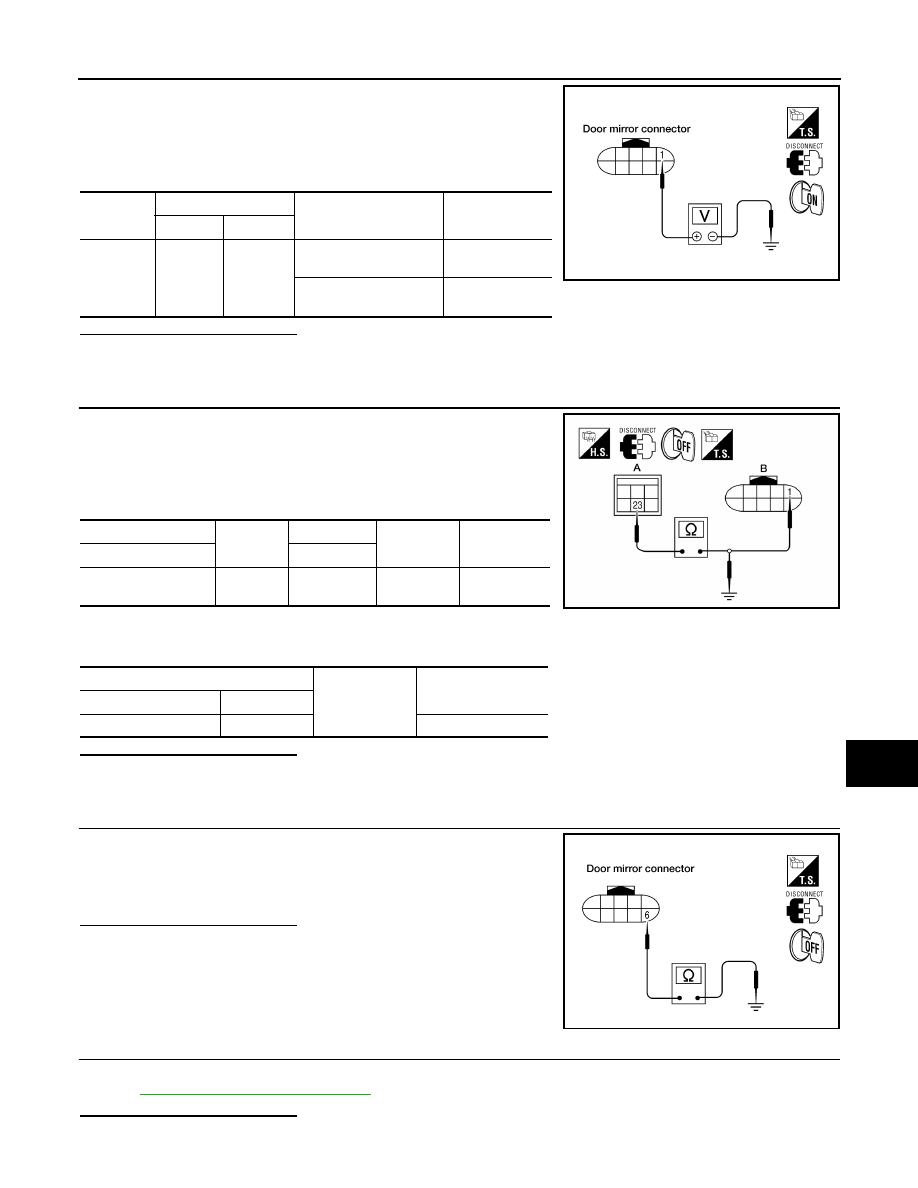

1. Turn ignition switch OFF.

2. Disconnect door mirror LH.

3. Turn ignition switch ON.

4. Check voltage between door mirror LH harness connector D4

terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

CHECK DOOR MIRROR DEFOGGER LH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R.

3. Check continuity between IPDM E/R harness connector E120

(A) terminal 23 and door mirror LH harness connector D4 (B)

terminal 1.

4. Check continuity between IPDM E/R harness connector E120

(A) terminal 23 and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness.

5.

 CHECK DOOR MIRROR DEFOGGER LH GROUND CIRCUIT

Check continuity between door mirror LH harness connector D4 ter-

minal 6 and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Repair or replace harness.

6.

 CHECK DOOR MIRROR DEFOGGER LH

Check door mirror defogger LH.

Refer to

DEF-14, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7

Connector

Terminal

Condition

Voltage (V)

(Approx.)

(+)

(-)

D4

1

Ground

Rear window defogger
switch ON

 Battery voltage

Rear window defogger
switch OFF

0

LIIA2050E

Connector

Terminal

Connector

Terminal

Continuity

A

B

IPDM E/R: E120

23

Door mirror:

D4

1

Yes

A

Ground

Continuity

Connector

Terminal

IPDM E/R: E120

23

No

LIIA2191E

6 - Ground

: Continuity should exist.

LIIA2037E

DEF-14

< DTC/CIRCUIT DIAGNOSIS >

DOOR MIRROR DEFOGGER LH

NO

>> Replace door mirror LH. Refer to

MIR-20, "Door Mirror Assembly"

.

7.

 CHECK INTERMITTENT INCIDENT

Check intermittent incident.

Refer to

GI-40, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Check the following.

• Battery power supply circuit

• IPDM E/R

NO

>> Repair or replace the malfunctioning parts.

Component Inspection

INFOID:0000000009484768

1.

 CHECK DOOR MIRROR DEFOGGER LH

Check continuity between door mirror LH terminals 1 and 6.

Is the inspection result normal?

YES

>> Check the condition of the harness and the connector.

NO

>> Replace malfunctioning door mirror LH. Refer to

MIR-

20, "Door Mirror Assembly"

.

1 - 6

: Continuity should exist.

AWLIA1760ZZ

DOOR MIRROR DEFOGGER RH

DEF-15

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

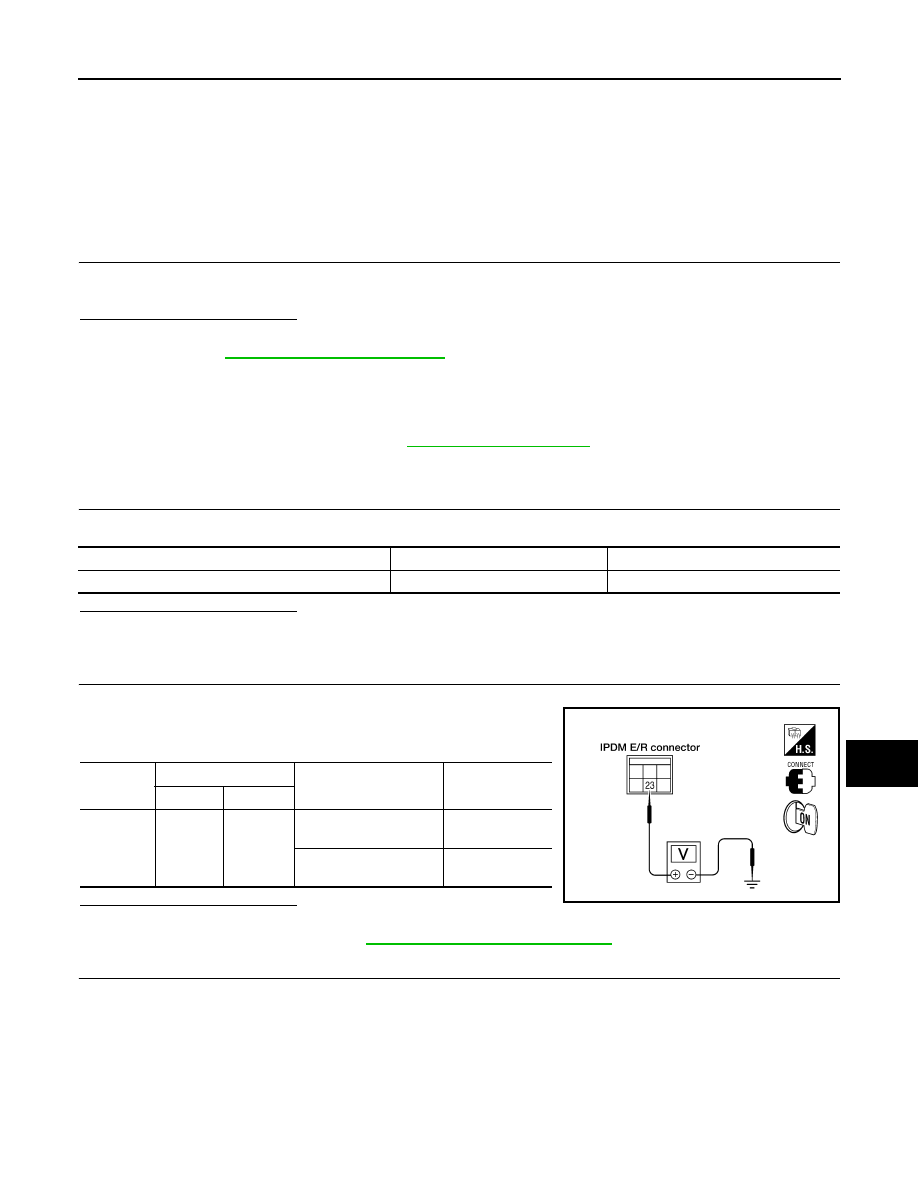

DOOR MIRROR DEFOGGER RH

Description

INFOID:0000000009484769

Heats the heating wire with the power supply from the heated mirror relay to prevent the door mirror from fog-

ging up.

Component Function Check

INFOID:0000000009484770

1.

 CHECK DOOR MIRROR DEFOGGER RH

Check that the heating wire of door mirror defogger RH is heated when turning the rear window defogger

switch ON.
Is the inspection result normal?

YES

>> Door mirror defogger RH is OK.

NO

>> Refer to

DEF-15, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009484771

Regarding Wiring diagram information, refer to

DEF-27, "Wiring Diagram"

.

1.

 CHECK POWER SUPPLY

Check if the following fuse in the IPDM E/R is blown.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

2.

 CHECK DOOR MIRROR DEFOGGER POWER SUPPLY CIRCUIT

1. Turn ignition switch ON.

2. Check voltage between IPDM E/R harness connector E120 ter-

minal 23 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Replace IPDM E/R. Refer to

PCS-27, "Removal and Installation"

.

3.

 CHECK DOOR MIRROR DEFOGGER RH POWER SUPPLY CIRCUIT

COMPONENT PARTS

AMPERE

FUSE NO.

IPDM E/R

15A

43

Connector

Terminal

Condition

Voltage (V)

(Approx.)

(+)

(-)

E120

23

Ground

Rear window defogger
switch ON

 Battery voltage

Rear window defogger
switch OFF

0

LIIA2049E

DEF-16

< DTC/CIRCUIT DIAGNOSIS >

DOOR MIRROR DEFOGGER RH

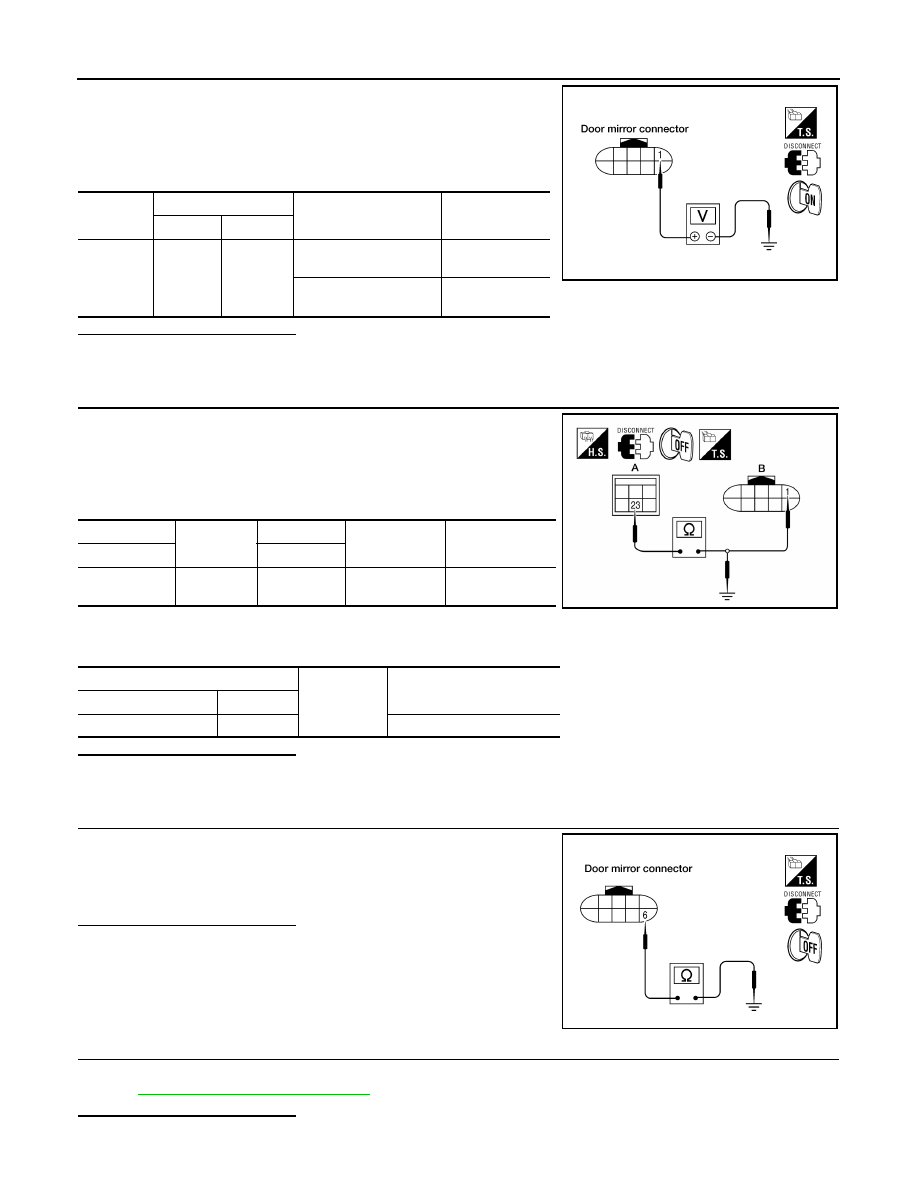

1. Turn ignition switch OFF.

2. Disconnect door mirror RH.

3. Turn ignition switch ON.

4. Check voltage between door mirror RH harness connector D107

terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

CHECK DOOR MIRROR DEFOGGER RH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R.

3. Check continuity between IPDM E/R harness connector E120

(A) terminal 23 and door mirror RH harness connector D107 (B)

terminal 1.

4. Check continuity between IPDM E/R harness connector D120

(A) terminal 23 and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness.

5.

 CHECK DOOR MIRROR DEFOGGER RH GROUND CIRCUIT

Check continuity between door mirror RH harness connector D107

terminal 6 and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Repair or replace harness.

6.

 CHECK DOOR MIRROR DEFOGGER RH

Check door mirror defogger RH.

Refer to

DEF-17, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7

Connector

Terminal

Condition

Voltage (V)

(Approx.)

(+)

(-)

D107

1

Ground

Rear window defogger
switch ON

 Battery voltage

Rear window defogger
switch OFF

0

LIIA2050E

Connector

Terminal

Connector

Terminal

Continuity

A

B

IPDM E/R:

E120

23

Door mirror:

D107

1

Yes

A

Ground

Continuity

Connector

Terminal

IPDM E/R: E120

23

No

LIIA2191E

6 - Ground

: Continuity should exist.
