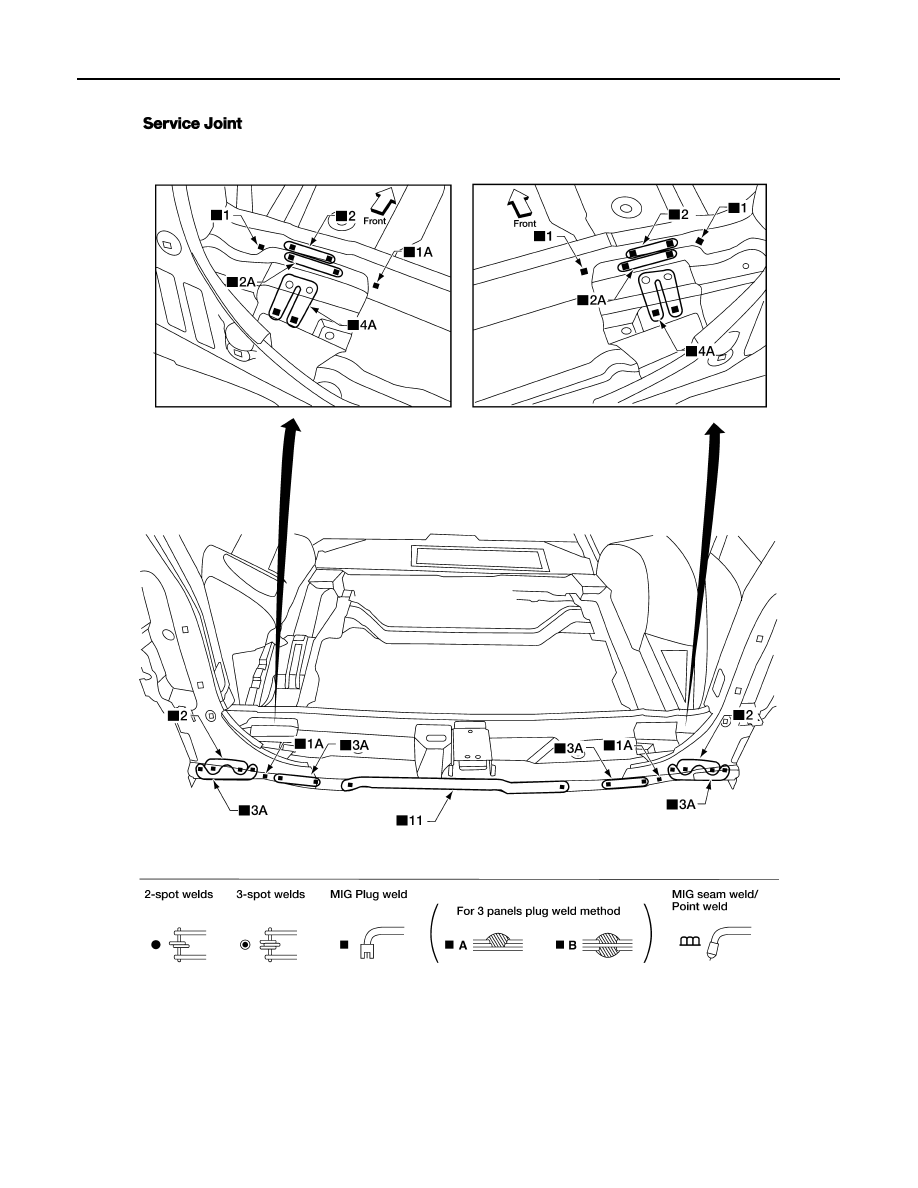

Crossmember

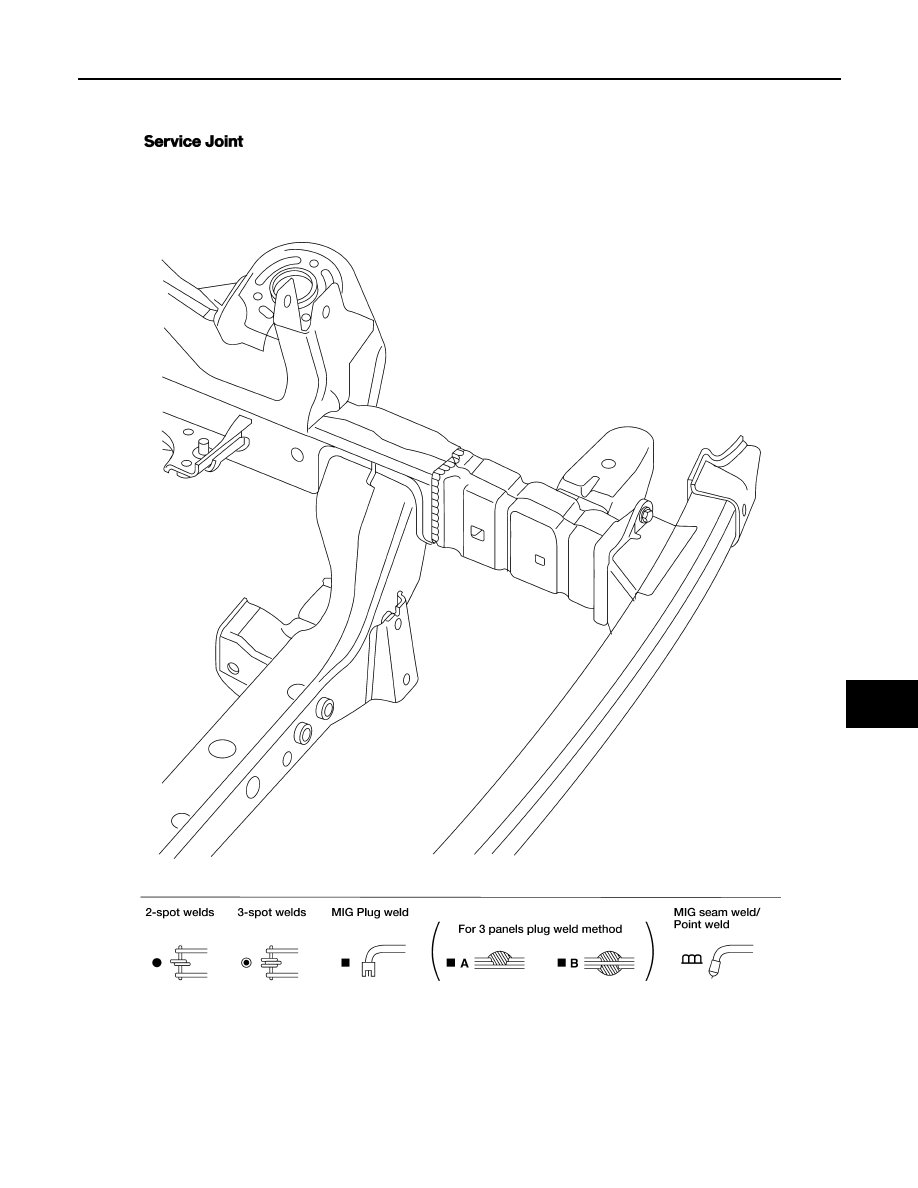

CRUSH HORN

CAUTION:

When replacing a damaged crush horn on N50 model, do not choose partial replacement method,

such as cutting and butt-joint welding the crush horn.

WIIA0869E

REPLACEMENT OPERATIONS

BRM-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Be sure to replace the entire crush horn when the crush horn has damage at the back of the body

mounting bracket.

Foam Repair

INFOID:0000000009484357

During factory body assembly, foam insulators are installed in certain body panels and locations around the

vehicle. Use the following procedure(s) to replace any factory-installed foam insulators.

URETHANE FOAM APPLICATIONS

LIIA2148E

BRM-54

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

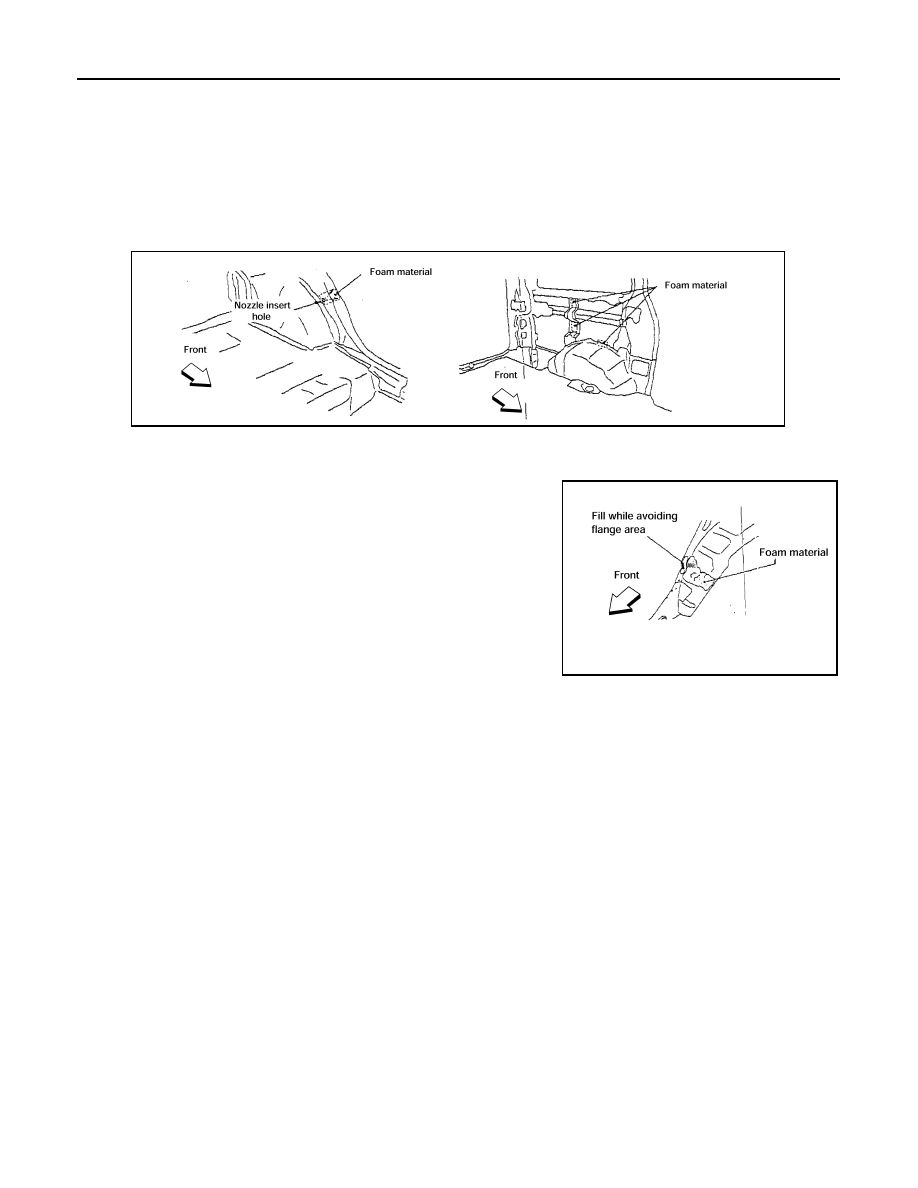

Use commercially available spray foam for sealant (foam material) repair of material used on vehicle. Read

instructions on product for fill procedures.

FILL PROCEDURES

1. Fill procedures after installation of service part.

-

Remove foam material remaining on vehicle side.

-

Clean area in which foam was removed.

-

Install service part.

-

Insert nozzle into hole near fill area and fill foam material or fill in enough to close gap with the service

part.

2. Fill procedures before installation of service part.

-

Remove foam material remaining on vehicle side.

-

Clean area in which foam was removed.

-

Fill foam material on wheelhouse outer side.

NOTE:

Fill in enough to close gap with service part while avoiding flange

area.

-

Install service part.

NOTE:

Refer to label for information on working times.

LIIA1081E

LIIA1082E
