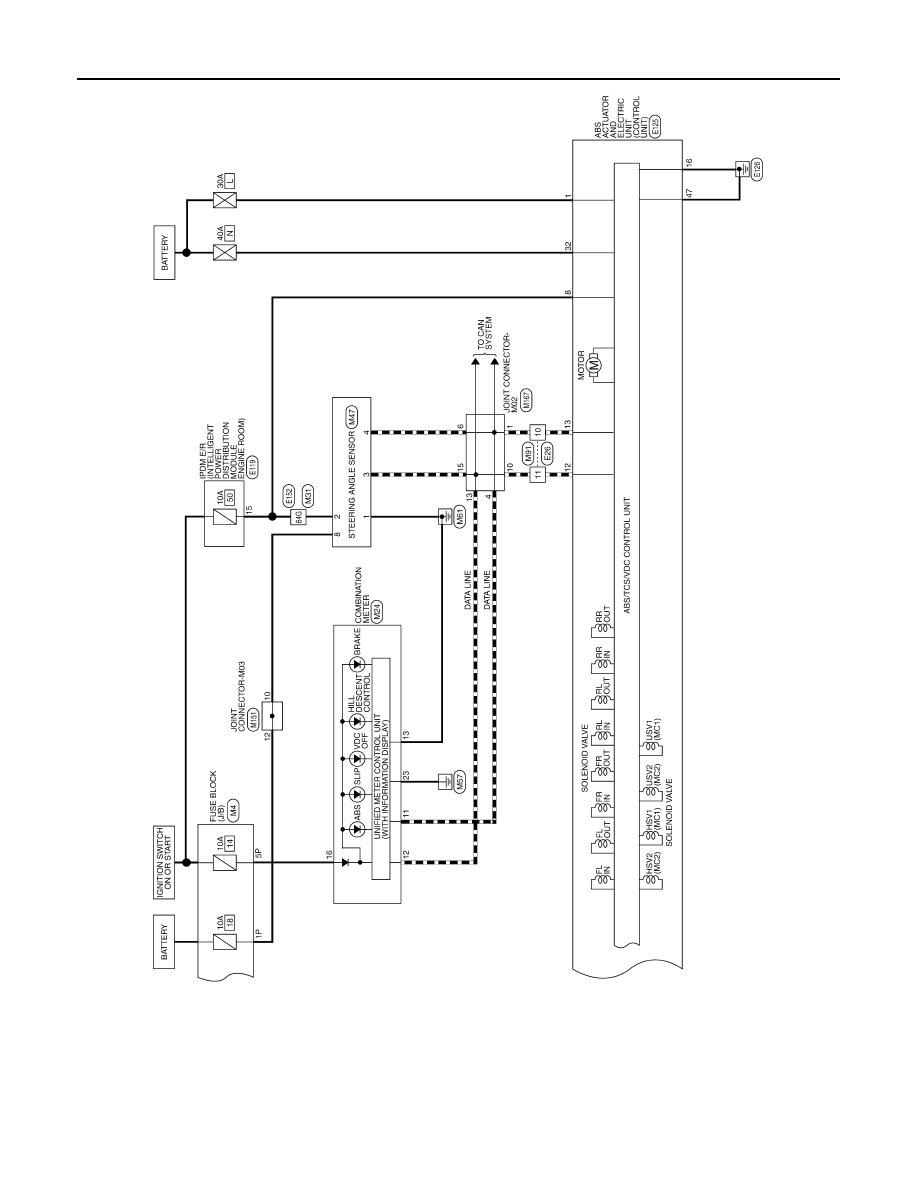

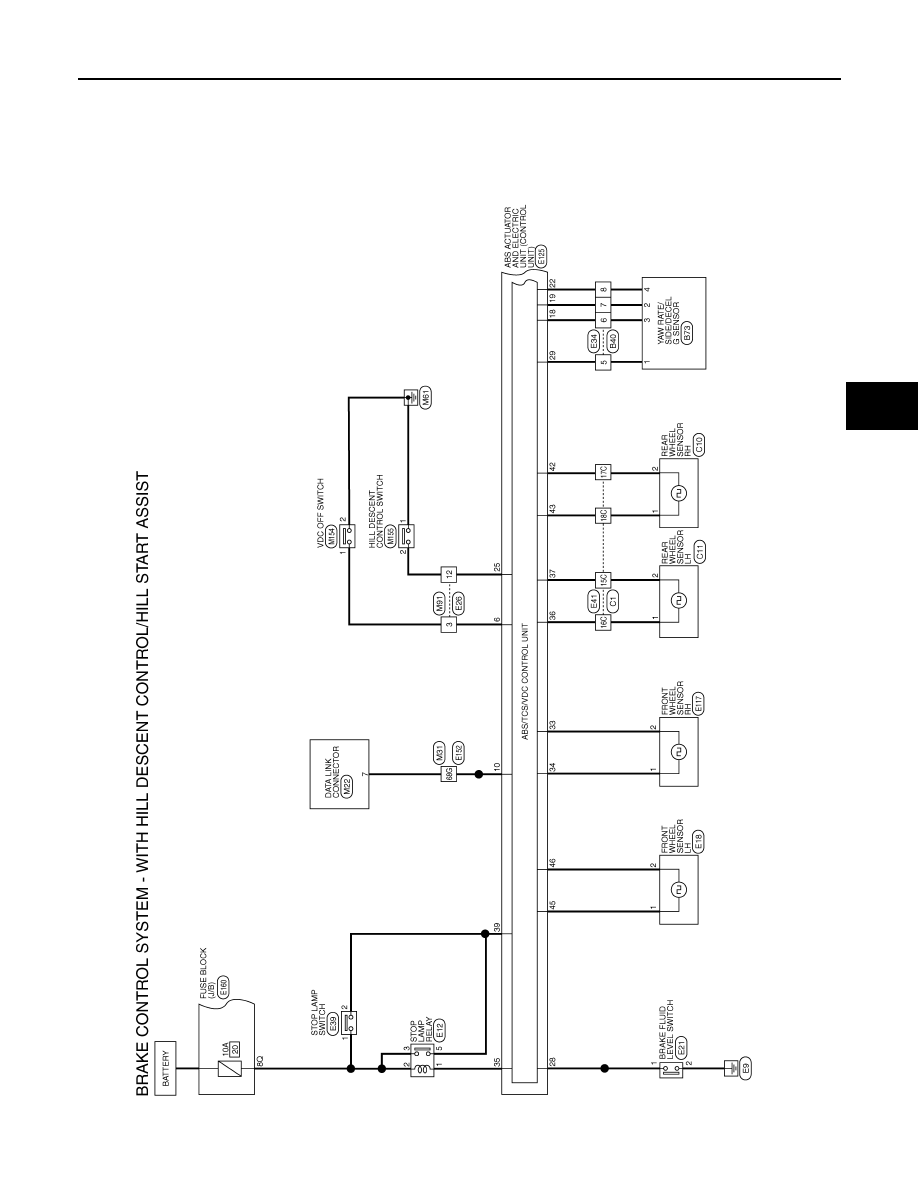

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
BRC-209
< ECU DIAGNOSIS INFORMATION >
[TYPE 2]
C
D
E
G
H
I
J
K
L
M
A
B
BRC
N
O
P

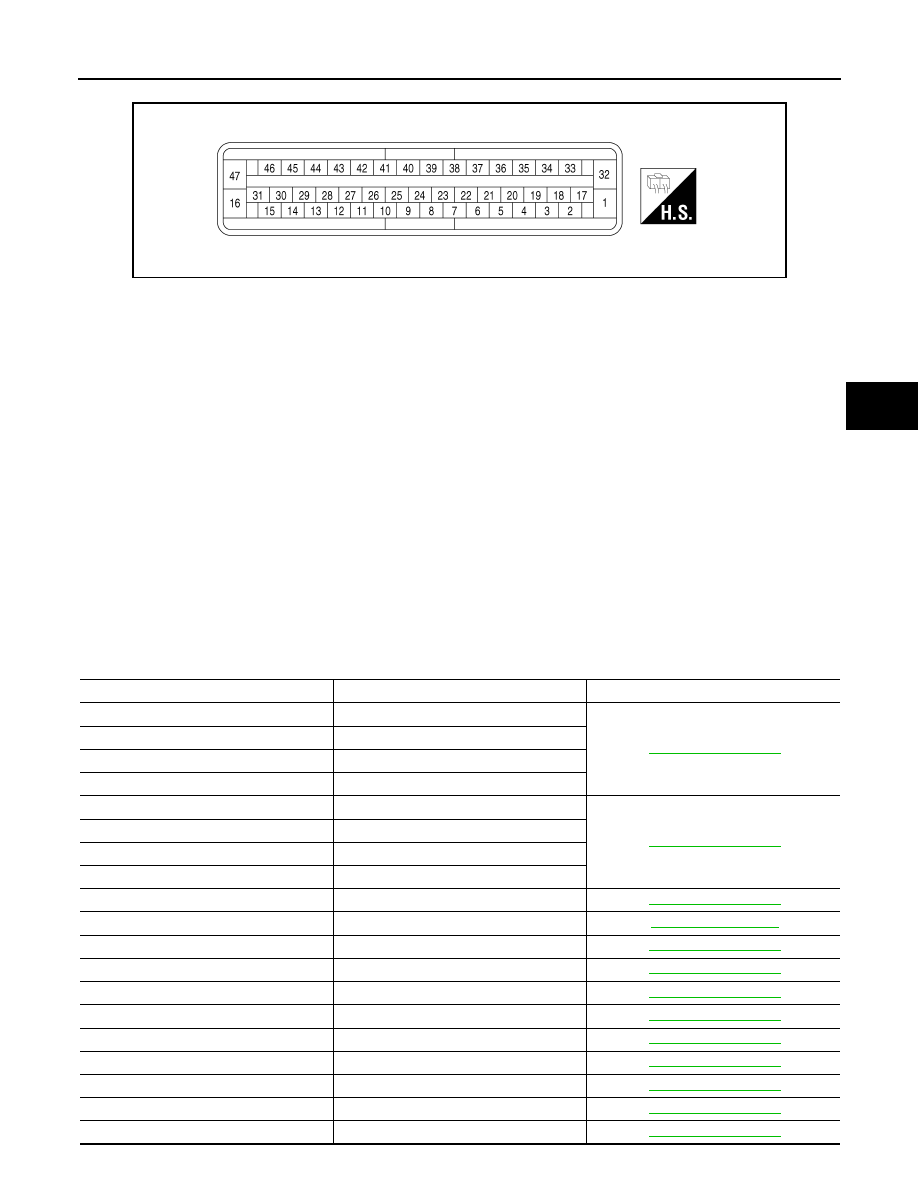

TERMINAL LAYOUT
Fail-Safe
INFOID:0000000009482863
CAUTION:
If the Fail-Safe function is activated, perform Self Diagnosis for ABS/TCS/VDC system.
ABS/EBD SYSTEM
In case of an electrical malfunction with the ABS, the ABS warning lamp and SLIP indicator lamp will turn on.
In case of an electrical malfunction with the EBD system, the BRAKE warning lamp, ABS warning lamp and
SLIP indicator lamp will turn on.
The system will revert to one of the following conditions of the Fail-Safe function.
1. For ABS malfunction, only the EBD is operative and the condition of the vehicle is the same condition of
vehicles without ABS/TCS/VDC system.
2. For EBD malfunction, the EBD and ABS become inoperative, and the condition of the vehicle is the same
as the condition of vehicles without ABS/TCS/VDC or EBD system.
VDC/TCS SYSTEM
In case of TCS/VDC system malfunction, the SLIP indicator lamp is turned on and the condition of the vehicle
is the same as the condition of vehicles without TCS/VDC system. In case of an electrical malfunction with the
TCS/VDC system, the ABS control continues to operate normally without TCS/VDC control.
DTC No. Index
INFOID:0000000009482864
AWFIA1067ZZ
DTC
Items (CONSULT screen terms)
Reference
C1101
RR RH SENSOR-1
C1102
RR LH SENSOR-1
C1103
FR RH SENSOR-1
C1104
FR LH SENSOR-1
C1105
RR RH SENSOR-2
C1106
RR LH SENSOR-2
C1107
FR RH SENSOR-2
C1108
FR LH SENSOR-2
C1109
BATTERY VOLTAGE [ABNORMAL]
C1110
CONTROLLER FAILURE
C1111
PUMP MOTOR
C1113
G-SENSOR
C1115
ABS SENSOR [ABNORMAL SIGNAL]
C1116
STOP LAMP SW
C1120
FR LH IN ABS SOL
C1121
FR LH OUT ABS SOL
C1122
FR RH IN ABS SOL
C1123
FR RH OUT ABS SOL
C1124
RR LH IN ABS SOL
