VDC OFF SWITCH

BRC-197

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

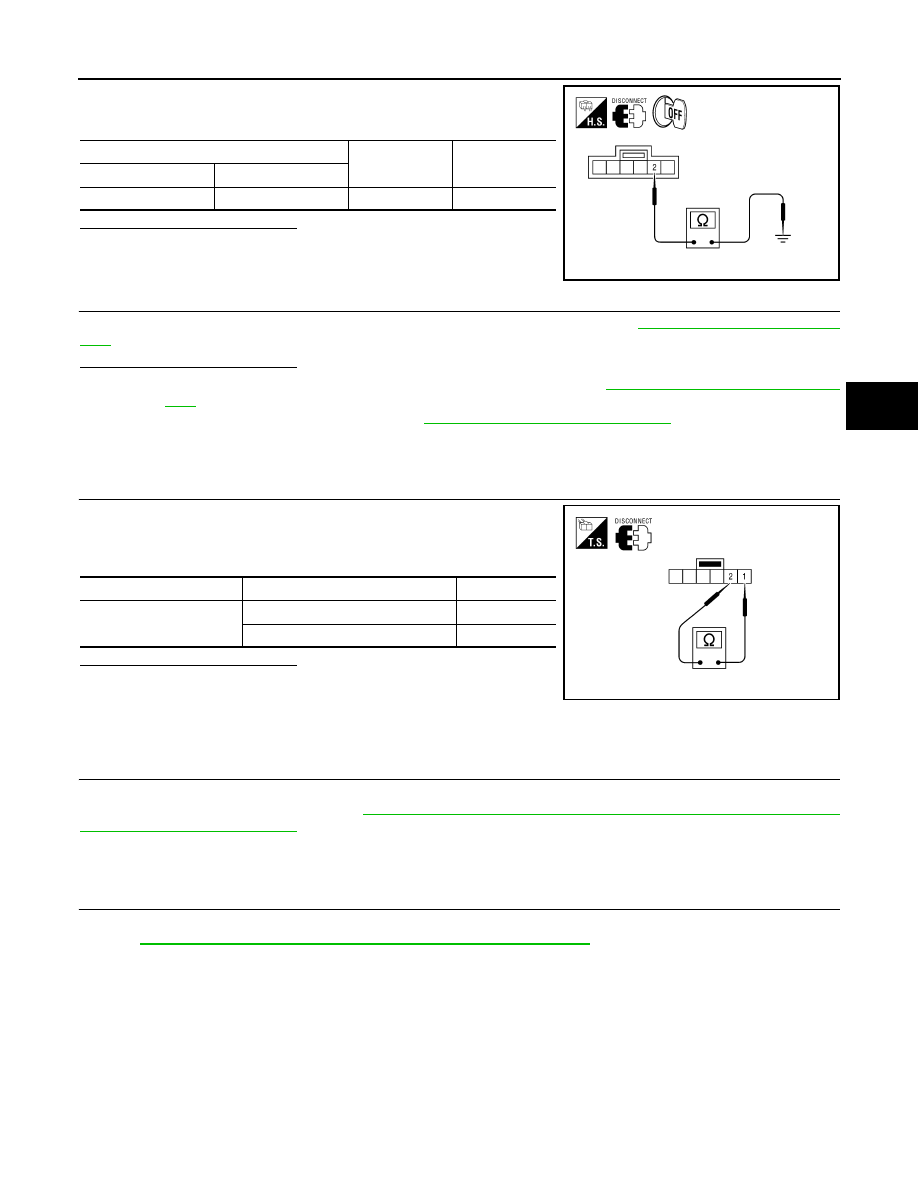

Check continuity between VDC OFF switch connector M154 and

ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

CHECK COMBINATION METER

Check if the indication and operation of combination meter are normal. Refer to

MWI-24, "Diagnosis Descrip-

tion"

.

Is the inspection result normal?

YES

>> Replace ABS actuator and electric unit (control unit). Refer to

BRC-234, "Removal and Installa-

tion"

.

NO

>> Replace combination meter. Refer to

MWI-84, "Removal and Installation"

.

Component Inspection

INFOID:0000000009482839

1.

CHECK VDC OFF SWITCH

1. Turn ignition switch OFF.

2. Disconnect VDC OFF switch connector.

3. Check continuity between VDC OFF switch terminals.

Is the inspection result normal?

YES

>> Inspection End

NO

>> Replace VDC OFF switch.

Special Repair Requirement

INFOID:0000000009482840

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator

and electric unit (control unit). Refer to

BRC-122, "ADJUSTMENT OF STEERING ANGLE SENSOR NEU-

TRAL POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).

Refer to

BRC-123, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

VDC OFF switch

—

Continuity

Connector

Terminal

M154

2

Ground

Yes

AWFIA0031ZZ

VDC OFF switch terminals

Condition

Continuity

1

− 2

VDC OFF switch is pressed.

Yes

VDC OFF switch is released.

No

AWFIA0446ZZ

BRC-198

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

ABS WARNING LAMP

ABS WARNING LAMP

Description

INFOID:0000000009482841

×: ON –: OFF

Component Function Check

INFOID:0000000009482842

1.

CHECK ABS WARNING LAMP OPERATION

Check that the lamp illuminates for approximately 2 seconds after the ignition switch is turned ON.
Is the inspection result normal?

YES

>> Inspection End

NO

>> Go to diagnosis procedure. Refer to

BRC-198, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009482843

1.

CHECK SELF-DIAGNOSIS

Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to

BRC-145, "CONSULT Function

(ABS)"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Check items displayed by self-diagnosis.

2.

CHECK COMBINATION METER

Check if the indication and operation of combination meter are normal. Refer to

MWI-24, "Diagnosis Descrip-

tion"

.

Is the inspection result normal?

YES

>> Replace ABS actuator and electric unit (control unit). Refer to

BRC-234, "Removal and Installa-

tion"

.

NO

>> Replace combination meter. Refer to

MWI-84, "Removal and Installation"

.

Special Repair Requirement

INFOID:0000000009482844

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator

and electric unit (control unit). Refer to

BRC-122, "ADJUSTMENT OF STEERING ANGLE SENSOR NEU-

TRAL POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).

Refer to

BRC-123, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

Condition

ABS warning lamp

Ignition switch OFF

–

For 2 seconds after turning ON ignition switch

×

2 seconds later after turning ON ignition switch

–

ABS function is malfunctioning.

×

EBD function is malfunctioning.

×

BRAKE WARNING LAMP

BRC-199

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

BRAKE WARNING LAMP

Description

INFOID:0000000009482845

×: ON –: OFF

NOTE:
• 1: Brake warning lamp will turn on in case of parking brake operation (when switch is ON) or of brake fluid level switch operation

(when brake fluid is insufficient).

• 2: After starting engine, brake warning lamp is turned off.

Component Function Check

INFOID:0000000009482846

1.

BRAKE WARNING LAMP OPERATION CHECK

Check that the lamp illuminates after the ignition switch is turned ON, and turns OFF after the engine is

started.
Is the inspection result normal?

YES

>> Inspection End

NO

>> Go to diagnosis procedure. Refer to

BRC-199, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009482847

1.

CHECK SELF-DIAGNOSIS

Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to

BRC-145, "CONSULT Function

(ABS)"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Check items displayed by self-diagnosis.

2.

CHECK COMBINATION METER

Check if the indication and operation of combination meter are normal. Refer to

MWI-24, "Diagnosis Descrip-

tion"

.

Is the inspection result normal?

YES

>> Replace ABS actuator and electric unit (control unit). Refer to

BRC-234, "Removal and Installa-

tion"

.

NO

>> Replace combination meter. Refer to

MWI-84, "Removal and Installation"

.

Special Repair Requirement

INFOID:0000000009482848

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator

and electric unit (control unit). Refer to

BRC-122, "ADJUSTMENT OF STEERING ANGLE SENSOR NEU-

TRAL POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).

Refer to

BRC-123, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

Condition

Brake warning lamp (Note 1)

Ignition switch OFF

–

Ignition switch ON

× (Note 2)

EBD function is malfunctioning.

×

BRC-200

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

HILL DESCENT CONTROL INDICATOR LAMP

HILL DESCENT CONTROL INDICATOR LAMP

Description

INFOID:0000000009482849

×: ON –: OFF

Component Function Check

INFOID:0000000009482850

1.

CHECK HILL DESCENT CONTROL INDICATOR LAMP OPERATION

Check that the lamp illuminates for approximately 2 seconds after the ignition switch is turned ON.
Is the inspection result normal?

YES

>> Inspection End

NO

>> Go to diagnosis procedure. Refer to

BRC-200, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009482851

1.

CHECK SELF-DIAGNOSIS

Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to

BRC-145, "CONSULT Function

(ABS)"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Check items displayed by self-diagnosis.

2.

CHECK COMBINATION METER

Check if the indication and operation of combination meter are normal. Refer to

MWI-24, "Diagnosis Descrip-

tion"

.

Is the inspection result normal?

YES

>> Replace ABS actuator and electric unit (control unit). Refer to

BRC-234, "Removal and Installa-

tion"

.

NO

>> Replace combination meter. Refer to

MWI-84, "Removal and Installation"

.

Special Repair Requirement

INFOID:0000000009482852

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator

and electric unit (control unit). Refer to

BRC-122, "ADJUSTMENT OF STEERING ANGLE SENSOR NEU-

TRAL POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).

Refer to

BRC-123, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

Condition

Hill descent control indicator lamp

Ignition switch OFF

–

For 2 seconds after turning ON ignition switch

×

2 seconds later after turning ON ignition switch

–

Hill descent control function is malfunctioning.

–
