Nissan Xterra. Manual - part 120

TCS

BRC-137

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

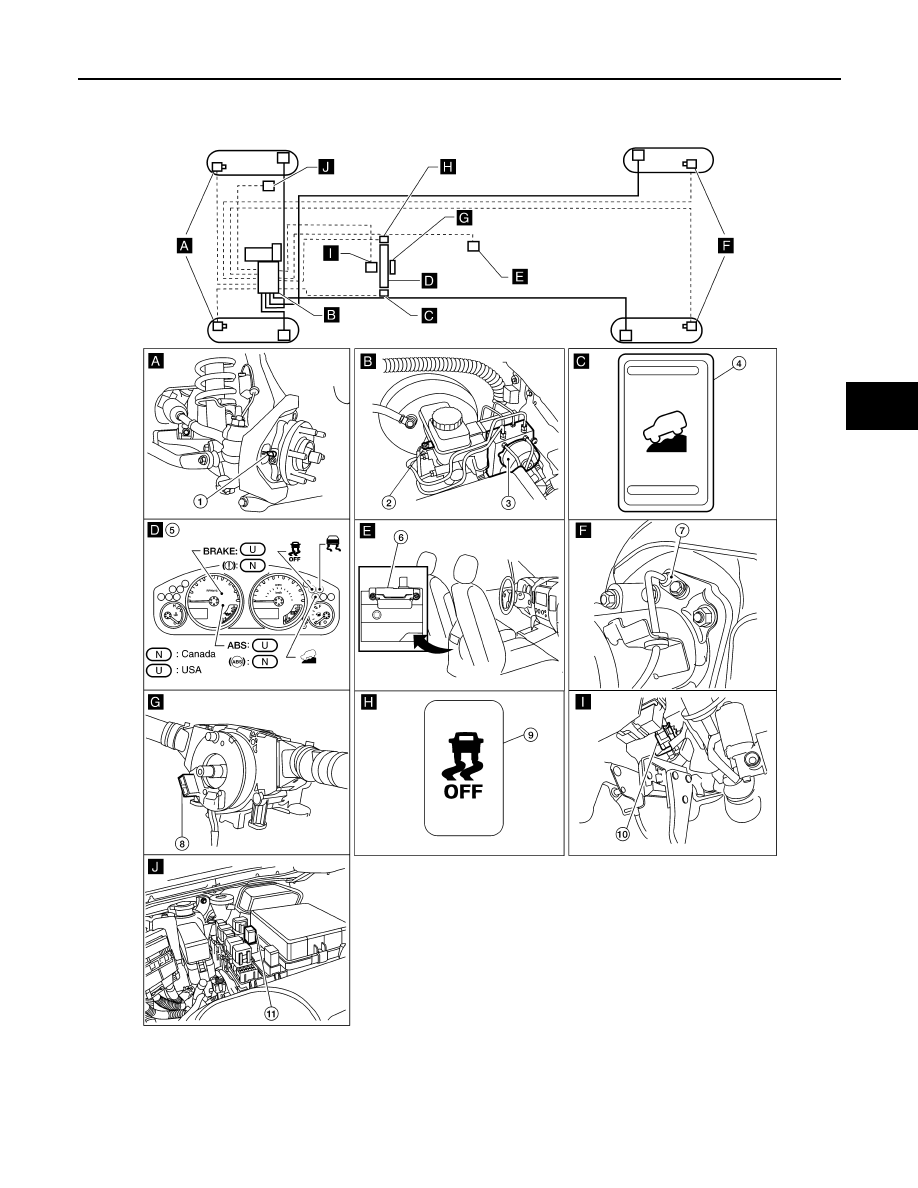

Component Parts Location

INFOID:0000000009482735

AWFIA0989GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Brake fluid level switch E21

3.

ABS actuator and electric unit (control unit)
E125

4.

Hill descent control switch M155 5.

Combination meter M24

6.

Yaw rate/side/decel G sensor B73

BRC-138

< SYSTEM DESCRIPTION >

[TYPE 2]

TCS

Component Description

INFOID:0000000009482736

7.

Rear wheel sensor LH C11
Rear wheel sensor RH C10

8.

Steering angle sensor (behind spiral ca-
ble) M47
(Steering wheel removed for clarity)

9.

VDC OFF switch M154

10. Stop lamp switch E39

11.

Stop lamp relay E12

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-162, "Description"

Motor

Actuator relay

BRC-178, "Description"

Solenoid valve

BRC-171, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-189, "Description"

Wheel sensor

BRC-151, "Description"

Yaw rate/side/decel G sensor

BRC-164, "Description"

Stop lamp switch

BRC-169, "Description"

Steering angle sensor

BRC-180, "Description"

Brake fluid level switch

BRC-183, "Description"

Hill descent control switch

BRC-194, "Description"

VDC OFF switch

BRC-196, "Description"

ABS warning lamp

BRC-198, "Description"

Brake warning lamp

BRC-199, "Description"

Hill descent control indicator lamp

BRC-200, "Description"

VDC OFF indicator lamp

BRC-201, "Description"

SLIP indicator lamp

BRC-203, "Description"

ABS

BRC-139

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABS

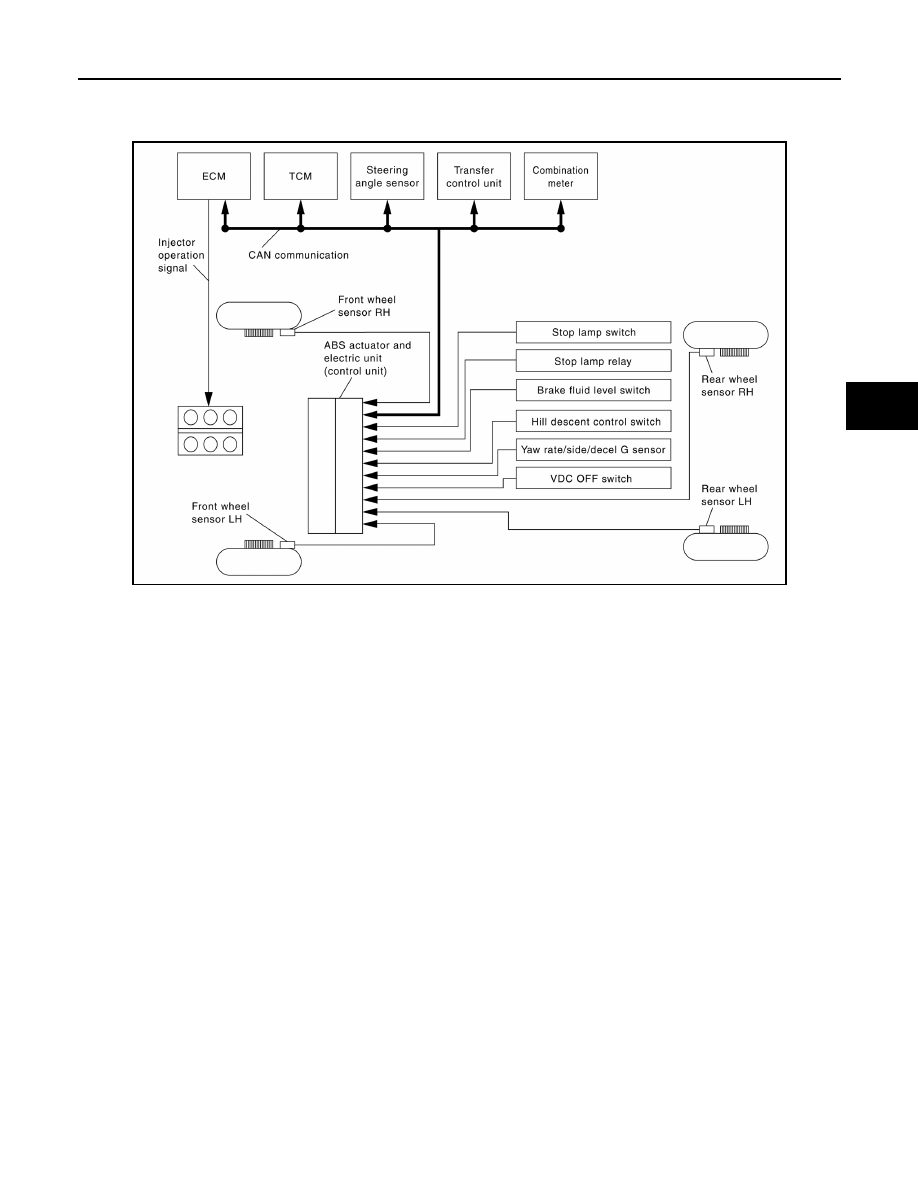

System Diagram

INFOID:0000000009482737

System Description

INFOID:0000000009482738

• Anti-Lock Braking System is a function that detects wheel revolution while braking, electronically controls

braking force, and prevents wheel locking during sudden braking. It improves handling stability and maneu-

verability for avoiding obstacles.

• Electrical system diagnosis by CONSULT is available.

AWFIA0680GB

BRC-140

< SYSTEM DESCRIPTION >

[TYPE 2]

ABS

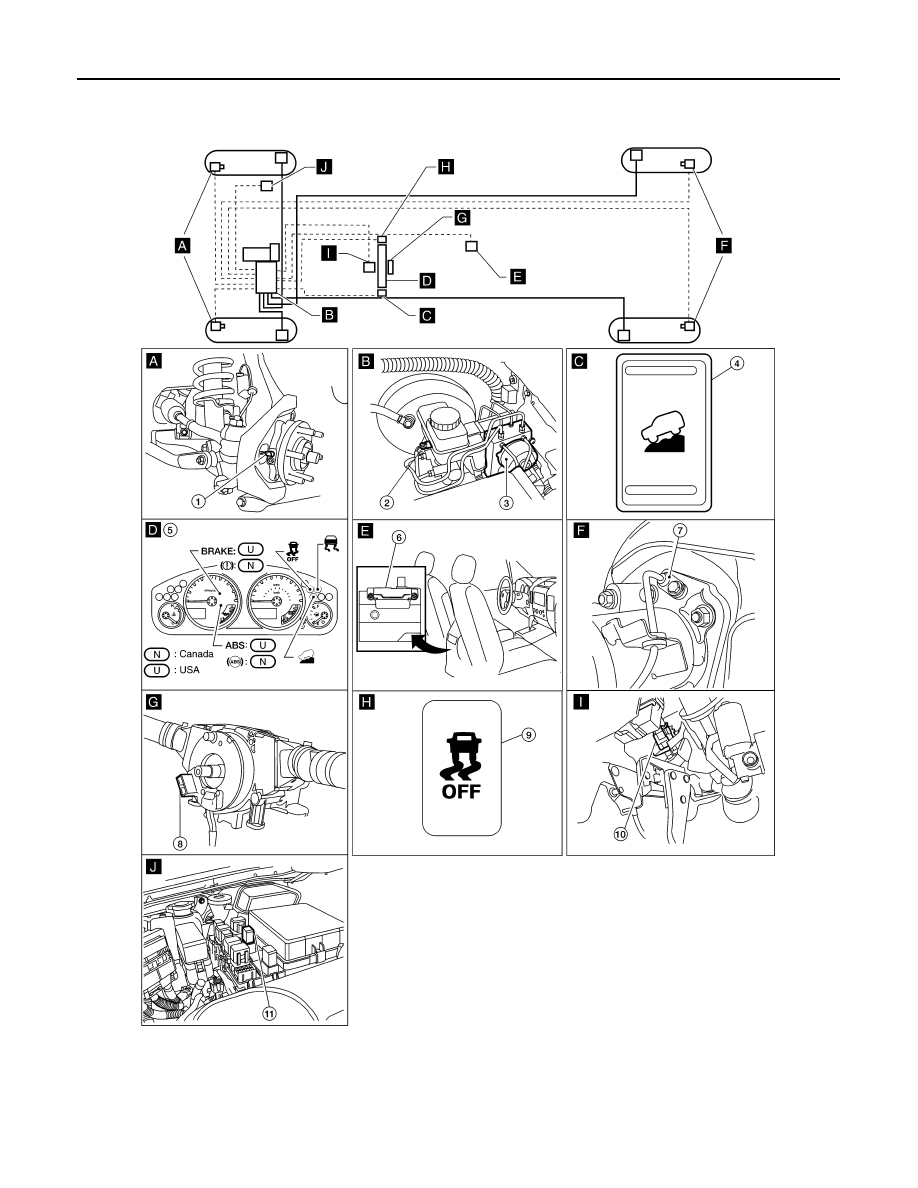

Component Parts Location

INFOID:0000000009482739

AWFIA0989GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Brake fluid level switch E21

3.

ABS actuator and electric unit (control unit)
E125

4.

Hill descent control switch M155 5.

Combination meter M24

6.

Yaw rate/side/decel G sensor B73
