DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009485268

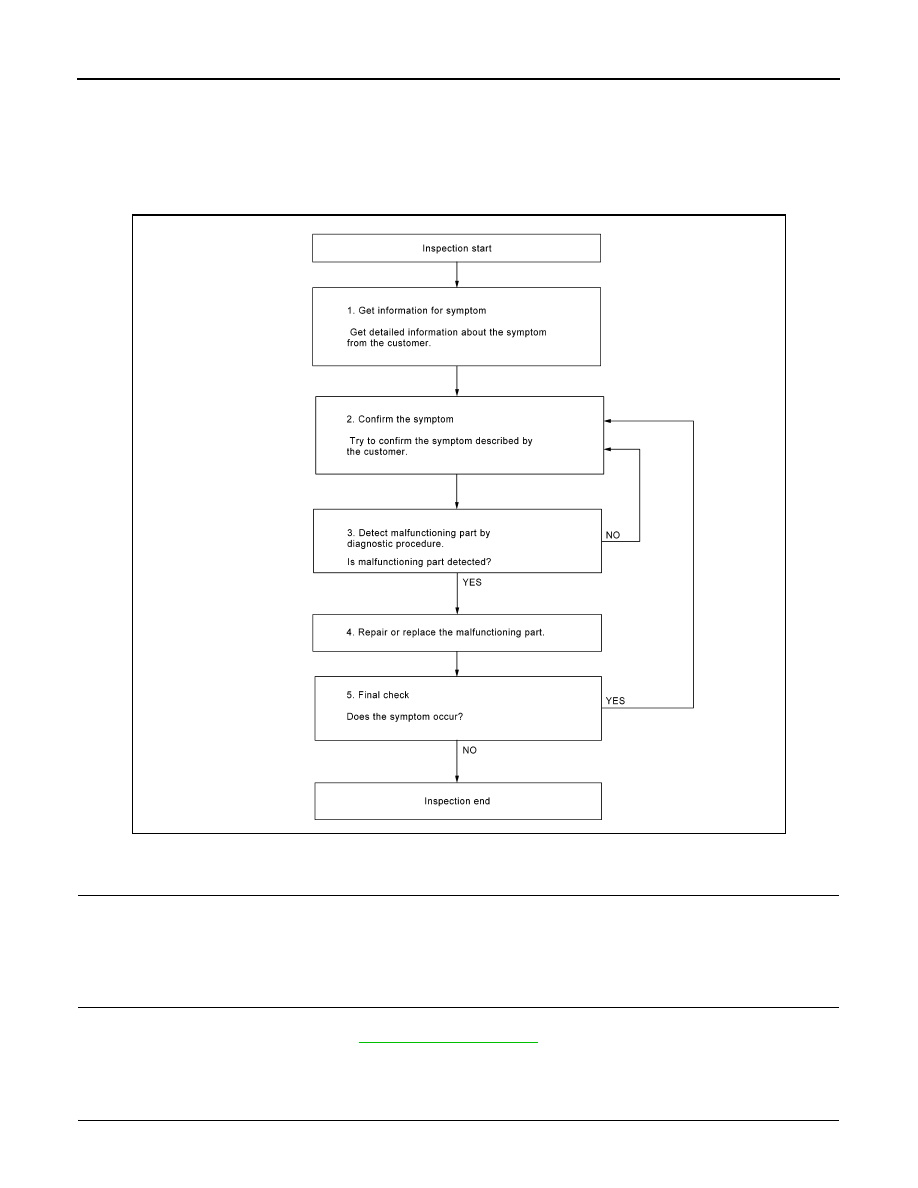

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected. Refer to

AV-201, "Symptom Table"

.

>> GO TO 3

3.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

AWNIA2404GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-153

< BASIC INSPECTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is malfunctioning part detected?

YES

>> GO TO 4

NO

>> GO TO 2

4.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 5

5.

FINAL CHECK

Refer to confirmed symptom in step 2, and make sure that the symptom is not detected.
Was the repair confirmed?

YES

>> Inspection End.

NO

>> GO TO 2

AV-154

< BASIC INSPECTION >

[NAVIGATION]

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT : Description

INFOID:0000000009485269

BEFORE REPLACEMENT

When replacing AV control unit, save or print current vehicle specification with CONSULT configuration before

replacement.

NOTE:

If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-

ing AV control unit.

AFTER REPLACEMENT

CAUTION:

When replacing AV control unit, you must perform “After Replace ECU” with CONSULT.

• Complete the procedure of “After Replace ECU” in order.

• If you set incorrect “After Replace ECU”, incidents might occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT : Work Procedure

INFOID:0000000009485270

1.

SAVING VEHICLE SPECIFICATION

-CONSULT

Enter “Re/Programming, Configuration” and perform “Before Replace ECU” to save or print current vehicle

specification.

NOTE:

If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-

ing AV control unit.

>> GO TO 2.

2.

REPLACE AV CONTROL UNIT

Replace AV control unit. Refer to

AV-218, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT

1. Enter "Re/Programming, Configuration".

2. If “Before Replace ECU” operation was performed, automatically an "Operation Log Selection" screen will

be displayed. Select the applicable file from the "Saved Data List" and press “Confirm” to write vehicle

specification. Refer to

AV-155, "CONFIGURATION (AV CONTROL UNIT) : Work Procedure"

.

3. If “Before Replace ECU” operation was not performed, select "After Replace ECU" or "Manual Configura-

tion" to write vehicle specification. Refer to

AV-155, "CONFIGURATION (AV CONTROL UNIT) : Work Pro-

cedure"

.

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines) are normal.

>> Work End.

CONFIGURATION (AV CONTROL UNIT)

AV

INSPECTION AND ADJUSTMENT

AV-155

< BASIC INSPECTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CONFIGURATION (AV CONTROL UNIT) : Description

INFOID:0000000009485271

Vehicle specification needs to be written with CONSULT because it is not written after replacing AV control

unit.

Configuration has three functions as follows:

CAUTION:

• When replacing AV control unit, you must perform “Select Saved Data List” or "After Replace ECU"

with CONSULT.

• Complete the procedure of “Select Saved Data List” or "After Replace ECU" in order.

• If you set incorrect “Select Saved Data List” or "After Replace ECU", incidents might occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

• Never perform “Select Saved Data List” or "After Replace ECU" except for new AV control unit.

CONFIGURATION (AV CONTROL UNIT) : Work Procedure

INFOID:0000000009485272

1.

WRITING MODE SELECTION

CONSULT

Select “Reprogramming, Configuration” of AV control unit.

When writing saved data>>GO TO 2.

When writing manually>>GO TO 3.

2.

PERFORM “SAVED DATA LIST”

CONSULT

Automatically “Operation Log Selection” window will display if “Before Replace ECU” was performed. Select

applicable file from the “Save Data List” and press “Confirm”.

>> Work End.

3.

PERFORM “AFTER REPLACE ECU” OR “MANUAL CONFIGURATION”

CONSULT

1. Select “After Replace ECU” or “Manual Configuration”.

2. Identify the correct model and configuration list. Refer to

AV-156, "CONFIGURATION (AV CONTROL

UNIT) : Configuration List"

.

3. Confirm and/or change setting value for each item.

CAUTION:

Thoroughly read and understand the vehicle specification. ECU control may not operate normally

if the setting is not correct.

4. Select “Next”.

CAUTION:

Make sure to select “Next”, confirm each setting value and press “OK” even if the indicated con-

figuration of brand new AV control unit is same as the desirable configuration. If not, configuration

which is set automatically by selecting vehicle model can not be memorized.

5. When "Completed", select "End".

>> GO TO 4.

4.

OPERATION CHECK

Confirm that each function controlled by AV control unit operates normally.

Function

Description

"Before Replace ECU"

• Reads the vehicle configuration of current AV control unit.
• Saves the read vehicle configuration.

"After Replace ECU"

Writes the vehicle configuration with manual selection.

"Select Saved Data List"

Writes the vehicle configuration with saved data.
