AUDIO UNIT

REMOVAL AND INSTALLATION

AUDIO UNIT

Removal and Installation

INFOID:0000000010247133

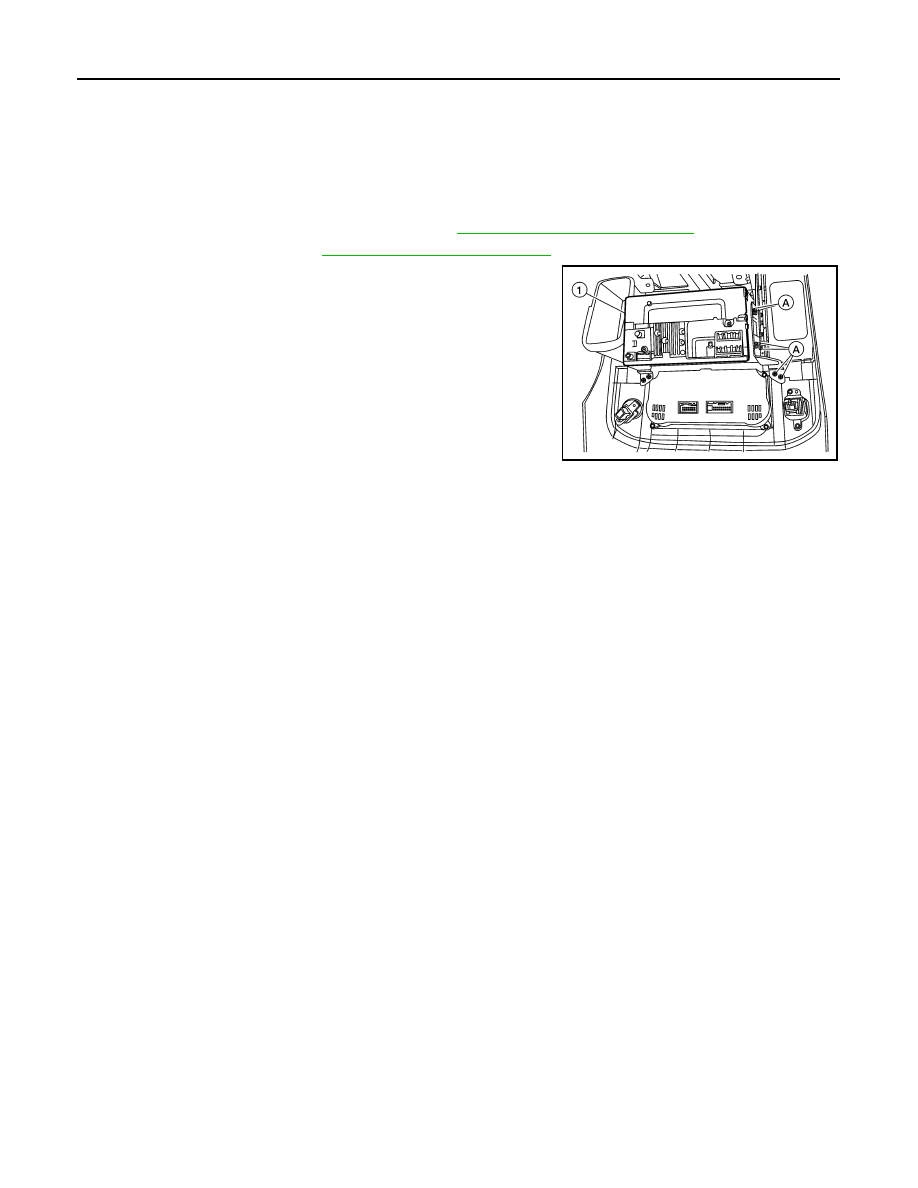

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-72, "Removal and Installation"

.

2. Remove cluster lid C. Refer to

IP-15, "Removal and Installation"

.

3. Remove the screws (A) from the bracket.
4. Remove the audio unit (1) from cluster lid C.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA2930ZZ

AV

FRONT TWEETER

AV-49

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT TWEETER

Removal and Installation

INFOID:0000000010247134

REMOVAL

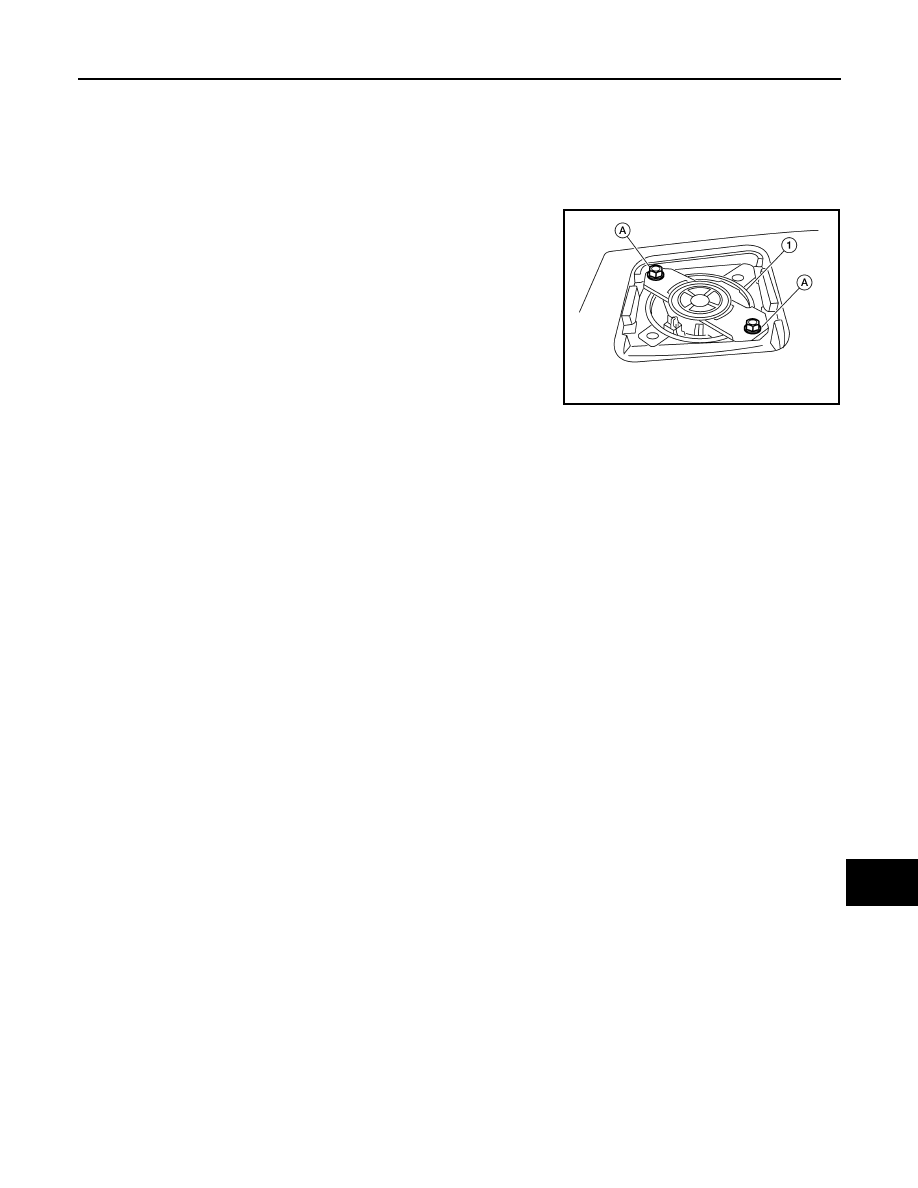

1. Remove the front tweeter grille.
2. Remove the front tweeter screws (A).
3. Pull out the front tweeter (1), then disconnect the harness con-

nector from the front tweeter and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1074ZZ

AV-50

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000010247135

REMOVAL

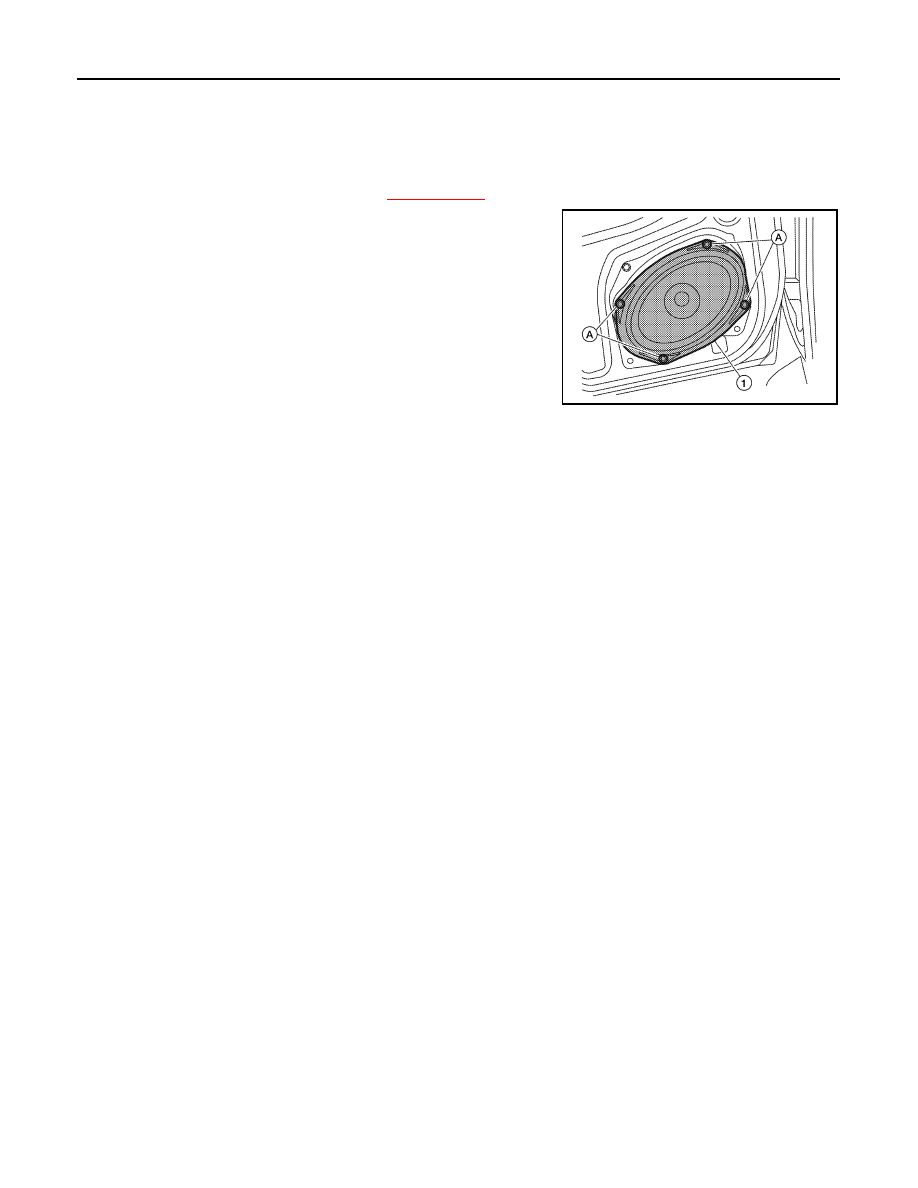

1. Remove the front door finisher. Refer to

XX-XX, "*****"

.

2. Remove the front door speaker screws (A).
3. Pull out the front door speaker (1).
4. Disconnect the harness connector from the front door speaker

(1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ

AV

REAR DOOR SPEAKER

AV-51

< REMOVAL AND INSTALLATION >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000010247136

REMOVAL

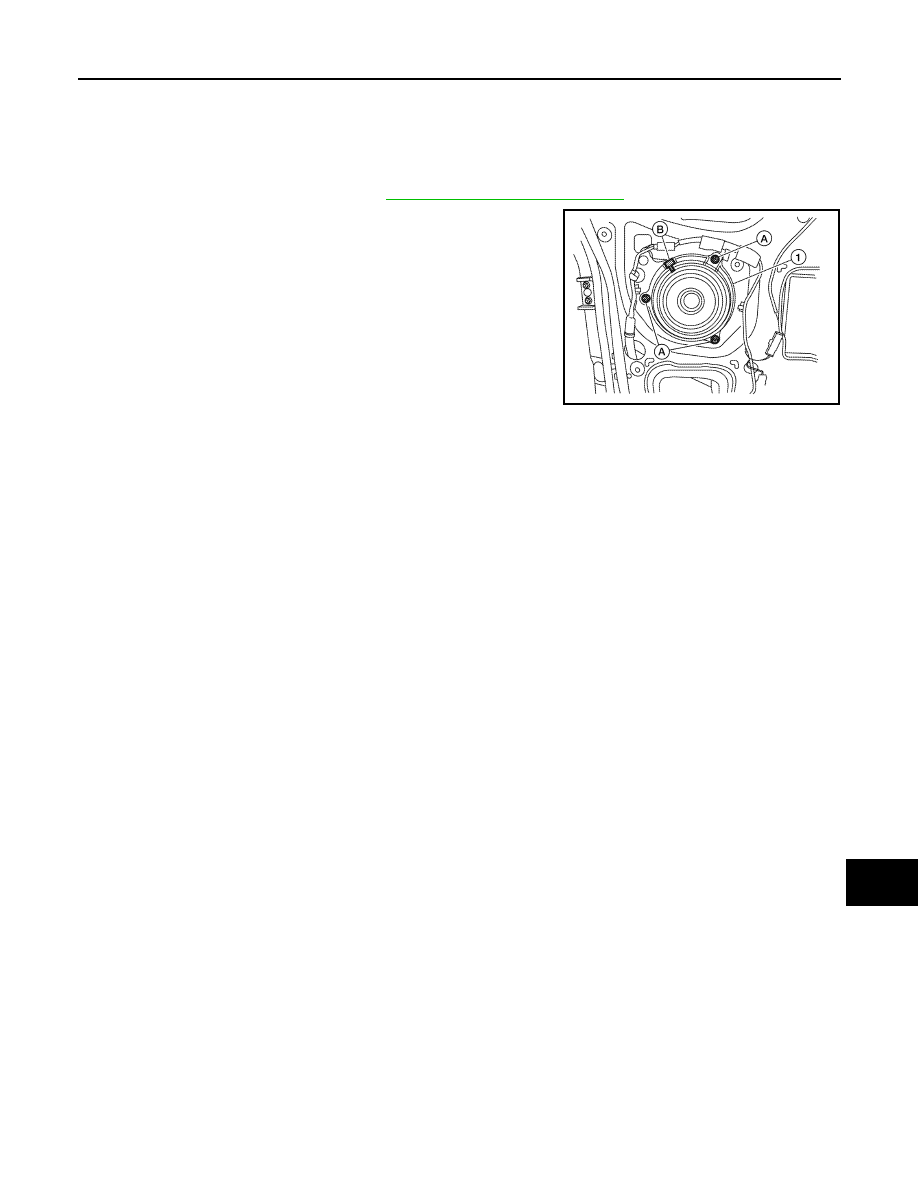

1. Remove the rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2. Remove the rear door speaker screws (A).
3. Disconnect the harness connector (B) from the rear door

speaker (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1071ZZ
