Nissan PULSAR N13 Series / ASTRA LD Series. Manual - part 55





Electrical System



221





Wiring diagram (WD3) for the fan switch, blower, air conditioning, rear demister and power



window circuits.



COLOUR CODE

The first letter of tha code

represents the main wire color,
the other letters represent the
trace colours.

B   -  BLACK
L    -  BLUE
G   - GREEN
R   - BED
Y - YELLOW
W - WHITE
N   - BROWN
0   - ORANGE
K   - PINK

S   - GREY

V - VIOLET
P   - PURPLE

X   - LIGHT GREEN
Z    - LIGHT BLUE
M  - DARK GREEN
T   - DARK BLUE
A   - LIGHT BROWN
E    - SLATE
D   - TAN

KEY

1. Blower fan motor
2. To No. 11 WD5
3. Resistors
4. Blower fan switch
5. To ECU C2
6. Air conditioning switch
7. Thermo amplifier
8. Pressure switch
9. Air conditioning relay

No. 2

10. Compressor
11. Air conditioning relay

No. 1

12. To ECU B8
13. Air conditioning relav

No. 3

14. Condenser fan
15. Cooling Ian relay
16. Fuse 22 BATT
17.  Fuse 10 Ignition
18. To ECU C1

19. Rear demister switch

20. Cooling fan motor
21. Rear demister
22. Rear demister warning

lamp


23. Power window relay
24. Circuit breaker
25. R H front power

window motor

26. Power window

amplifier

27. R H front power

window switch

28. Door lock switch
29. Main power window

switch

30. L H front power

window switch

31. R H rear power

window switch

32. L H rear power window

switch

33. L H front power

window motor

34. R H rear power

window motor

35. L H rear power window

motor

222



Electrical System





Wiring diagram (WD4) for the horn, audio, front wiper/washer and rear wiper/washer circuits.



COLOUR CODE



The first letter of the code

represents the main wire color.
the other letters represent the
trace colors.



B   - BLACK
L    - BLUE
G   - GREEN
R   - RED



Y - YELLOW
W - WHITE
N   - BROWN
O   - ORANGE
K    - PINK



S   - GREY



V - VIOLET
P   - PURPLE



X   - LIGHT GREEN
Z    - LIGHT BLUE
M  - DARK GREEN
T   - DARK BLUE
A   - LIGHT BROWN
E    - SLATE
D   - TAN



KEY



1. Fuse No. 18 Batt
2. Horn relay
3. Horn switch
4. Horn
5. Stop lamp switch
6. L H stop lamp
7. R H stop lamp
8. To No. 28 WD2
9. To No. 14 WD6

10. To No. 8 WD1
11. Radio cassette and clock
12. L H front speaker
13. L H rear speaker

14. R H front speaker
15. R H rear speaker
16. Fuse No. 19 Batt
17. Fuse No. 20 Batt
18. Fuse No. 6 ACC
19. Rear washer motor
20. Rear wiper/washer

motor

21. Rear wiper motor
22. Fuse No. 7 ACC
23. Front wiper motor
24. Front washer motor
25. Intermittent wiper relay
26. Front wiper/washer

switch

27. Variable intermittent

switch

Electrical System



223

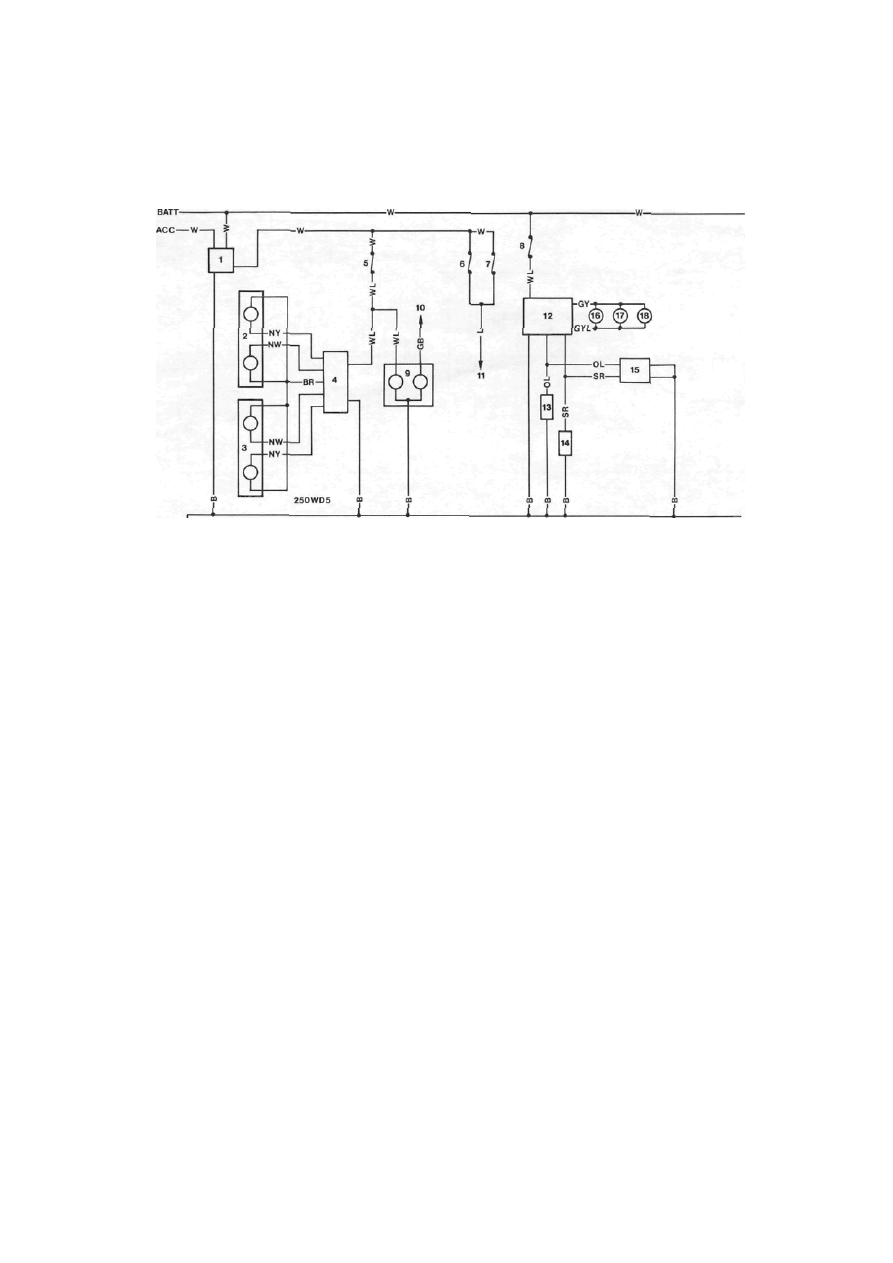

Wiring diagram (WD5) for the mirrors, cigarette lighter and door lock circuits.



COLOUR CODE



The first letter of the code

represents the main wire color,
the other letters represent the
trace colors.



B    - BLACK
L    - BLUE
G   - GREEN
R   - RED



Y - YELLOW
W - WHITE
N   - BROWN
O   - ORANGE
K   - PINK



S   - GREY



V - VIOLET
P   - PURPLE



X   - LIGHT GREEN
Z   - LIGHT BLUE
M  - DARK GREEN
T   - DARK BLUE
A  - LIGHT BROWN
E    - SLATE
D   - TAN



KEY



1. Accessories relay
2. R H power mirror



3. L H power mirror
4. Power mirror switch
5. Fuse No. 3 ACC
6. Fuse No. 4 ACC
7. Fuse No. 5 ACC
8. Fuse No  21  B
9. Cigarette lighter

10. To No. 13 WD6
11. To No. 2 WD3
12.  Door lock timer
13.  Front door lock switch



14.  Key lock switch
15.  Door lock switch
16.  L H front door lock

solenoid

17.  R H rear door lock

solenoid

18.  L H rear door lock

solenoid

224



Electrical System





Wiring diagram (WD6) for the lighting systems.



COLOUR CODE



The first letter of the code

represents the main wire color,
the other letters represent the
trace colors.



B    - BLACK
L    - BLUE
G   - GREEN
R   - RED



V - YELLOW
W - WHITE
N   - BROWN
O   - ORANGE
K    - PINK



S   - GREY



V -

VIOLET

P   - PURPLE



X   - LIGHT GREEN
Z    - LIGHT BLUE
M  - DARK GREEN
T   - DARK BLUE
A   - LIGHT BROWN
E    - SLATE
D   - TAN



KEY



1. Fuse No. 17 Batt
2. Fuse No. 13 Batt
3. Fuse No. 14 Batt
4. Combination lamp

switch

5. RH headlamp
5A. RH high beam



6. LH headlamp
6A. LH high beam



7. L H front clearance

lamp

8. R H front clearance

lamp

9. LH tail lamp



10. R H tail lamp

11. Licence plate lamp
12. Automatic transaxle

indicator lamp

13. To No. 10 WD5
14. To No. 9 WD4
15. Illumination control
16. Combination meter
17. To No. 30 WD2
18. To No. 29 WD2
19. Interior lamp timer
20. Interior lamp switch
21. R H rear door switch
22. L H rear door switch
23. L H front door switch
24. R H front door

switch

25. Luggage compart-

ment lamp

26. Luggage compart-

ment switch
