CONTENTS

WIPER & WASHER

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution for Procedure without Cowl Top Cover

......

3

SYSTEM DESCRIPTION  ..............................

4

COMPONENT PARTS  ........................................

4

Component Parts Location ........................................

4

Component Description ............................................

4

Washer Switch  ..........................................................

5

SYSTEM ..............................................................

6

FRONT WIPER AND WASHER SYSTEM ...................

6

FRONT WIPER AND WASHER SYSTEM : Sys-
tem Diagram ............................................................
..

6

FRONT WIPER AND WASHER SYSTEM : Sys-
tem Description  .......................................................
..

6

FRONT WIPER AND WASHER SYSTEM : Fail-
Safe .........................................................................
..

8

REAR WIPER AND WASHER SYSTEM .....................

9

REAR WIPER AND WASHER SYSTEM : System
Diagram ...................................................................
..

9

REAR WIPER AND WASHER SYSTEM : System
Description ..............................................................
..

9

REAR WIPER AND WASHER SYSTEM : Fail-
safe .........................................................................

11

DIAGNOSIS SYSTEM (BCM) (WITH INTELLI-
GENT KEY SYSTEM) .........................................

12

COMMON ITEM  .........................................................

12

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................

12

WIPER .......................................................................

13

WIPER : CONSULT-III Function (BCM - WIPER) ....

13

DIAGNOSIS SYSTEM (BCM) (WITHOUT IN-
TELLIGENT KEY SYSTEM)  .............................

15

COMMON ITEM  .........................................................

15

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM)  .....................................................

15

WIPER ........................................................................

15

WIPER : CONSULT-III Function (BCM - WIPER) ....

16

DIAGNOSIS SYSTEM (IPDM E/R)  ...................

18

WITH INTELLIGENT KEY  .........................................

18

WITH INTELLIGENT KEY : Diagnosis Description

....

18

WITH INTELLIGENT KEY : CONSULT-III Func-
tion (IPDM E/R)  .......................................................

20

WITHOUT INTELLIGENT KEY  ..................................

21

WITHOUT INTELLIGENT KEY : Diagnosis De-
scription ...................................................................

21

WITHOUT INTELLIGENT KEY : CONSULT-III
Function (IPDM E/R)  ...............................................

24

ECU DIAGNOSIS INFORMATION ..............

26

BCM, IPDM E/R .................................................

26

WITH INTELLIGENT KEY  .........................................

26

WITH INTELLIGENT KEY : List of ECU Reference

....

26

WITHOUT INTELLIGENT KEY  ..................................

26

WITHOUT INTELLIGENT KEY : List of ECU Ref-
erence ......................................................................

26

WIRING DIAGRAM  ......................................

27

WIPER AND WASHER SYSTEM  .....................

27

Wiring Diagram - for The Middle East -  ...................

27

BASIC INSPECTION  ...................................

31

DIAGNOSIS AND REPAIR WORKFLOW  ........

31

WW-2

Work Flow ...............................................................

31

DTC/CIRCUIT DIAGNOSIS .........................

33

WIPER AND WASHER FUSE  ...........................

33

Diagnosis Procedure  ..............................................

33

FRONT WIPER MOTOR LO CIRCUIT  ..............

34

Component Function Check  ...................................

34

Diagnosis Procedure  ..............................................

34

FRONT WIPER MOTOR HI CIRCUIT ................

35

Component Function Check  ...................................

35

Diagnosis Procedure  ..............................................

35

FRONT WIPER AUTO STOP SIGNAL CIR-
CUIT ...................................................................

36

Component Function Check  ...................................

36

Diagnosis Procedure  ..............................................

36

FRONT WIPER MOTOR GROUND CIRCUIT ...

37

Diagnosis Procedure  ..............................................

37

WASHER SWITCH  ............................................

38

Component Inspection ............................................

38

REAR WIPER MOTOR CIRCUIT  ......................

39

Component Function Check  ...................................

39

Diagnosis Procedure  ..............................................

39

REAR WIPER AUTO STOP SIGNAL CIRCUIT

...

41

Component Function Check  ...................................

41

Diagnosis Procedure  ..............................................

41

SYMPTOM DIAGNOSIS  .............................

42

WIPER AND WASHER SYSTEM SYMPTOMS

...

42

Symptom Table  ......................................................

42

NORMAL OPERATING CONDITION  ................

44

Description ..............................................................

44

FRONT WIPER DOES NOT OPERATE  ............

45

Description ..............................................................

45

Diagnosis Procedure ...............................................

45

REMOVAL AND INSTALLATION ..............

47

WASHER TANK  ................................................

47

Exploded View  ........................................................

47

Removal and Installation .........................................

47

WASHER PUMP ................................................

48

Exploded View  ........................................................

48

Removal and Installation .........................................

48

FRONT WASHER NOZZLE AND TUBE  ...........

49

Exploded View  ........................................................

49

Hydraulic Layout  .....................................................

49

Removal and Installation .........................................

49

Inspection and Adjustment ......................................

50

FRONT WIPER ARM  .........................................

52

Exploded View  ........................................................

52

Removal and Installation .........................................

52

Adjustment ..............................................................

52

FRONT WIPER DRIVE ASSEMBLY  .................

54

Exploded View  ........................................................

54

Removal and Installation .........................................

54

Disassembly and Assembly  ....................................

55

WIPER AND WASHER SWITCH  ......................

56

Exploded View  ........................................................

56

REAR WIPER ARM  ...........................................

57

Exploded View  ........................................................

57

Removal and Installation .........................................

57

Adjustment ..............................................................

57

REAR WIPER MOTOR ......................................

59

Exploded View  ........................................................

59

Removal and Installation .........................................

59

REAR WASHER NOZZLE AND TUBE  .............

60

Hydraulic Layout  .....................................................

60

Removal and Installation .........................................

60

Inspection and Adjustment ......................................

61

PRECAUTIONS

WW-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006025155

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

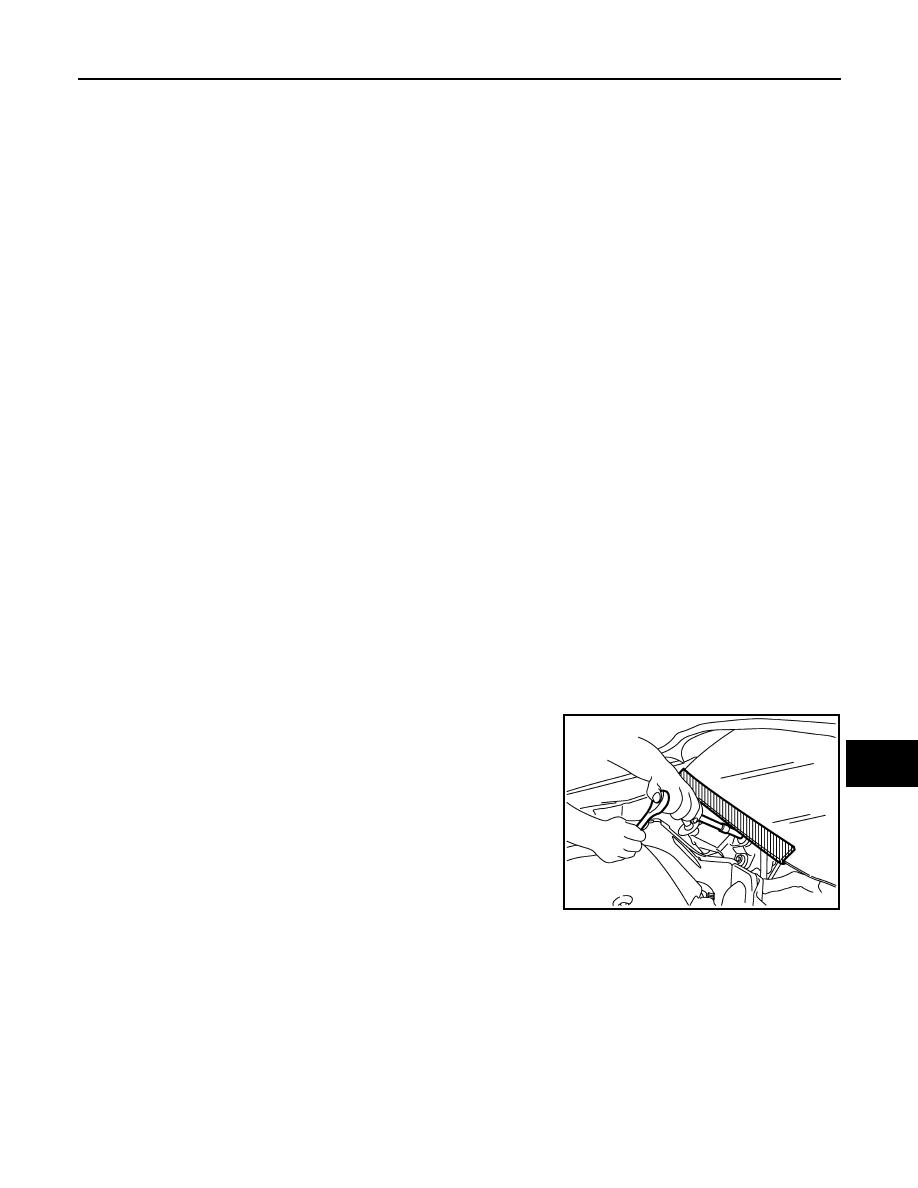

Precaution for Procedure without Cowl Top Cover

INFOID:0000000006025156

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

PIIB3706J

WW-4

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

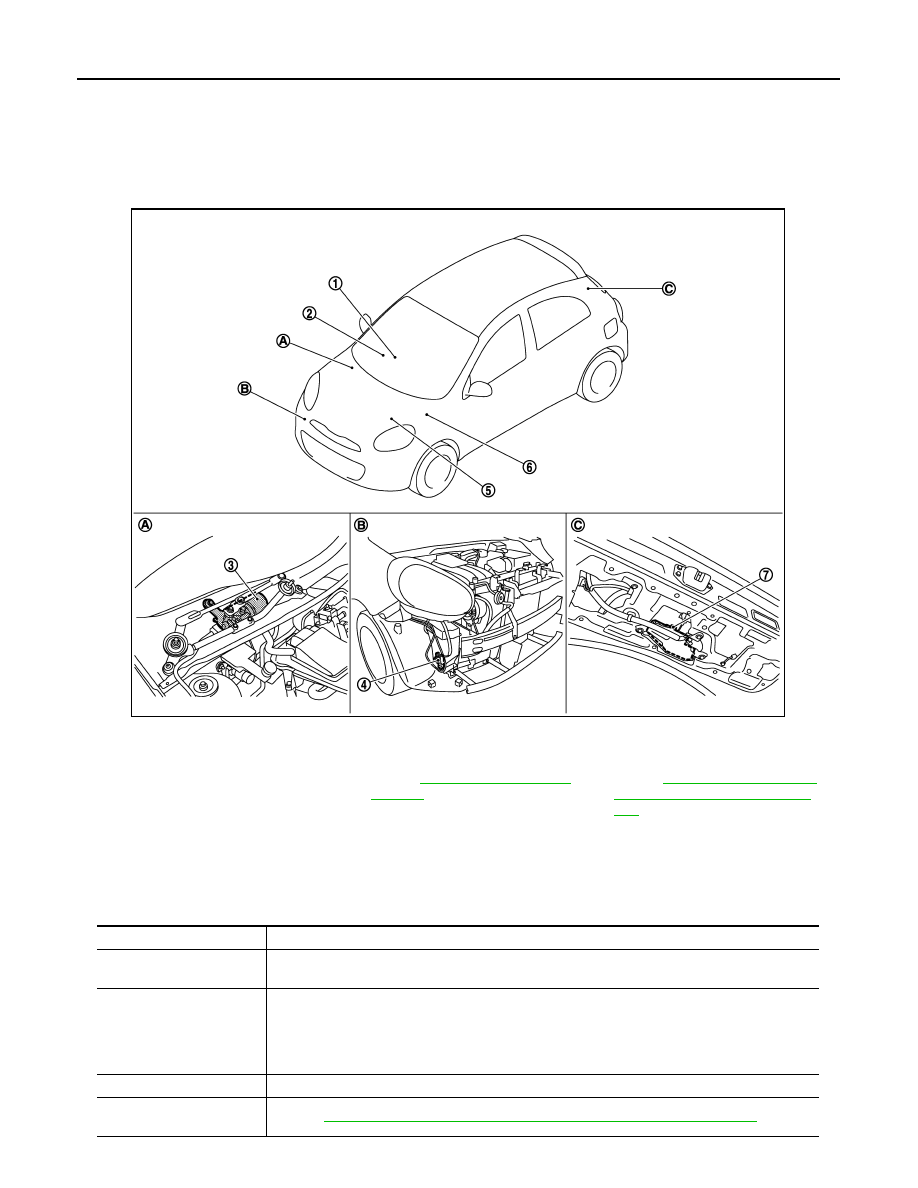

Component Parts Location

INFOID:0000000006025157

Component Description

INFOID:0000000006025158

1.

Combination switch

2.

Combination meter

3.

Front wiper motor

4.

Washer pump

5.

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

6.

BCM
Refer to

BCS-5, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

7.

Rear wiper motor

A.

Cowl top, right side of engine room

B.

Behind front bumper (RH)

C.

Back door finisher inside

JMLIA0969ZZ

Part

Description

IPDM E/R

• Controls the integrated relay according to the request (via CAN communication) from BCM.
• Performs the auto stop control of the front wiper.

BCM

• Judges the each switch status by the combination switch reading function.
• Requests (via CAN communication) the front wiper relay and the front wiper high relay ON to

IPDM E/R.

• Supplies power to the rear wiper motor.
• Performs the auto stop control of the rear wiper.

Combination meter

Transmits the vehicle speed signal to BCM via CAN communication.

Combination switch
(Wiper & washer switch)

Refer to

BCS-9, "COMBINATION SWITCH READING SYSTEM : System Description"

.















Content   ..  669  670  671  672   ..
